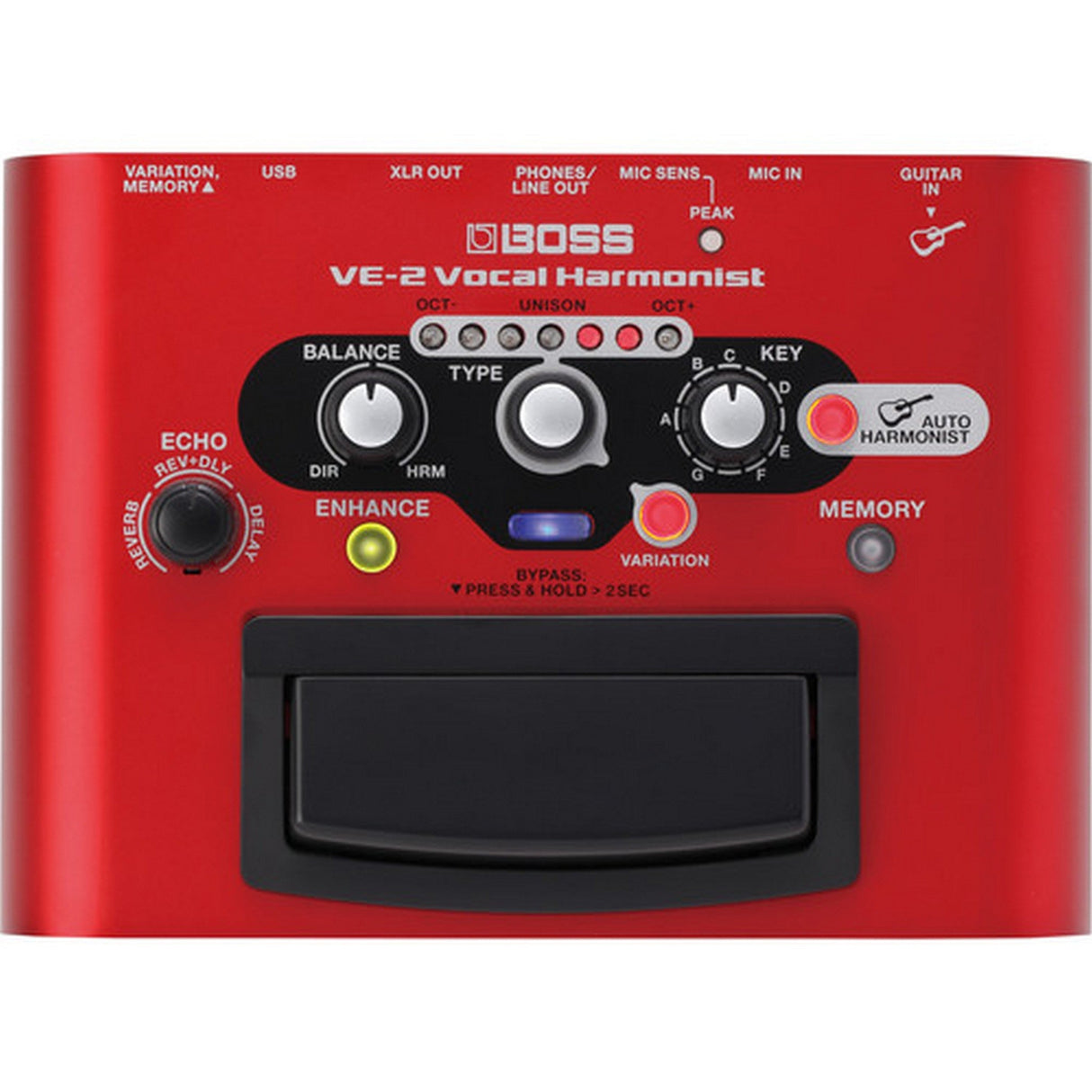

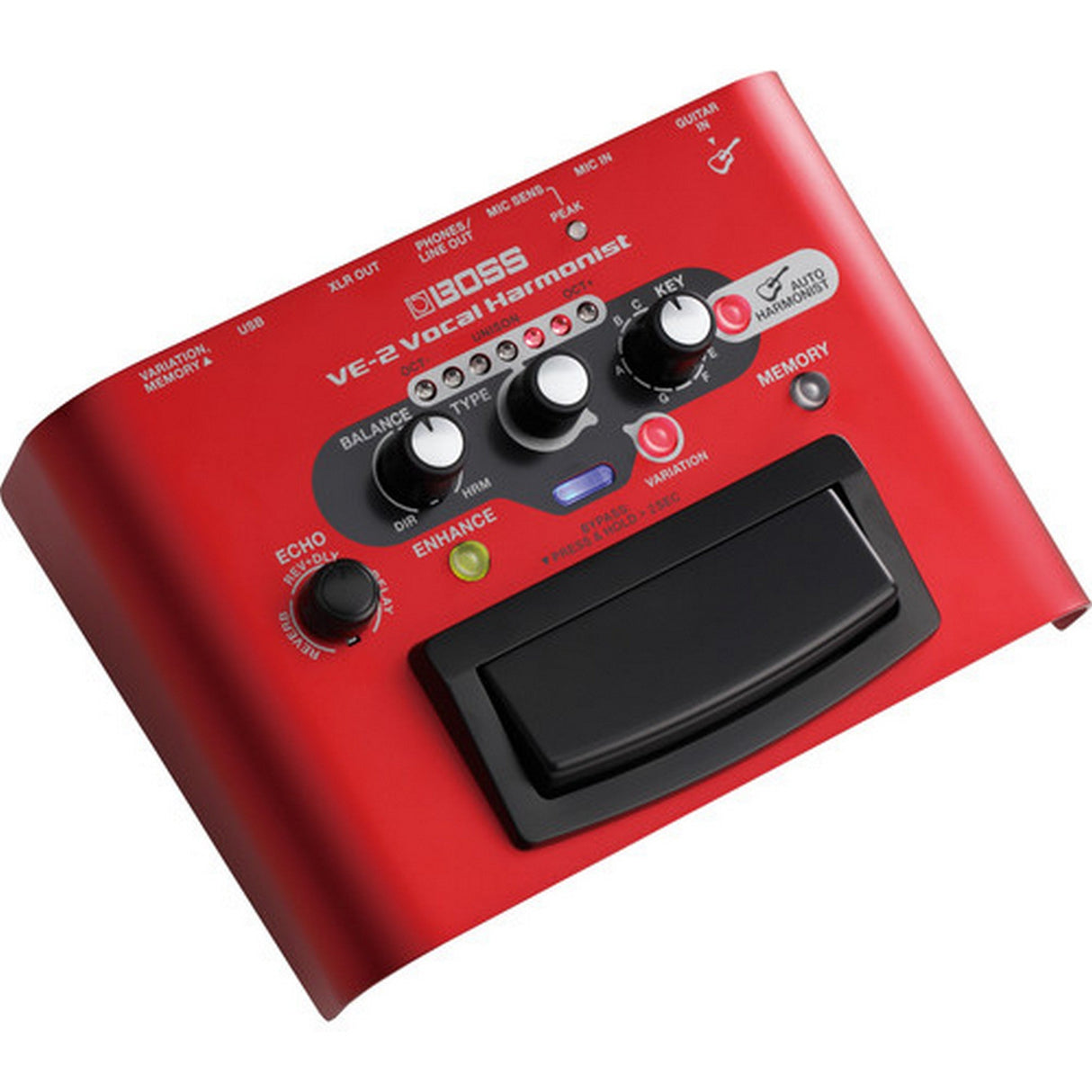

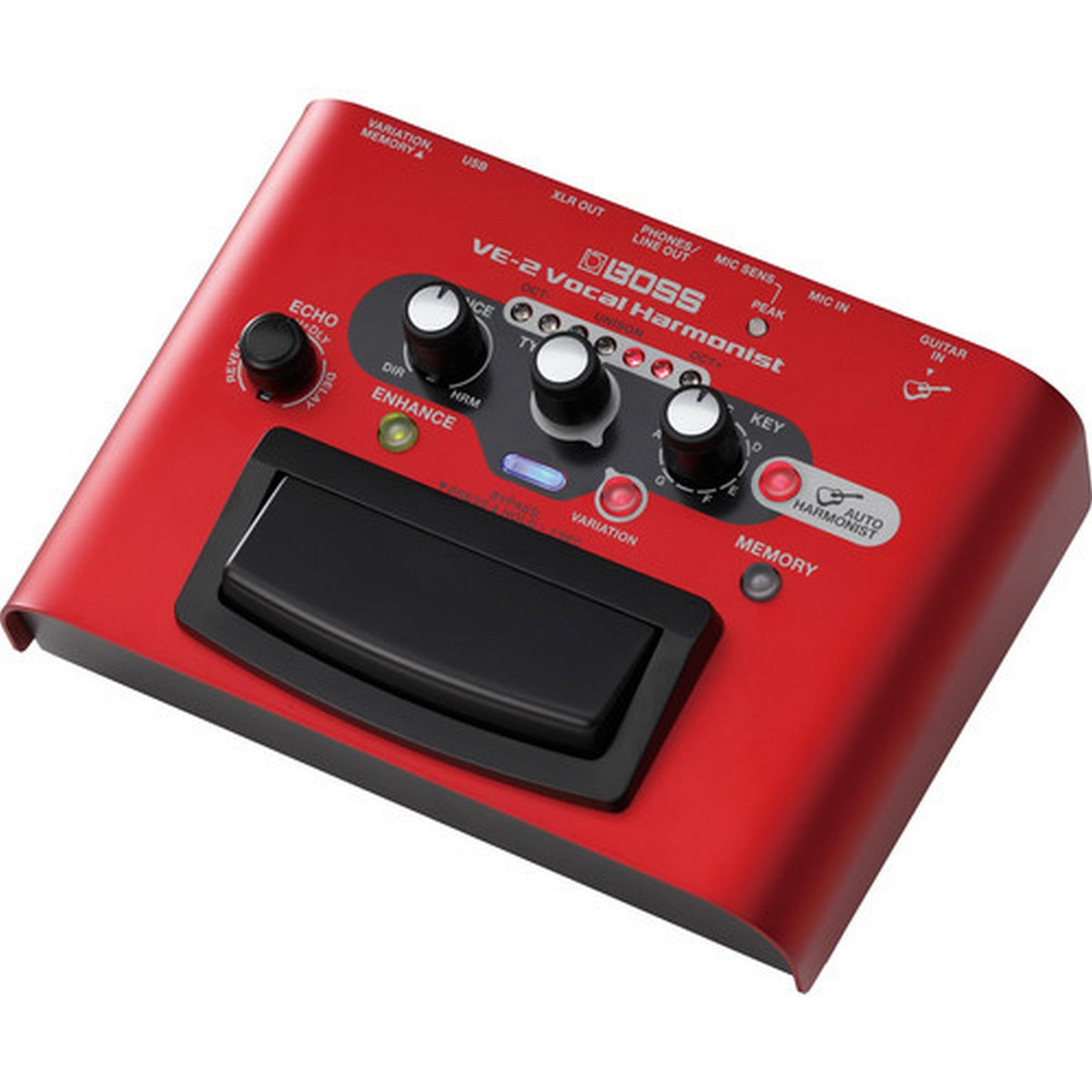

BOSS VE-2 Vocal Harmonist Vocal Effects Processor

BOSS VE-2 Vocal Harmonist Vocal Effects Processor

The BOSS VE-2 Vocal Harmonist Vocal Effects Processor creates real-time vocal harmonies while adding reverb, delay, enhancement, and subtle pitch correction. Its Auto Harmony system can follow chords from a connected guitar, while manual key selection supports singers without an instrument. The compact processor also provides 24 harmony configurations and three user memories.

Designed for singer-songwriters, solo performers, worship musicians, buskers, and vocal recording setups, the VE-2 offers Full, Hybrid, and manual harmony workflows. Hybrid mode combines guitar-chord detection with a selected song key, helping maintain appropriate harmonies when the guitar moves between rhythm and lead passages. Dedicated controls keep vocal effects accessible without complex menu navigation.

A balanced XLR microphone input supplies 48V phantom power for compatible condenser microphones, even during battery operation. USB-B audio connectivity supports computer recording, playback loopback, and processing of computer audio. The VE-2 also provides a guitar thru connection, headphone/line output, optional footswitch control, and operation from four AA batteries or an optional PSA-series AC adapter.

Key Features

• Real-Time Vocal Harmony: Generates harmonies from a manually selected key or chords detected from a connected guitar.
• 24 Harmony Configurations: Provides 12 harmony types with a selectable variation for fuller one- and multi-voice arrangements.
• Hybrid Harmony Mode: Combines guitar chord detection with manual key information for changing performance arrangements.
• Integrated Vocal Effects: Adds reverb, delay, combined reverb and delay, enhancement, and subtle pitch correction.
• Three User Memories: Stores preferred control settings for quick recall during songs and live performances.
• 48V Phantom Power: Powers compatible condenser microphones from the XLR input during AC or battery operation.
• USB Audio Interface: Sends processed vocals to a computer and supports playback loopback and external-audio processing modes.
• Portable Power Options: Runs from four AA alkaline or rechargeable Ni-MH batteries or an optional PSA-series adapter.

Technical Specifications

Harmony and Effects

• Product Type: Vocal harmonizer and effects processor
• Model: VE-2
• Effect Types: Harmony, Echo, Enhance
• Echo Effects: Reverb, Reverb + Delay, Delay
• Enhance Modes: Enhance, Enhance + Pitch Correct
• Harmony Types: 12
• Harmony Variations: 2 per type
• Total Harmony Configurations: 24
• Auto Harmonist Modes: Off, Full, Hybrid
• User Memories: 3
• Standard Pitch Adjustment: 437 to 443 Hz
• Default Standard Pitch: 440 Hz

Audio Specifications

• Nominal Mic Input Level: -40 dBu with Mic Sens at center
• Mic Input Impedance: 4 kilohms
• Nominal Guitar Input Level: -10 dBu
• Guitar Input Impedance: 1 megohm
• Nominal XLR Output Level: -40 dBu
• XLR Output Impedance: 600 ohms
• Nominal Phones/Line Output Level: -20 dBu
• Phones/Line Output Impedance: 33 ohms
• Nominal Guitar Thru Level: -10 dBu
• Phantom Power: 48V DC, 10 mA maximum

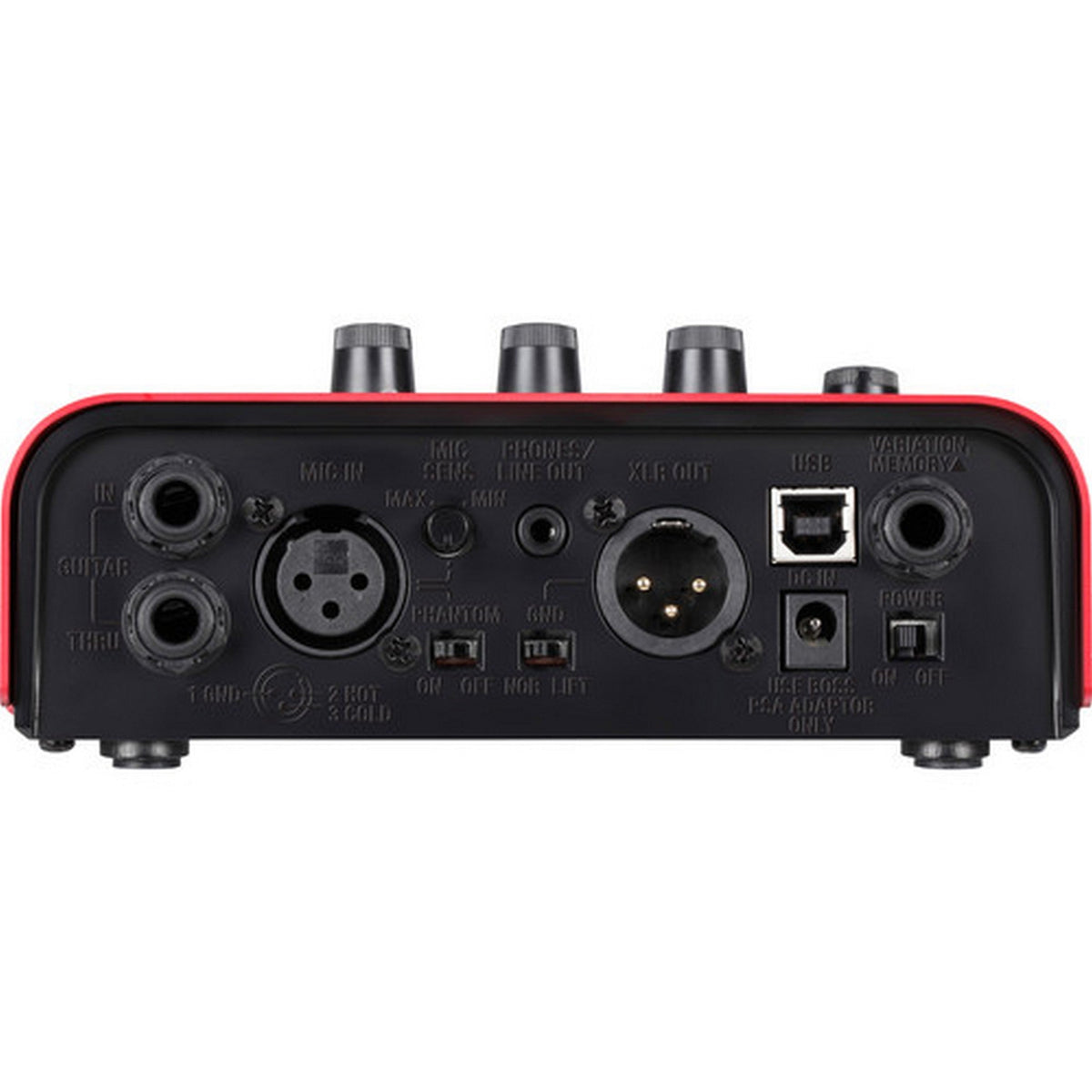

Connections

• Microphone Input: 1 x balanced XLR
• Guitar Input: 1 x 1/4" phone jack
• Guitar Thru: 1 x 1/4" phone jack
• Main Output: 1 x XLR
• Phones/Line Output: 1 x 3.5 mm stereo miniature phone jack
• External Footswitch: 1 x 1/4" TRS Variation/Memory Increment jack
• USB: USB Type-B
• USB Audio Modes: Normal, Loop Back, Input
• Power Connection: DC input

Power

• Battery Power: 4 x AA alkaline or rechargeable Ni-MH batteries
• AC Power: Optional BOSS PSA-series adapter
• Current Draw: 200 mA maximum at 9V
• Ni-MH Battery Life with Phantom Power Off: Approximately 12 hours with 2450 mAh batteries
• Ni-MH Battery Life with Phantom Power On: Approximately 8 hours with 2450 mAh batteries
• Alkaline Battery Life with Phantom Power Off: Approximately 11 hours
• Alkaline Battery Life with Phantom Power On: Approximately 7 hours

Dimensions and Compatibility

• Dimensions (W x D x H): 6.2 x 4.6 x 2.6 in
• Weight: 1.3 lb
• Compatible Footswitches: BOSS FS-5U, FS-6, FS-7
• Package Dimensions (L x W x H): 9 x 6.6 x 4.4 in
• Package Weight: 1.9 lb

What's In the Box

• BOSS VE-2 Vocal Harmonist
• 4 AA alkaline batteries
• Owner's Manual
• Using the Unit Safely leaflet
