BOSS WL-20L 2.4 GHz Wireless System for Active Pickups

BOSS WL-20L 2.4 GHz Wireless Instrument System

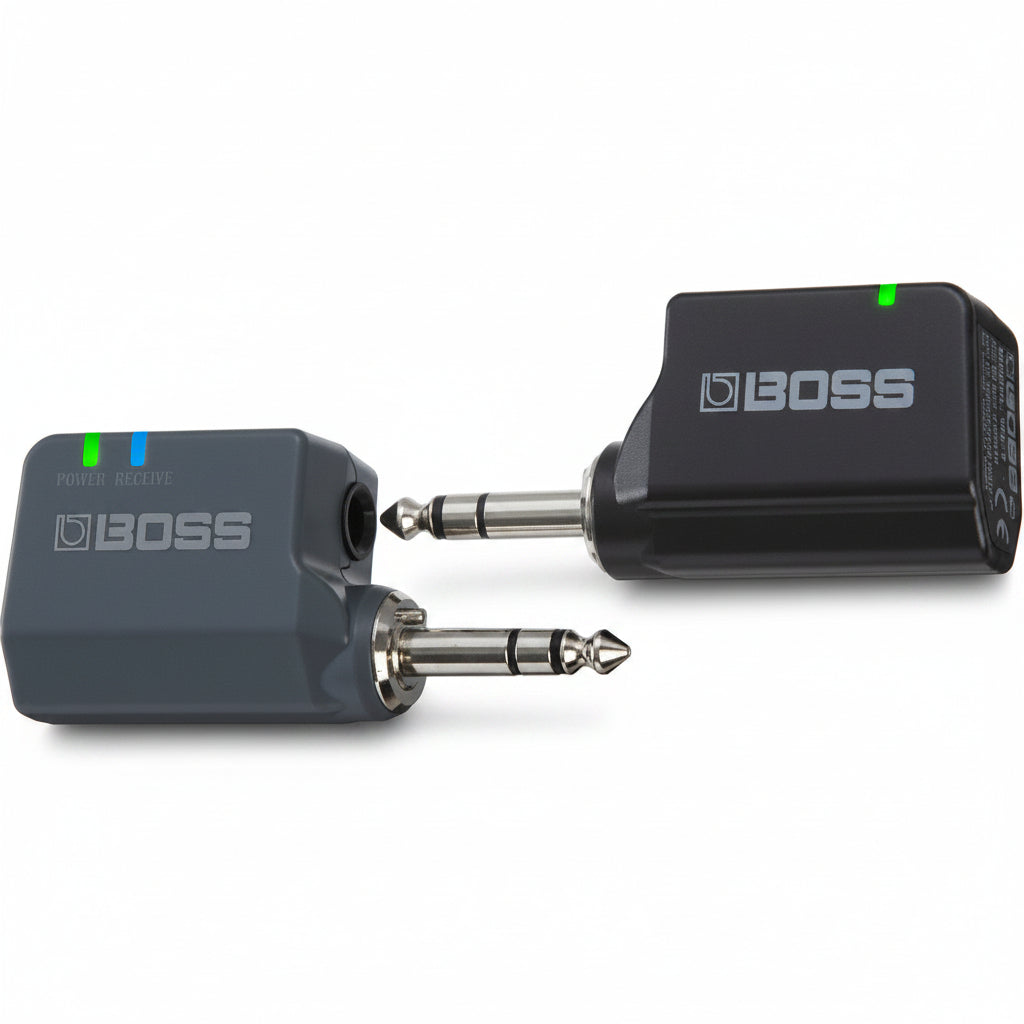

The BOSS WL-20L 2.4 GHz Wireless Instrument System replaces a standard instrument cable with a compact rechargeable transmitter and receiver. It provides a 50-foot line-of-sight operating range, 2.3 ms latency, 20 Hz to 20 kHz frequency response, automatic channel selection, and 110 dB or greater dynamic range.

Designed for guitars and basses with active pickups, acoustic-electric instruments with onboard preamps, and line-level electronic instruments, the WL-20L omits cable-tone simulation for a direct, uncolored connection. Players seeking a wireless system for active pickups or a compact wireless guitar connection can dock the transmitter and receiver for about 10 seconds to establish the optimum available channel automatically.

Both components contain rechargeable lithium-ion batteries and charge through Micro-USB. The current receiver specification provides approximately seven hours of continuous operation, while the WL-T transmitter runs approximately 12 hours per charge. Up to 14 compatible BOSS wireless systems can operate simultaneously when local RF conditions permit, making the WL-20L suitable for rehearsals, performance stages, houses of worship, and other multi-instrument environments.

Key Features

• 2.4 GHz Digital Wireless: Uses BOSS proprietary digital audio transmission for cable-free instrument performance.
• 50-Foot Operating Range: Provides up to 50 feet of line-of-sight transmission under suitable local conditions.
• 2.3 ms Latency: Maintains responsive playing feel with minimal delay between the instrument and connected audio equipment.
• Automatic Channel Selection: Docking the transmitter and receiver automatically scans and establishes an optimal wireless connection.
• No Cable-Tone Simulation: Preserves the response of active pickups, onboard preamps, and line-level instruments without simulated cable capacitance.
• Rechargeable Operation: Integrated lithium-ion batteries eliminate disposable batteries in both transmitter and receiver.

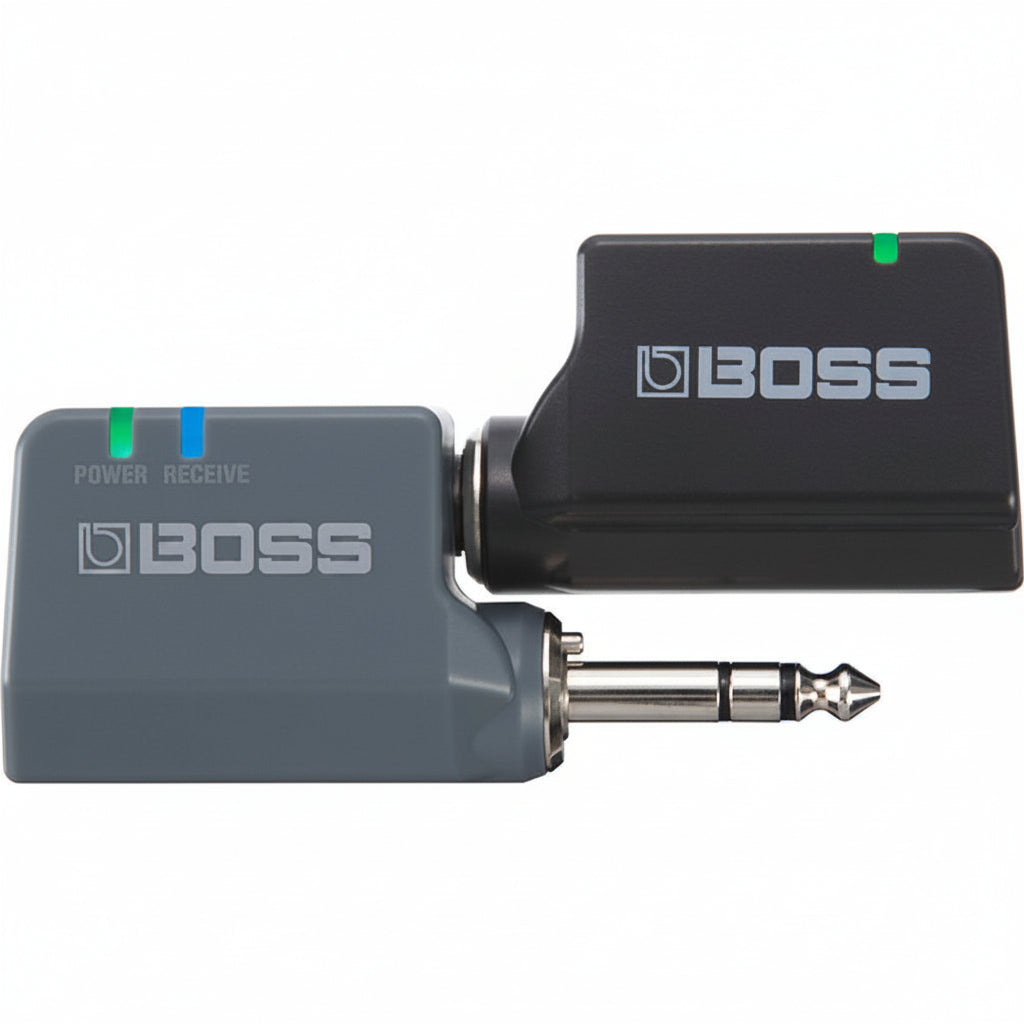

• Simultaneous Charging: Dock the WL-T transmitter in the receiver to charge both components together in approximately four hours.
• Multi-System Capability: Supports up to 14 compatible systems in one location when surrounding wireless conditions permit.

Technical Specifications

Wireless System

• Model: WL-20L
• Product Type: Digital wireless instrument system
• Wireless Format: BOSS proprietary digital audio format
• Carrier Frequency: 2.4 GHz
• Compatible Channels: 14, subject to local conditions
• Maximum Simultaneous Systems: Up to 14, subject to local conditions
• Transmission Range: 50 ft line-of-sight, subject to local conditions
• Latency: 2.3 ms
• Dynamic Range: 110 dB or greater
• Frequency Response: 20 Hz to 20 kHz
• Cable-Tone Simulation: Not included
• Automatic Wireless Setup: Supported by docking transmitter and receiver

WL-20L Receiver

• Nominal Output Level: -10 dBu
• Output Impedance: 1 kilohm
• Recommended Load Impedance: 10 kilohms or greater
• Indicators: Power, Receive
• Output Plug: 1/4" TRS phone type
• Transmitter Dock: 1/4" TRS phone type

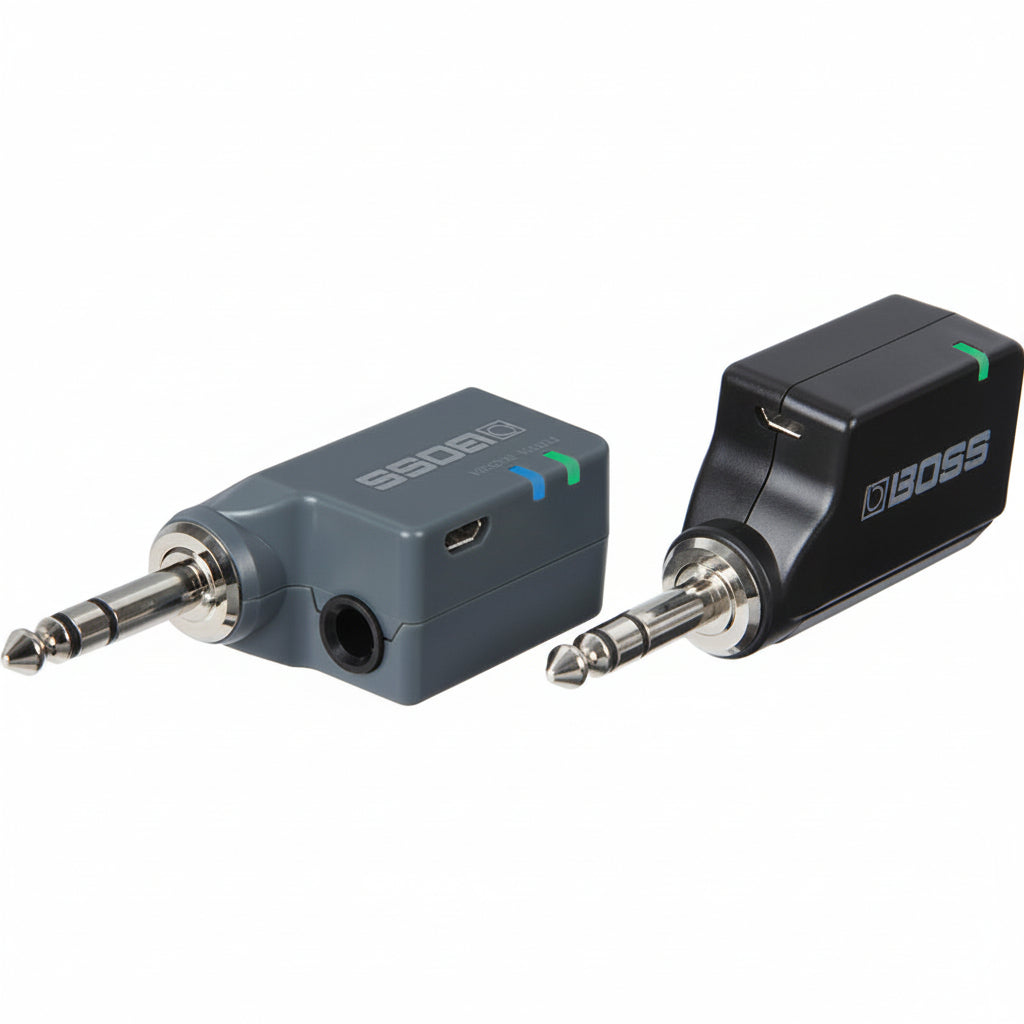

• Charging Port: USB Micro-B, 5V DC
• Power Supply: Built-in rechargeable lithium-ion battery or power through DC IN 5V
• Current Draw During Wireless Operation: 60 mA
• Current Draw While Charging: 500 mA
• Receiver Charging Time: Approximately 3 hours
• Simultaneous Receiver and Transmitter Charging Time: Approximately 4 hours
• Expected Receiver Battery Life: Approximately 7 hours of continuous use
• Dimensions (W x D x H): 3.4 x 1 x 1.5 in
• Weight: 0.1 lb

WL-T Transmitter

• Nominal Input Level: -10 dBu
• Input Impedance: 1 megohm
• Indicator: Battery
• Input Plug: 1/4" TRS phone type
• Charging Port: USB Micro-B, 5V DC
• Power Supply: Built-in rechargeable lithium-ion battery or power through DC IN 5V
• Current Draw: 350 mA
• Charging Time: Approximately 3 hours
• Expected Battery Life: Approximately 12 hours of continuous use
• Dimensions (W x D x H): 3.4 x 0.9 x 1.4 in
• Weight: 0.1 lb

Charging Requirements

• USB Power Requirement: Standard 5V USB adapter rated at 500 mA or greater
• USB AC Adapter: Sold separately

What's In the Box

• BOSS WL-20L Wireless Receiver
• BOSS WL-T Wireless Transmitter
• Micro-USB Charging Cable
• Owner's Manual
• Using the Unit Safely Leaflet
