BOSS WL-60 2.4 GHz Wireless Guitar and Bass System

BOSS WL-60 Wireless Guitar and Bass System

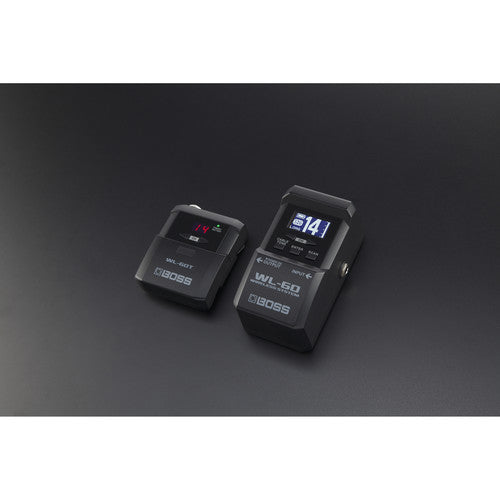

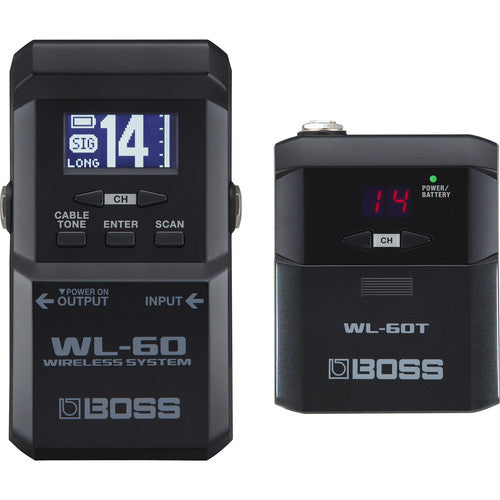

The BOSS WL-60 Wireless Guitar and Bass System combines a pedalboard receiver with a bodypack transmitter for cable-free instrument performance over the 2.4 GHz band. It provides 14 compatible channels, automatic channel scanning, 2.3 ms latency, a 65' line-of-sight range, and a 20 Hz-20 kHz frequency response.

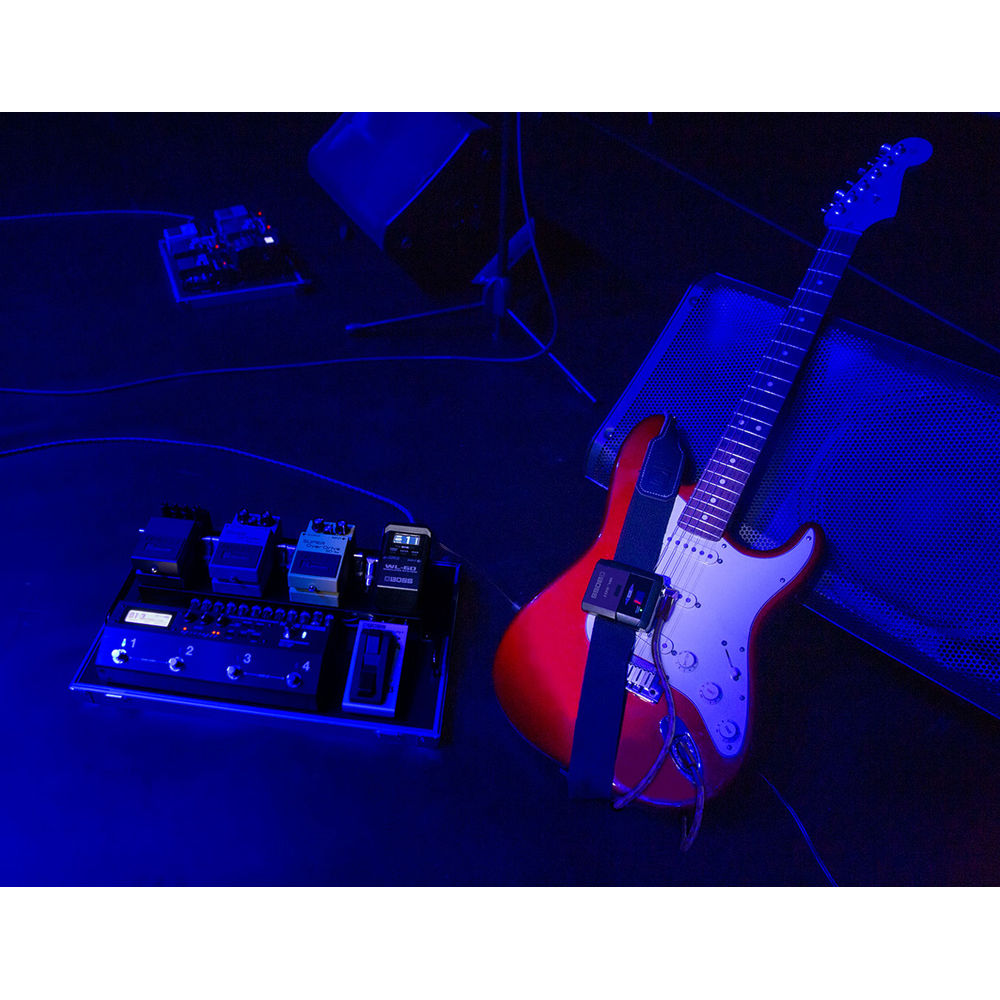

Designed for guitarists and bassists performing on stage, the WL-60 uses a large receiver LCD to display channel information, wireless strength, and operating status. Two selectable cable-tone simulations reproduce the capacitive response associated with conventional guitar cables, while a bypass option accommodates active instruments and other sources where cable simulation is unnecessary.

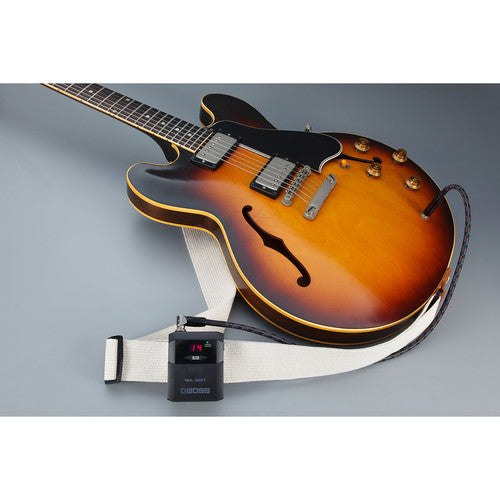

The compact receiver fits on a pedalboard and includes a standard instrument input for wired operation without repatching the signal chain. It runs from two AA alkaline batteries or a compatible AC adapter and can distribute DC power to additional pedals when externally powered. The included WL-60T bodypack connects through a standard 1/4" instrument cable and provides up to approximately 25 hours of alkaline-battery operation.

Key Features

• 2.4 GHz Digital Wireless: Uses BOSS proprietary digital transmission for guitar and bass performance without a conventional instrument cable.
• 14-Channel Scanning: Automatically surveys compatible channels to simplify frequency selection in changing wireless environments.
• Low-Latency Performance: Provides 2.3 ms latency for responsive playing feel.
• 65' Operating Range: Supports up to approximately 65' of line-of-sight transmission under suitable conditions.
• Cable Tone Simulation: Offers two selectable cable-response settings plus bypass for active or preamplified instruments.

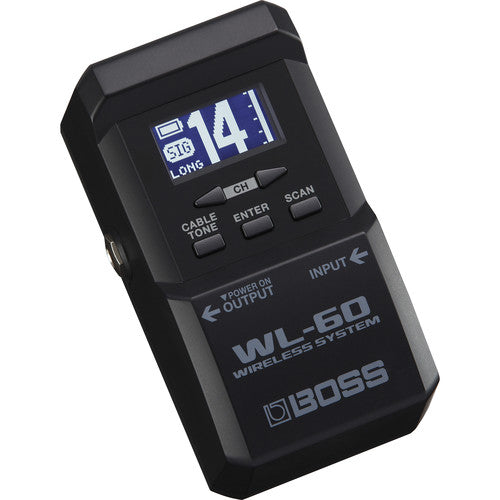

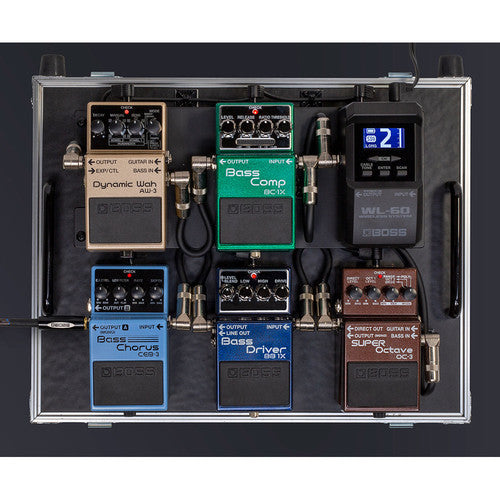

• Pedalboard Receiver: Compact receiver includes an LCD, wired instrument input, and DC power output for compatible pedalboard configurations.
• Long Transmitter Runtime: WL-60T bodypack operates for approximately 25 hours on two AA alkaline batteries.

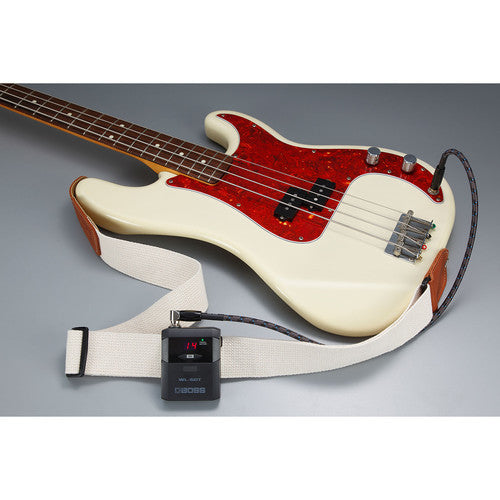

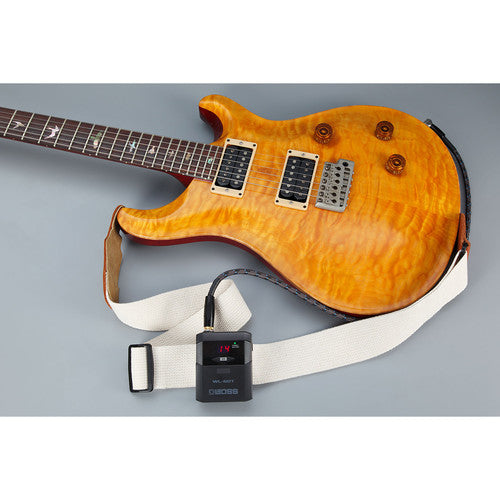

• Flexible Instrument Connection: Included short cable connects the bodypack transmitter to guitars, basses, and other compatible instruments.

Technical Specifications

• Model: WL-60
• Product Type: Wireless instrument system
• Wireless Format: BOSS proprietary digital audio format
• Carrier Frequency: 2.4 GHz
• Compatible Channels: 14
• Transmission Range: Approximately 65' line of sight
• Latency: 2.3 ms
• Dynamic Range: 110 dB or greater
• Frequency Response: 20 Hz-20 kHz
• Simultaneous Systems: Up to 14, subject to local wireless conditions
• Receiver Nominal Input Level: -10 dBu
• Receiver Input Impedance: 1 megohm
• Receiver Nominal Output Level: -10 dBu
• Receiver Output Impedance: 1 kilohm
• Recommended Load Impedance: 10 kilohms or greater

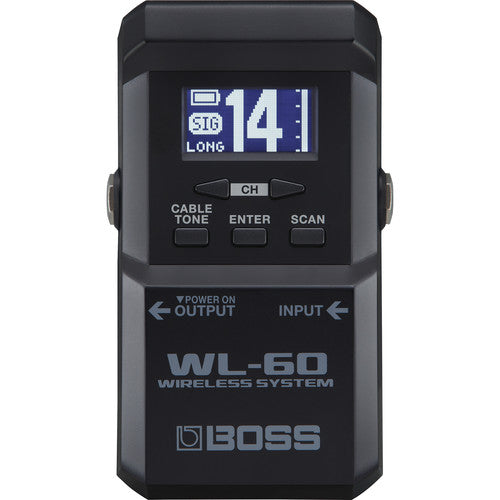

• Receiver Controls: CH, SCAN, ENTER, CABLE TONE
• Receiver Display: 64 x 32-dot graphic LCD
• Receiver Instrument Input: 1 x 1/4" phone jack
• Receiver Audio Output: 1 x 1/4" phone jack

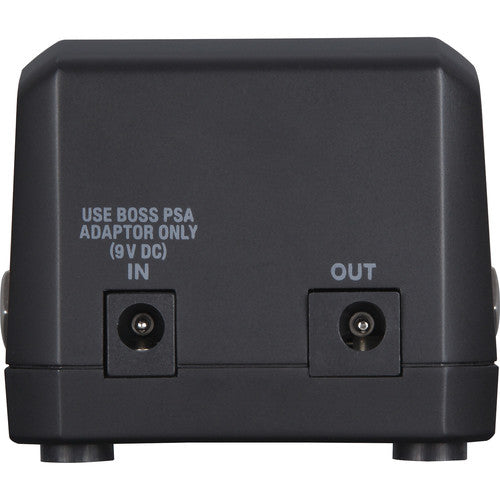

• Receiver DC Connections: IN and OUT
• Receiver Power: 2 x AA alkaline batteries or compatible AC adapter
• Receiver Current Draw: 100 mA
• Receiver Battery Life: Approximately 7 hours with AA alkaline batteries on current specification units
• Receiver Dimensions: Approximately 2.8 x 4.7 x 2.1" (W x D x H), excluding rubber feet
• Receiver Height with Rubber Feet: Approximately 2.2"
• Receiver Weight: Approximately 0.4 lb without batteries; 0.5 lb with batteries

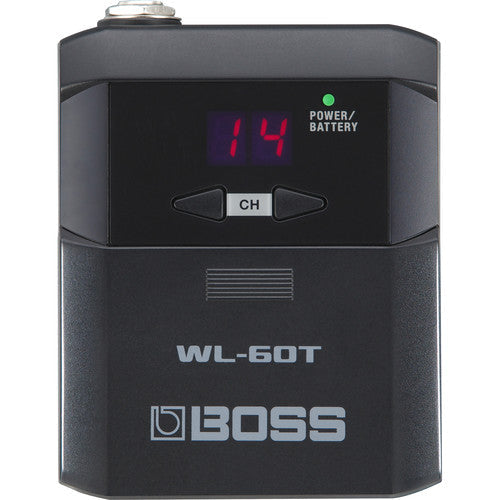

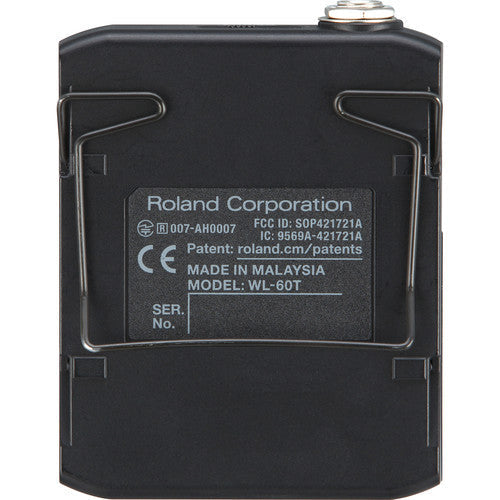

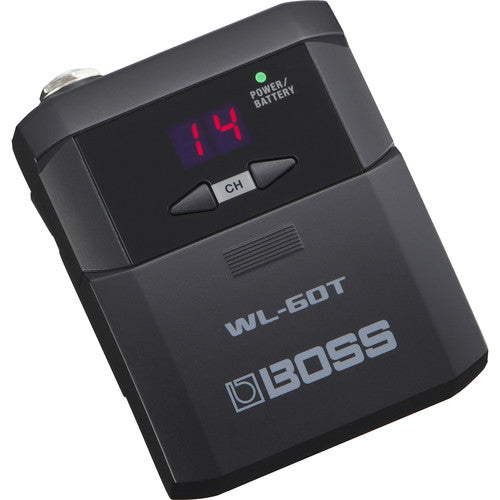

• Included Transmitter: WL-60T bodypack
• Transmitter Nominal Input Level: -10 dBu
• Transmitter Input Impedance: 1 megohm

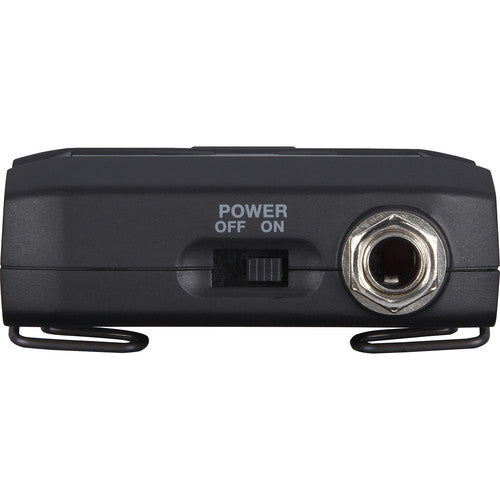

• Transmitter Controls: POWER switch, CH button
• Transmitter Display: 2-character, 7-segment LED
• Transmitter Indicator: POWER/BATTERY
• Transmitter Input: 1 x 1/4" phone jack
• Transmitter Power: 2 x AA alkaline batteries
• Transmitter Current Draw: 110 mA
• Transmitter Battery Life: Approximately 25 hours with AA alkaline batteries
• Transmitter Dimensions: Approximately 2.7 x 3.5 x 1.2" (W x D x H), including strap clip
• Transmitter Weight: Approximately 0.3 lb with batteries

What's In the Box

• BOSS WL-60 Receiver
• BOSS WL-60T Transmitter
• Guitar Cable
• 4 x Rubber Feet
• 2 x AA Alkaline Batteries
• Owner's Manual
• Safety Leaflet
