BOSS WL-60T Wireless Transmitter for WL-60 Instrument System

BOSS WL-60T Wireless Instrument Transmitter

The BOSS WL-60T Wireless Instrument Transmitter is a replacement or additional bodypack transmitter for the BOSS WL-60 wireless guitar and bass system. It connects to an instrument through a standard 1/4" input and provides up to approximately 25 hours of continuous operation from two AA alkaline batteries.

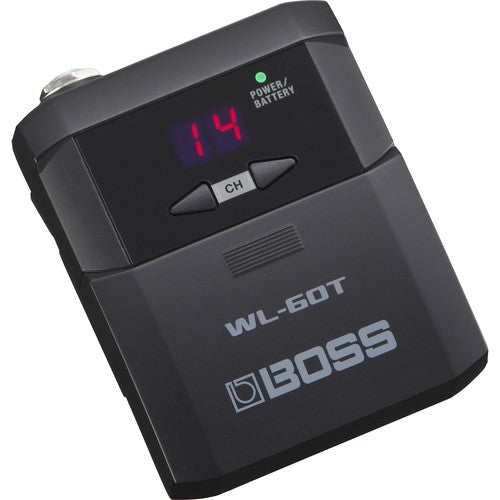

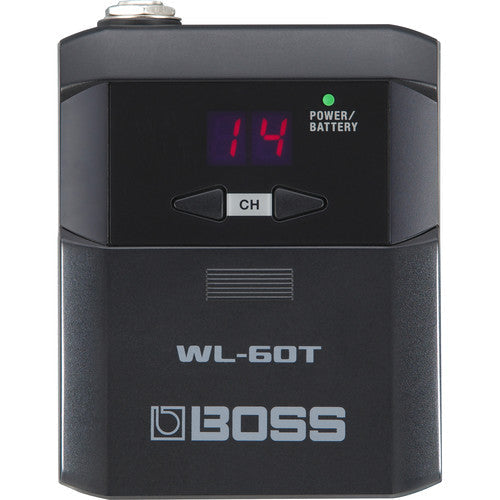

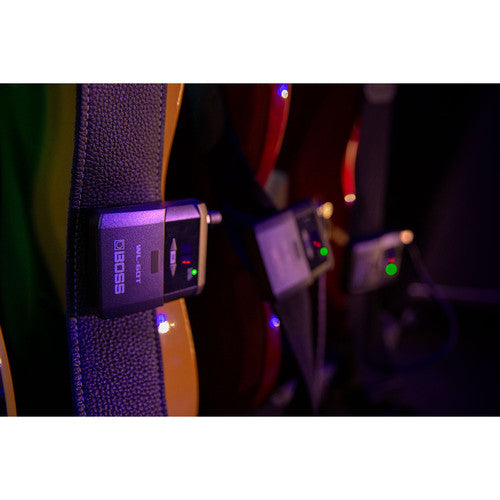

Designed for guitarists and bassists who need a spare wireless transmitter or want multiple instruments prepared for quick stage changes, the WL-60T includes channel-selection controls and a two-character LED display. A three-way power and battery indicator provides approximate remaining-runtime information, while the display enters sleep mode after inactivity to conserve battery power.

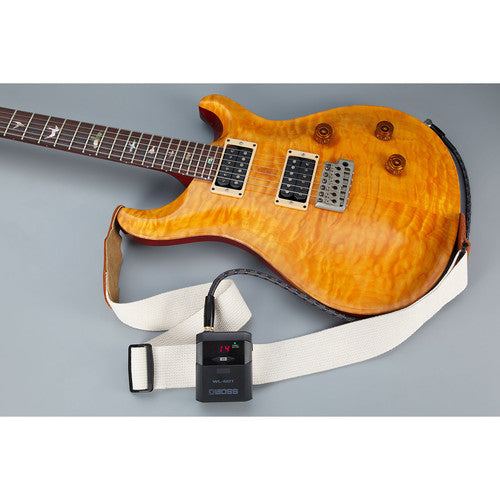

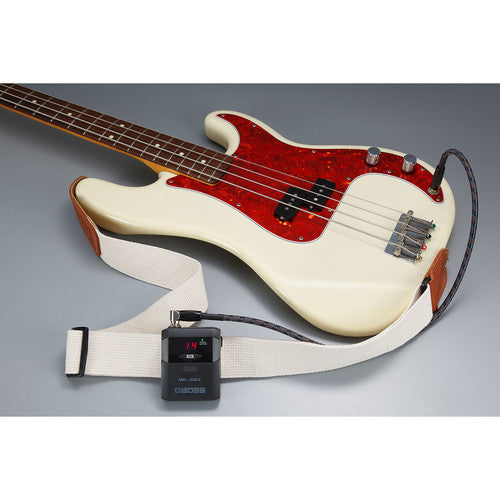

An integrated adjustable clip secures the transmitter to a strap or belt and can be reversed to suit different mounting preferences. The included short guitar cable connects the bodypack to a compatible instrument. The WL-60T does not operate as a standalone wireless audio device and requires the receiver from the BOSS WL-60 system for audio transmission.

Key Features

• WL-60 Compatibility: Functions as a replacement or additional transmitter for the BOSS WL-60 wireless instrument system.
• Long Battery Runtime: Operates for approximately 25 hours using two AA alkaline batteries under typical conditions.
• Channel Selection: Dedicated CH controls and a two-character LED display simplify wireless channel assignment.
• Battery Monitoring: Three-way POWER/BATTERY indication provides power status and approximate remaining runtime.
• Power-Saving Display: The channel display enters sleep mode after approximately 10 seconds of inactivity.

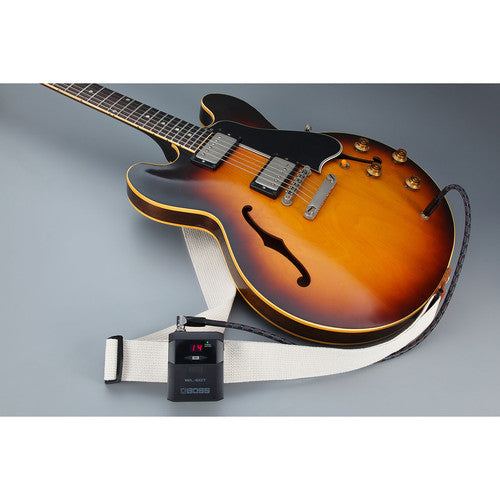

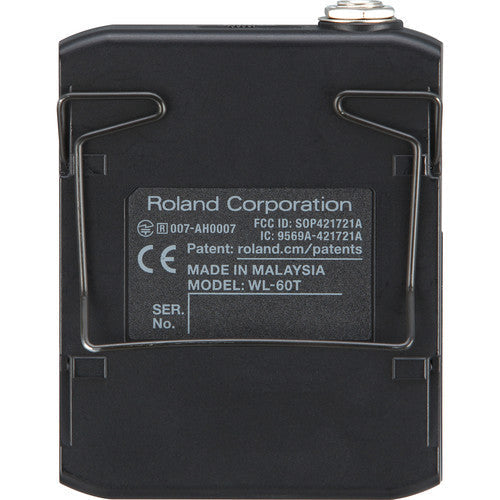

• Adjustable Mounting Clip: Reversible integrated clip attaches securely to an instrument strap or belt.
• Standard Instrument Connection: Uses a 1/4" phone input and includes a short guitar cable.

Technical Specifications

• Model: WL-60T
• Product Type: Wireless instrument bodypack transmitter
• Compatible System: BOSS WL-60
• Nominal Input Level: -10 dBu
• Input Impedance: 1 megohm

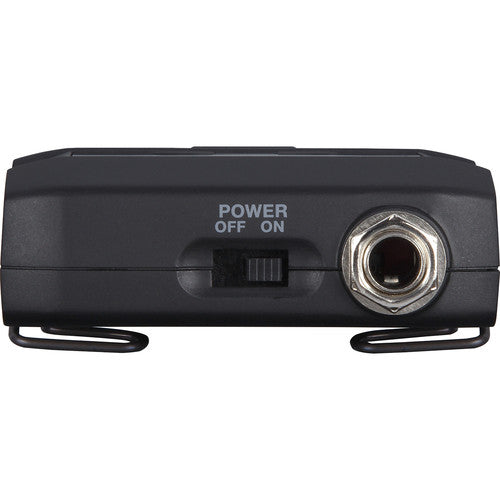

• Controls: POWER switch, CH button
• Display: 2-character, 7-segment LED
• Indicator: POWER/BATTERY
• Input Connector: 1 x 1/4" phone jack
• Power Supply: 2 x AA alkaline batteries
• Current Draw: 110 mA
• Expected Battery Life: Approximately 25 hours with AA alkaline batteries
• System Wireless Technology: Digital 2.4 GHz when paired with the WL-60 receiver
• System RF Frequency Band: 2400-2483.5 MHz when paired with the WL-60 receiver
• System Operating Range: Up to approximately 65' line of sight when paired with the WL-60 receiver
• System Latency: 2.3 ms when paired with the WL-60 receiver
• System Frequency Response: 20 Hz-20 kHz when paired with the WL-60 receiver
• Dimensions: Approximately 3.5 x 2.7 x 1.2" (D x W x H), including strap clip
• Weight: Approximately 0.3 lb with batteries

What's In the Box

• BOSS WL-60T Wireless Transmitter
• Guitar Cable
• 2 x AA Alkaline Batteries
• Owner's Manual
