BSS BLU-103 Conferencing Processor with AEC and VoIP

The Soundweb London BLU-103 offers a fixed configuration of 8 analog inputs and 8 analog outputs, a Voice over IP (VoIP) interface, configurable signal processing, AEC processing, and a high bandwidth, fault tolerant digital audio bus.
The VoIP port enables the BLU-103 to interface with two VoIP (SIP v2.0 or later) lines.
The BLU-103 contains dedicated AEC processing for up to 8 independent AEC algorithms. The AEC algorithm can be applied to signals coming from the local analog inputs or from the digital audio bus. 8 individual AEC references (one per algorithm) allow the user to provide a solution for multiple conferencing spaces using a single device.
The BLU-103 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

Key Features

• 8 Analog Inputs (with 48v Phantom Power per Channel)
• 8 Analog Outputs
• VoIP Port
• Configurable Signal Processing
• 8 Channels of AEC Processing with Auto Gain Control and Noise Cancellation
• Rich Palette of Processing and Logic Objects
• 48 Channel, Low Latency, Fault Tolerant Digital Audio Bus

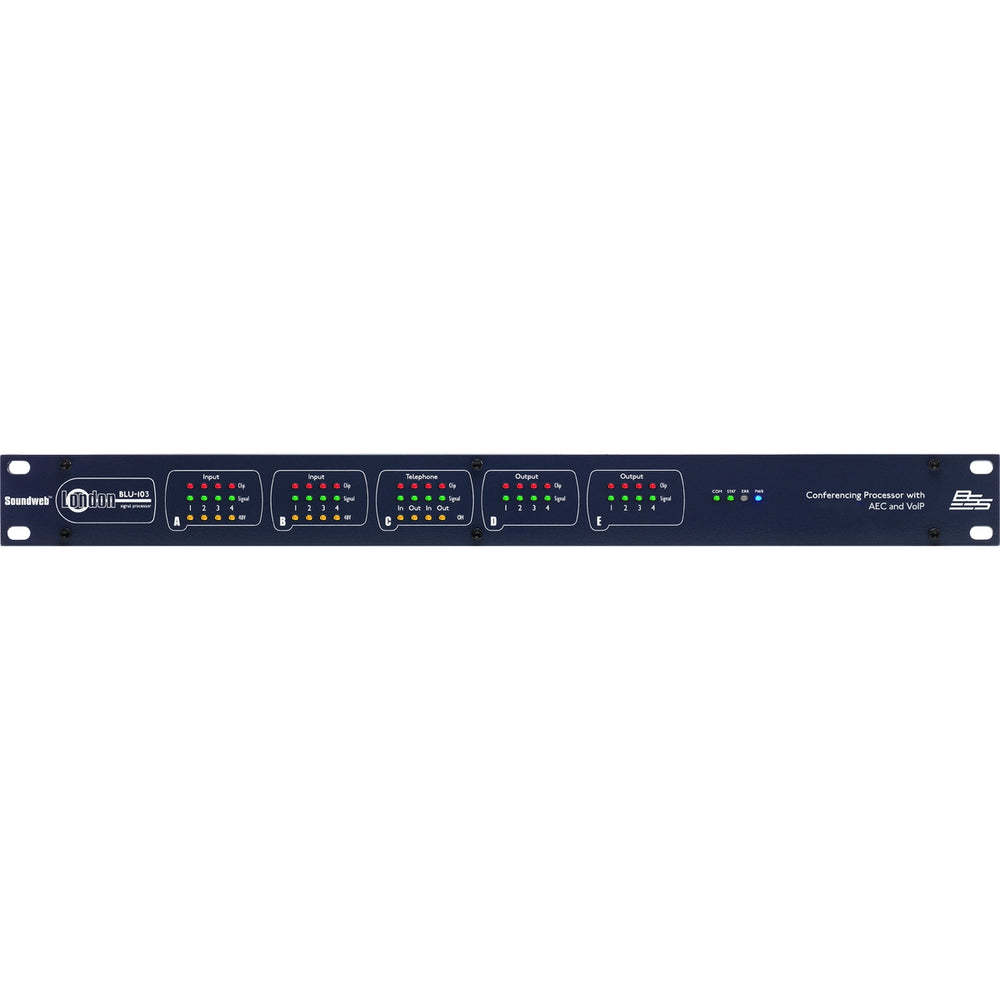

• Clear Front Panel LED Indication
• Bi-Directional Locate Functionality

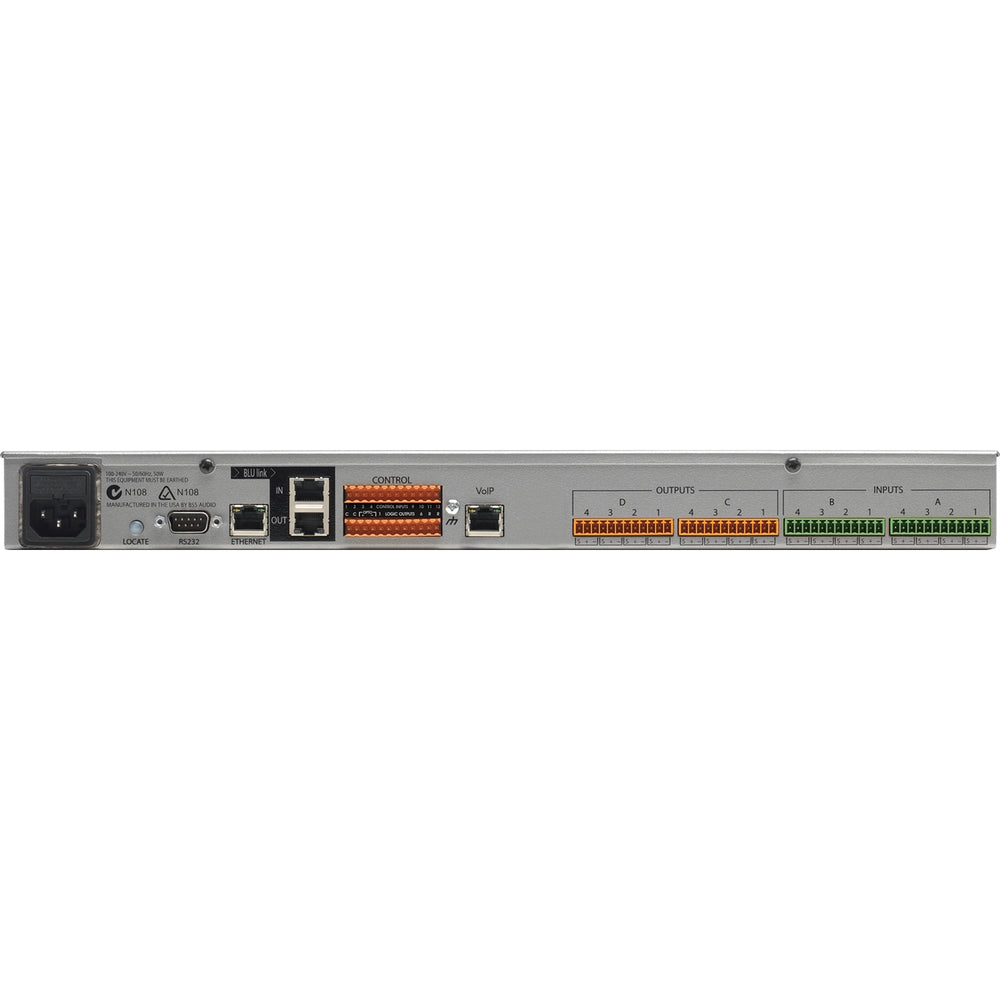

• 12 Control Inputs and 6 Logic Outputs for GPIO Integration
• Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
• HiQnet Device
• Configuration, Control and Monitoring from HiQnet Audio Architect

Technical Specifications

Chasis 19” (single rack space)
Custom I/O (card based) no
Analog Inputs 8
Digital Inputs 0
AEC Inputs 8
Analog Outputs 8
Digital Ouputs 0
VolP Connection 1
Max Inputs/Outputs fixed
Config software
LCD Display no
Logic Processing yes
RS-232 yes
GPIO yes
Signal Processing (MHz) 400
Cobranet no
SWL Digital Audio Bus 48
AVB no
Dante no
