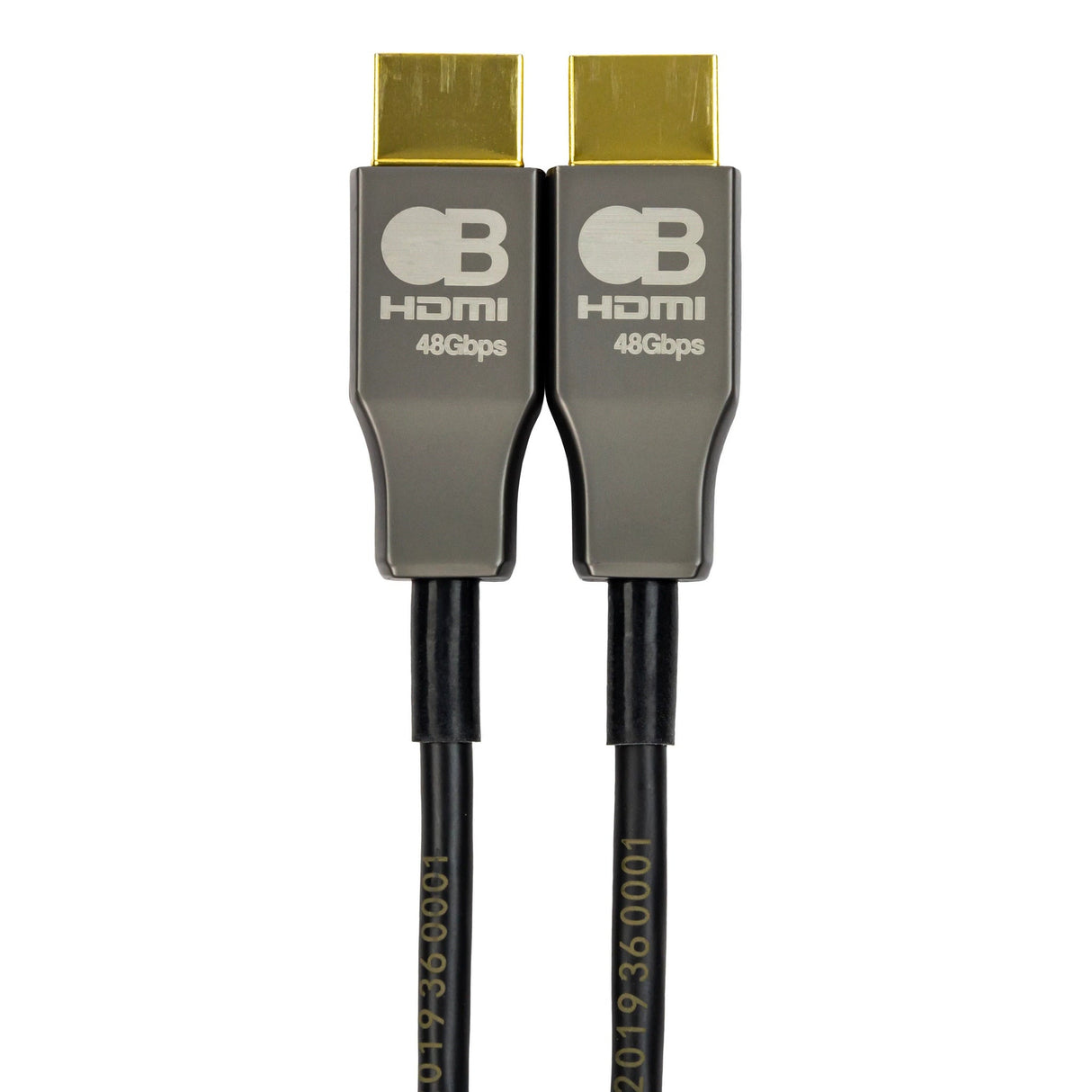

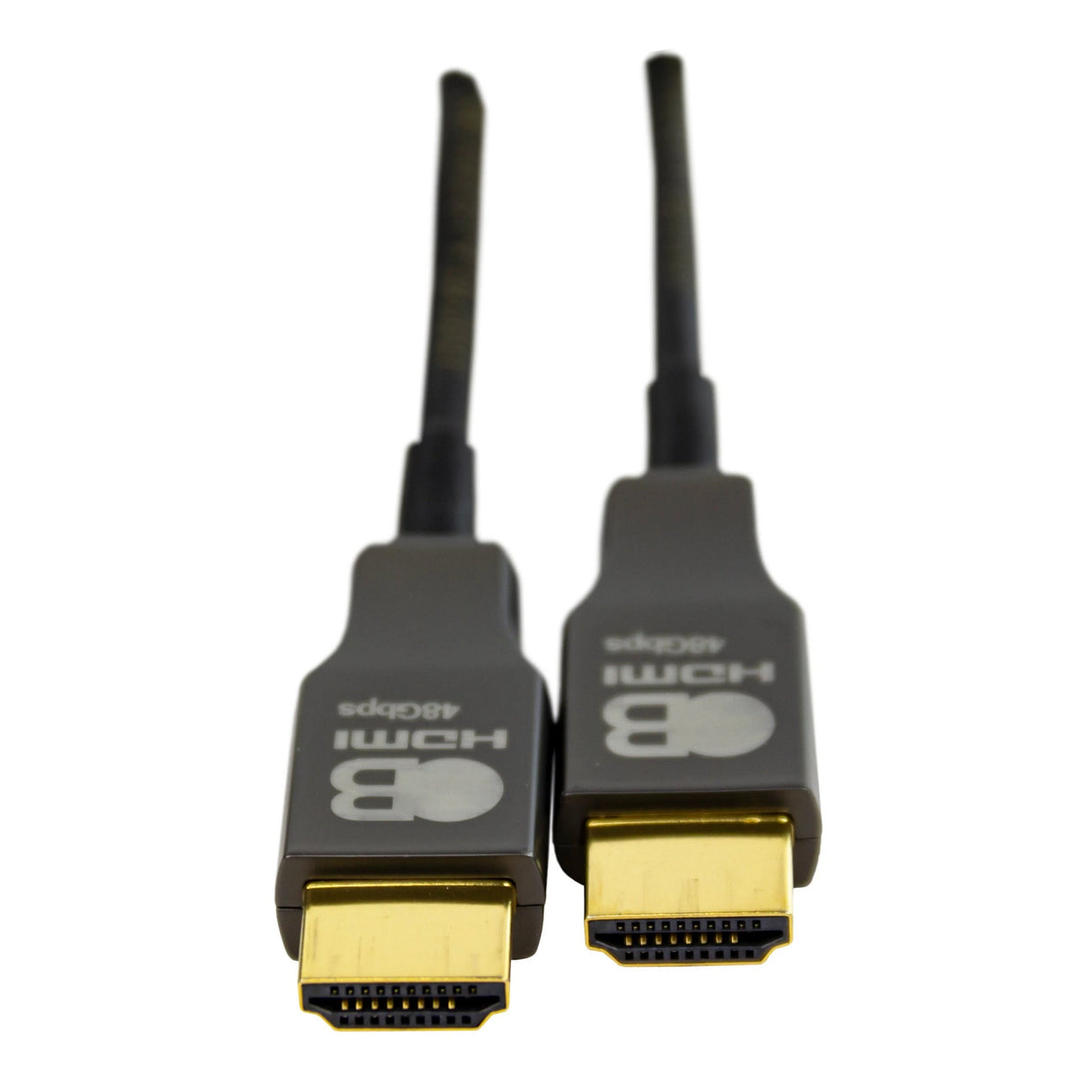

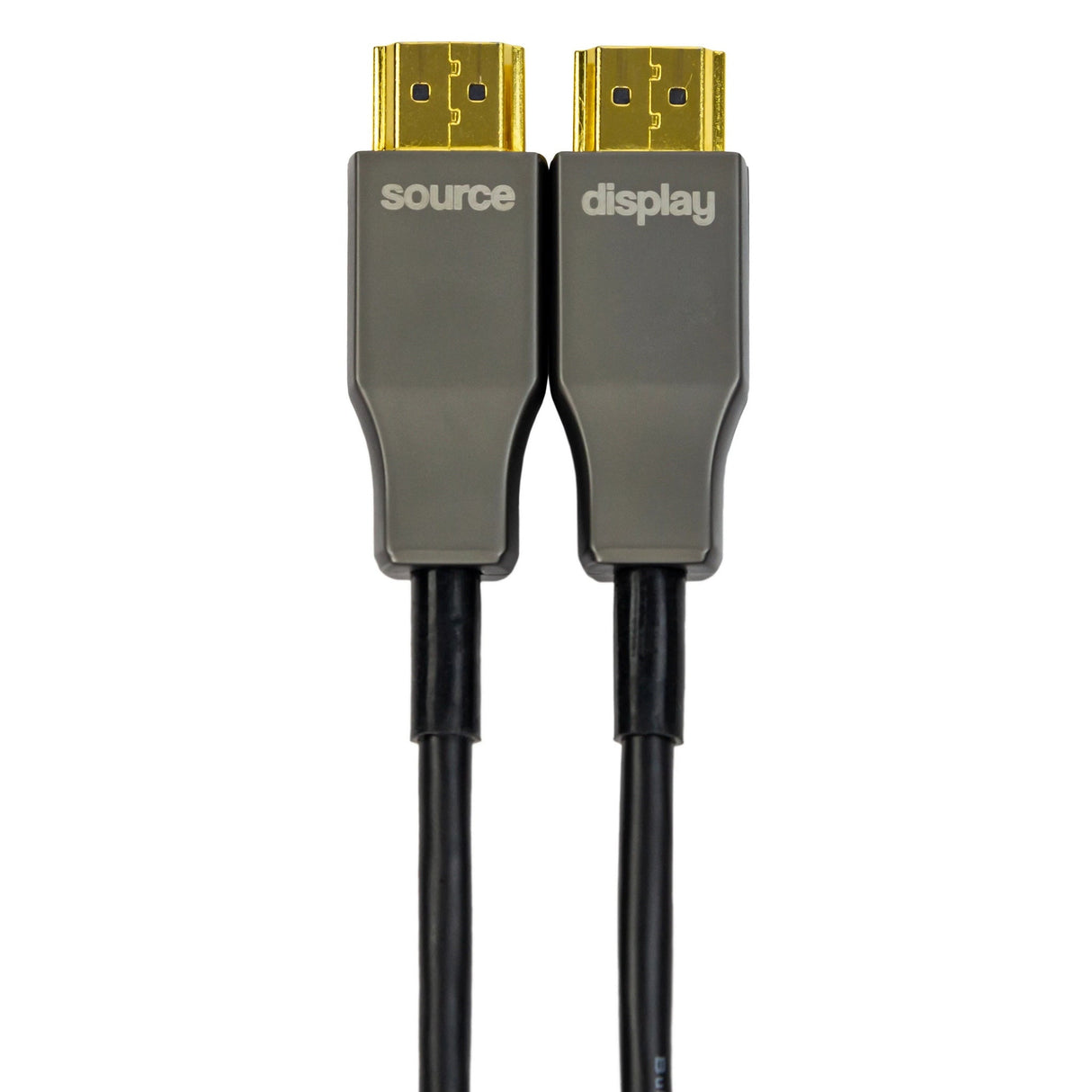

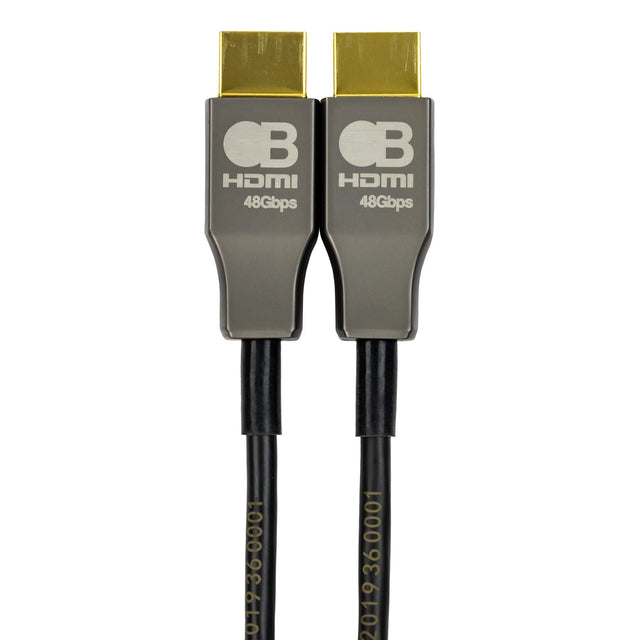

Bullet Train 10K 48Gbps AOC High Speed HDMI Cable System - 5 Meters / 1
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Description
Bullet Train 10K 48Gbps AOC High Speed HDMI Cable
Bullet Train 10K 48Gbps AOC High Speed HDMI Cable is an active optical HDMI cable designed for professional AV installations and long-distance signal transmission. It enables high-bandwidth audio and video signal delivery for integrators and system designers, supporting modern HDMI workflows. This makes it ideal for commercial environments and infrastructure where stable signal performance is critical.
The cable uses Cleerline SSF fiber optics combined with active optical circuitry to maintain signal integrity across extended distances. It supports high-bandwidth formats and HDMI features including FRL, VRR, ARC, and eARC depending on cable length. Its hybrid construction integrates fiber for signal transmission and copper conductors for auxiliary functions, ensuring compatibility with a wide range of systems.
This cable supports reliable operation in installations requiring extended cable runs without signal degradation. It is suited for environments where consistent high-resolution video and audio transmission is required. The design supports identification and deployment workflows through serial-numbered head shells.
Key Features
- High Bandwidth Support: Supports up to 48Gbps and 120 fps for high-performance video transmission
- Resolution Compatibility: Supports 4K, 5K, 8K, and 10K video formats
- CMP Rated Cable: Suitable for plenum installations and in-wall routing
- Advanced HDMI Features: Supports FRL, VRR, ARC, and eARC depending on cable length
- Fiber Optic Technology: Uses Cleerline SSF fiber for signal transmission stability and durability
- Serial Numbered Headshells: Enables quick signal path verification and system organization
- Low Latency Performance: Designed to maintain minimal delay in signal transmission
Technical Specifications
Bandwidth
48Gbps, 120 fps/hz
Cable Rating
CMP Cable Rating
Plenum
UL Listed
In-Wall Rated
Video Formats
4K
5K
8K
10K
HDMI Features
FRL & VRR
Ethernet
ARC (5–60M Cables)
eARC (up to 10M Cables)
Low Latency
HDCP 2.2
HDR (High Dynamic Range)
Dolby Vision
Audio Support
7.1 Audio
Dolby Audio (including Atmos)
DTS Audio
Color Depth
10 & 12-bit
Clock Rate
Up to 600Mcsc (600Mhz)
Cable Diameter
5mm
Head Dimensions
48.4 x 18.1 x 8.7 mm (Length, Width, Height)
Bend Radius
Over 20mm
Data Type
Cleerline Fiber Optics (SSF)
DDC and LVDS
32 AWG Copper
Insulation
Polymer/Kevlar
HDMI Connectors
Steel, 24K Gold
Head Shell
Aluminum
