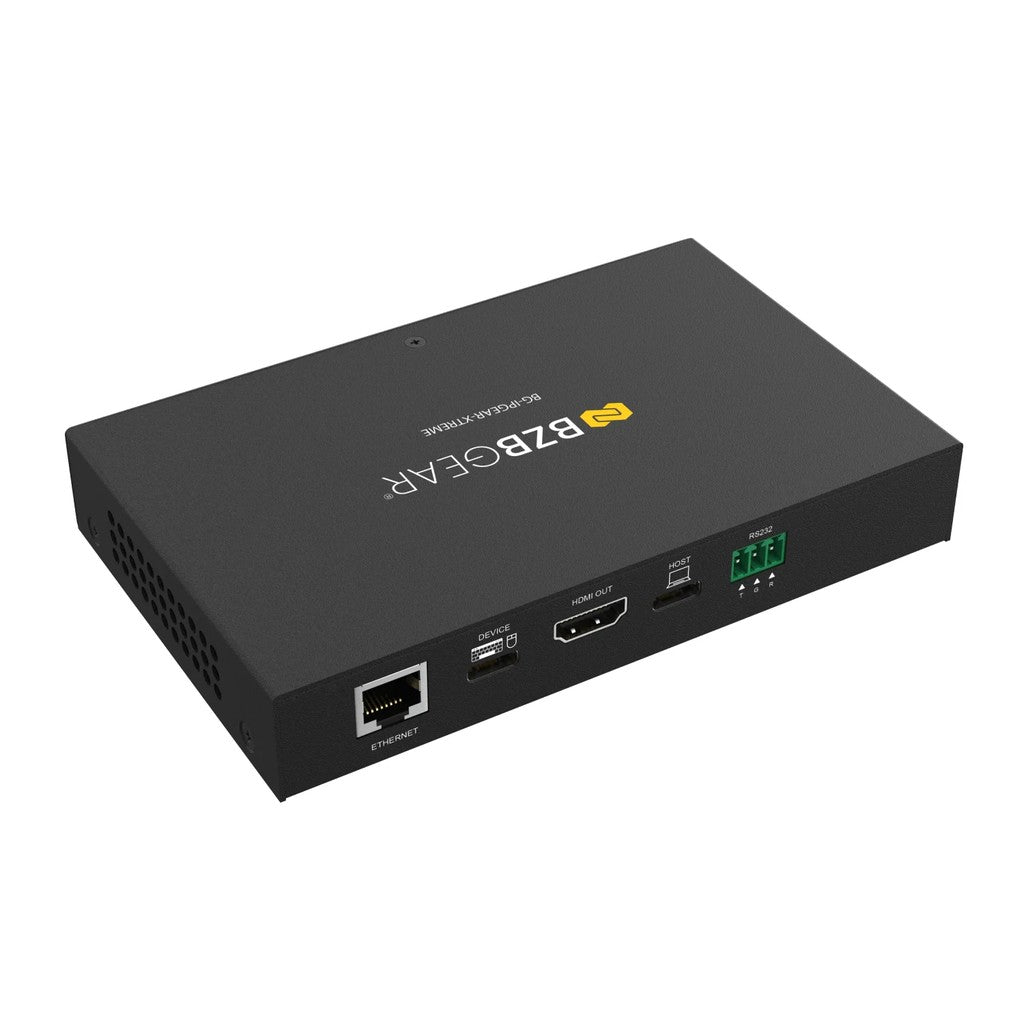

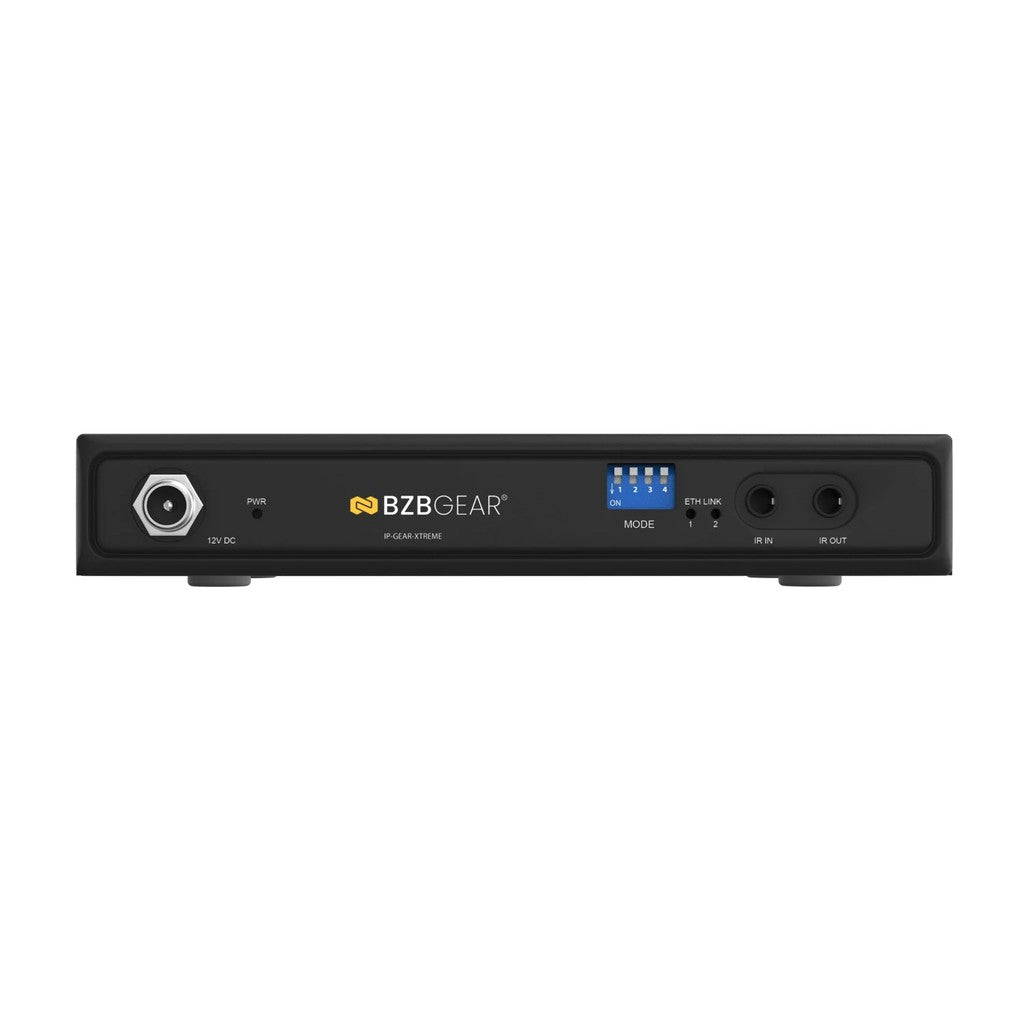

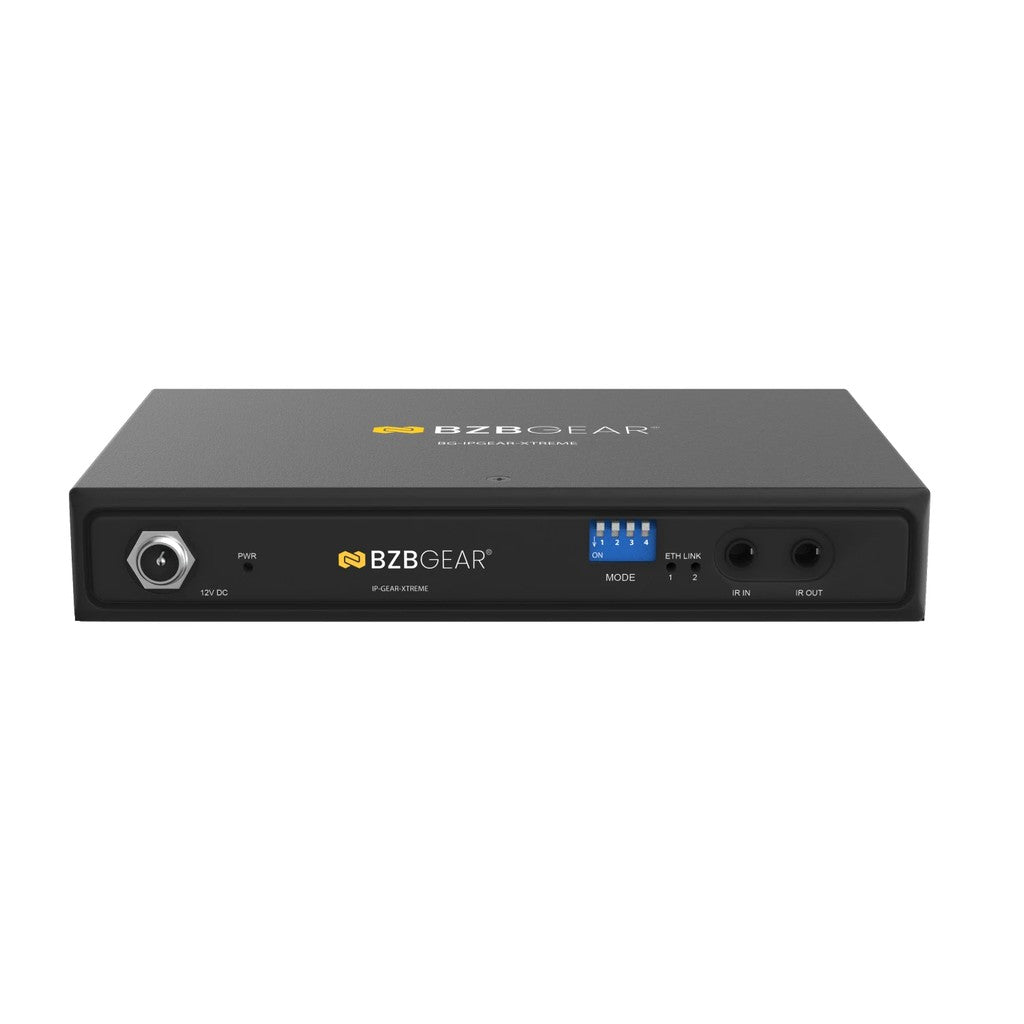

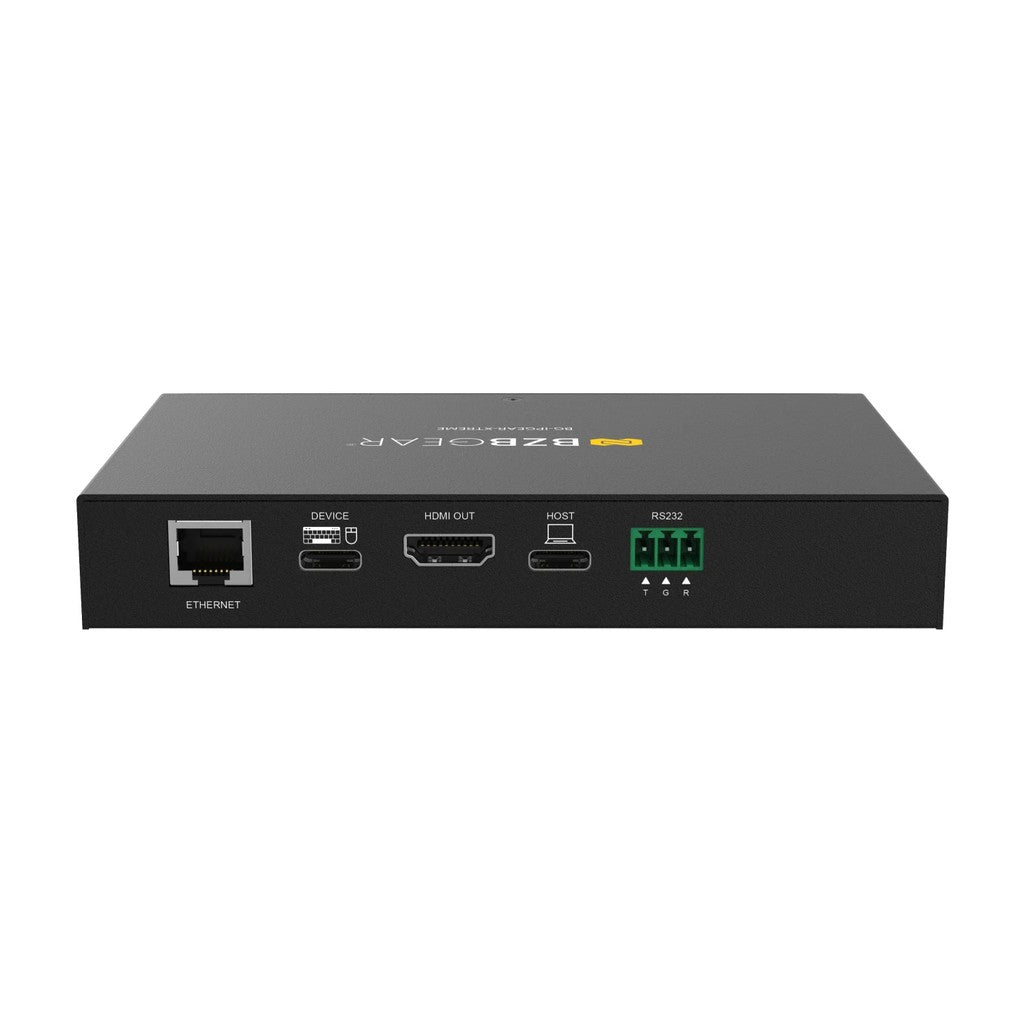

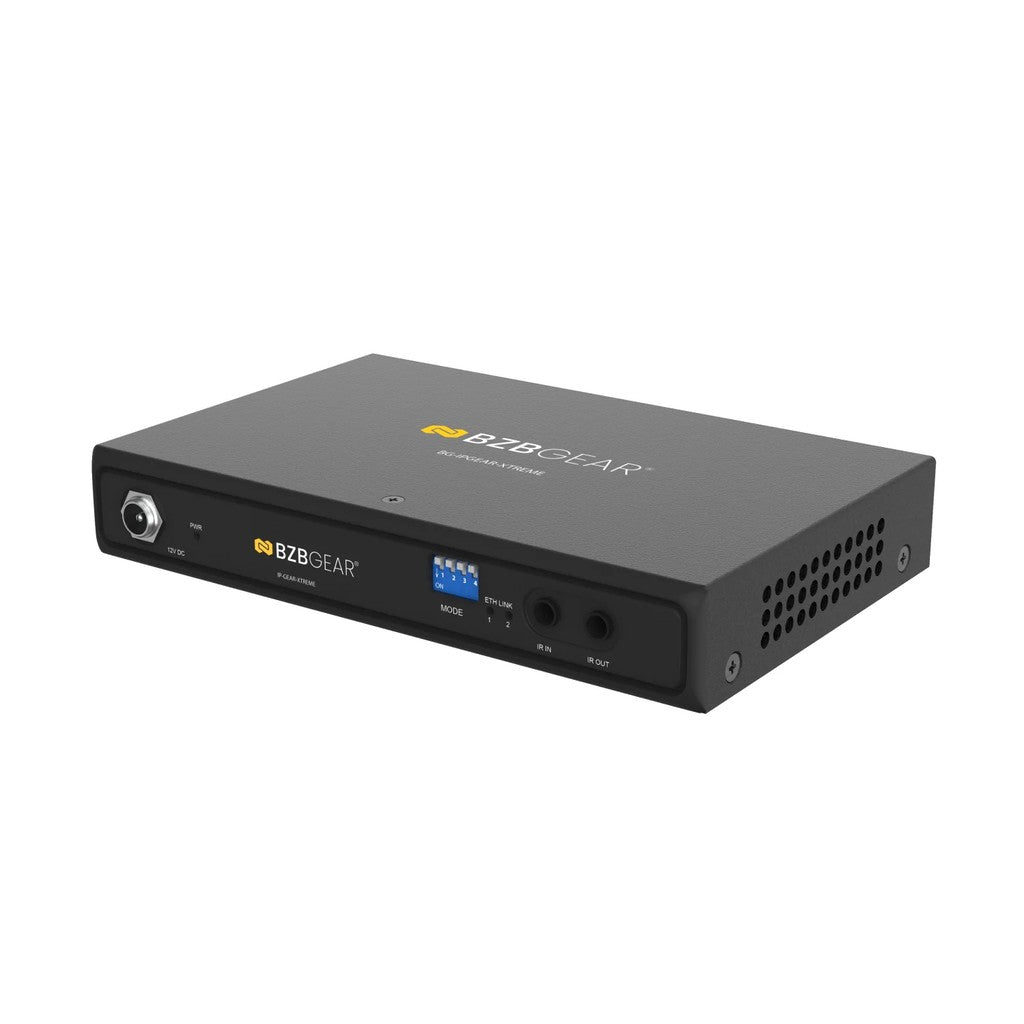

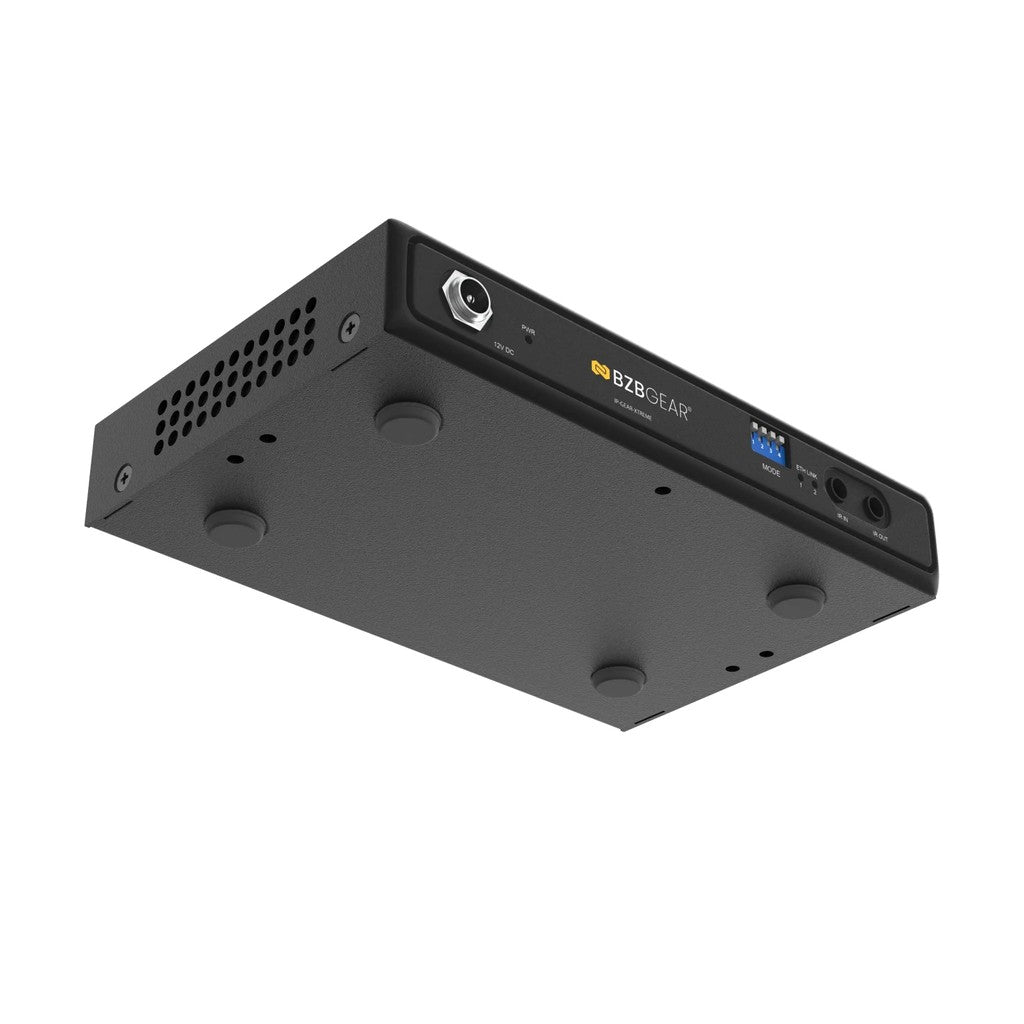

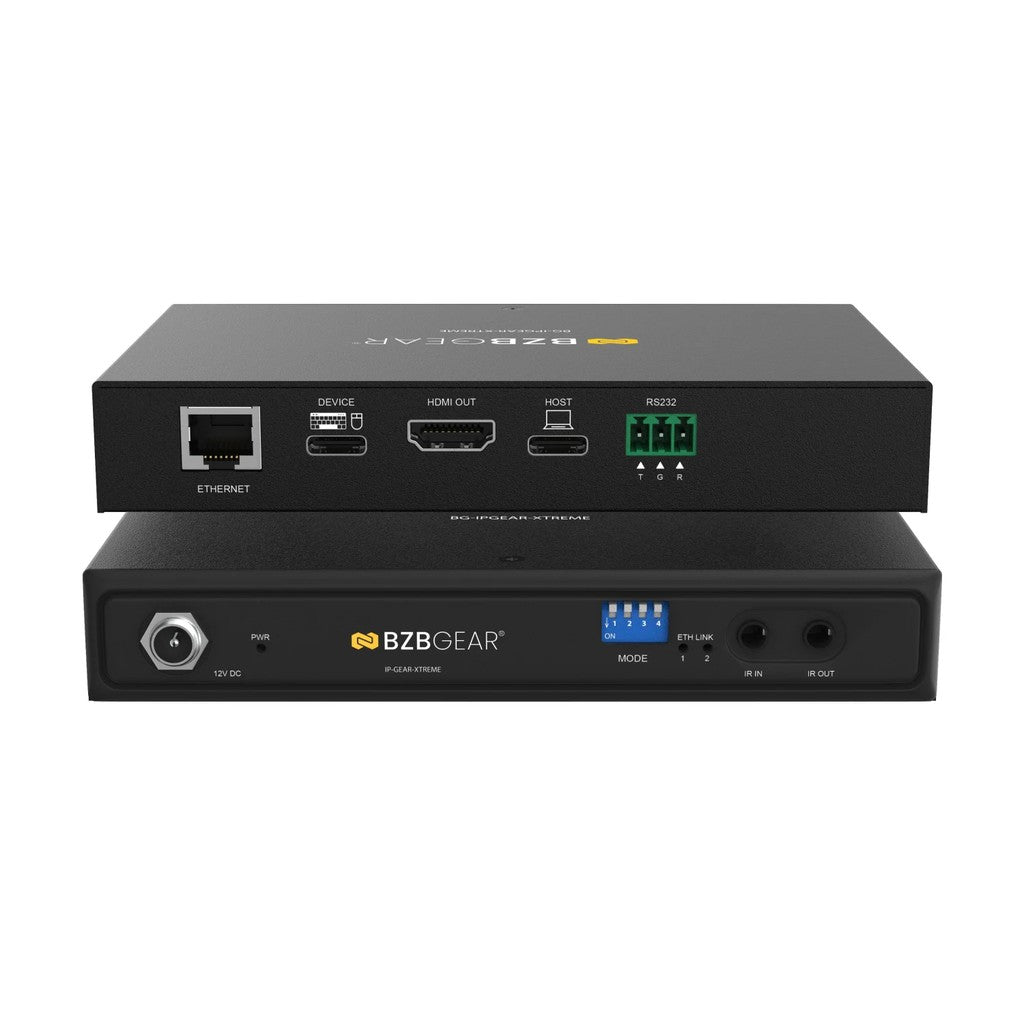

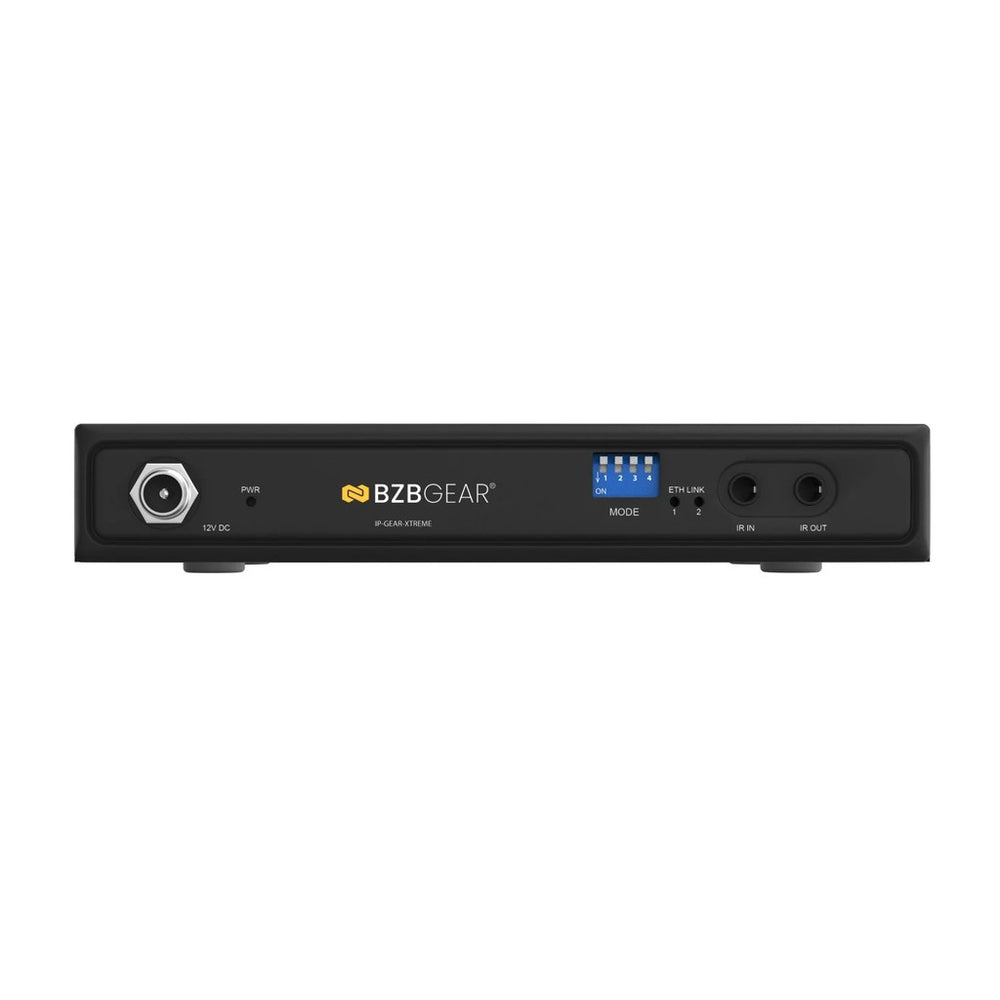

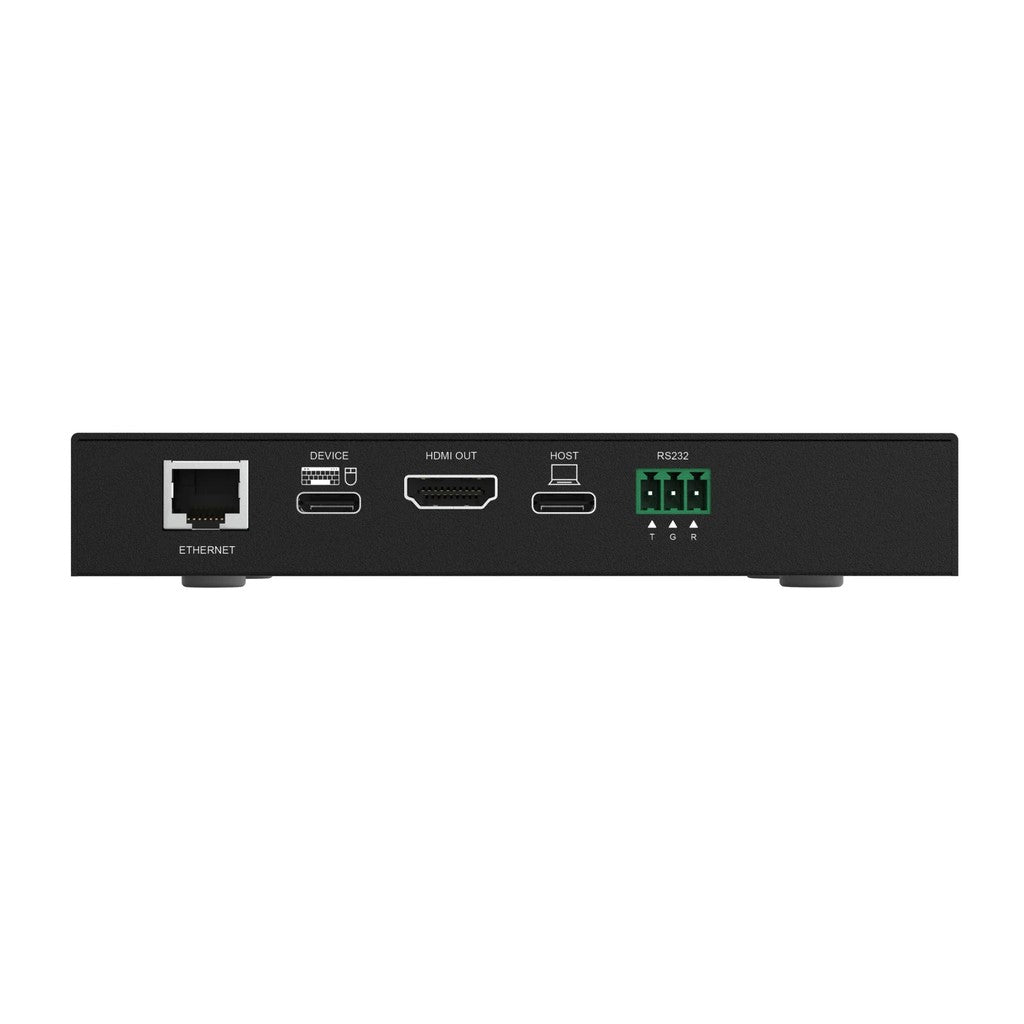

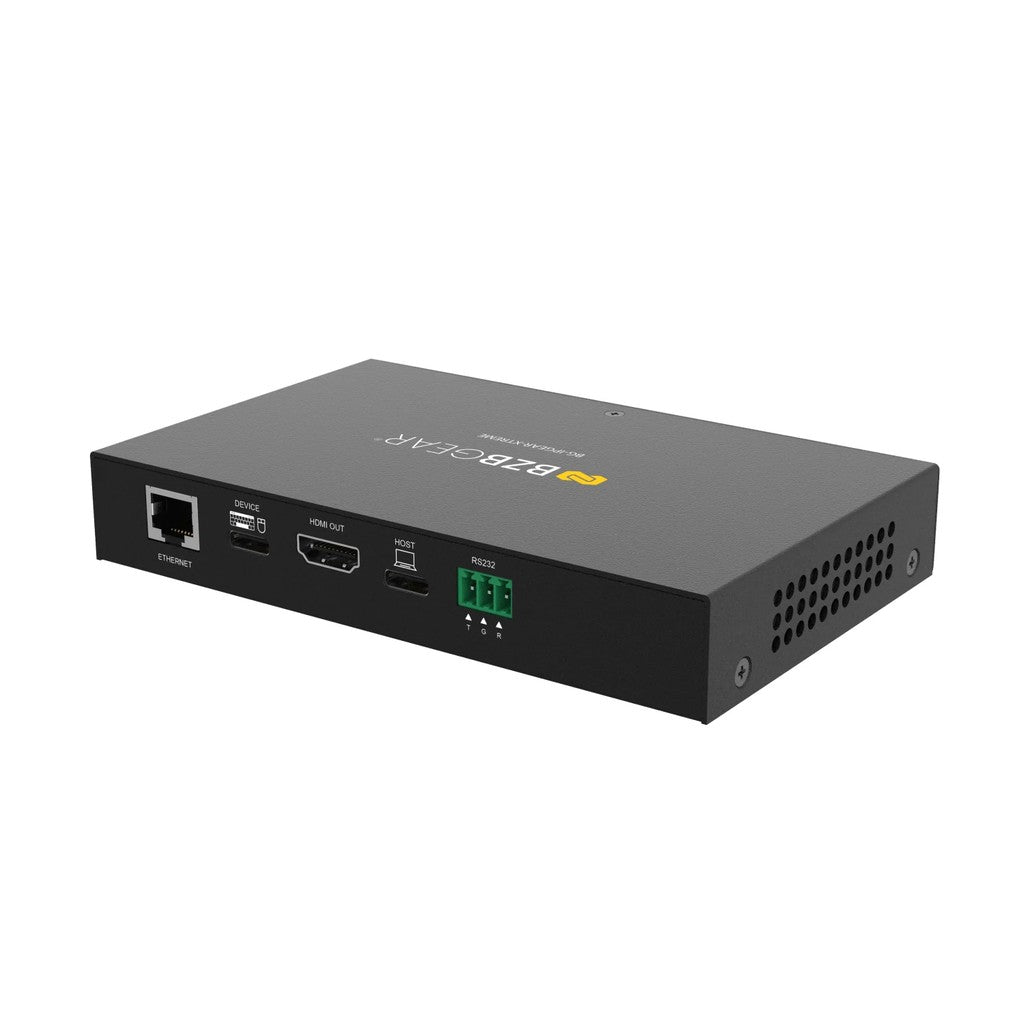

BZBGEAR BG-IPGEAR-XTREME 4K HDMI 2.1 AV Over IP Transceiver with Matrix Switcher

BZBGEAR BG-IPGEAR-XTREME 4K HDMI 2.1 AV Over IP Transceiver with Matrix Switcher

The BZBGEAR BG-IPGEAR-XTREME 4K HDMI 2.1 AV over IP transceiver delivers uncompressed 4K@120Hz 4:4:4 video, multichannel audio, KVM extension, matrix switching, and PoE-supported transport over a 1GbE network. Each unit can operate as a transmitter or receiver for flexible AV distribution.

Built for professional AV-over-IP installations, this HDMI 2.1 multicast system supports point-to-point, point-to-multipoint, and many-to-many routing. It is a strong fit for customers looking to buy 4K HDMI over IP extenders, build a scalable AV matrix system, or deploy low-latency KVM over Ethernet in corporate AV, education, healthcare, esports, broadcast, and command center environments.

The BG-IPGEAR-XTREME supports HDR10, HDR10+, Dolby Vision, VRR, ALLM, eARC/ARC, USB 3.1 Gen1/Gen2, bi-directional IR, RS-232, EDID management, and HDCP 2.3. TAA compliance, metal construction, wall-mounting hardware support, and XTREME Series interoperability make it suitable for long-term professional system integration.

4K HDMI 2.1 AV Over IP Performance

• 4K@120Hz 4:4:4 Video: Delivers ultra-high-definition HDMI 2.1 video with smooth motion and full chroma detail.
• Flexible Transceiver Design: Operates as either an encoder or decoder to simplify system planning and expansion.
• Seamless Matrix Switching: Supports scalable source-to-display routing for professional AV-over-IP matrix workflows.
• Multiview And Video Wall Support: Enables PiP, PbP, PoP, Quad-view, and video wall configurations with advanced scaling.
• Low-Latency Transmission: Provides less than one frame of latency for responsive live, interactive, and control-room applications.
• USB KVM Extension: Supports USB 3.1 Gen1 and Gen2 for remote control of PCs, media servers, touchscreens, and UVC webcams.
• Integrated Control: Includes bi-directional IR, RS-232, CEC bypass, EDID management, and software-based system control.
• PoE-Supported Installation: Sends power, video, audio, USB, and control over a single Cat.5e/6 cable up to 330 feet.

Technical Specifications

• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: Up to FRL 5, 40G
• Video Support: Up to 4K@120Hz 4:4:4
• HDMI Over UTP: 4K@120Hz 4:4:4 up to 560 ft over Cat.5e/6/6a/7
• Audio Support: Surround sound up to 7.1 channels
• Premium Audio Formats: Dolby TrueHD, DTS-HD Master Audio, LPCM, eARC, and ARC support
• HDR Support: HDR10, HDR10+, and Dolby Vision
• Gaming And Interactive Support: VRR and ALLM
• Equalization: Auto
• Input TMDS Signal: 1.2V peak-to-peak
• Input DDC Signal: 5V peak-to-peak, TTL
• ESD Protection: Human body model, ±15kV air-gap discharge and ±8kV contact discharge
• PCB Stack-Up: 6-layer board with impedance control, differential 100 ohms and single 50 ohms
• IR Pass-Thru: Bi-directional
• RS-232 Support: Yes
• Inputs: 1x HDMI, 1x 3.5mm, 1x USB, 1x USB-C
• Outputs: 1x 3.5mm, 1x RJ-45
• I/O: 1x RS-232 terminal block
• HDMI Source Control: Controllable via IR pass-through from receiver to transmitter or transmitter to receiver with IR extenders
• HDMI Connector: Type A, 19-pin female
• RJ-45 Connector: WE/SS 8P8C, reverse mode
• USB Connector: Type A and USB-C
• 3.5mm Connector: IR receiver and IR blaster
• Network Requirement: Managed 1GbE switch with IGMP Snooping and 802.1Q VLAN support for multicast optimization
• Housing: Metal enclosure
• Mounting: Wall-mounting case with screws
• Dimensions: 5.2" x 3" x 0.79"
• Weight: 1.1 lbs
• Power Supply: 12V DC, 1A
• Power Consumption: 12W max
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Relative Humidity: 20% to 90% RH, no condensation
• Compliance: TAA compliant

What's In The Box

• 1x BG-IPGEAR-XTREME
• 1x IR Blaster
• 1x IR Receiver
• 2x DC 12V
• 1x User Manual
• 2x 3-pin Power Terminal Block Connector
