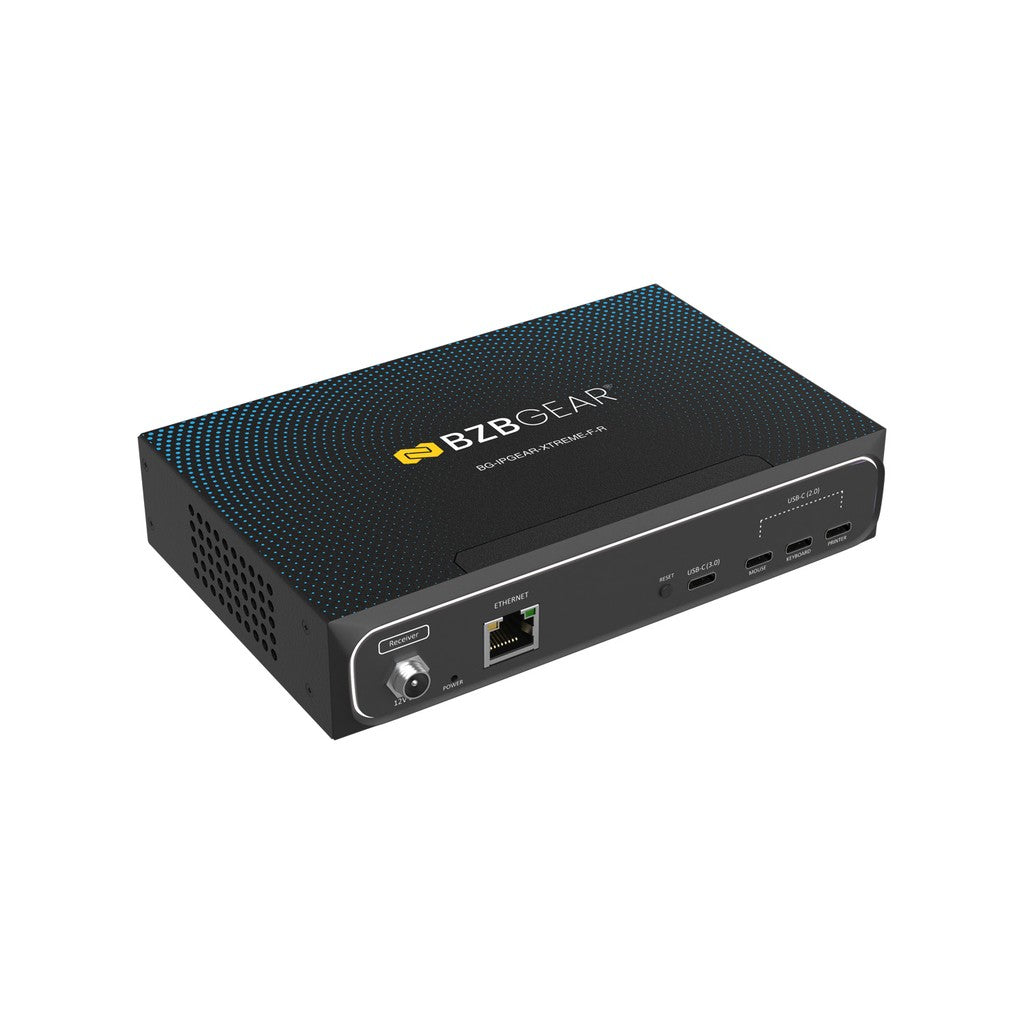

BZBGEAR BG-IPGEAR-XTREME-F 8K HDMI 2.1 Fiber Extender Kit

BZBGEAR BG-IPGEAR-XTREME-F 8K HDMI 2.1 Fiber Extender Kit

The BZBGEAR BG-IPGEAR-XTREME-F 8K HDMI 2.1 fiber extender kit sends ultra-high-resolution video, audio, USB KVM, Ethernet, IR, and RS-232 over single-mode fiber. It supports uncompressed 4K60 4:4:4, visually lossless 4K144 4:4:4, and 8K@60Hz 4:4:4 DSC with zero-frame latency.

Designed for mission-critical AV transmission, this fiber HDMI extender kit is ideal for broadcast, medical imaging, esports, control rooms, high-end home theater, simulation, and cinematic display systems. It gives buyers a long-distance 8K HDMI fiber extender for clean signal routing where copper cabling is impractical or vulnerable to interference.

The BG-IPGEAR-XTREME-F combines HDMI 2.1, HDCP 2.3, 48Gbps FRL 6 bandwidth, DisplayPort 1.4 over USB-C Alt Mode, eARC/ARC, USB 3.1 KVM, transparent EDID and HDCP handling, CEC pass-through, and Gigabit Ethernet pass-through. The kit includes transmitter and receiver units for complete point-to-point fiber extension.

8K HDMI 2.1 Fiber Extension Features

• 8K And 4K HDR Support: Transmits up to 8K@60Hz 4:4:4 DSC, 4K@144Hz 4:4:4, and uncompressed 4K@60Hz 4:4:4.
• Long-Range Fiber Transport: Extends AV, data, and control signals up to 6.25 miles over single-mode fiber optic cable.
• Zero-Frame Latency: Maintains real-time signal response for esports, medical imaging, control rooms, and live production workflows.
• HDMI 2.1 Performance: Supports HDMI 2.1, HDCP 2.3, 48Gbps FRL 6 bandwidth, and advanced high-refresh-rate video formats.
• USB 3.1 KVM Extension: Enables remote operation of keyboards, mice, touchscreens, storage devices, and UVC cameras.
• Advanced Audio Pass-Through: Supports uncompressed 7.1-channel HDMI audio, Dolby TrueHD, DTS-HD Master Audio, LPCM, eARC, and ARC.
• Integrated Control: Provides bi-directional IR, full-duplex RS-232, transparent EDID and HDCP handling, and CEC pass-through.
• Network Pass-Through: Includes 1Gb Ethernet pass-through for a dedicated network link across the fiber extension path.

Technical Specifications

• Product Type: HDMI 2.1 over fiber extender kit
• Model: BG-IPGEAR-XTREME-F

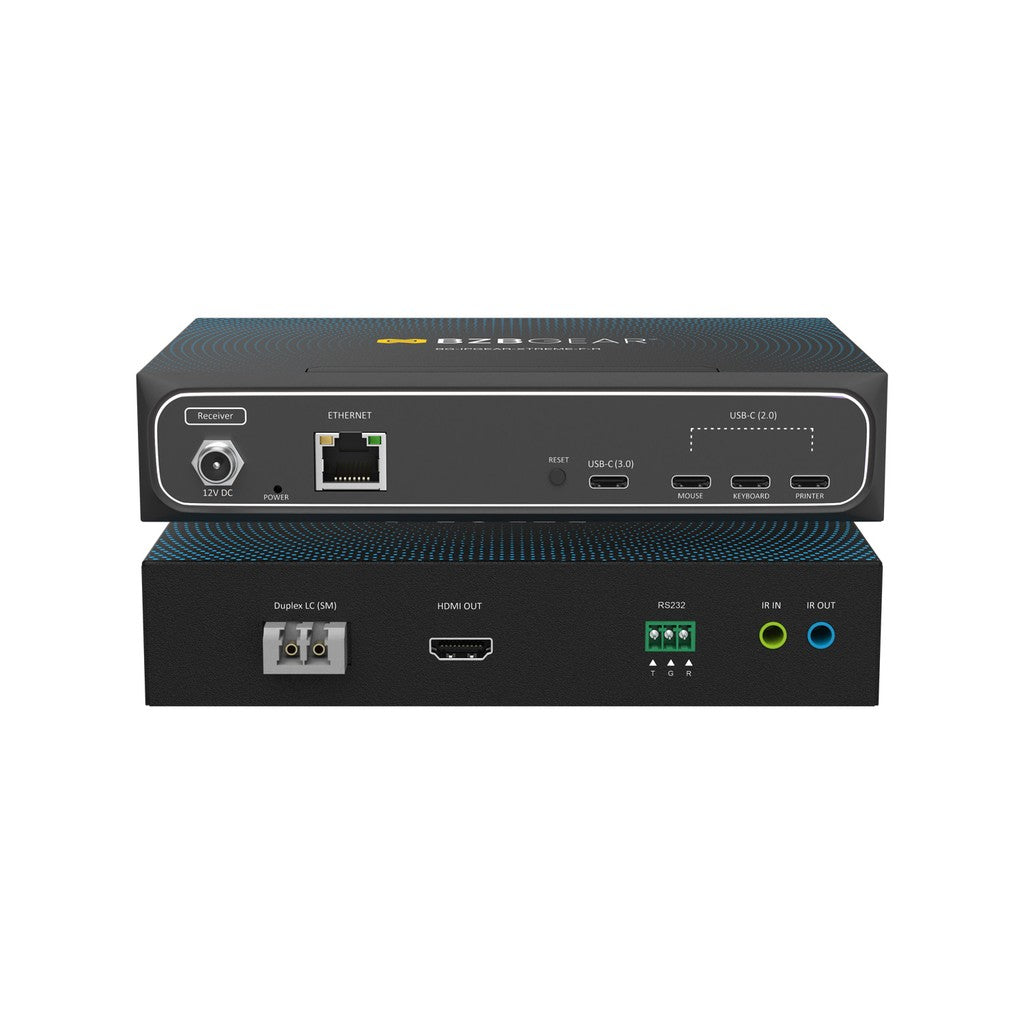

• Included Units: Transmitter and receiver
• Maximum Video Resolution: 8K@60Hz 4:4:4 DSC
• Additional Video Support: 4K@144Hz 4:4:4 visually lossless and 4K@60Hz 4:4:4 uncompressed
• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: 48Gbps, FRL 6
• Compression Support: DSC 1.2a
• Transmission Distance: Up to 6.25 miles over single-mode fiber optic cable
• Latency: Zero-frame latency
• Source Compatibility: HDMI sources and USB-C sources with DisplayPort 1.4 Alt Mode
• HDR Support: HDR
• Gaming And Motion Support: Variable Refresh Rate and Auto Low Latency Mode
• Audio Support: Uncompressed 7.1-channel HDMI audio
• Supported Audio Formats: Dolby TrueHD, DTS-HD Master Audio, LPCM, Dolby Atmos, and DTS:X
• ARC / eARC: Supported
• KVM Support: USB 3.1 Gen1 and Gen2
• USB Device Support: UVC cameras, storage devices, touchscreens, keyboards, mice, and input peripherals
• Ethernet Support: 1Gb Ethernet pass-through
• IR Support: Bi-directional wideband IR, 20kHz to 60kHz
• RS-232 Support: Full-duplex serial control up to 115,200 bps
• EDID Handling: Transparent EDID handling
• HDCP Handling: Transparent HDCP handling
• CEC Support: CEC pass-through
• Fiber Type: Single-mode fiber optic cable
• Housing: Rugged metal enclosure
• Compliance: TAA compliant
• Warranty: 5-year warranty

What's In The Box

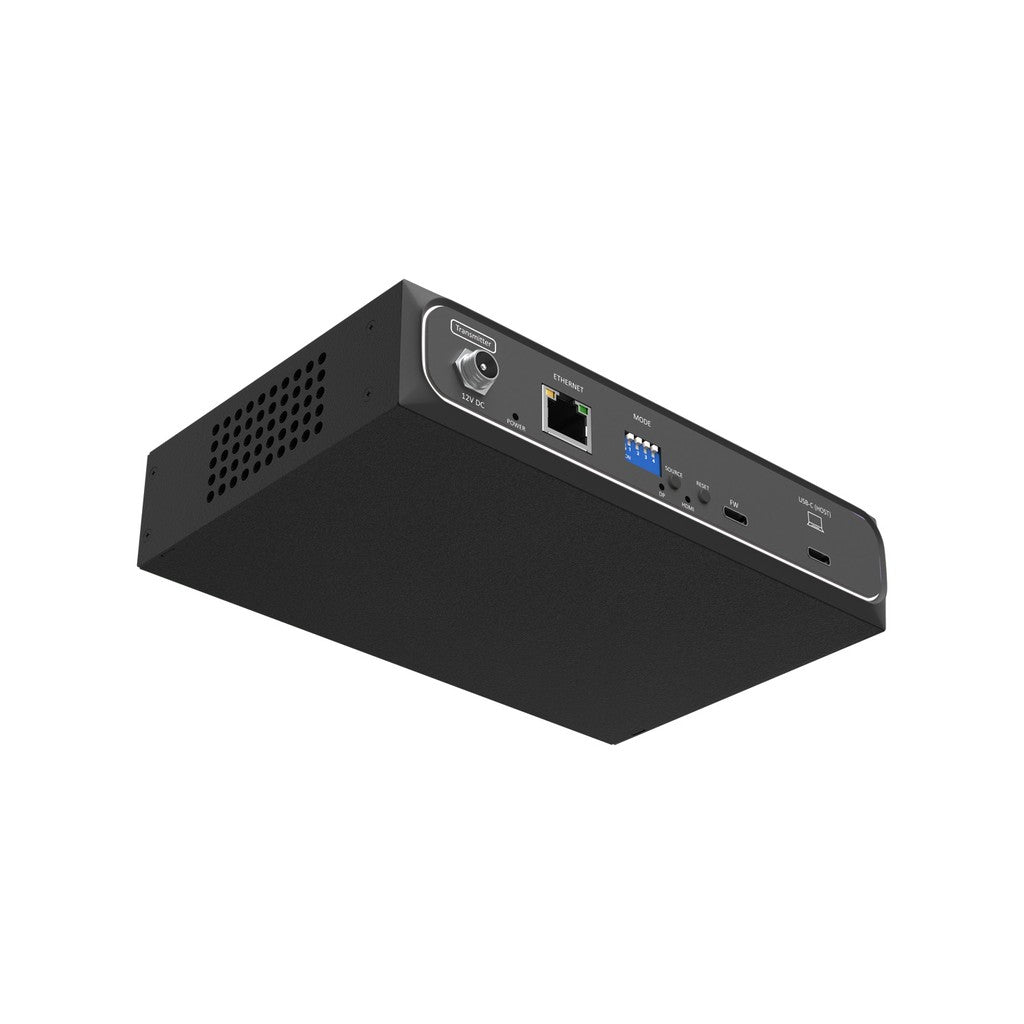

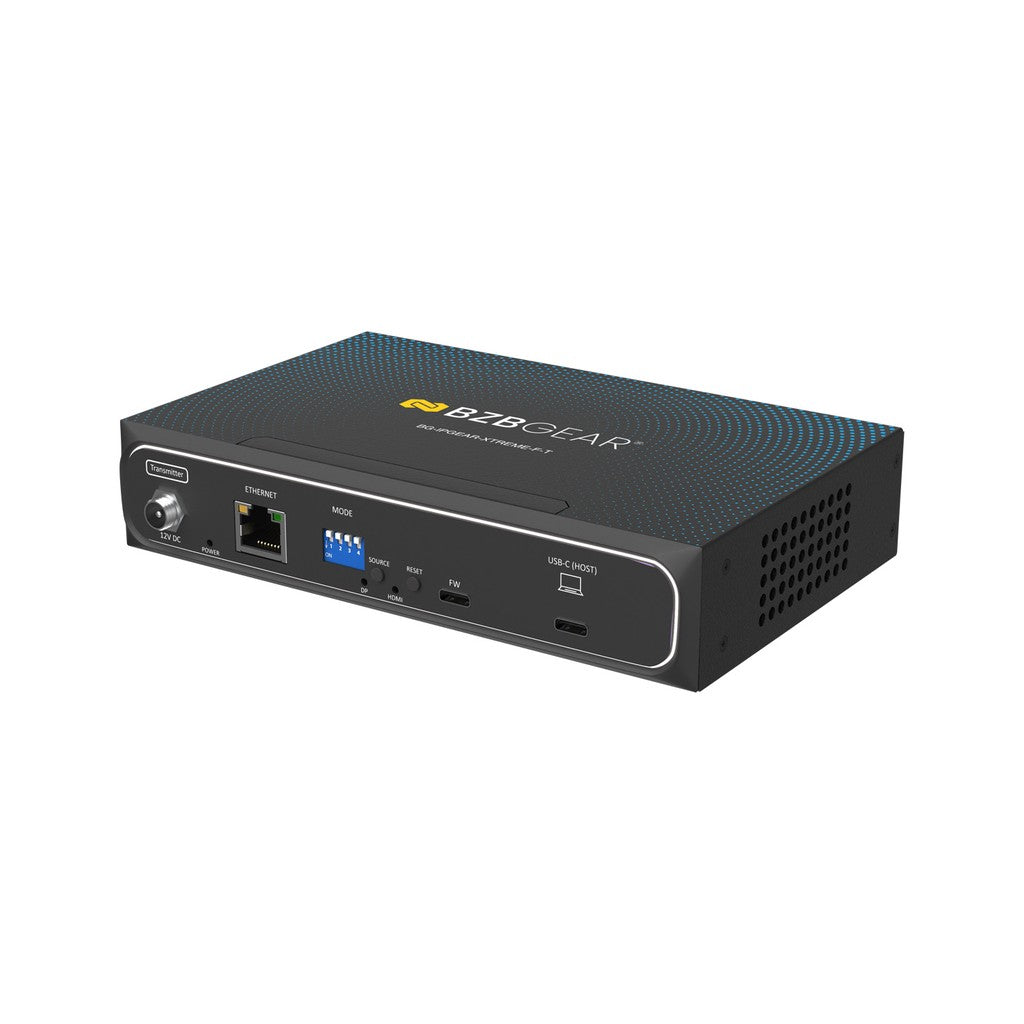

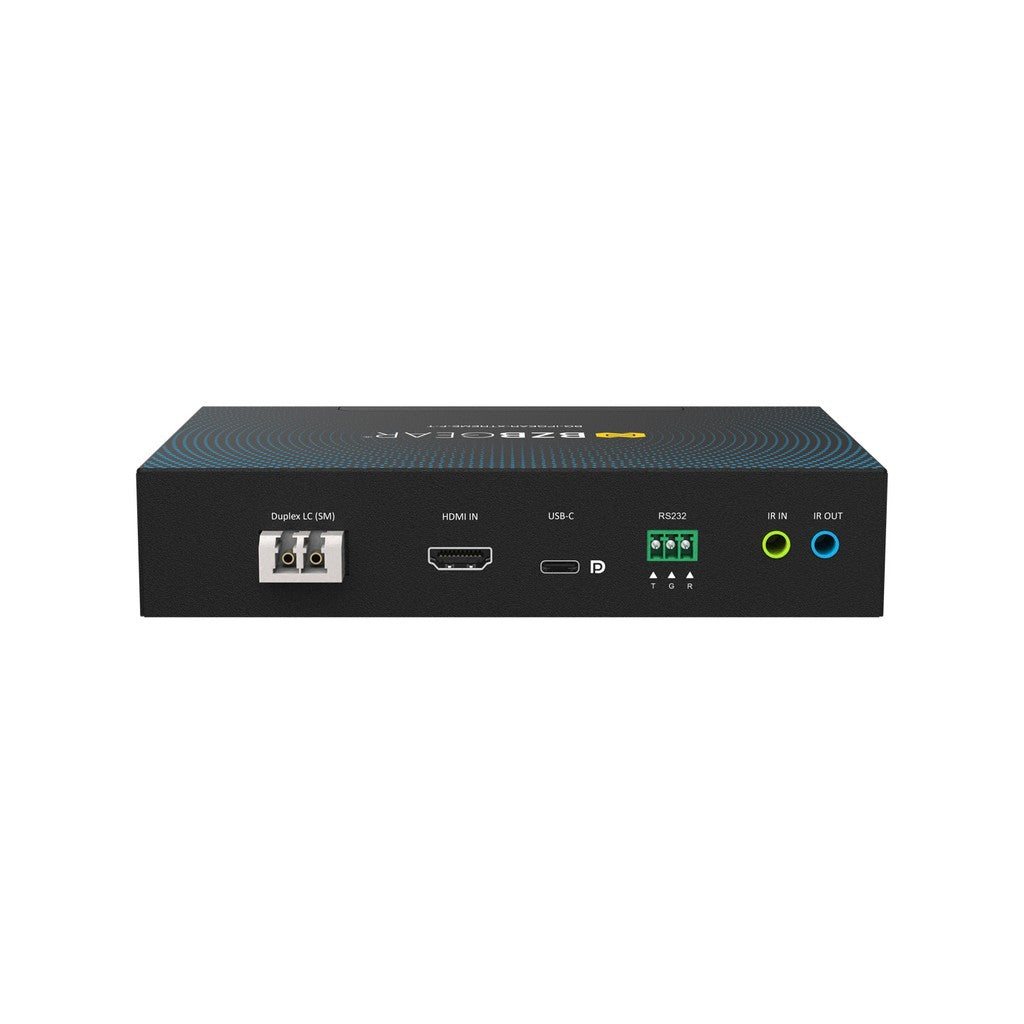

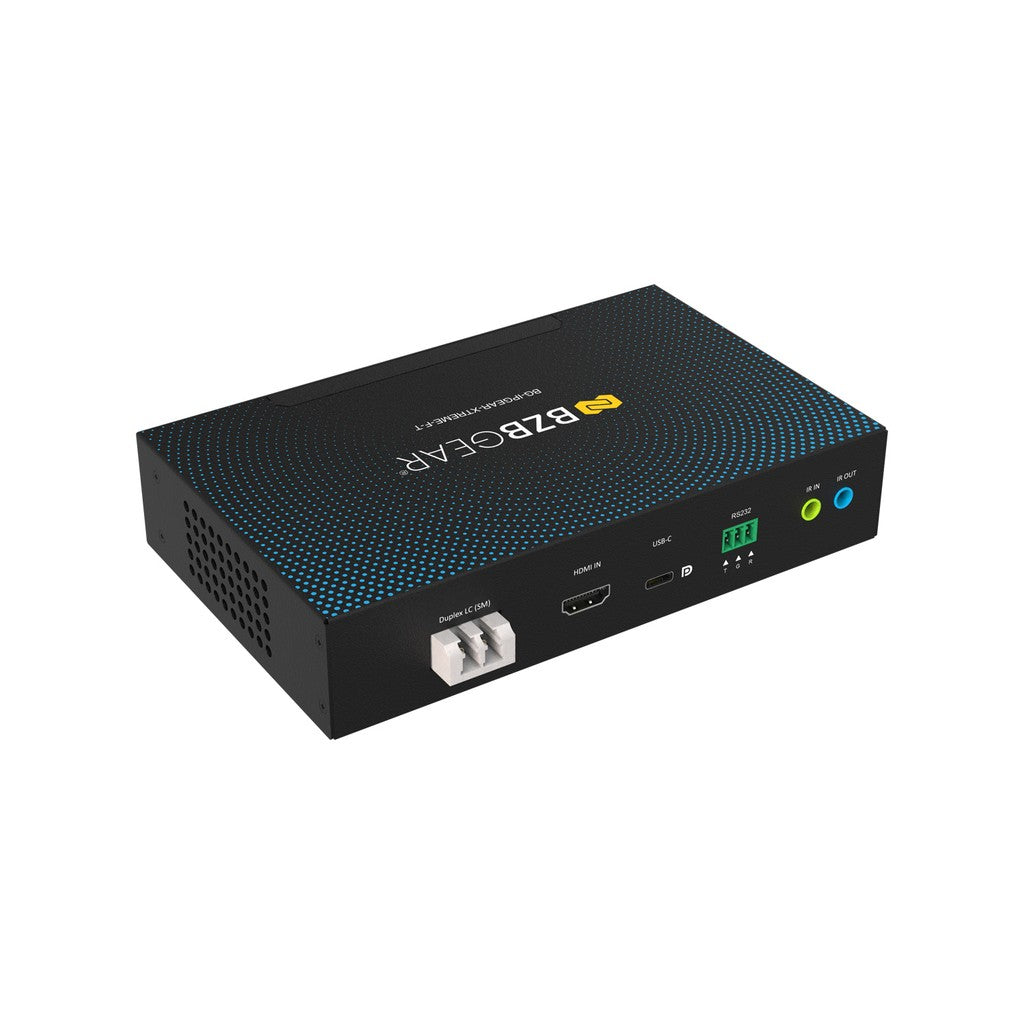

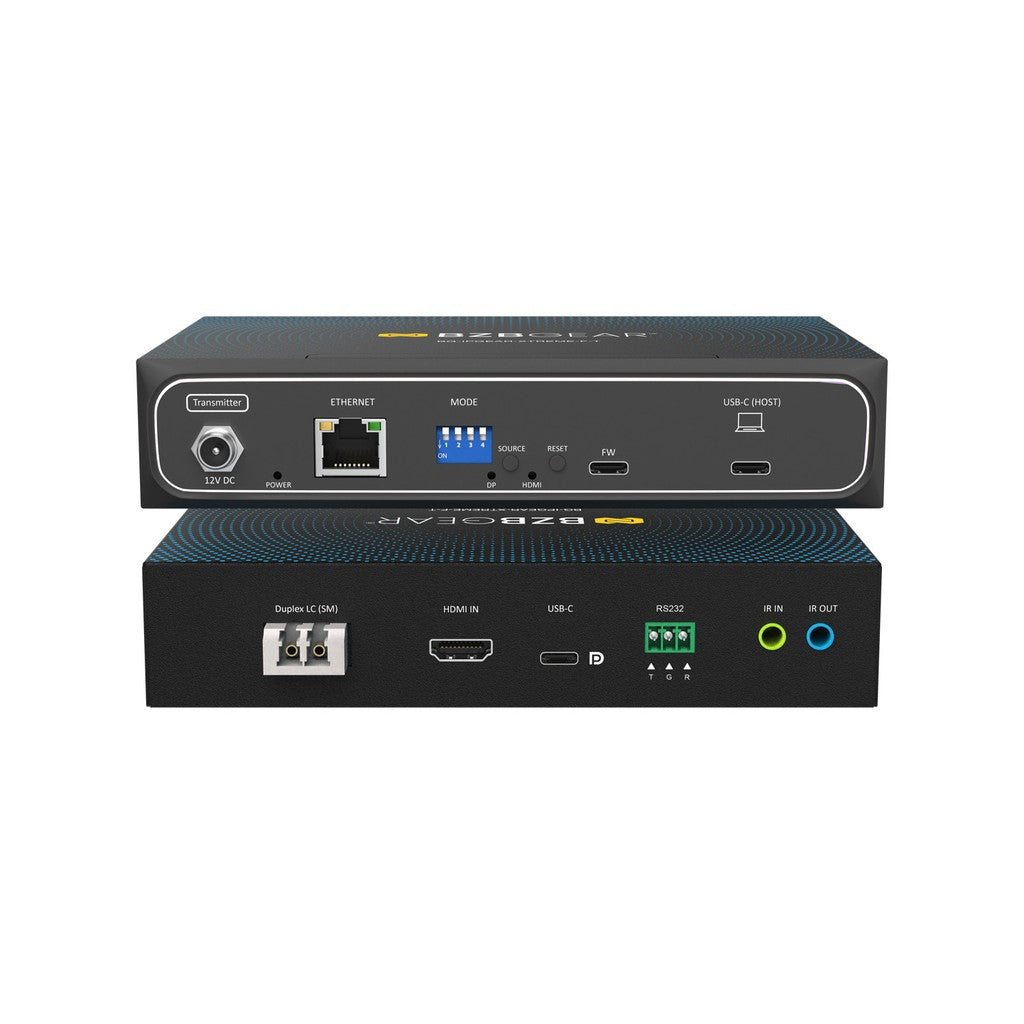

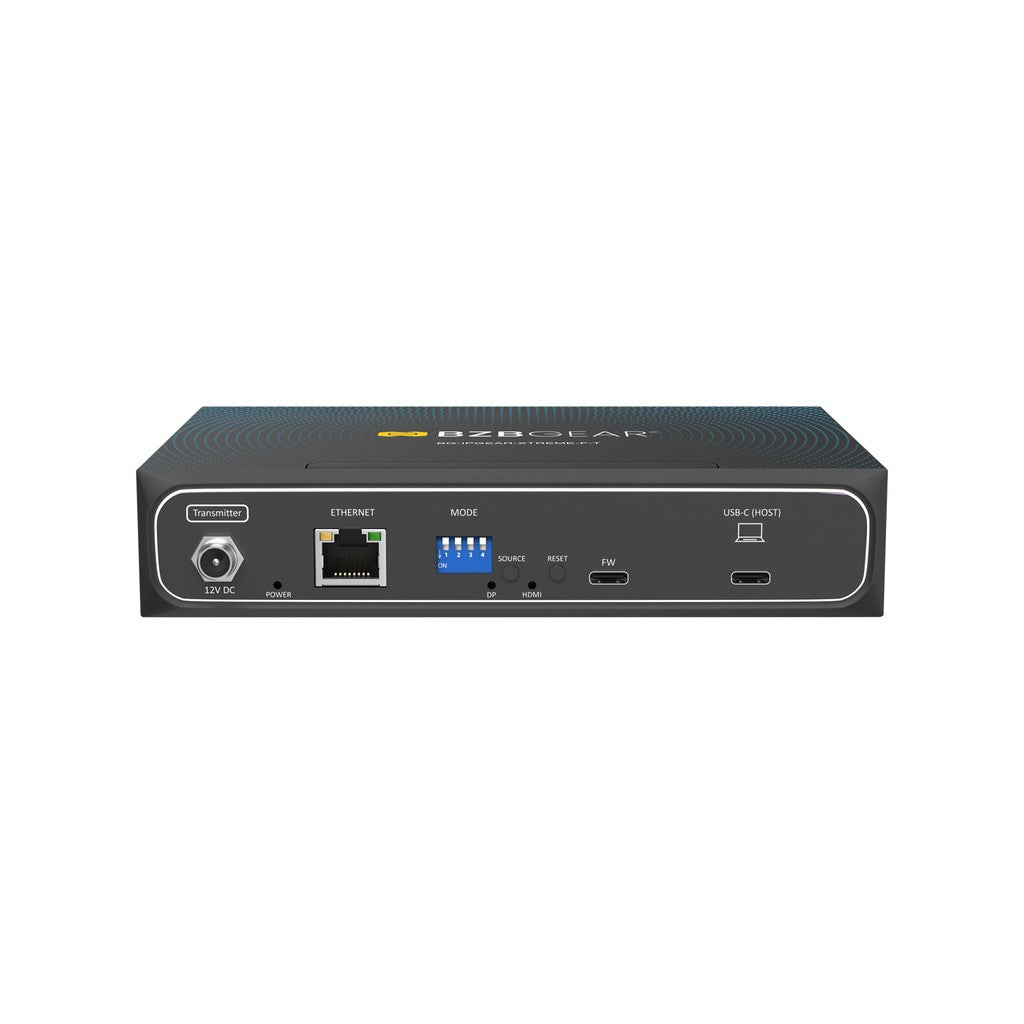

• BG-IPGEAR-XTREME-F transmitter unit

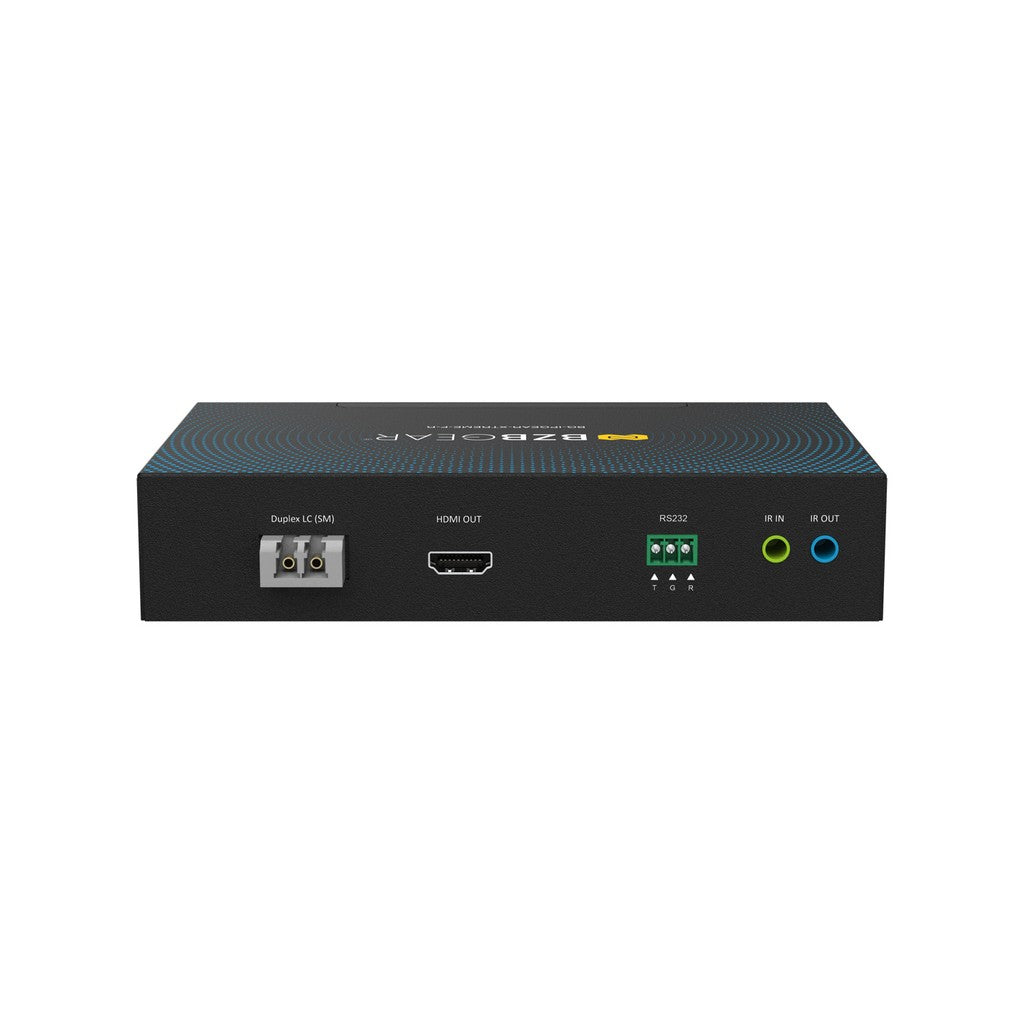

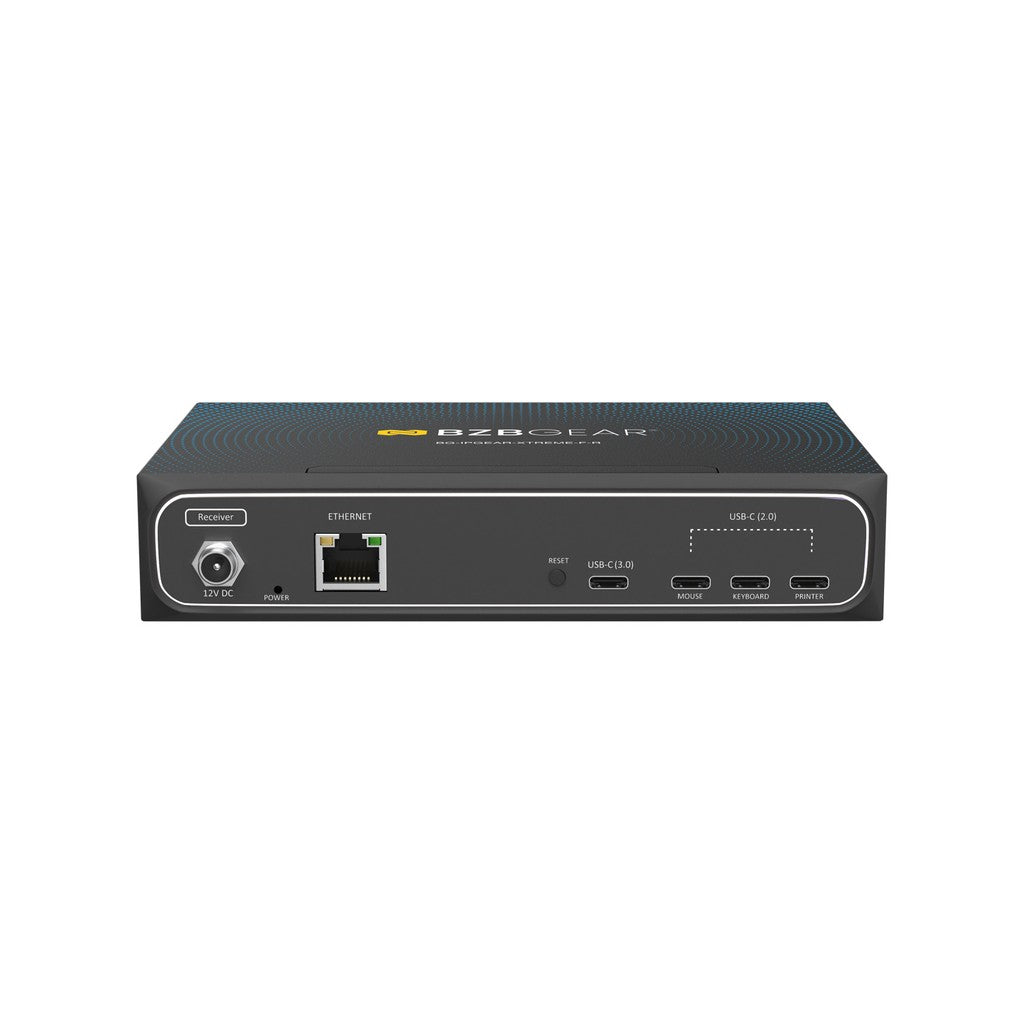

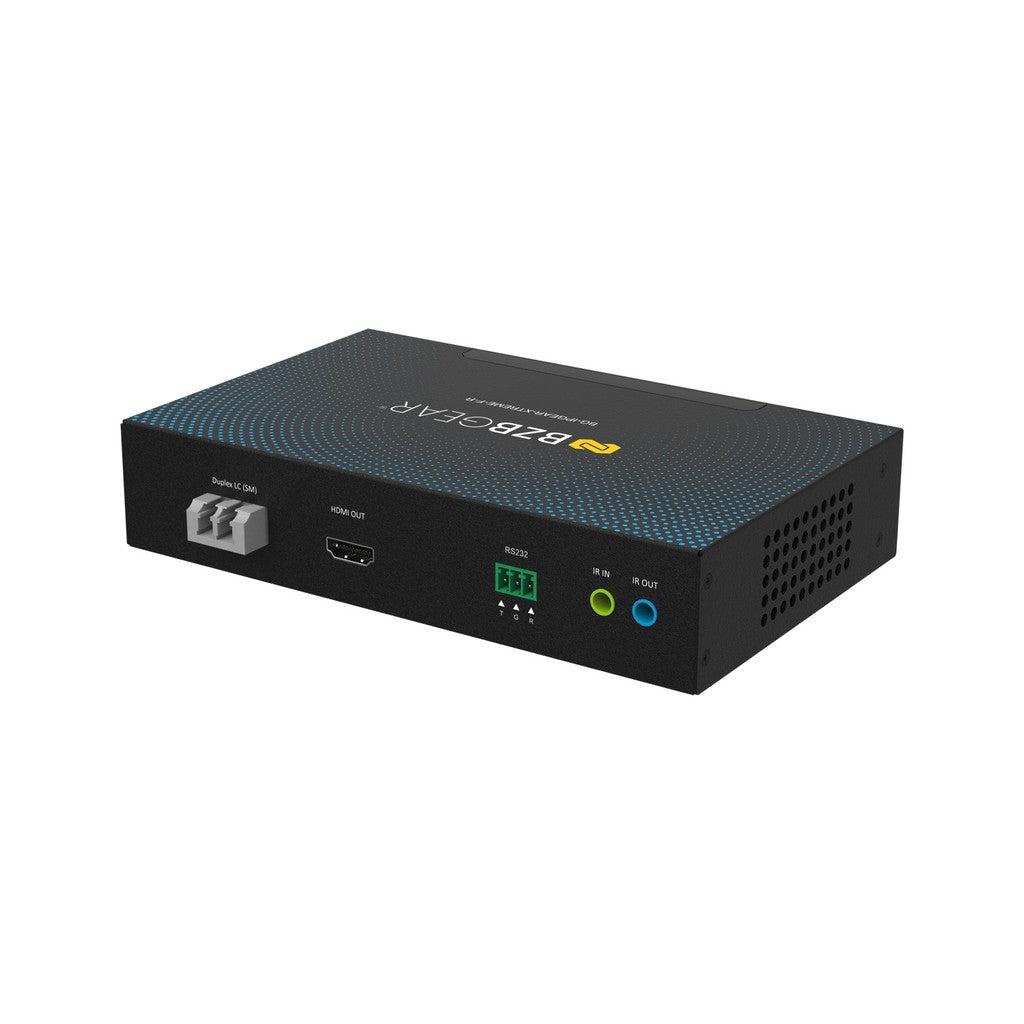

• BG-IPGEAR-XTREME-F receiver unit
• Single-mode fiber modules
• IR blaster
• IR receiver
• 12V DC power adapters
