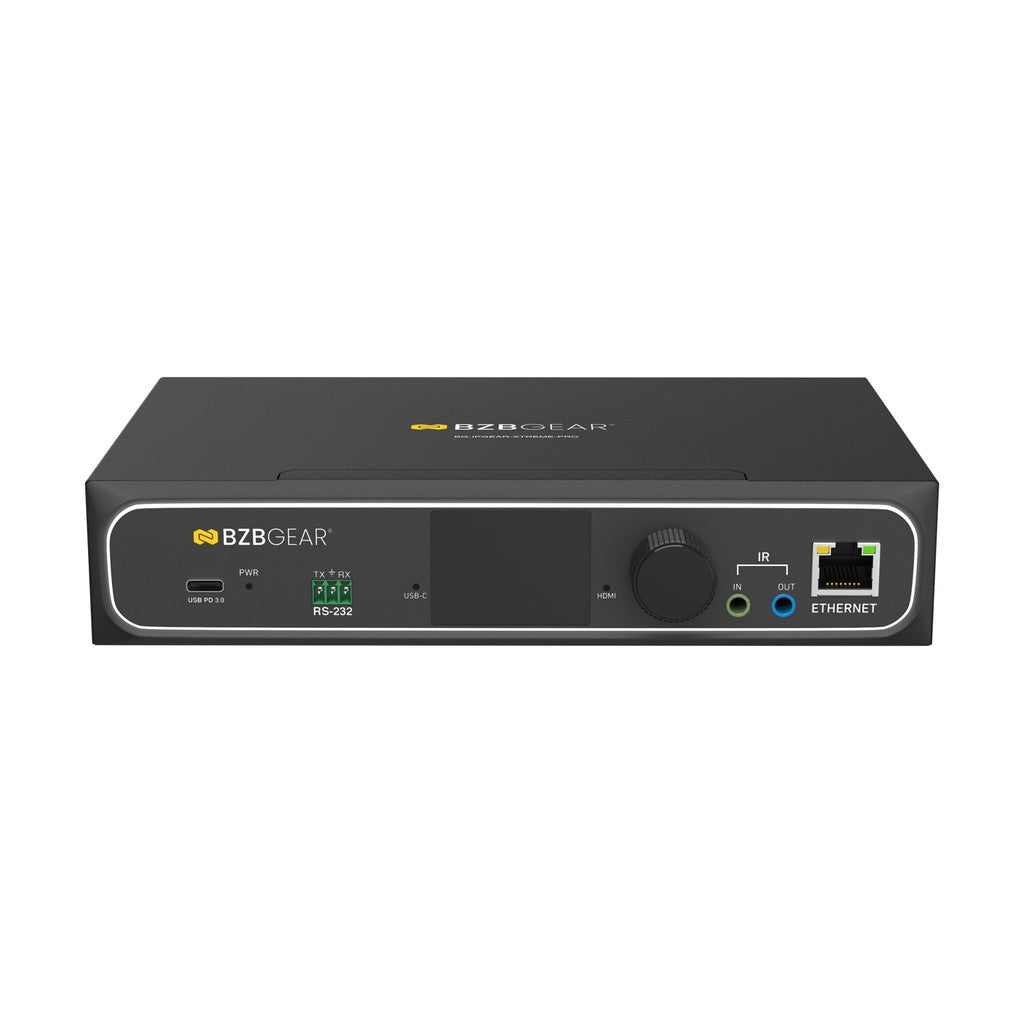

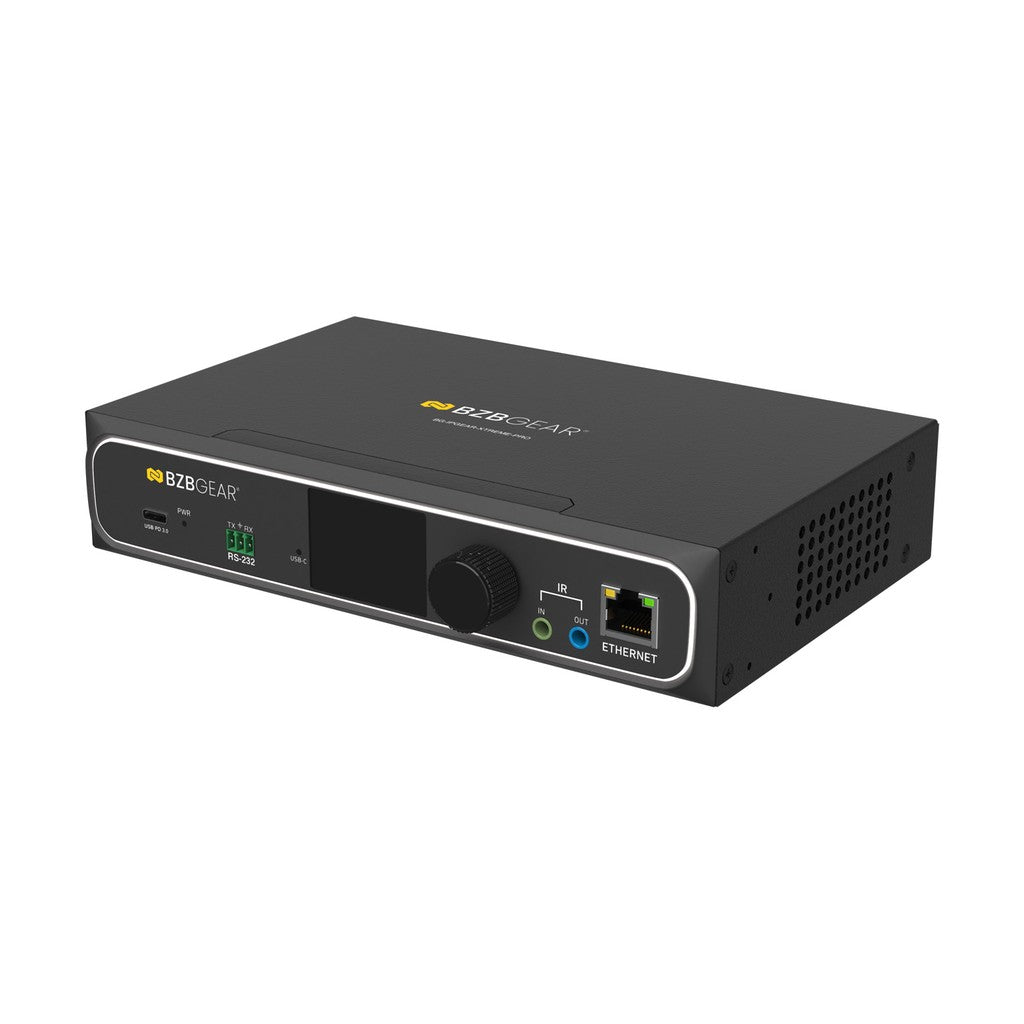

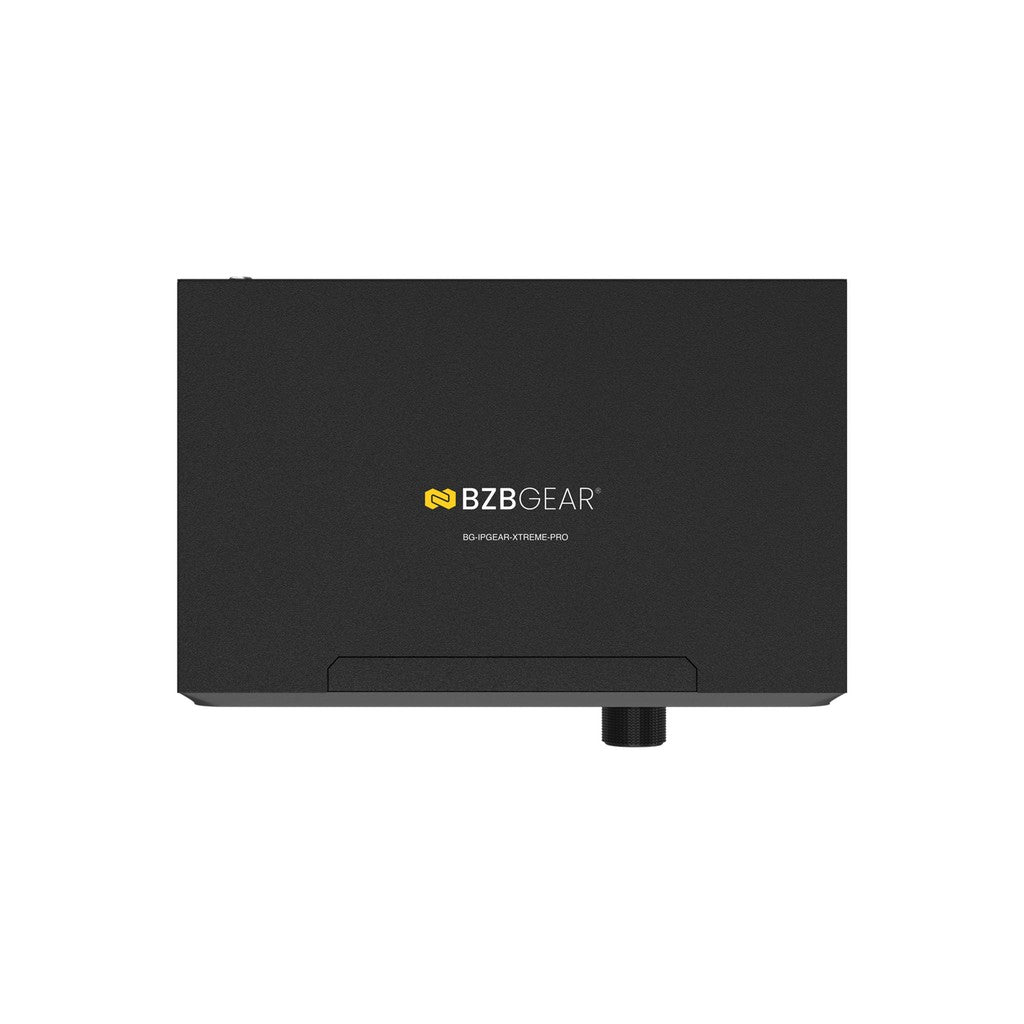

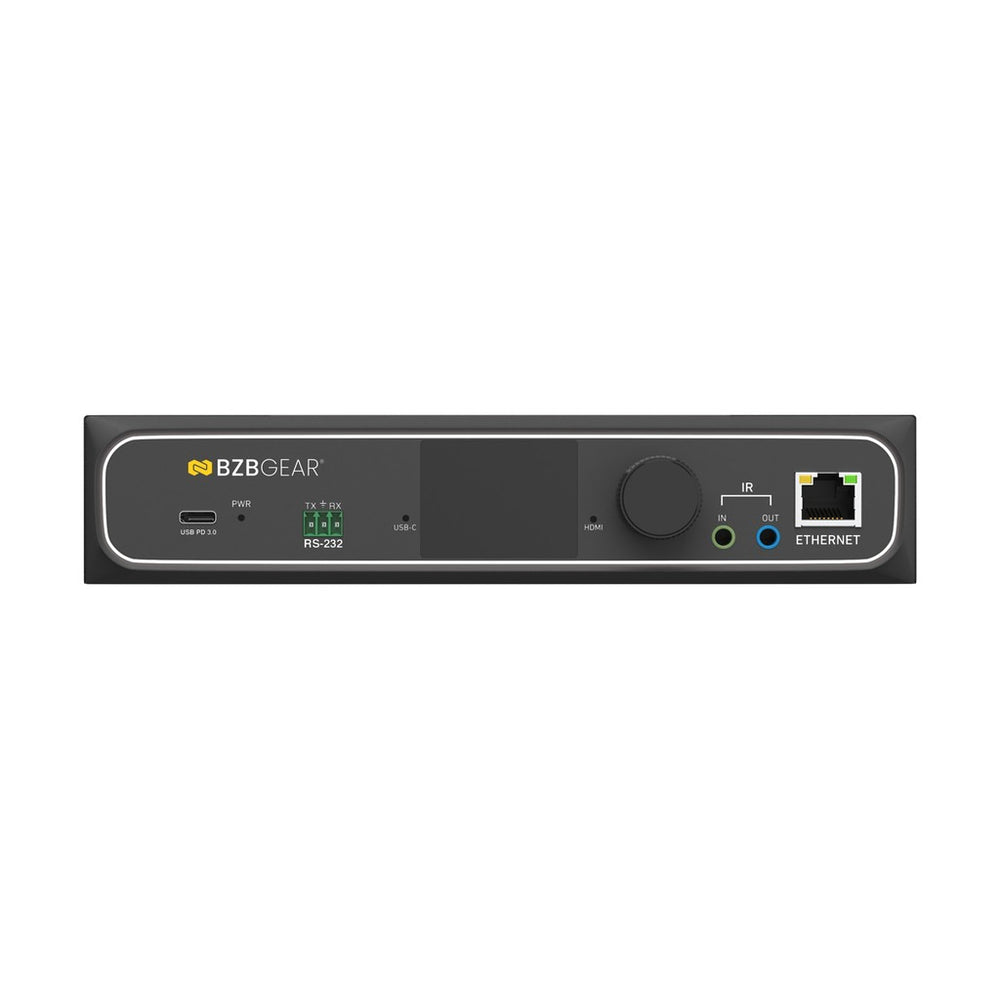

BZBGEAR BG-IPGEAR-XTREME-PRO 8K HDMI 2.1 AV Over IP Transceiver

BZBGEAR BG-IPGEAR-XTREME-PRO 8K HDMI 2.1 AV Over IP Transceiver

The BZBGEAR BG-IPGEAR-XTREME-PRO 8K HDMI 2.1 AV over IP transceiver delivers 8K@60Hz 4:2:2 DSC, 8K@60Hz 4:2:0 uncompressed, and 4K@144Hz 4:4:4 video over a 1GbE multicast network with seamless switching, KVM, multiview, video wall, USB, and PoE-supported AV distribution.

Built for high-performance AV-over-IP systems, this transceiver is ideal for buyers looking to buy an 8K HDMI over IP extender, build a scalable AV matrix over Ethernet, or deploy low-latency KVM for broadcast, gaming, healthcare, visualization, digital signage, and professional AV environments. Each unit functions as a transmitter or receiver, reducing inventory complexity across large projects.

The BG-IPGEAR-XTREME-PRO supports HDMI 2.1, HDCP 2.3, FRL 6 bandwidth, eARC/ARC, Dolby TrueHD, DTS-HD Master Audio, bi-directional analog audio, USB 3.1, RS-232, IR, CEC bypass, EDID management, IGMP Snooping, and 802.1Q VLAN integration. Its metal enclosure, LCD status monitor, control knob, and XTREME Series compatibility support demanding commercial installations.

8K HDMI 2.1 AV Over IP Performance

• 8K And 4K Video Support: Delivers up to 8K@60Hz 4:2:2 DSC, 8K@60Hz 4:2:0 uncompressed, and 4K@144Hz 4:4:4.
• Bi-Directional Transceiver Design: Functions as either a transmitter or receiver for flexible AV-over-IP endpoint deployment.
• Seamless Matrix Switching: Enables instant source routing across point-to-point, point-to-many, and multicast systems.
• Advanced Video Wall Support: Supports video wall layouts with image rotation, image flip, and custom output scaling.
• Multiview Display Modes: Provides PiP, PbP, and PoP modes for flexible multi-window viewing.
• Ultra-Low Latency: Maintains less than one frame of latency for real-time control, broadcast, gaming, and visualization workflows.
• USB 3.1 KVM Functionality: Supports USB host and UVC device modes with mouse roaming for remote device control.
• Professional Control Integration: Includes bi-directional IR, full-duplex RS-232, CEC bypass, EDID management, and software-based configuration.

Technical Specifications

• Role Of Usage: HDMI 2.1 over IP transceiver
• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: Up to FRL 6, 48Gbps
• Video Resolution: 8K@30Hz 4:4:4, 8K@60Hz 4:2:0 uncompressed, 8K@60Hz 4:2:2 DSC, 4K@144Hz 4:4:4, and 4K@120Hz 4:4:4
• HDMI Over UTP Distance: Up to 560 ft over Cat.5e, Cat.6, Cat.6a, or Cat.7 at 4K@144Hz 4:4:4 or 8K@60Hz 4:2:2 DSC
• Latency: Less than 1 frame
• Encoding / Decoding: Multi-encode and decode with proprietary codecs
• EDID Management: Supported
• CEC / HDCP Bypass: Supported
• Equalization: Auto
• Full Duplex Mode: Supported at 4K@120Hz 4:4:4
• Color Formats: RGB and YCbCr 4:4:4 / 4:2:2
• Audio Formats: Uncompressed digital audio up to 7.1 channels
• High Bit Rate Audio: Dolby TrueHD and DTS-HD Master Audio
• Audio Extension: HDMI audio pass-through and extraction
• Analog Audio: Bi-directional analog audio pass-through
• ARC / eARC: Supported
• IR Pass-Through: Bi-directional, 20kHz to 60kHz
• RS-232 Support: Full duplex, up to 115,200 bps
• USB Support: USB 3.1 Gen1 host mode and USB 3.1 Gen2 UVC device mode
• KVM Function: Mouse roaming supported
• Seamless Switching: Supported
• Network Interface: Integrated 1GbE Ethernet port
• Switching Support: Managed switch with IGMP Snooping
• Broadcast Modes: Point-to-point, point-to-many, and multicast
• VLAN Support: 802.1Q VLAN
• Video Wall: Supported
• Image Rotation / Flip: Supported
• Multi-Window Modes: PiP, PbP, and PoP
• Scaling: Custom output scaling

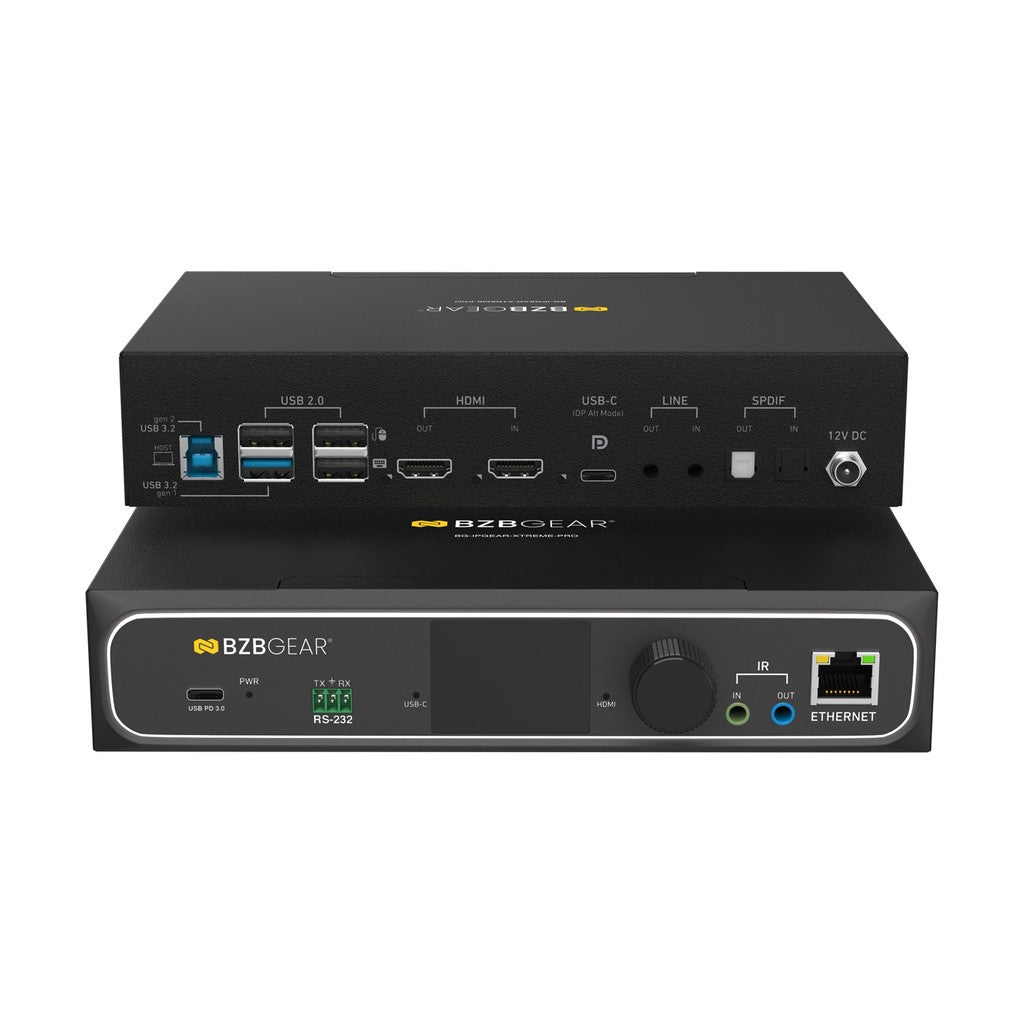

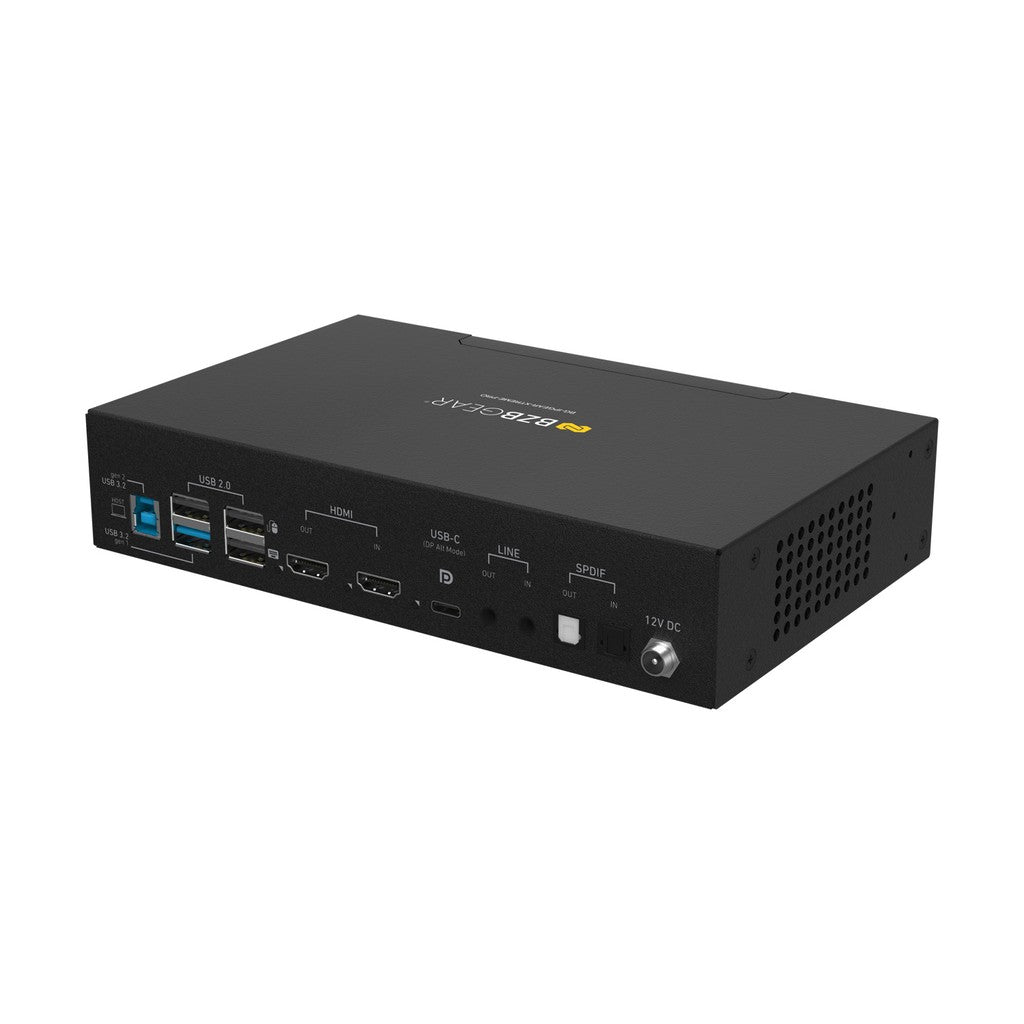

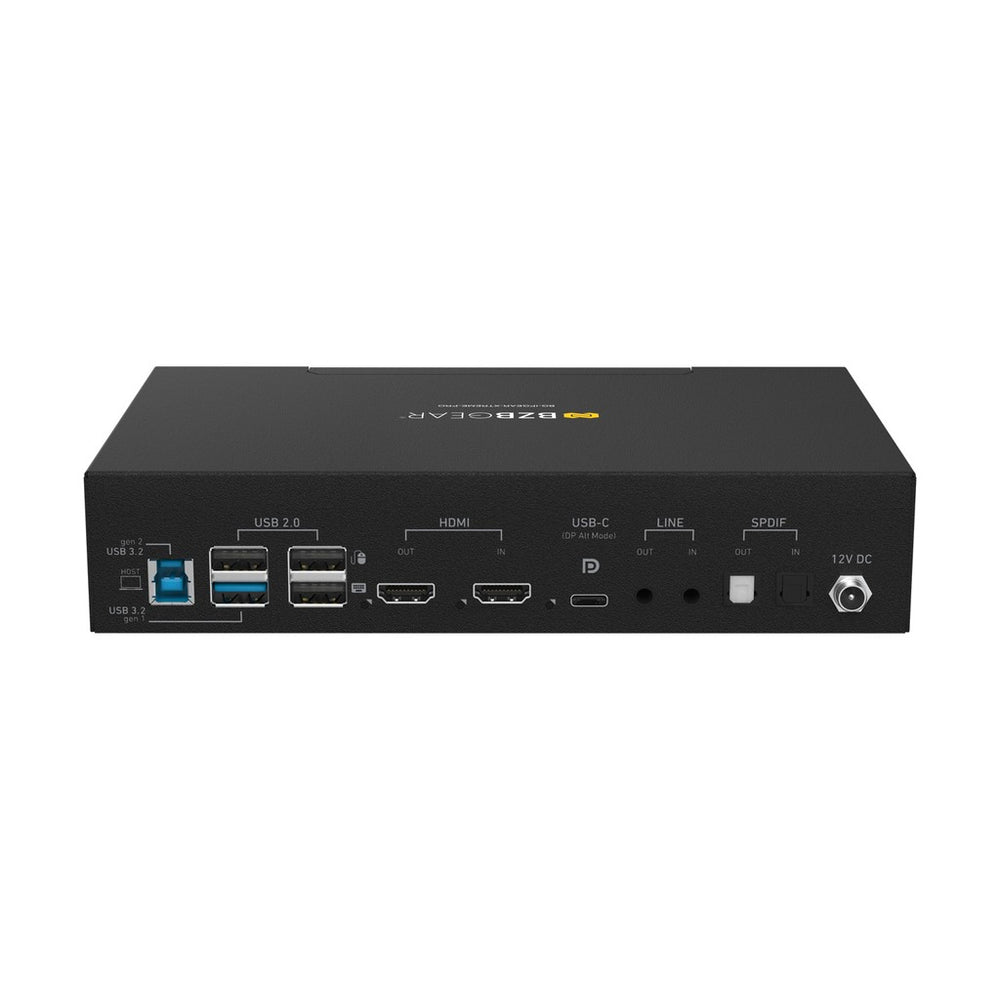

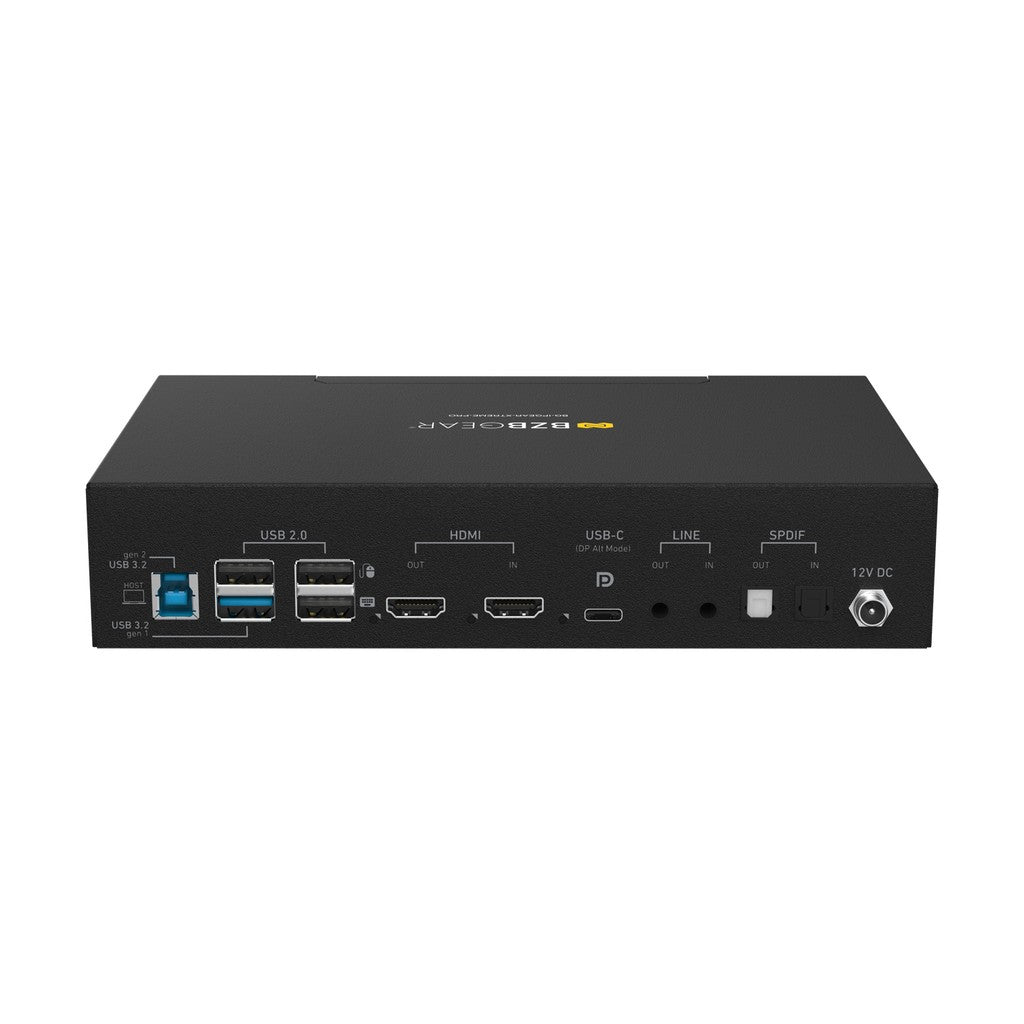

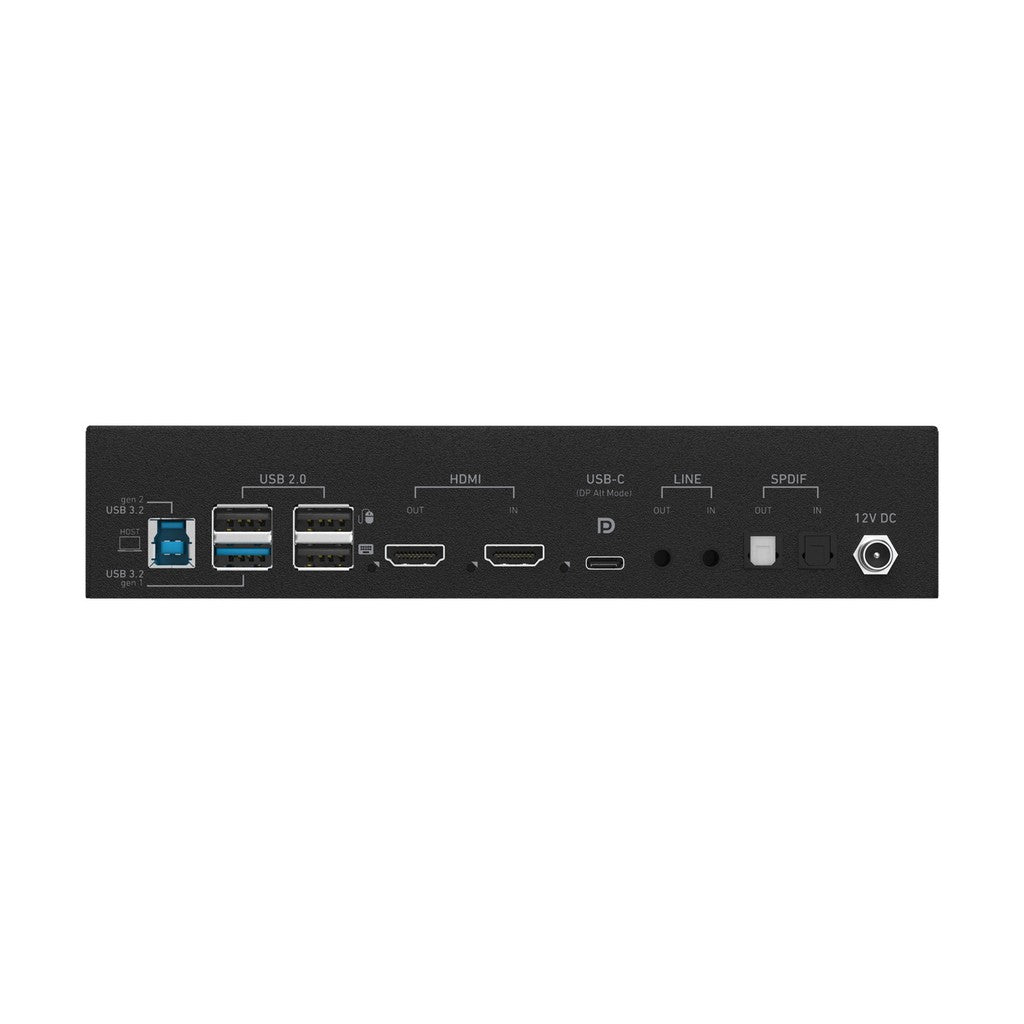

• HDMI Ports: 2x HDMI Type-A, 19-pin female
• USB Ports: USB Type-A, USB Type-B, and USB-C
• USB-C Video: DisplayPort 1.4 Alt Mode
• Audio Ports: 3.5mm for IR receiver, IR blaster, and stereo audio
• Optical Audio: 2x TOSLINK
• Network Port: 1x RJ-45, 8P8C
• Control Port: 1x RS-232
• Housing: Metal enclosure
• Mounting: Wall-mountable with mounting hardware included
• Power Supply: 12V DC
• Power Consumption: Refer to product label
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Relative Humidity: 20% to 90% RH, no condensation
• Dimensions: 8.7" x 4.1" x 1.7"
• Weight: 1.5 lbs
• Compliance: TAA compliant
• Warranty: 5-year warranty

What's In The Box

• 1x BG-IPGEAR-XTREME-PRO HDMI 2.1 over IP Multicast Transceiver
• 1x IR Blaster
• 1x IR Receiver
• 1x 12V DC Power Adapter
• 1x User Manual
