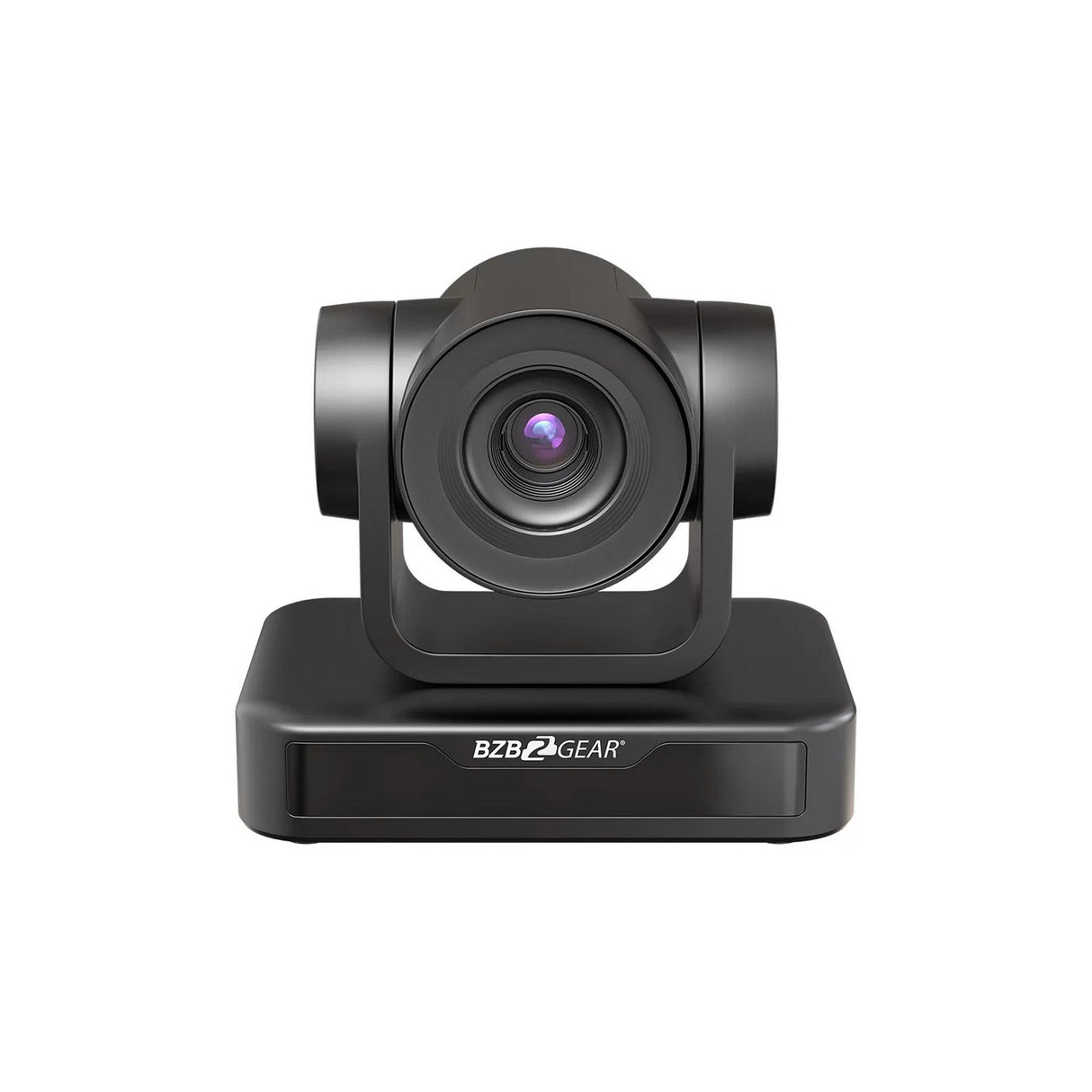

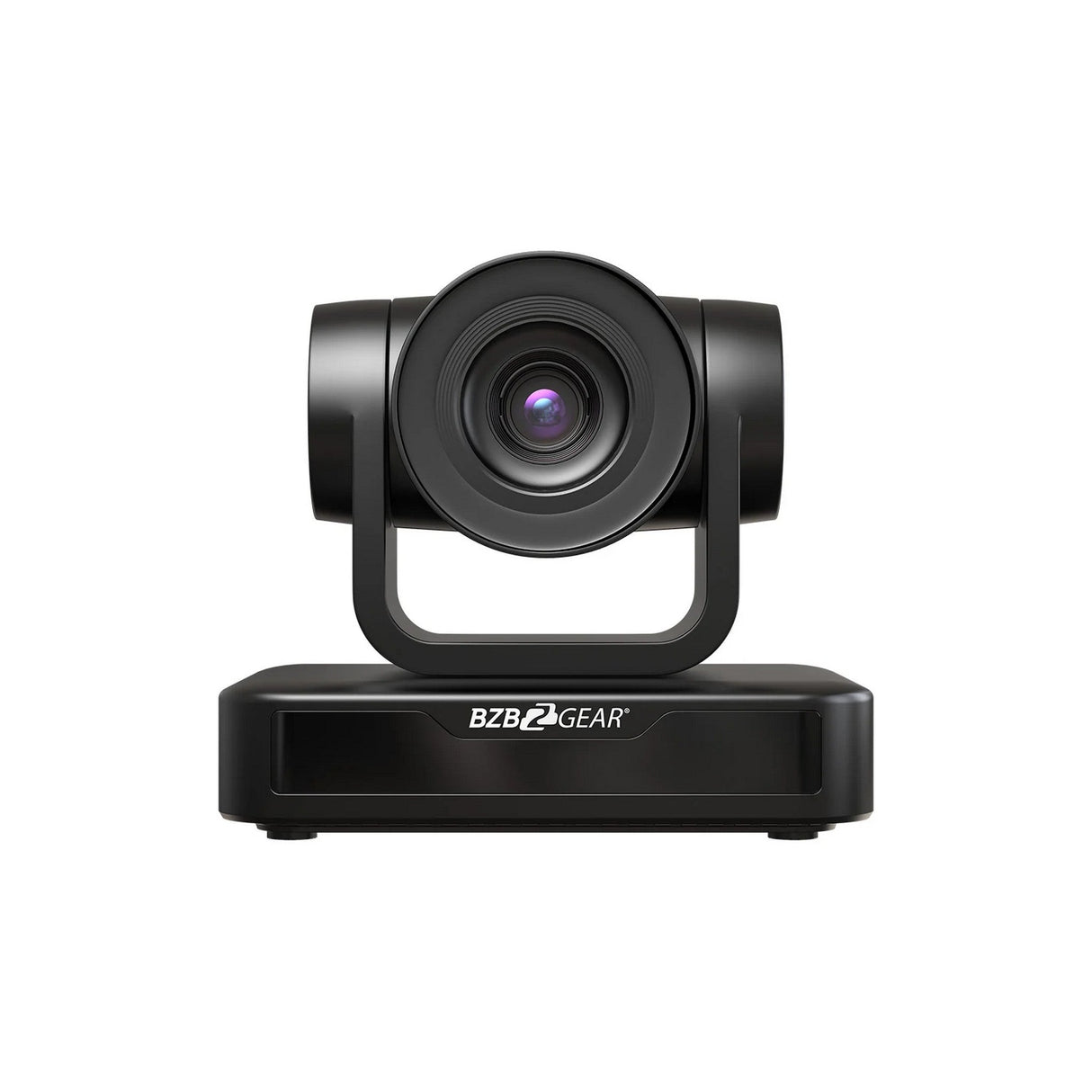

BZBGEAR BG-BPTZ-3XU/10XU Full HD PTZ USB Camera for Huddle Rooms
The BZBGEAR BG-BPTZ-3XU and BG-BPTZ-10XU cameras deliver exceptional performance for huddle rooms and small meeting spaces, providing Full HD resolution and seamless connectivity. These compact PTZ cameras are ideal for video conferencing, live streaming, and educational environments, offering smooth pan, tilt, and zoom capabilities. With advanced imaging features and multiple output options, these cameras enhance collaboration and content sharing with crystal-clear visuals and impressive flexibility.
Designed with a 1/2.9-inch high-quality CMOS sensor, both models capture detailed images in Full HD resolution (1920Ć1080p) at up to 30fps. The BG-BPTZ-3XU is equipped with a 3X optical zoom and a wide field of view ranging from 34.1Ā° to 85Ā°, making it perfect for capturing larger spaces or group settings. On the other hand, the BG-BPTZ-10XU offers a more powerful 10X optical zoom with a narrower view angle of 8.8Ā° to 66Ā°, ideal for detailed close-ups and focused presentations. Both models are designed to meet various professional requirements with robust features and versatile controls.
Featuring USB 2.0 connectivity, these cameras are plug-and-play compatible with popular operating systems like Windows, Mac OS, and Linux. Users can easily control the cameras via RS232/RS485 interfaces with support for VISCA, Pelco-D, and Pelco-P protocols. Additional features include 2D and 3D DNR for noise reduction, dynamic wide dynamic range (WDR), and flexible video adjustments, making the BZBGEAR BG-BPTZ-3XU and BG-BPTZ-10XU versatile for a range of professional applications. Compact, lightweight, and easy to install, these cameras are the perfect solution for efficient and high-quality video production.
Key Features
- Full HD resolution with up to 30fps for crisp video output
- Two models available for different zoom and view angle needs
- Wide compatibility with USB 2.0 connectivity and UVC support
- Flexible PTZ functionality with a wide range of preset options
- Dynamic noise reduction and wide dynamic range for improved image quality
Technical Specifications
Model Numbers: BG-BPTZ-3XU / BG-BPTZ-10XU
BG-BPTZ-3XU:
View Angle: 34.1Ā° ~ 85Ā°
F Value: f=3.35mm ~ 10.05mm
Aperture Value: F1.7 ~ F3.0
Optical Zoom: 3X
BG-BPTZ-10XU:
View Angle: 8.8Ā° ~ 66Ā°
F Value: f=4.34mm ~ 41.66mm
Aperture Value: F1.85 ~ F2.43
Optical Zoom: 10X
Camera Parameters:
Image Sensor: 1/2.9-inch High Quality CMOS Sensor
Effective Pixels: 2.07MP, 16:9
Video Format: 1920Ć1080p@30fps/25fps; 1280Ć720p@30fps/25fps and more
Low Illumination: 0.5Lux (F1.8, AGC ON)
DNR: 2D & 3D
White Balance: Auto/Manual/One Push/Various Presets
Focus: Auto/Manual/One Push
Electronic Shutter: Auto/Manual
BLC: On/Off
WDR: OFF/Dynamic Level Adjustment
Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma Curve
SNR: >55dB

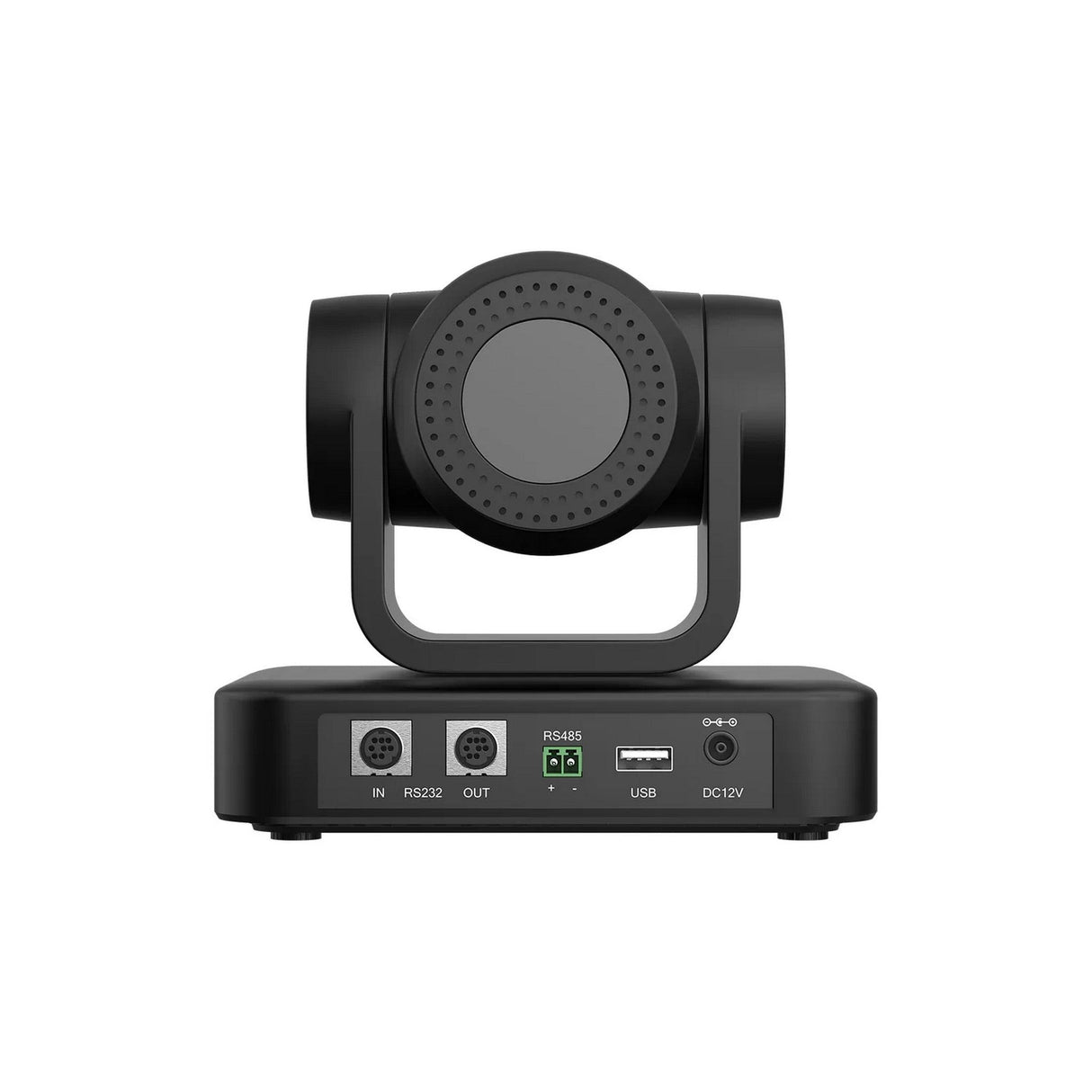

Interface and Protocol:
Video Output: USB 2.0, Type A
Video Compression: H.265, H.264, MJPG
Control Ports: RS232 In & Out, RS485
Control Protocol: VISCA/Pelco-D/Pelco-P
PTZ Parameters:
Pan/Tilt Rotation: -170Ā° ~ +170Ā° / -30Ā° ~ +30Ā°
Pan/Tilt Speed: 0.1Ā° ~ 60Ā°/Second (Pan), 0.1Ā° ~ 30Ā°/Second (Tilt)
Preset Speed: Pan: 60Ā°/Second, Tilt: 30Ā°/Second
Presets: 255 (10 via IR Remote)
Other Parameters:
Working Voltage: 12V
Working Current: 0.25A (max)
Power Consumption: 2.5W (max)
Dimensions: 6.2in x 4.4in x 5.5in
Weight: 2.2 lbs
Working Temperature: 14Ā°F ~ 122Ā°F
Whatās Included
- 1x Camera
- 1x 12V/1.5A Power supply
- 1x Remote Control
- 1x USB2.0 Cable
- 1x User Manual
