CAD Audio WX1000HH UHF Wireless Handheld Microphone System

CAD Audio WX1000HH UHF Wireless Handheld Microphone System

The CAD Audio WX1000HH UHF Wireless Handheld Microphone System is a frequency-agile 510 to 570 MHz system with 100 selectable channels, automatic frequency scanning, IR synchronization, and a dynamic cardioid handheld transmitter. It gives performers and presenters a straightforward single-channel wireless solution with balanced and unbalanced receiver outputs.

Designed for live vocals, presentations, houses of worship, education, and installed AV systems, the WX1000HH combines quick frequency selection with more than 12 hours of transmitter battery operation. Buyers looking for a UHF handheld mic for presentations or a wireless microphone system for live vocals can operate up to 20 systems simultaneously within the supported frequency environment.

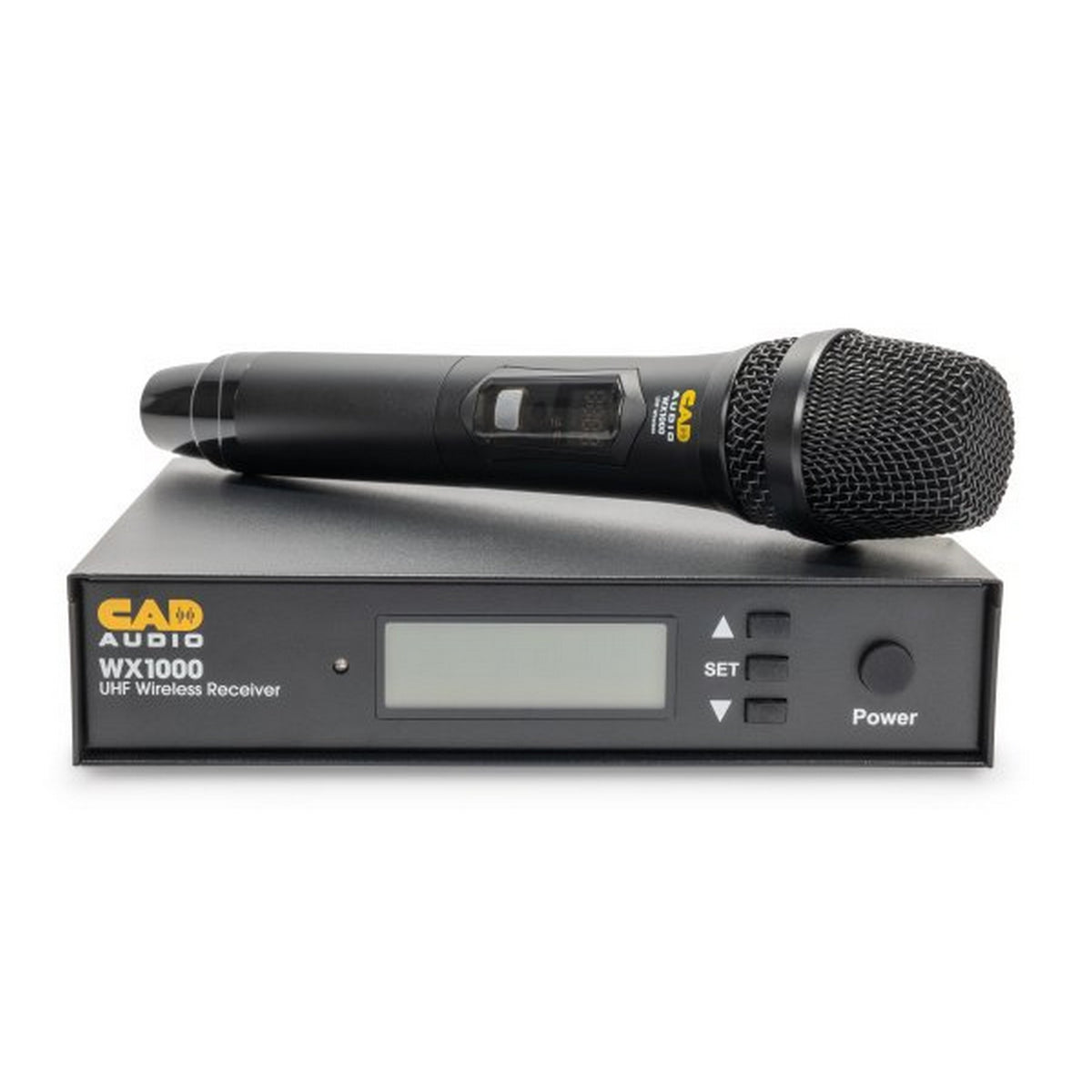

The receiver provides balanced XLR and unbalanced 1/4" audio outputs, a removable TNC antenna connection, channel and frequency displays, and IR pairing with the transmitter. Rugged metal construction and included rack-mounting hardware support professional installations, while the manufacturer's documentation specifies FCC Part 15 compliance and a two-year warranty.

Key Features

• 100 Selectable UHF Channels: Frequency-agile operation across 510 to 570 MHz helps installers and performers locate usable RF channels.
• Automatic Frequency Scan: The receiver searches available frequencies to simplify setup in changing RF environments.
• IR Synchronization: Infrared pairing transfers the selected receiver frequency to the handheld transmitter.
• Dynamic Cardioid Microphone: The TX1000 handheld transmitter uses a dynamic element with a cardioid pickup pattern for vocals and speech.
• Extended Battery Operation: Two 1.5V AA batteries power the transmitter for more than 12 hours of documented operation.
• Multiple-System Support: Up to 20 WX1000 systems can operate simultaneously when local RF conditions permit.
• Professional Audio Outputs: The receiver provides balanced XLR and unbalanced 1/4" connections for mixers, amplifiers, and installed audio equipment.
• Installation Hardware Included: Rack-mounting hardware and an antenna relocation kit support equipment-rack installations.

Technical Specifications

WX1000 Wireless System and Receiver

• System Type: Frequency-agile UHF wireless handheld microphone system
• Frequency Range: 510 to 570 MHz
• Frequency Mode: FM
• Selectable Channels: 100
• Simultaneous Systems: Up to 20
• Frequency Response: 30 Hz to 18 kHz
• Receiver Sensitivity: Less than 108 dBm, as published by the manufacturer
• Signal-to-Noise Ratio: More than 85 dB
• Harmonic Distortion: Less than 0.5%
• Dynamic Range: More than 100 dB
• Delay: Less than 3 ms
• Operating Range: 278 ft in open areas; 196 ft indoors
• Balanced Audio Output: XLR
• Unbalanced Audio Output: 1/4"
• Antenna Connection: 1 x TNC, 50 ohms
• Receiver Power: 12V DC, 1A
• Published Dimensions: 16 x 12.1 x 2.8 in
• Published Weight: 3.3 lb
• Warranty: 2 years

TX1000 Handheld Transmitter

• Operating Principle: Dynamic
• Polar Pattern: Cardioid
• Frequency Response: 30 Hz to 18 kHz
• Maximum SPL: 129 dB
• Published TX1000 Dynamic Range: 60 Hz to 17 kHz
• RF Output: 10 mW
• Battery Requirements: 2 x 1.5V AA batteries
• Battery Life: More than 12 hours
• Display: LCD with battery-life indication
• Synchronization: IR

What's In the Box

• Rack-mounting hardware
• Antenna relocation kit
• Receiver DC power supply
