Description

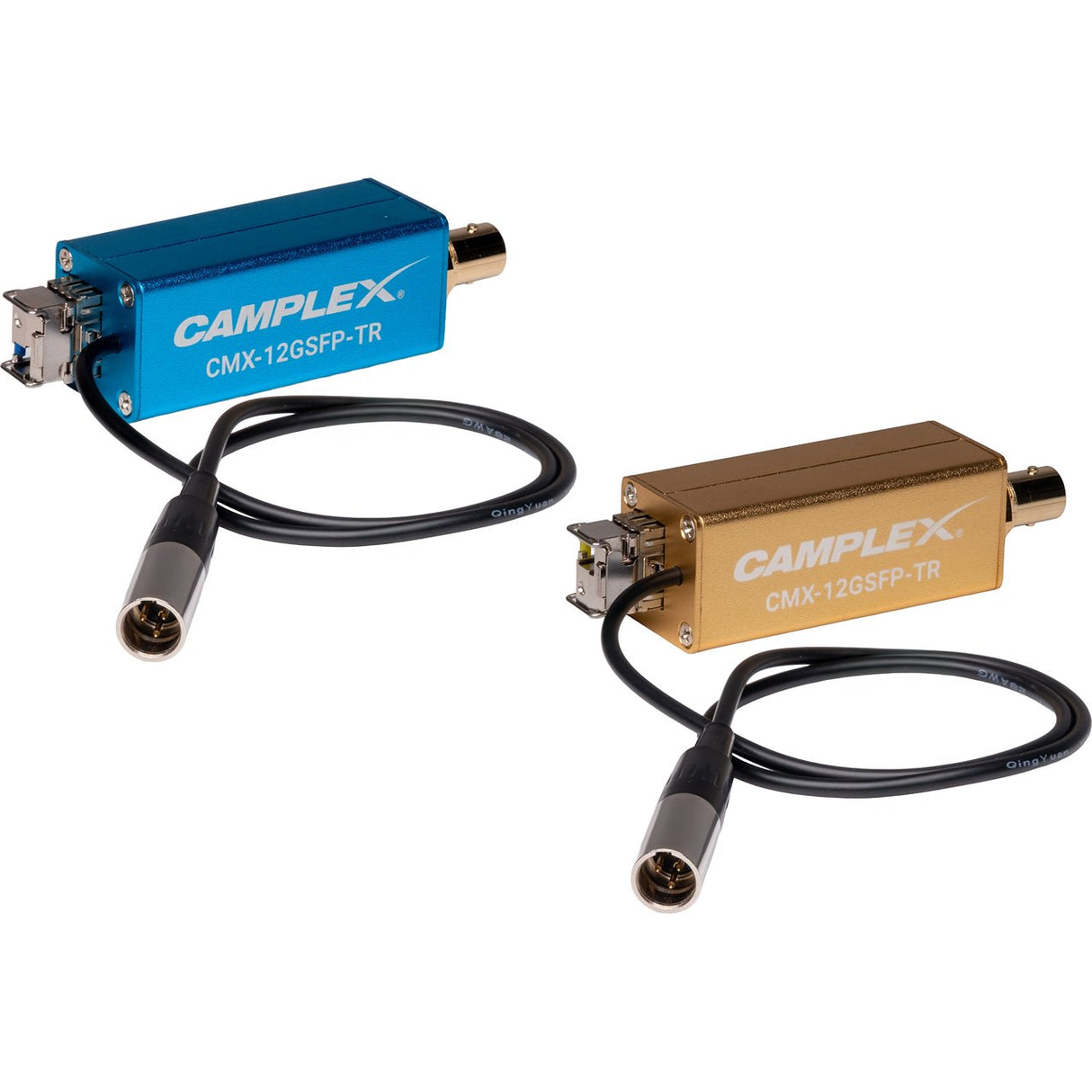

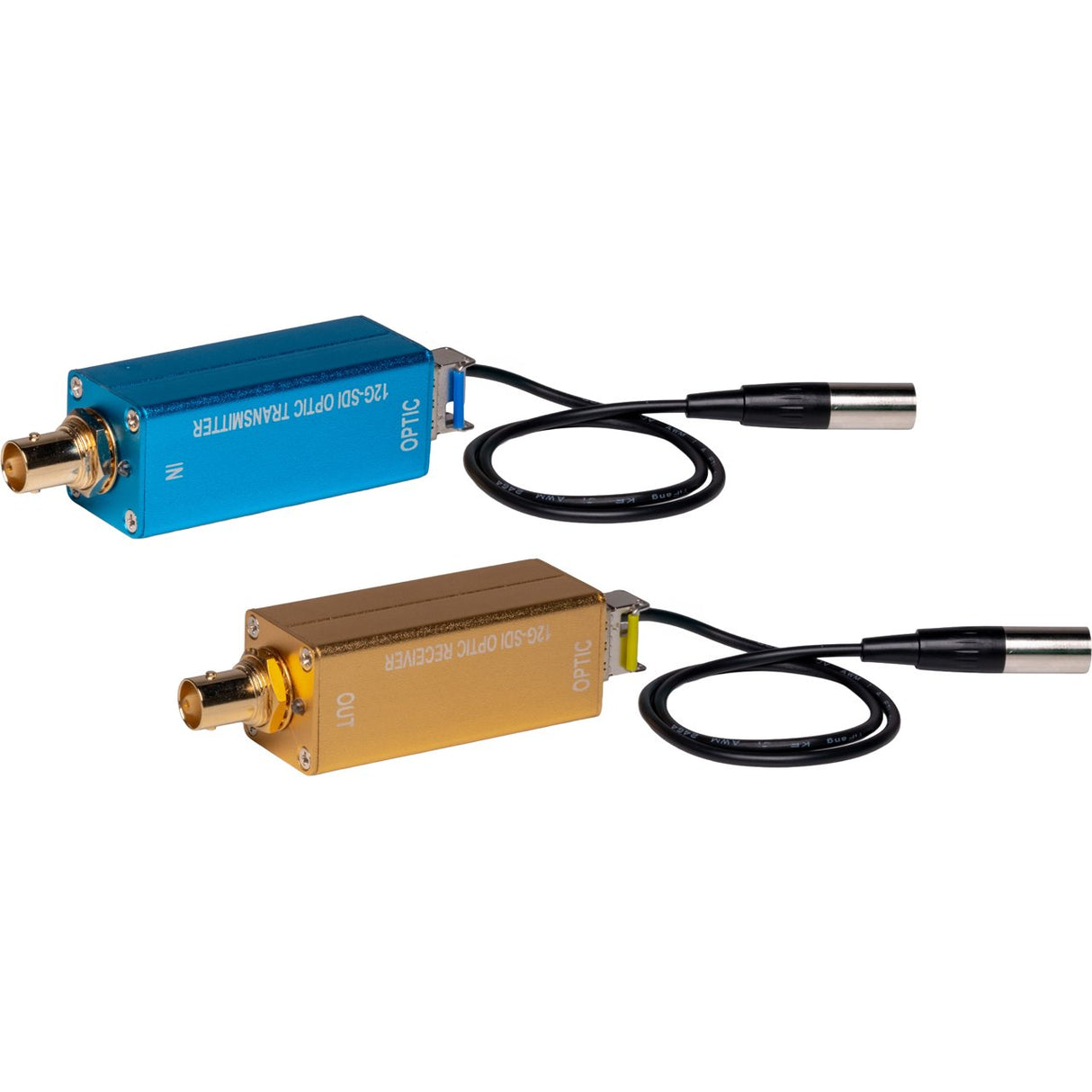

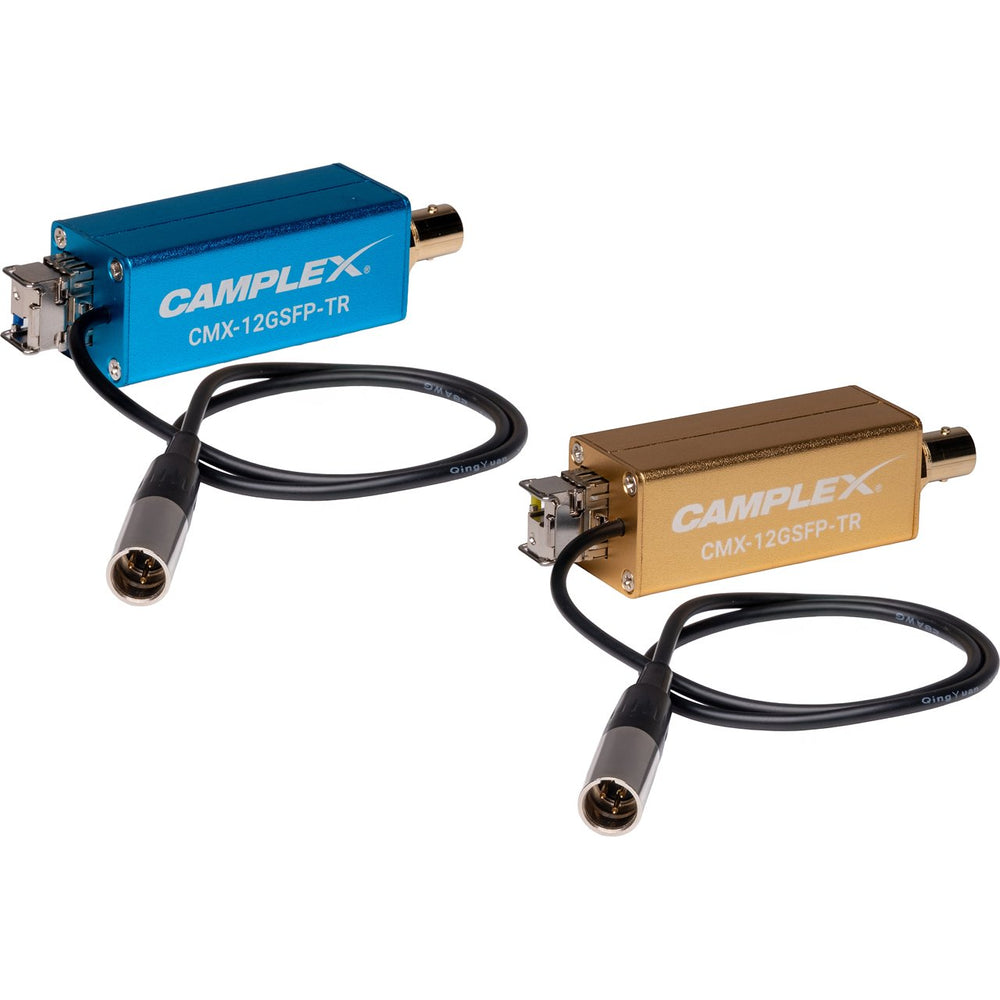

Camplex 12G-SDI LC/SFP Mini One-Channel Unidirectional Single-Mode Fiber Extender Set
The Camplex CMX-12GSFP-TR 12G-SDI Single Mode Fiber Extender Set sends a unidirectional 12G-SDI signal over simplex LC single mode fiber up to 6.2 miles. It supports 4K@60 transmission in a compact point-to-point design for broadcast, production, and command center video workflows.
Built for professional AV and broadcast environments, this 1-channel 12G-SDI over fiber extender set is ideal for remote OB vans and trucks, broadcast studio camera feeds, live transmission systems, video wall controllers, and control rooms where long-distance signal integrity matters. Its plug-and-play design helps installers deploy reliable single mode fiber extension without bulky hardware.
The CMX-12GSFP-TR supports data rates from 270Mbps up to 11.88Gb/s, with SMPTE ST 2082-1 clock recovery for 12G-SDI signal stability. Automatic cable equalization adjusts based on the detected data rate, while LED status indicators provide quick visual feedback during setup and operation.
Key Features
- Sends 12G-SDI signals over simplex LC single mode fiber up to 6.2 miles
- Supports resolutions up to 4096 x 2160 at 60p for UHD broadcast workflows
- Compatible with SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, and SMPTE-259M SD-SDI standards
- Compact 3.85" x 1" x 1" form factor for tight racks, field kits, and mobile production systems
- Supports data rates from 270Mbps up to 11.88Gb/s
- SMPTE ST 2082-1 clock recovery helps maintain stable 12G-SDI transmission
- 5V power supply connection with Mini 3-Pin XLR
- Automatic cable equalization based on the detected data rate
- LED status indicators simplify setup and troubleshooting
Technical Specifications
Model: CMX-12GSFP-TR
Product Type: 12G-SDI LC/SFP Mini 1 Channel Unidirectional Single Mode Fiber Extender Set
Dimensions: 3.85" x 1" x 1"
SDI Input

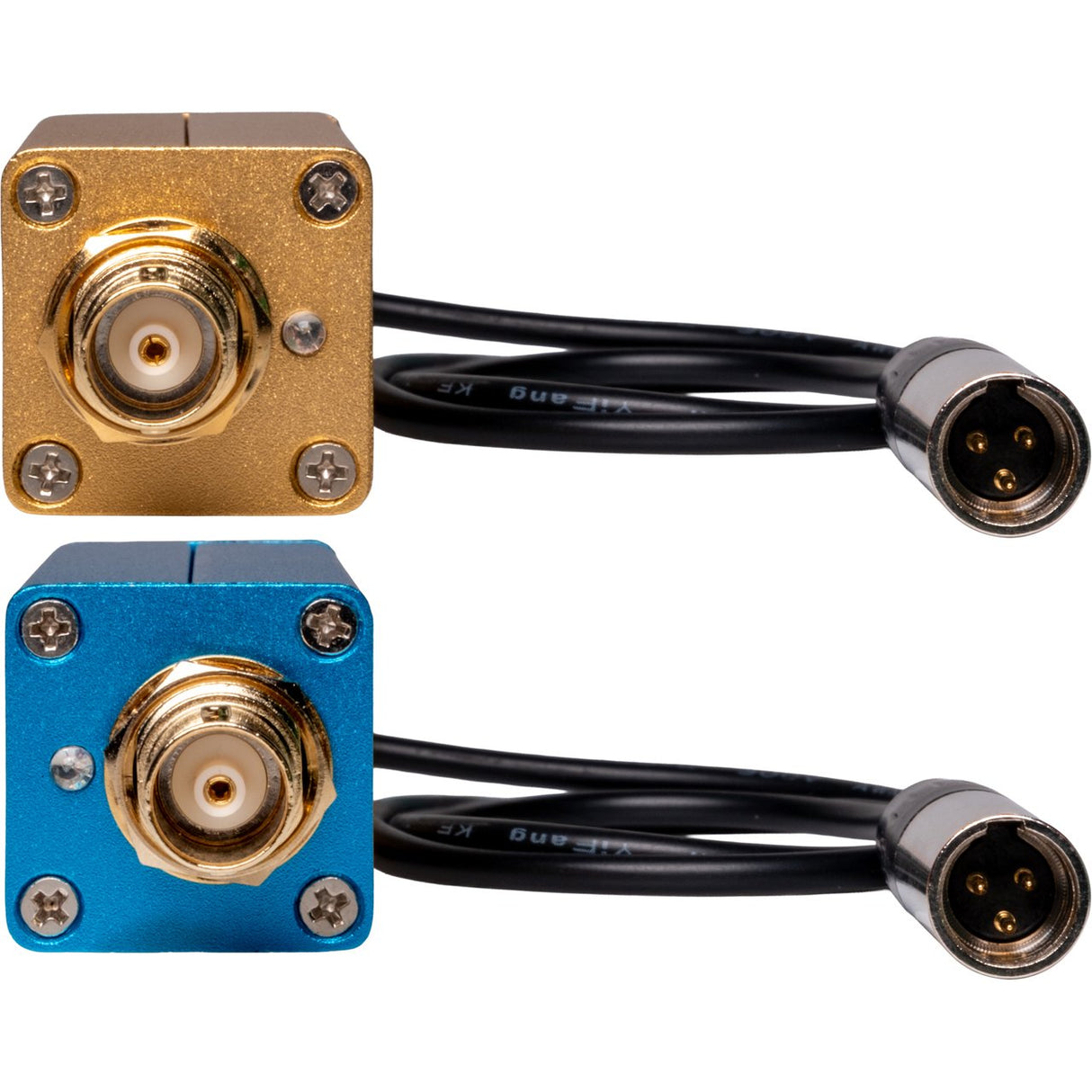

Connector: 75Ω BNC
Resolutions: 12G-SDI (4K@60), 6G-SDI (4096 x 2160@30p), 3G-SDI (1080@60p), HD-SDI (1080i/720p), SD
Reflection Loss: >4dB @ 12G
Equalization: >50M @ 12Gb/s
SDI Output
Connector: 75Ω BNC
Signal Level: 800mV nominal
Rise/Fall Time: <45ps @ 12G UHD-SDI, <80ps @ 6G UHD-SDI, <135ps @ 3G-SDI
Overshoot: <10% amplitude
Reflection Loss: >15dB
Jitter: <0.5UI
Fiber
Channel Count: 1 Channel
Fiber Type: Single Mode

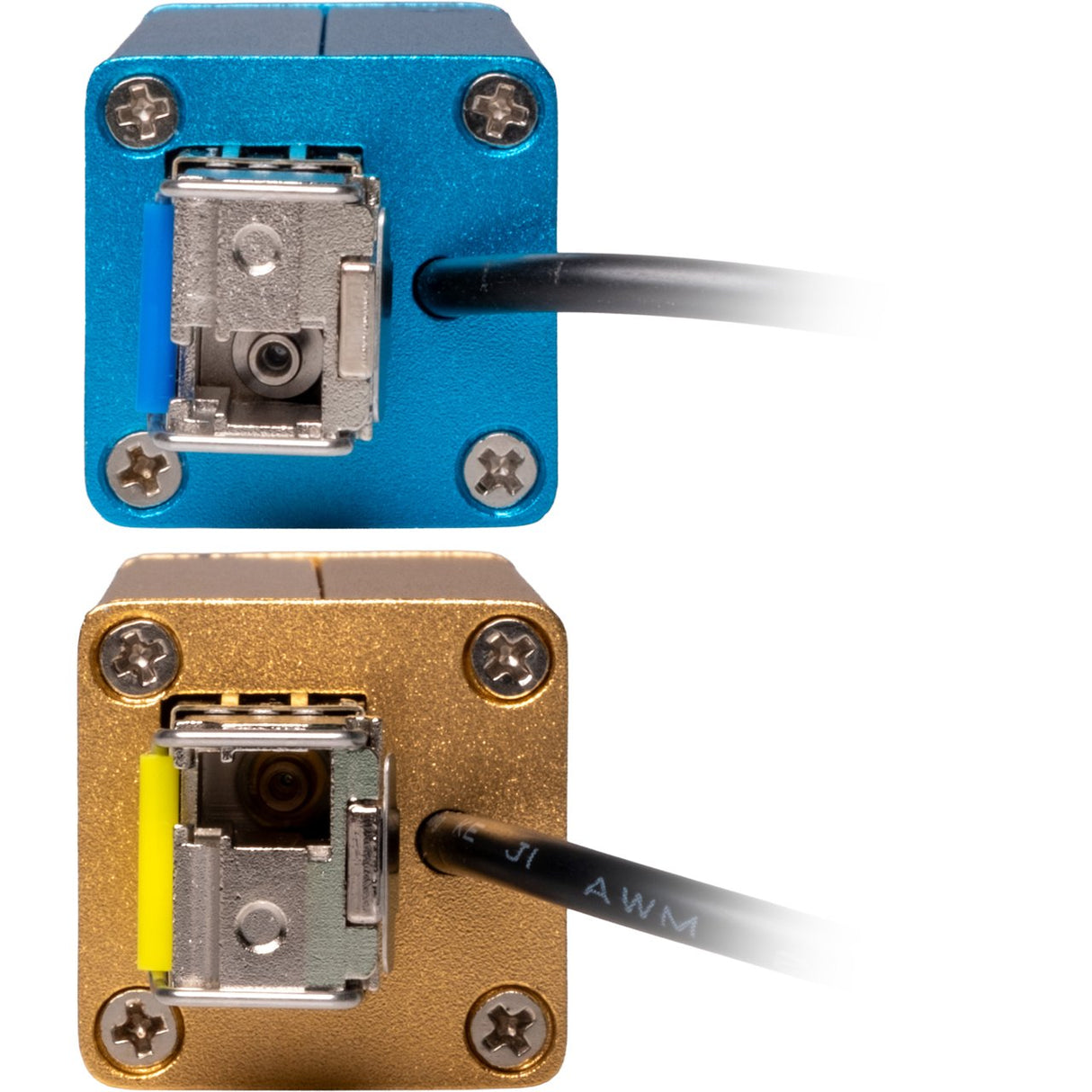

Connector: LC/UPC or SFP
Wavelength: 1310nm or 1550nm
Distance: 6.2 mi
Power

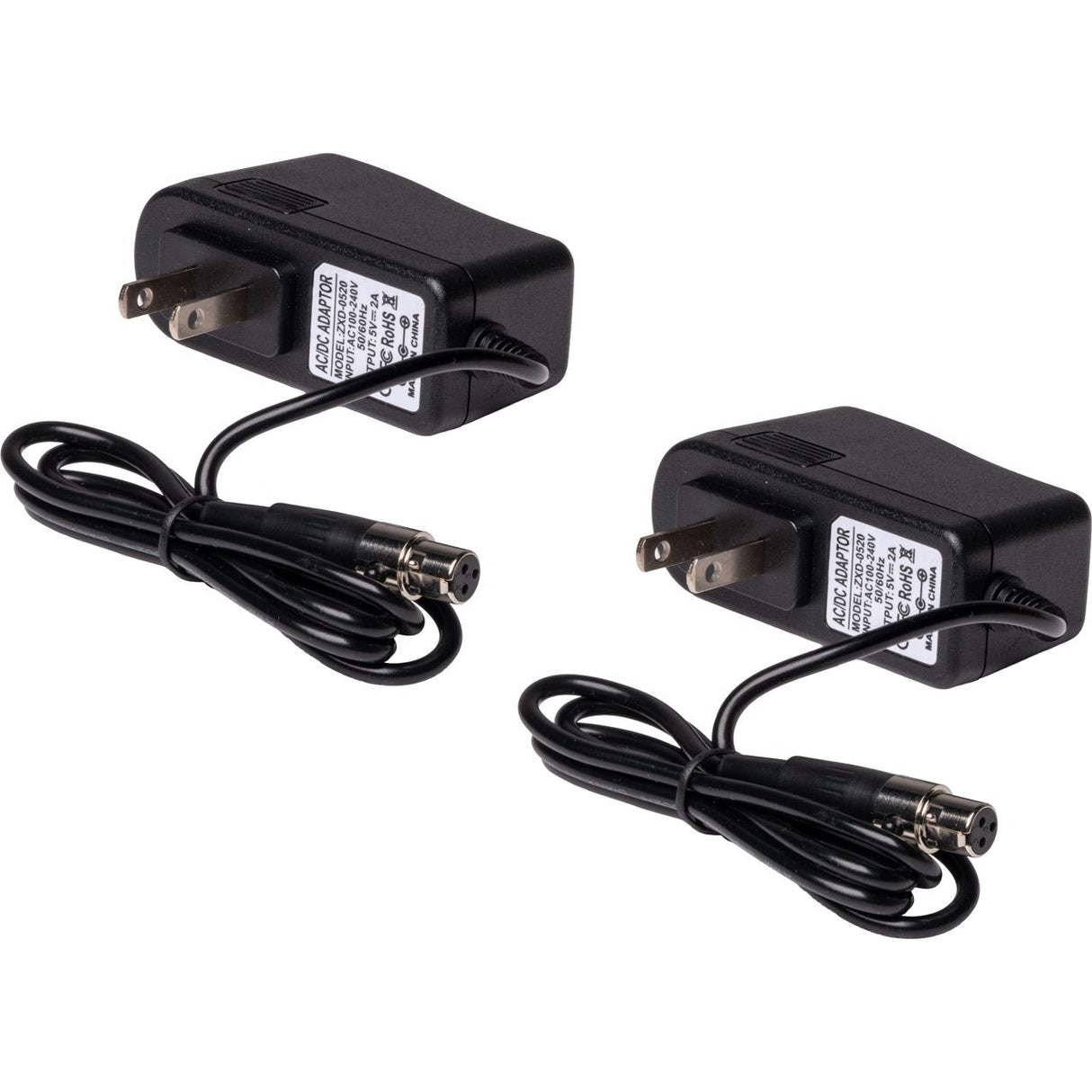

Power Supply: 5V Mini 3-Pin XLR
Power Consumption: About 4W
Operating Temperature: -40°F to 113°F
EMI/RFI: FCC Part 15 Class A, EU EMC standard
