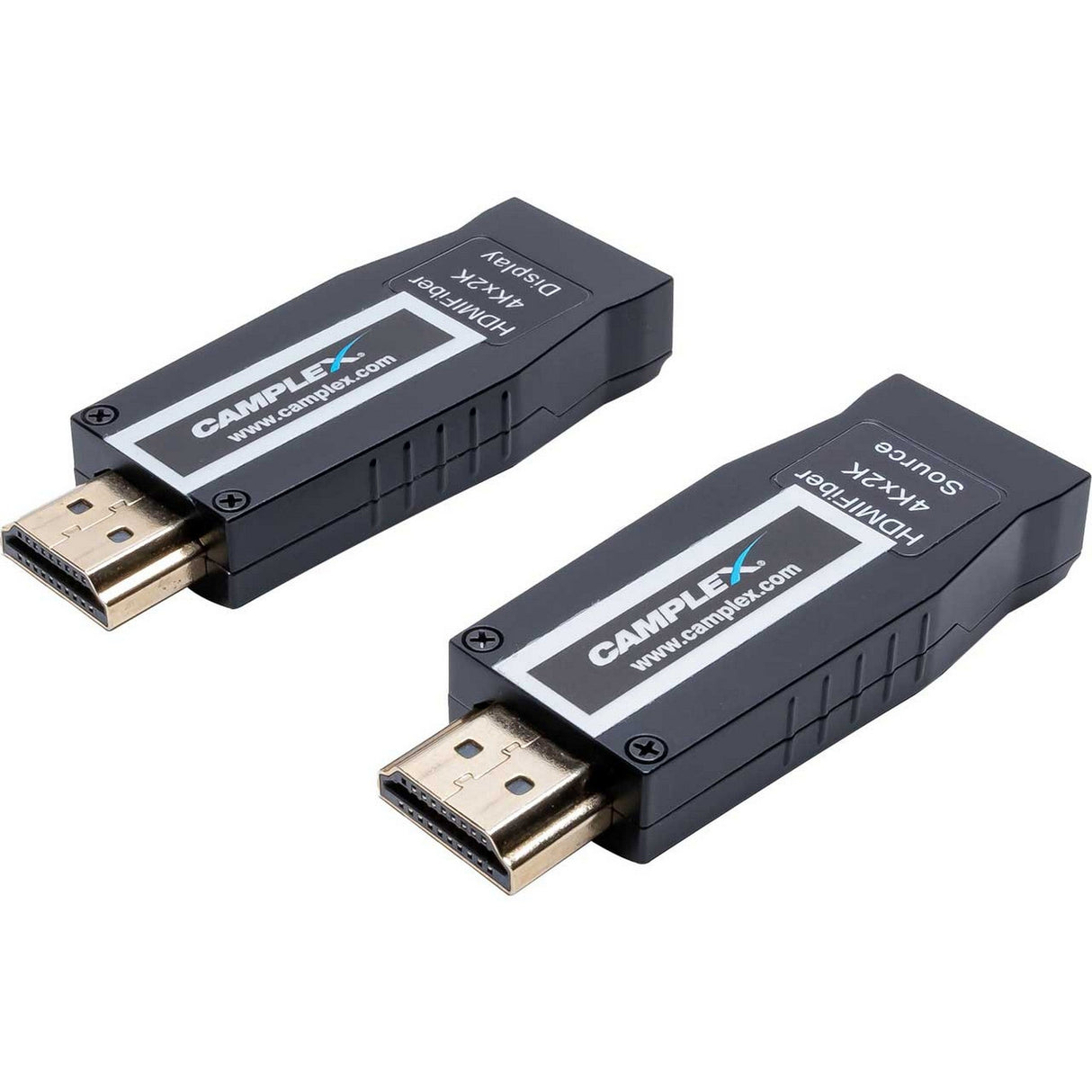

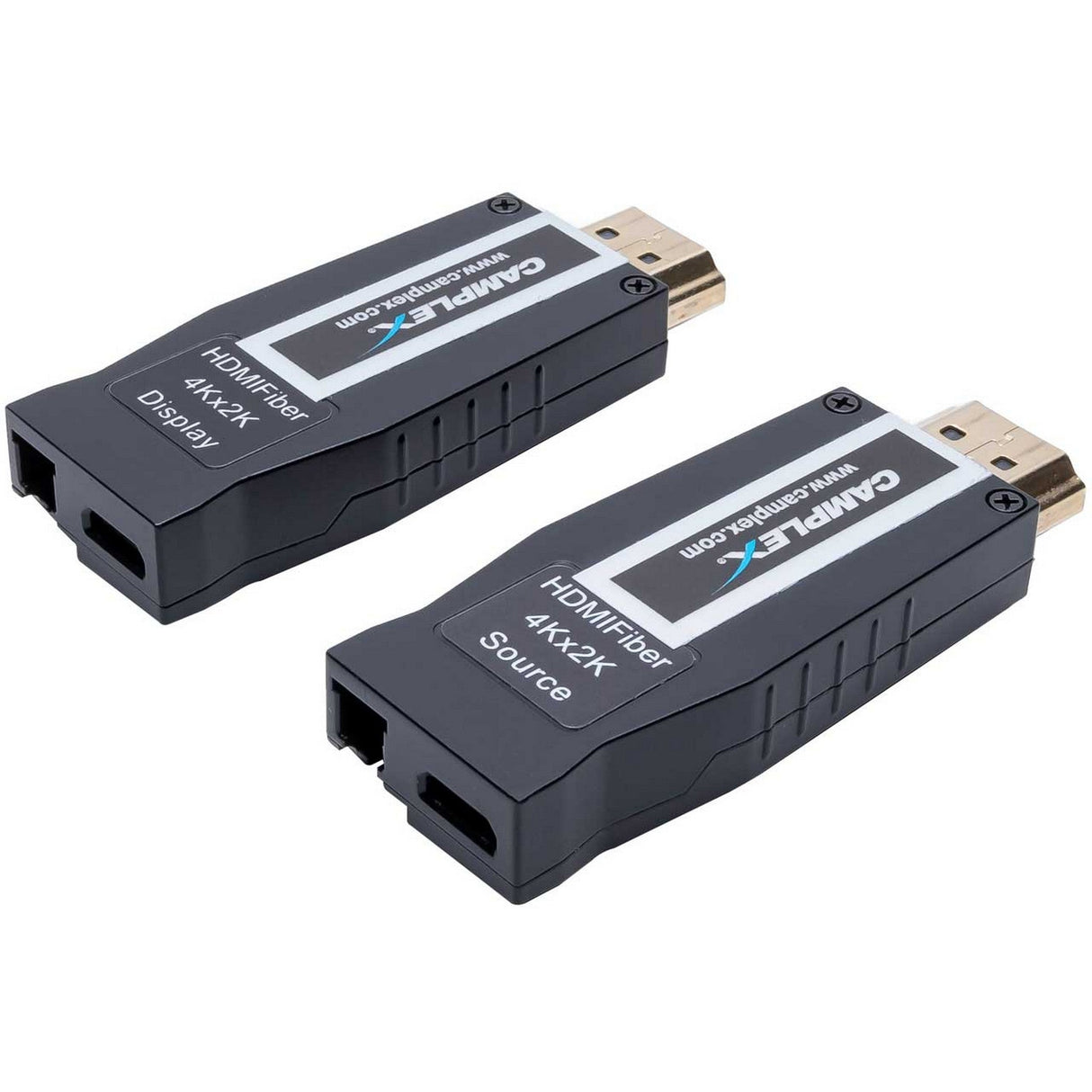

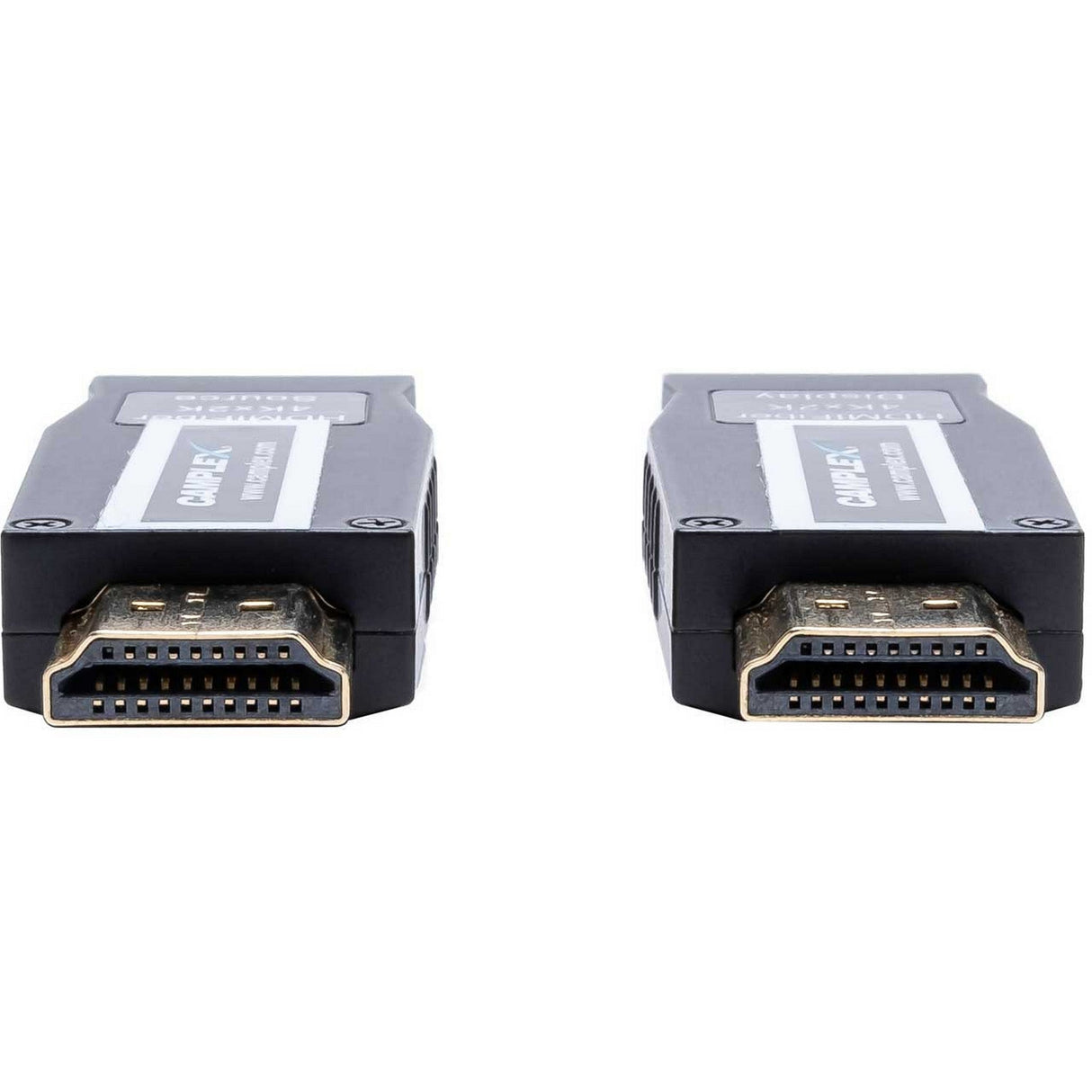

Camplex 4K/30Hz HDMI Over Single-Core SM/MM Fiber Extender
The Camplex CMX-HDMI-SM-TR 4K HDMI Single-Core Fiber Extender Set extends HDMI or DVI data up to 984 feet over single mode or OM3 multimode fiber. It supports resolutions up to 4K/30Hz with Y:U:V 4:4:4 color, making it a compact solution for professional 4K video extension.
Designed for streamlined AV installation, this 4K HDMI over fiber extender plugs directly into compatible equipment to reduce cable clutter and simplify setup. It is ideal for display systems, presentation environments, control rooms, education spaces, houses of worship, and other professional AV applications that need secure video transport over fiber.
The CMX-HDMI-SM-TR supports HDMI 1.4 TMDS-level signaling, HDCP compliance, and a maximum 10Gbps data transfer rate. Because the signal travels over fiber instead of copper, the extender helps promote secure data transmission with negligible RFI/EMI emissions while preserving video quality across long-distance runs.
Key Features
- Extends HDMI or DVI data up to 984 feet over fiber
- Supports resolutions up to 4K/30Hz with Y:U:V 4:4:4 color
- Works with single mode fiber or OM3 multimode fiber

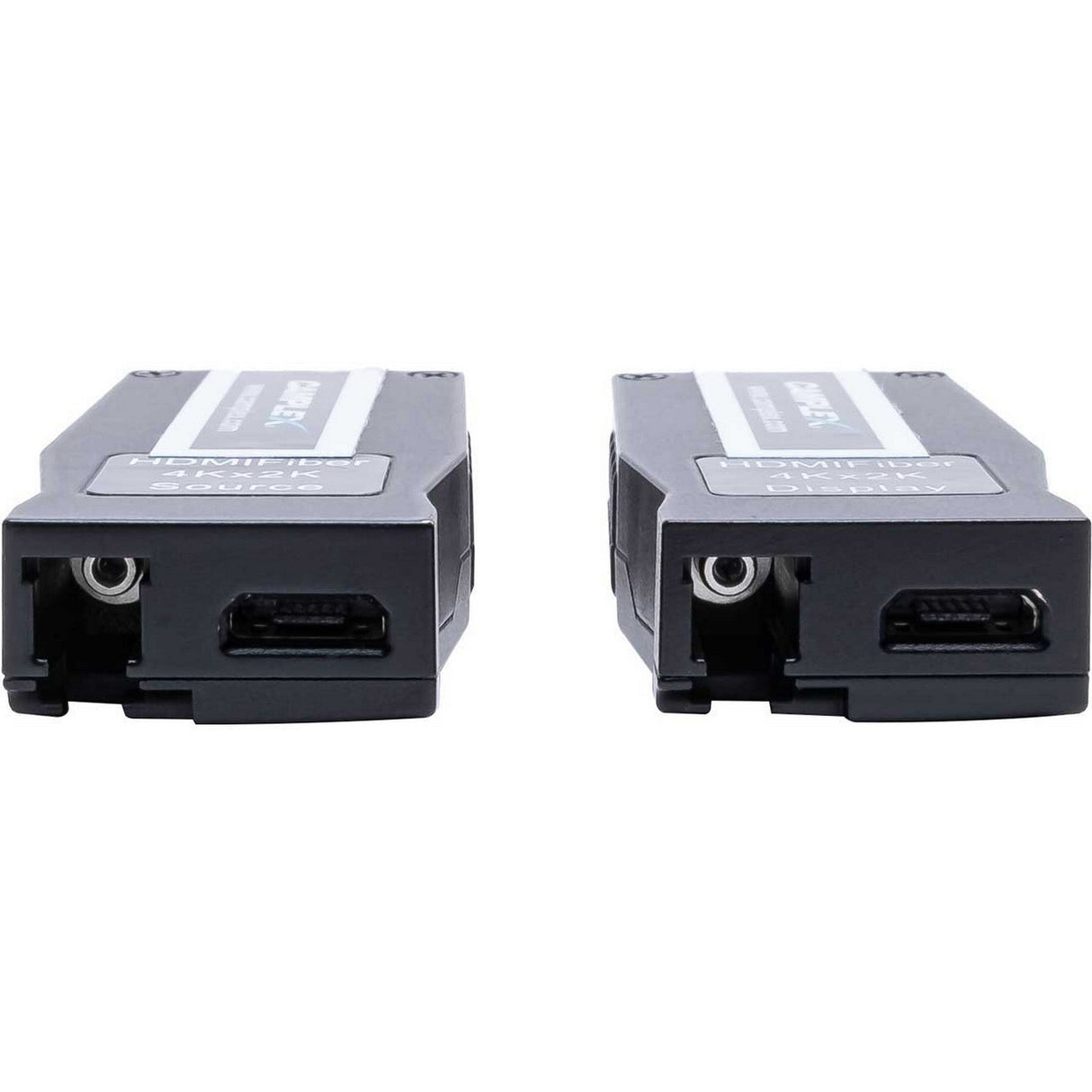

- Uses a single LC optical connector for compact fiber connectivity
- Supports HDMI 1.4 TMDS-level input and output signaling
- HDCP compliant for protected video signal compatibility
- Compact design plugs directly into equipment for cleaner installation
- Fiber-based signal transport helps reduce RFI/EMI emissions
Technical Specifications
Model: CMX-HDMI-SM-TR
Product Type: 4K/30Hz HDMI Over Single-Core Single Mode / Multimode Fiber Extender
Resolutions: 4K30Hz (Y:U:V 4:4:4)
Input and Output Signals: TMDS Level, compliant with HDMI 1.4
Data Transfer Rate: Max 10Gbps
Maximum Video Bit Rate: 10Gb/s
Transmission Distance: 984 ft
Optical Connector: 1 x LC Connector
Electric Connector Type from System to Display: HDMI
Recommended Fiber: OM3 Multimode or Single Mode Fiber
Operating Temperature: 14°F to 158°F
Storage Temperature: -40°F to 185°F
Dimensions: 2.53" x 0.88" x 0.42"
Weight: 0.0625 lbs
