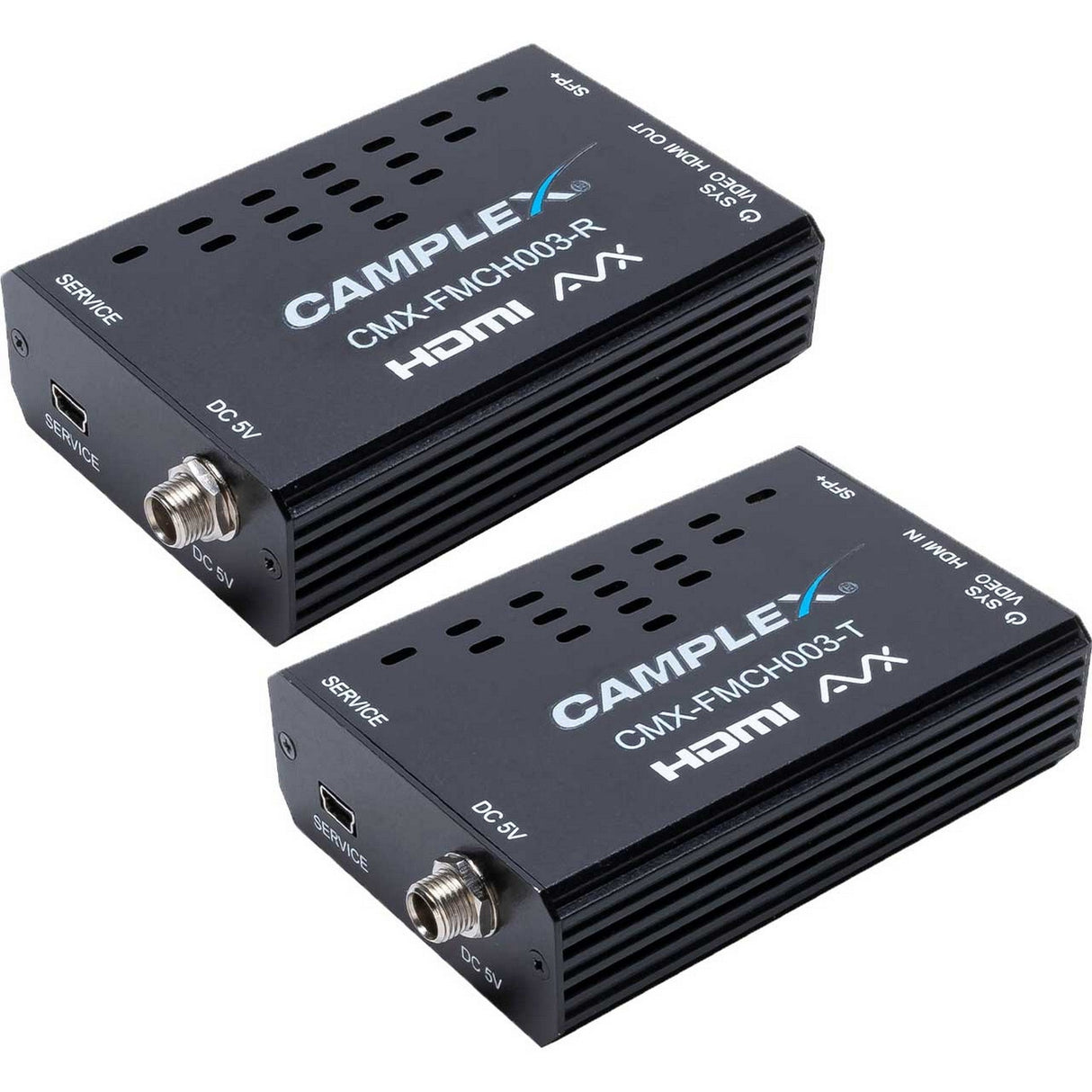

Camplex 4K HDMI over Fiber Extender Set with 10G Ethernet
The Camplex CMX-FMCH003 4K HDMI Fiber Extender Set delivers high-quality HDMI 2.0 extension over fiber with very minimal latency. Designed for professional AV routing, it supports up to 4096 x 2160 at 60Hz YUV 4:4:4 with HDCP 2.2 compliance and reliable point-to-point signal transport.
This HDMI over fiber extender set is built for installations that need long-distance 4K video, audio, and control signal extension without sacrificing performance. It is a strong fit for broadcast facilities, production environments, houses of worship, education spaces, command centers, and commercial AV systems where 4K HDMI fiber extension must remain clean, stable, and easy to integrate.
The CMX-FMCH003 supports HDMI 2.0 formats, including multichannel PCM, Dolby TrueHD, and DTS-HD Master Audio. Its compact transmitter and receiver design gives installers more flexibility in racks, behind displays, or at equipment endpoints. Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI, and the system supports single mode or multimode fiber depending on the SFP+ module used.
For advanced 4K AV distribution, the extender supports 4K60 RGB/4:4:4, HDR10, 3D, and broadcast-friendly 4K60 10-bit 4:2:2 formats. It also supports pass-through of 10/12-bit HDR sources, making it useful for professional video systems that require expanded color and dynamic range support over fiber infrastructure.
Key Features
- Extends HDMI 2.0 video, audio, and control signals over fiber
- Supports resolutions up to 4096 x 2160 at 60Hz YUV 4:4:4
- Provides very minimal latency for professional AV and production workflows
- Supports 4K60 RGB/4:4:4, HDR10, 3D, and 4K60 10-bit 4:2:2 formats
- Supports pass-through of 10/12-bit HDR sources
- Works with single mode or multimode fiber depending on the SFP+ module used
- Supports extension up to 18.6 miles depending on the SFP+ module used
- Interfaces with 10-Gigabit Ethernet switches via XFI
- Compact transmitter and receiver units allow flexible installation
Technical Specifications
Model: CMX-FMCH003
Product Type: 4K HDMI over Fiber Extender Set
Tx Input: HDMI
Tx Output: 10GbE LAN, SFP+ module dependent
Rx Input: 1 10GbE LAN, SFP+ module dependent
Rx Output: HDMI
HDMI Compliance: HDMI 2.0
HDCP Compliance: 2.2
Supported Resolutions: Up to 4096 x 2160 at 60Hz YUV 4:4:4
Supported Audio: LPCM, 8 channels; Bitstream; High Bit Rate Bitstream
Audio Format Support: Multichannel PCM, Dolby TrueHD, DTS-HD Master Audio
Transmission Distance: Up to 18.6 miles, SFP+ module dependent
Fiber Type: Single mode or multimode, SFP+ module dependent
Signal Transmission Interface: 10-Gigabit Ethernet via XFI
Ethernet Connector Compatibility: IEEE 802.3ae compatible 10-Gigabit Ethernet connector

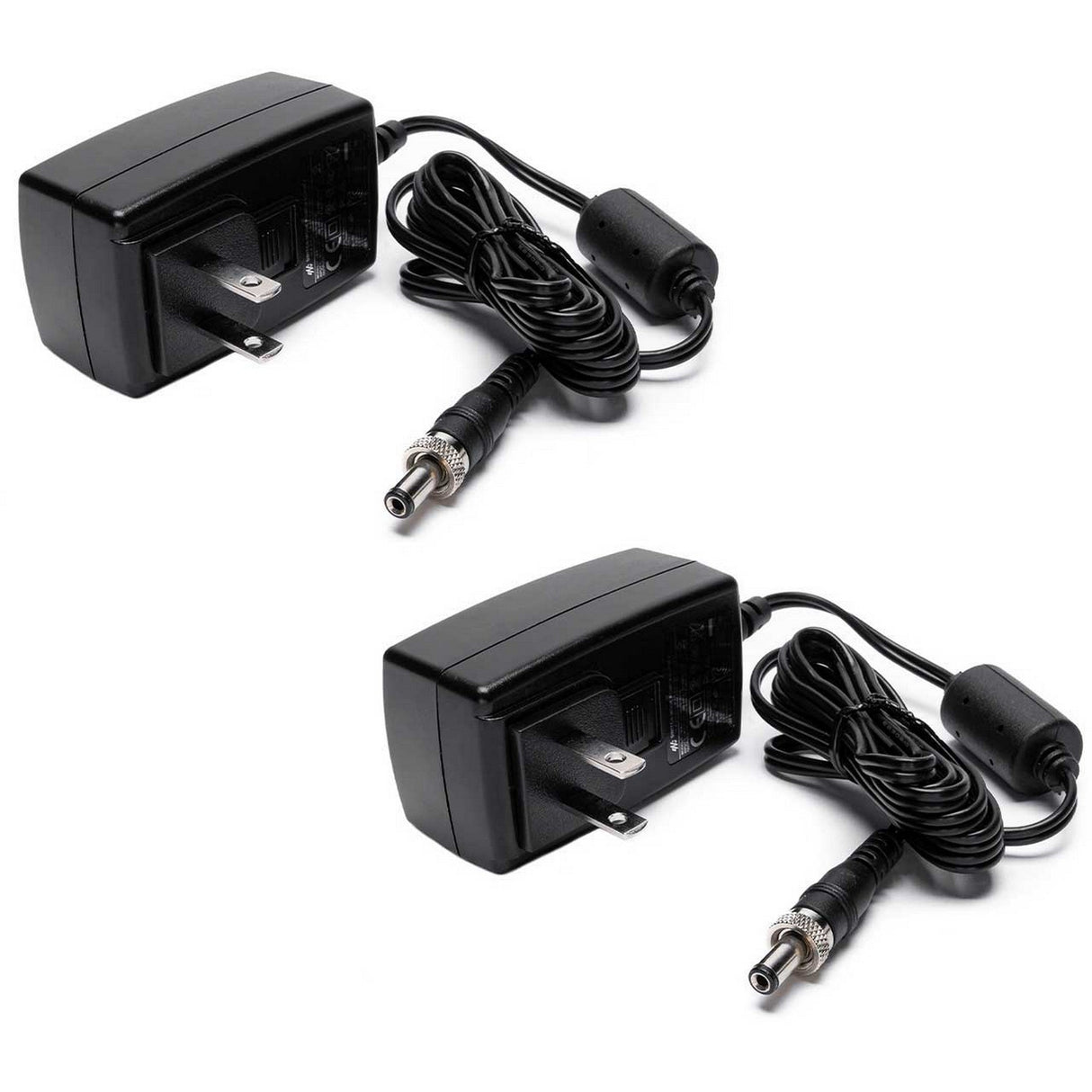

Power Supply: 5V/2.6A DC
