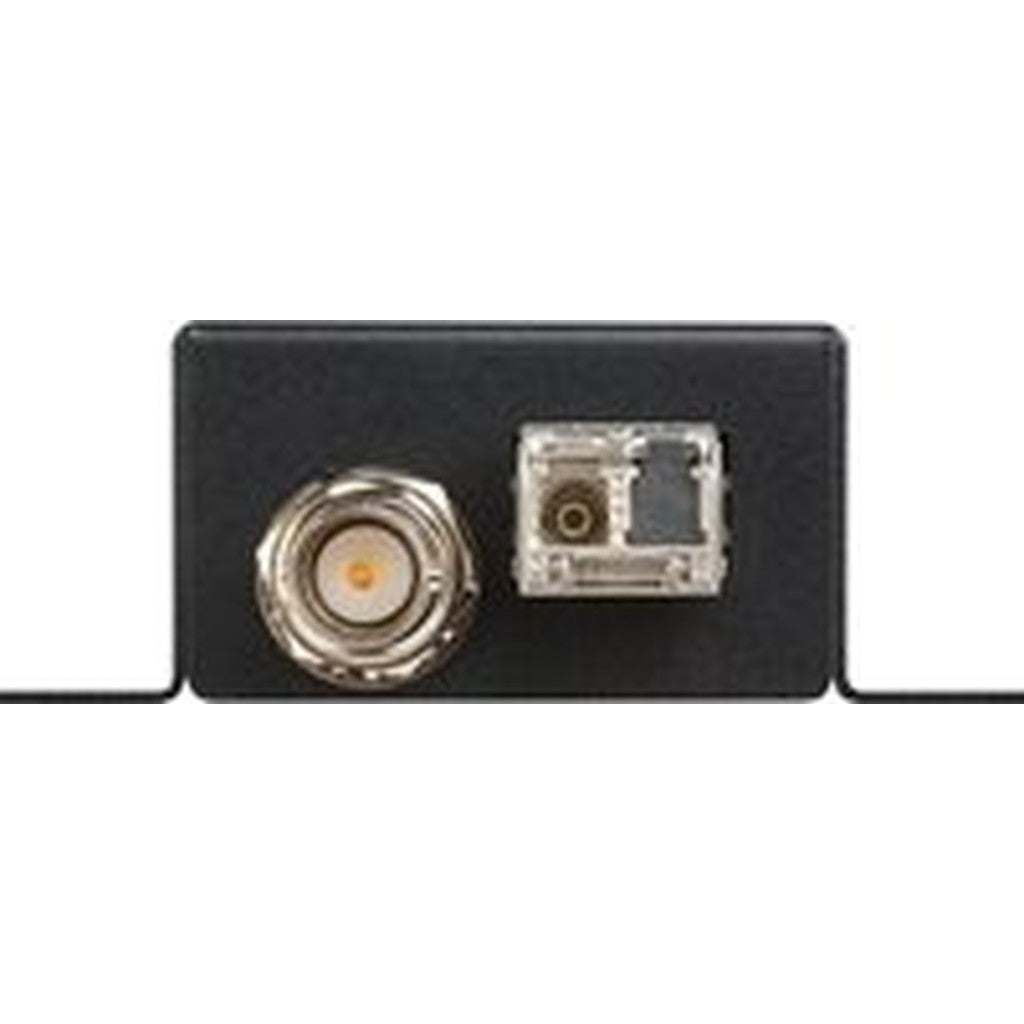

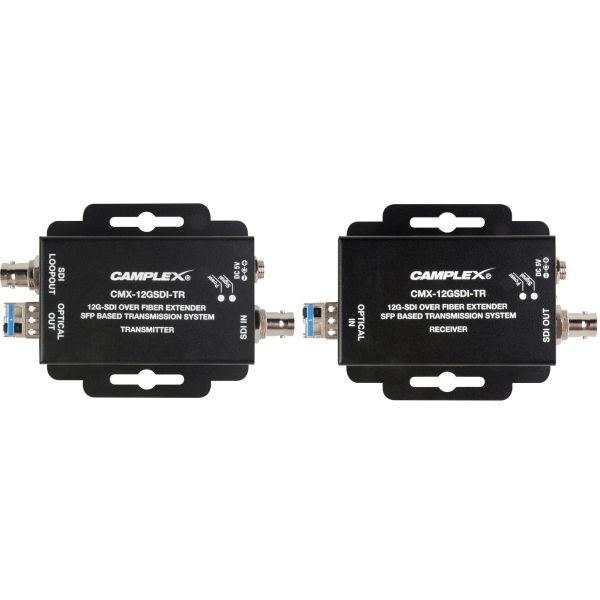

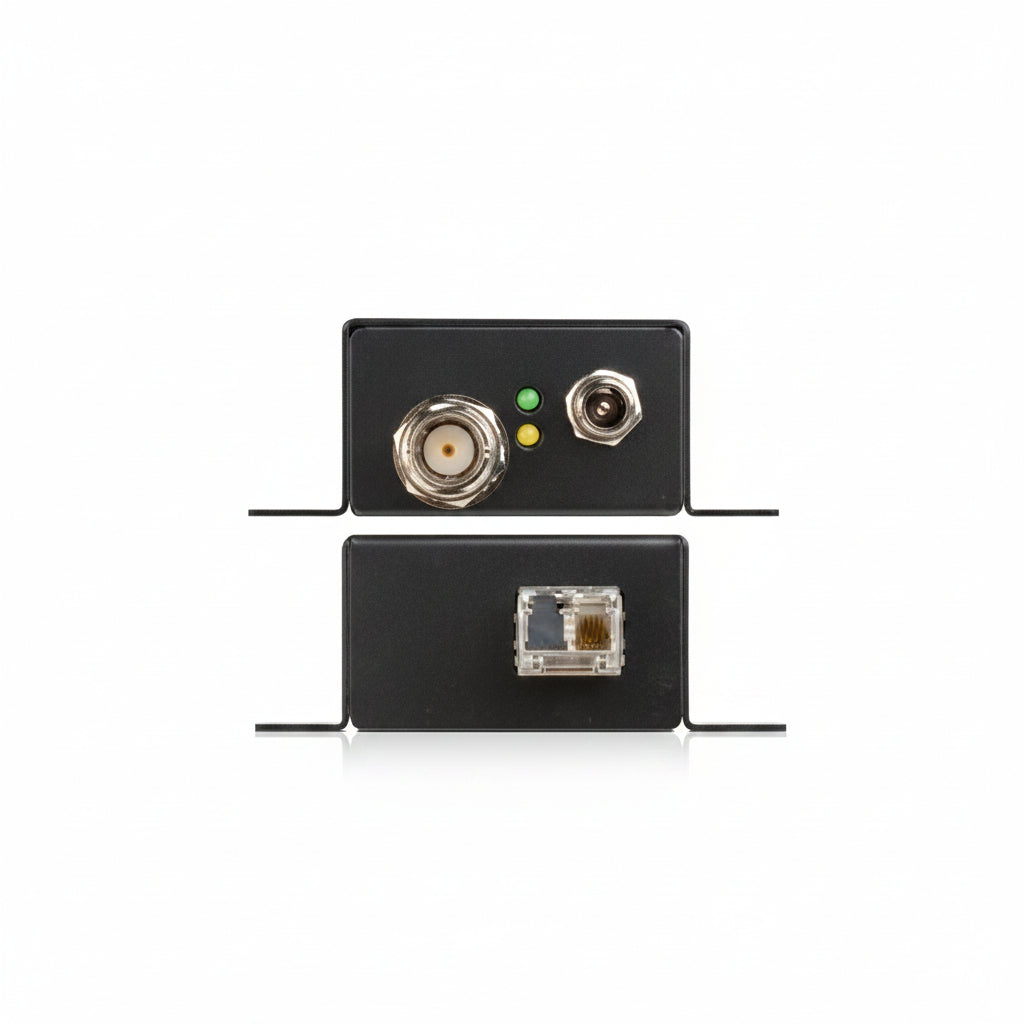

Camplex CMX-12GSDI-TR 12G-SDI Single-Mode Fiber Extender Set
The Camplex CMX-12GSDI-TR 12G-SDI fiber extender transmits broadcast-quality SDI video with embedded audio up to 6.25 miles over simplex single-mode fiber. The SFP-based transmitter and receiver support 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI signals for professional video distribution.
Designed for broadcast studios, live production, editing facilities, sports venues, houses of worship, and campus installations, this long-distance SDI fiber transmission system replaces lengthy coaxial runs while maintaining reliable signal integrity. Automatic cable equalization, signal reclocking, and a reclocking SDI loop output help simplify monitoring and distribution at the source.
The compact metal units support video formats ranging from NTSC and PAL through 4K2K at 60p. Compliance with SMPTE 259M, 292M, 424M, 2082-1, and 2082-2 standards supports integration into professional broadcast workflows. Input signal detection LEDs provide quick status confirmation during installation and operation.
Key Features
- Long-Distance Fiber Extension: Transmits supported SDI signals up to 6.25 miles over simplex single-mode fiber.
- Multi-Rate SDI Support: Handles 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI video formats.
- SFP-Based Connectivity: Uses removable LC single-mode SFP modules for fast, serviceable fiber connections.
- Embedded Audio: Carries embedded audio with the SDI video signal across the fiber link.
- Reclocking Loop Output: Provides one reclocked BNC SDI loop output on the transmitter for local monitoring.
- Signal Conditioning: Automatic cable equalization and reclocking help preserve dependable video performance.
- Installation Feedback: Power and input signal detection LEDs simplify system setup and troubleshooting.
- Rugged Construction: Compact metal housings support professional broadcast and installed-video applications.
Technical Specifications
- Product Type: 12G-SDI over single-mode fiber extender set
- System Components: Transmitter and receiver
- SDI Standards: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI
- Transmission Distance: Up to 6.25 miles over single-mode fiber
- Fiber Connection: SFP-based simplex LC single-mode fiber
- Video Support: 720p50, 720p59.94, 720p60, 1035i50, 1035i59.94, 1035i60, 1080i50, 1080i59.94, 1080i60, 1080p24, 1080p30, 1080p59.94, 1080p60, 4K2Kp30, 4K2Kp60, SD NTSC at 59.94 Hz, and PAL at 50 Hz
- Data Rates: 270, 1483, 1485, 2967, 2970, 5940, and 11880 Mbps
- Video Bandwidth: 2.97 Gbps and 2.97/1.001 Gbps
- Supported Standards: SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2082-1, and SMPTE 2082-2
- Audio Support: Embedded audio
- Input Impedance: 75 ohms
- Transmitter Input: BNC SDI
- Transmitter Outputs: Simplex LC single-mode SFP and BNC SDI loop output
- Receiver Input: Simplex LC single-mode SFP
- Receiver Output: BNC SDI
- Signal Processing: Cable equalization and SDI reclocking
- Interference Protection: Immune to RP-198 interference
- Status Indicators: Power and input signal detection LEDs
- Power Requirement: 5 VDC, 2A per unit
- Power Consumption: 3W
- Installation Temperature: 32°F to 140°F
- Housing: Metal
- Dimensions per Unit: 2.9" x 2.9" x 1.0"
- Weight per Unit: 0.46 lbs
- Warranty: One year
What's In the Box
- One 12G-SDI transmitter
- One 12G-SDI receiver
- Two LC single-mode SFP modules
- Two 5 VDC, 2A power supplies
