Camplex Compact 12G-SDI Fiber Extender over Single-Mode ST Fiber

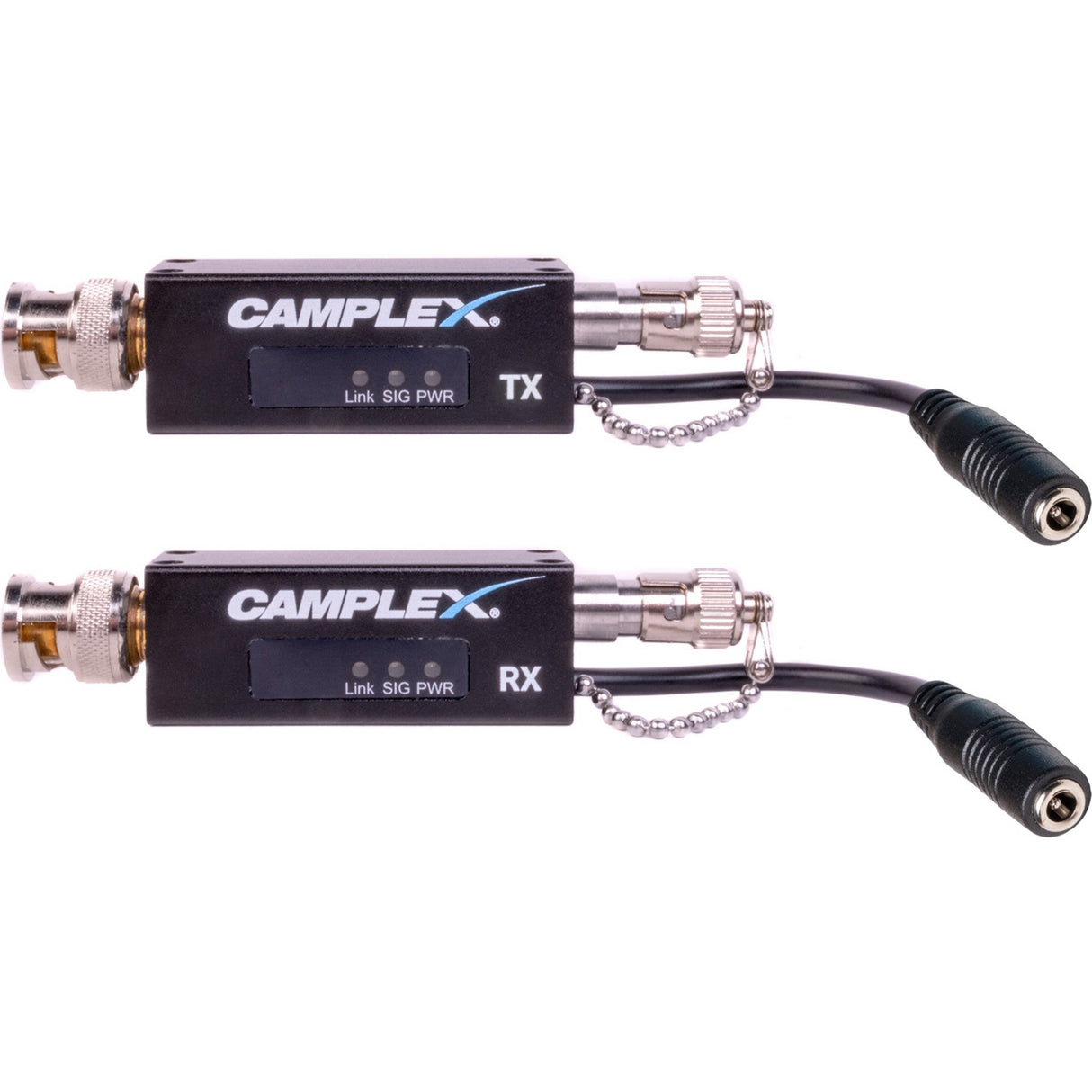

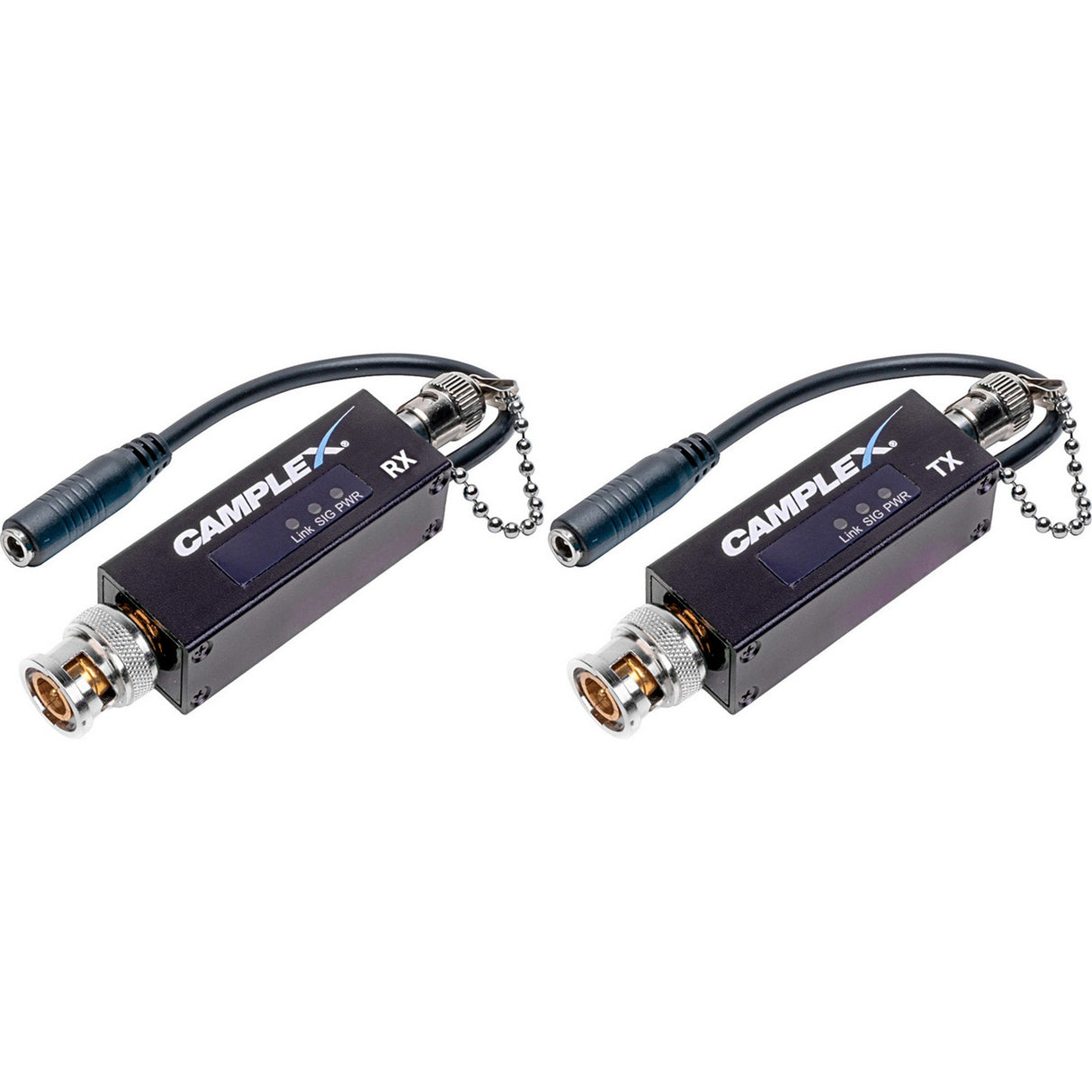

The Camplex CMX-12GSDI-MINI 12G-SDI ST Fiber Extender transmits professional SDI video over single mode ST fiber in a compact inline design. It supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI signals, giving broadcast and AV teams a reliable solution for long-distance fiber video transport.
Designed for 12G-SDI over ST fiber workflows, this mini extender connects directly to equipment without requiring additional SDI patch cables. It is well suited for camera systems, production racks, OB trucks, control rooms, and installed AV environments where space is limited and signal reliability is critical. With support for up to 11.88 Gb/s, it handles UHD production signals while maintaining a small footprint.
The CMX-12GSDI-MINI supports SMPTE serial digital interface standards, including 12G, 6G, 3G, HD, and SD formats. It also supports 4K60Hz, 1080p, 1080i, and 720p video formats, while its 1310nm DFB laser and PIN-PD photo detector help maintain stable optical transmission over single mode fiber. Integrated reclocking locks to SMPTE data rates for dependable professional signal performance.
Key Features
- Compact mini 12G-SDI fiber extender for professional video transport
- Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI signals
- Transmits over single mode fiber using an ST optical connector
- Supports up to 4K60Hz, 1080p, 1080i, and 720p video formats
- Supports data rates up to 11.88 Gb/s for UHD broadcast workflows
- Direct equipment connection helps reduce the need for additional SDI cables
- Compatible with DVB-ASI and AES10 MADI systems
- Integrated reclocker locks to SMPTE rates for stable signal delivery
- Powered by DC +5V through a 5.5mm DC jack
Technical Specifications
Model: CMX-12GSDI-MINI
Product Type: Mini 12G-SDI over ST Fiber Extender
Dimensions: 0.76" x 0.76" x 1.96"

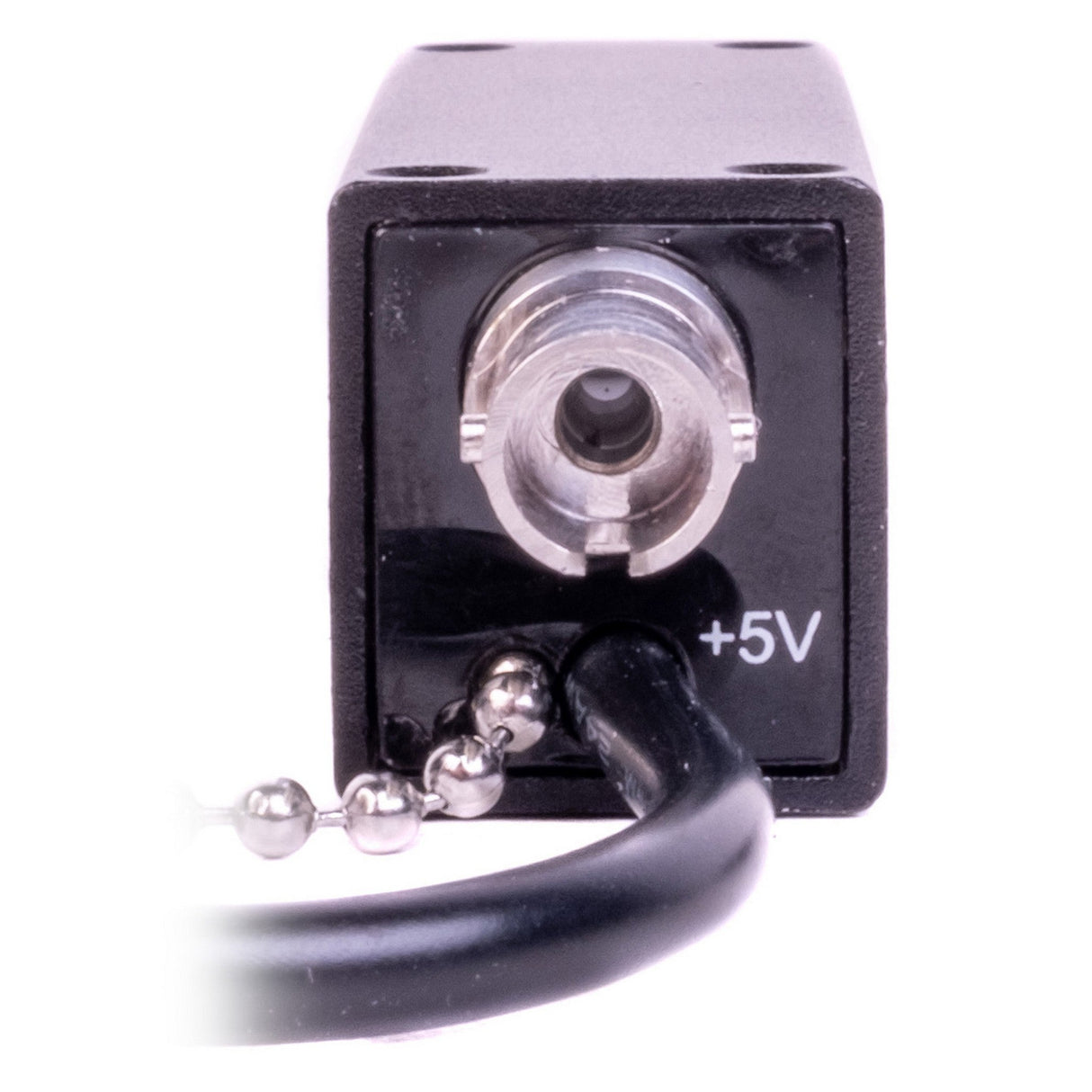

Fiber Optical Connector: ST
Fiber Type: Single Mode Fiber
Transmission Distance: 6.2 mi
Supported SDI Signal: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
Data Rate: Up to 11.88 Gb/s
Operation Temperature: -40°F to 185°F

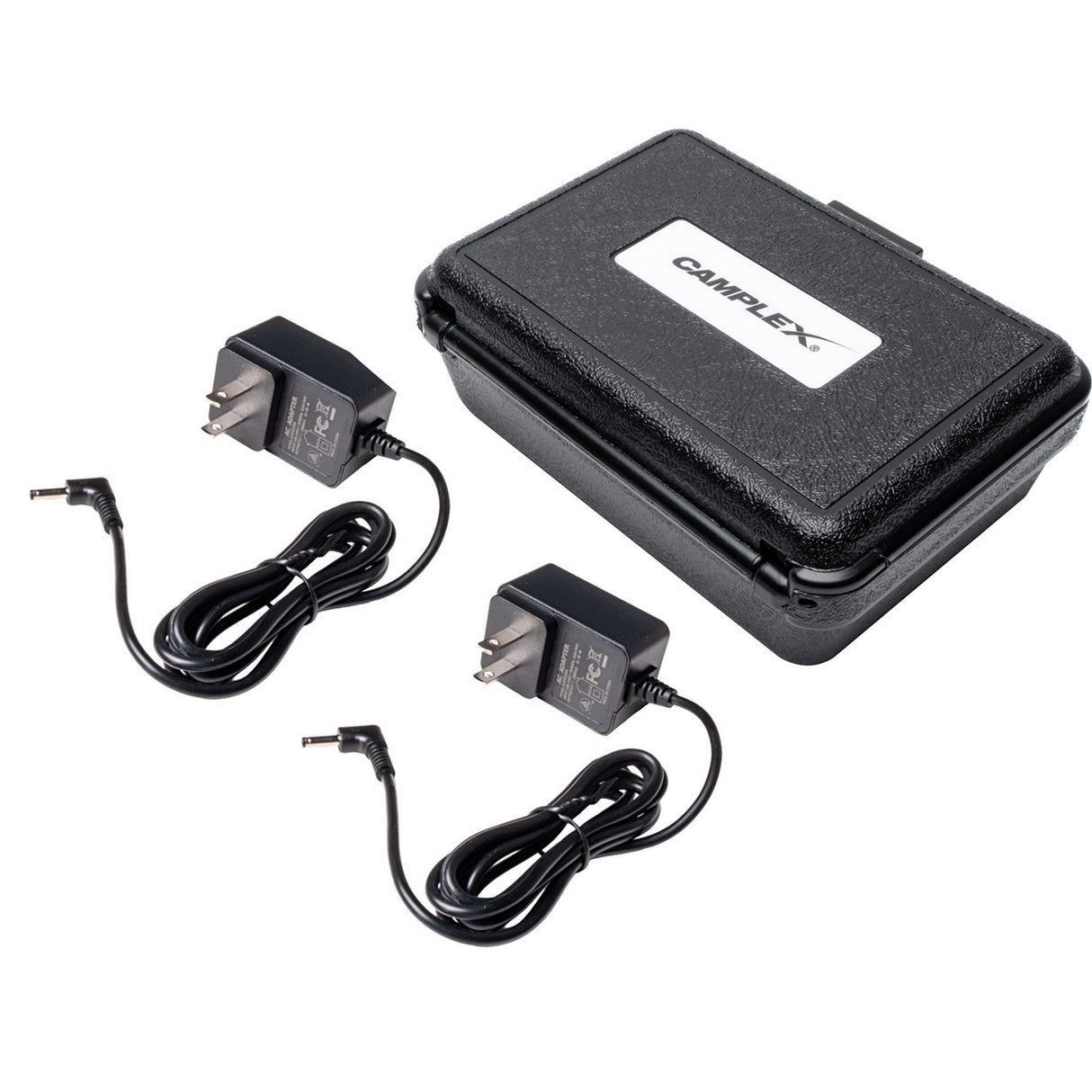

Power Supply: DC +5V, 5.5mm DC Jack
ICC
Tx: Max 200mA
Rx: Max 200mA
Optical Specifications
Laser Type: 1310nm DFB Laser
Photo Detector: PIN-PD
Transmitter
TX Po: -3 to +3dBm
TX Er: >5.0dB
Receiver
Rx Sen.: <-14.5dBm
