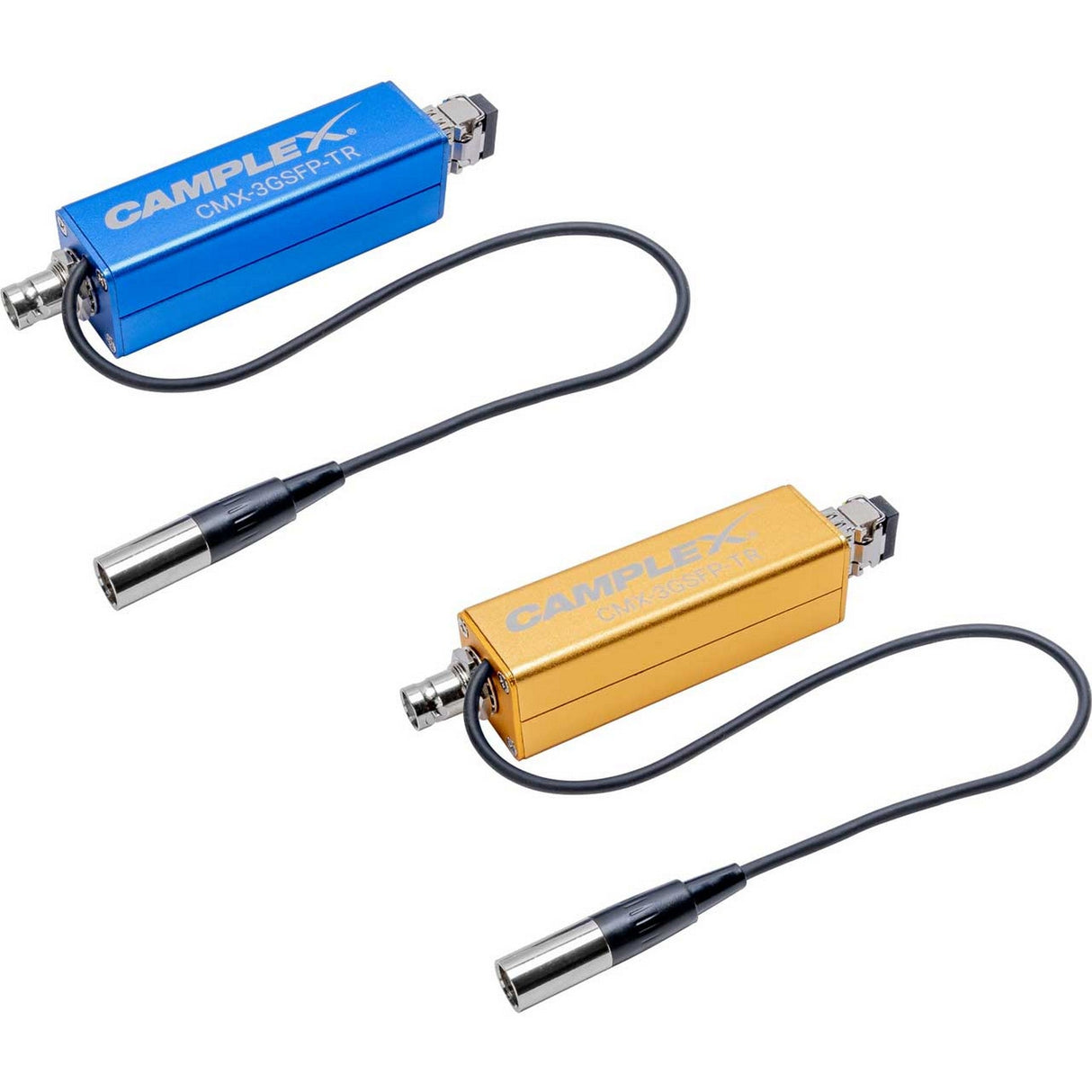

Camplex Mini 1-Channel Unidirectional 3G-SDI over Single-Mode Fiber Extender Set
The Camplex CMX-3GSFP-TR 3G-SDI Single Mode Fiber Extender Set sends 3G-SDI video signals up to 1080p@60Hz over one LC single mode fiber. It supports transmission distances up to 18.6 miles, making it a compact fiber transport solution for professional video workflows.
Designed for camera systems, computer interfaces, control rooms, production racks, and mobile broadcast setups, this mini 1-channel uni-directional 3G-SDI over fiber extender set helps move high-quality SDI signals across long cable runs. Its compact, lightweight design fits tight equipment spaces where standard conversion hardware may be difficult to install.
The CMX-3GSFP-TR supports SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, and SMPTE-259M SD-SDI formats, along with additional broadcast signal standards such as DVB-ASI and DVB-SSI. With SMPTE 424M clock recovery, automatic cable equalization, and a 19.4Mb/s to 2.97Gb/s data-rate range, it delivers dependable signal extension for professional AV and broadcast environments.
Key Features
- Sends 3G-SDI signals over one LC single mode fiber up to 18.6 miles
- Supports resolutions up to 1080p@60Hz for HD video transport
- Supports SMPTE-424M, SMPTE-292M, and SMPTE-259M SDI standards
- Compact and lightweight design fits tight racks, camera setups, and field systems
- Supports data rates from 19.4Mb/s up to 2.97Gb/s
- SMPTE 424M clock recovery helps maintain stable 3G-SDI performance
- Automatic cable equalization adjusts based on the detected data rate
- 5V Mini XLR power connection supports simple installation
Technical Specifications
Model: CMX-3GSFP-TR
Product Type: Single Mode 3G SDI Over Fiber Optic Extender
Signal Direction: Mini 1-Channel Uni-Directional

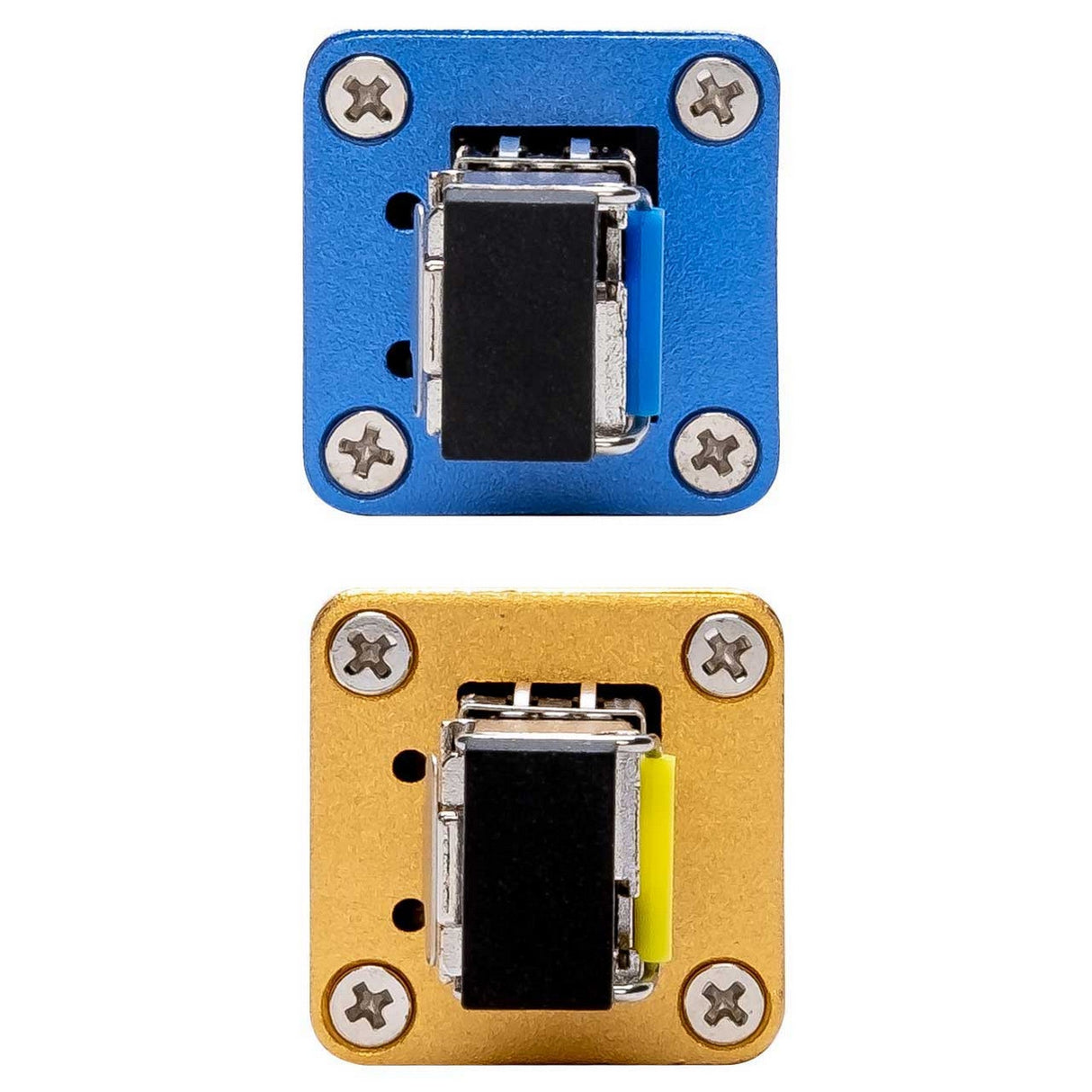

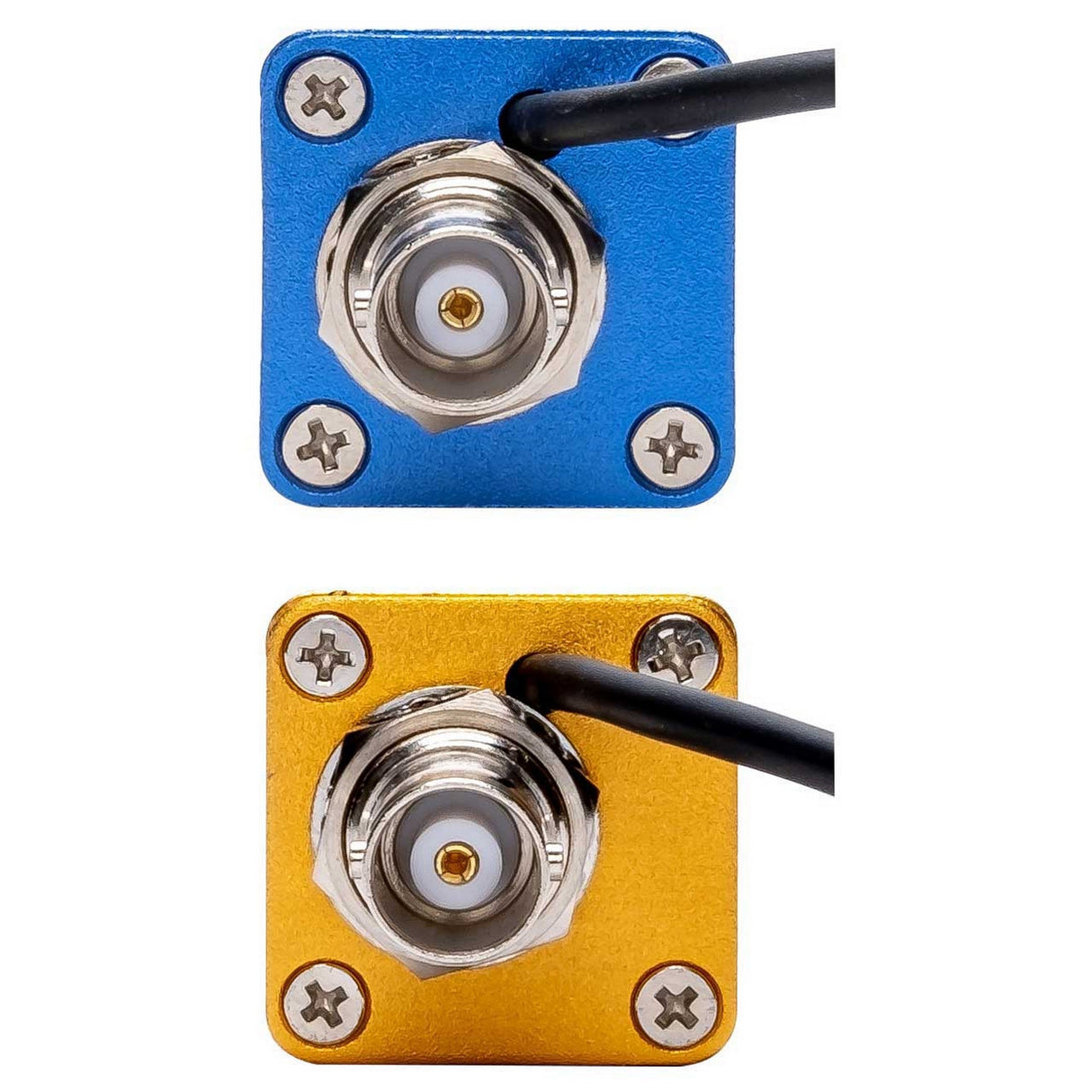

Connectors: 75Ω BNC Female and simplex LC Female
TV Signal Standard: SMPTE 424M, 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI, and others
Telecom/Datacom Rate: 19.4Mb/s to 2.97Gb/s
Signal Level: 800mV Nominal
Transmission Distance: Up to 18.6 mi
Reflection Loss: >15dB
Operating Temperature: -40°F to 115°F

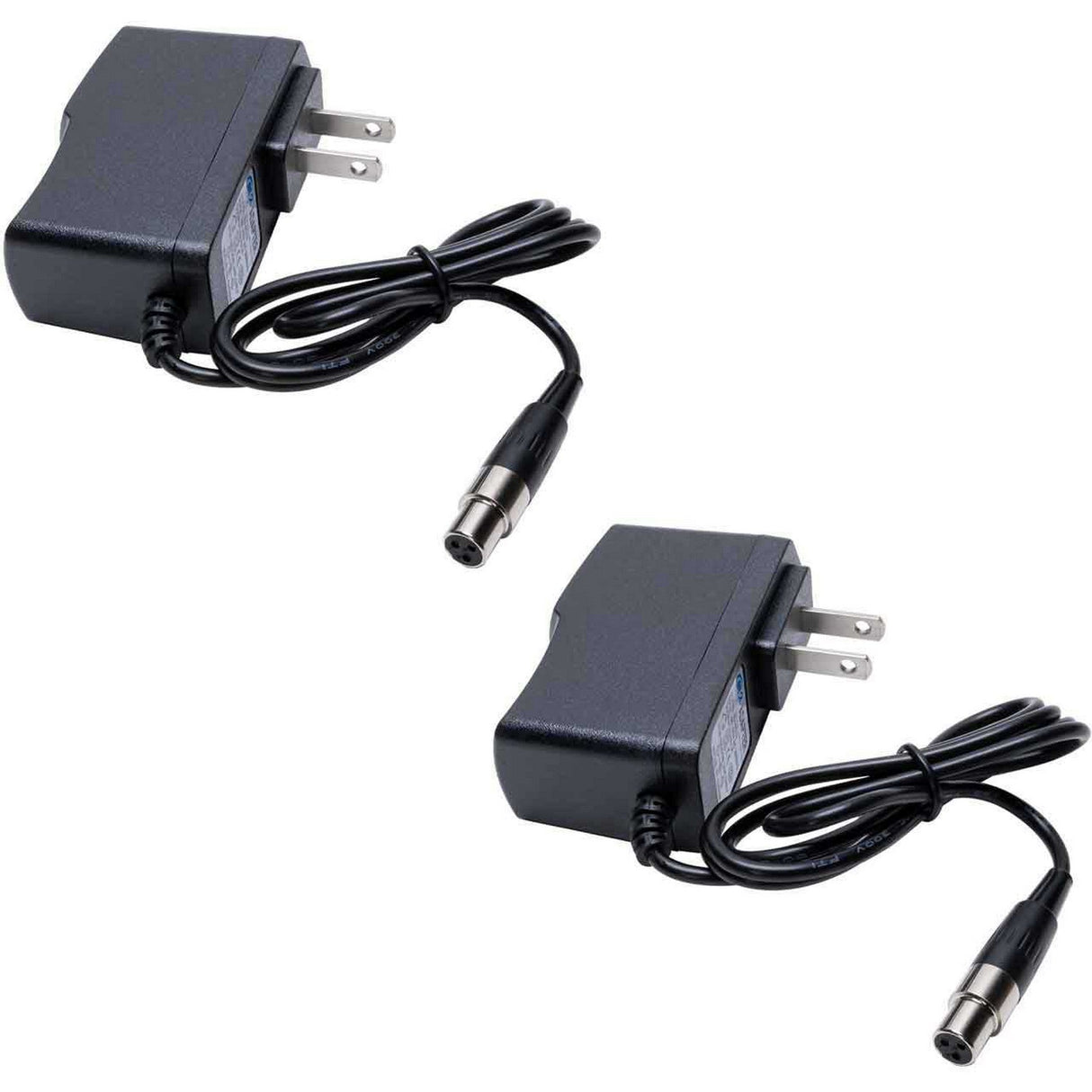

Power Supply: 5V Mini XLR
Power Consumption: 3W

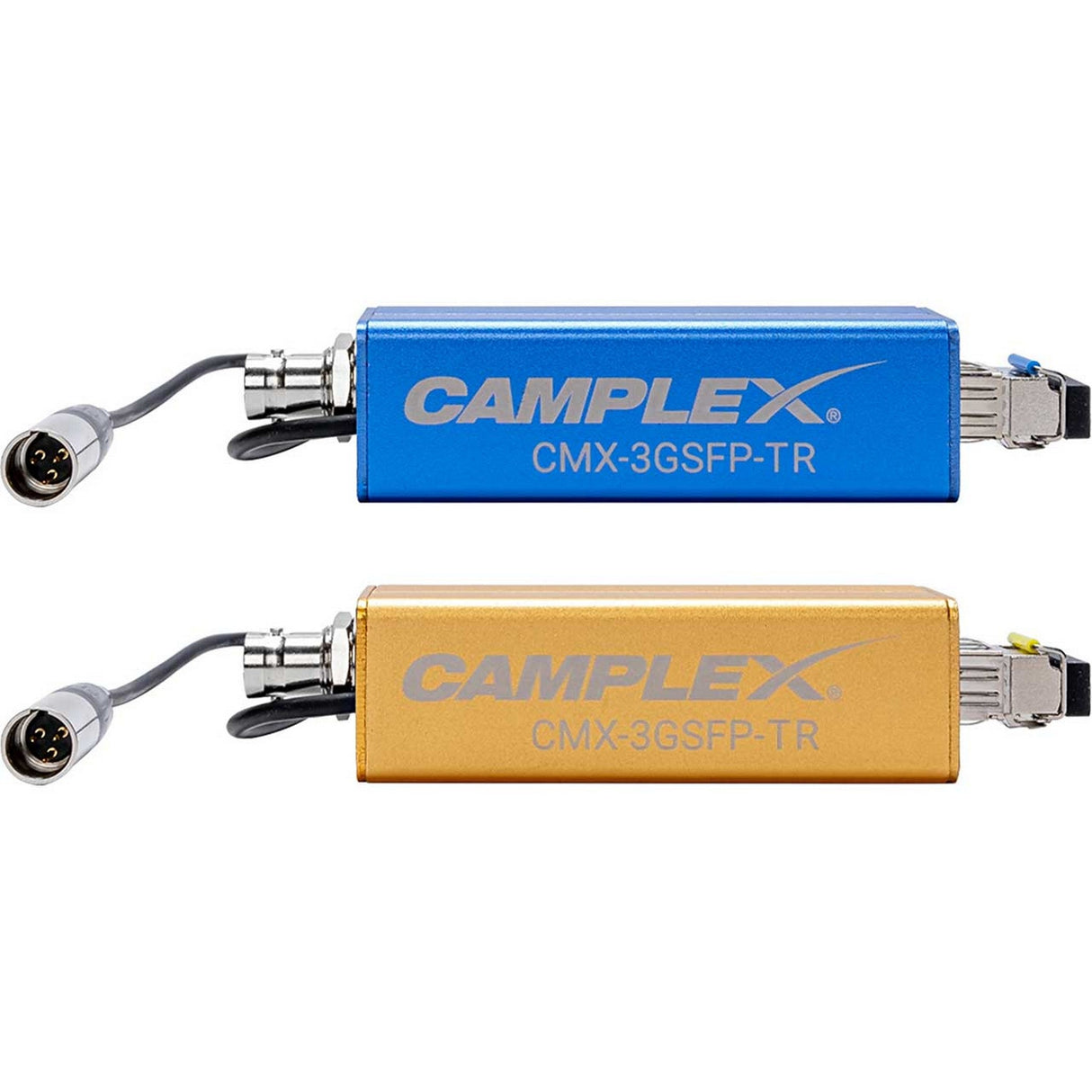

TX Dimensions: 4.55" x 1.03" x 1.01"
RX Dimensions: 4.23" x 1.02" x 1.01"
