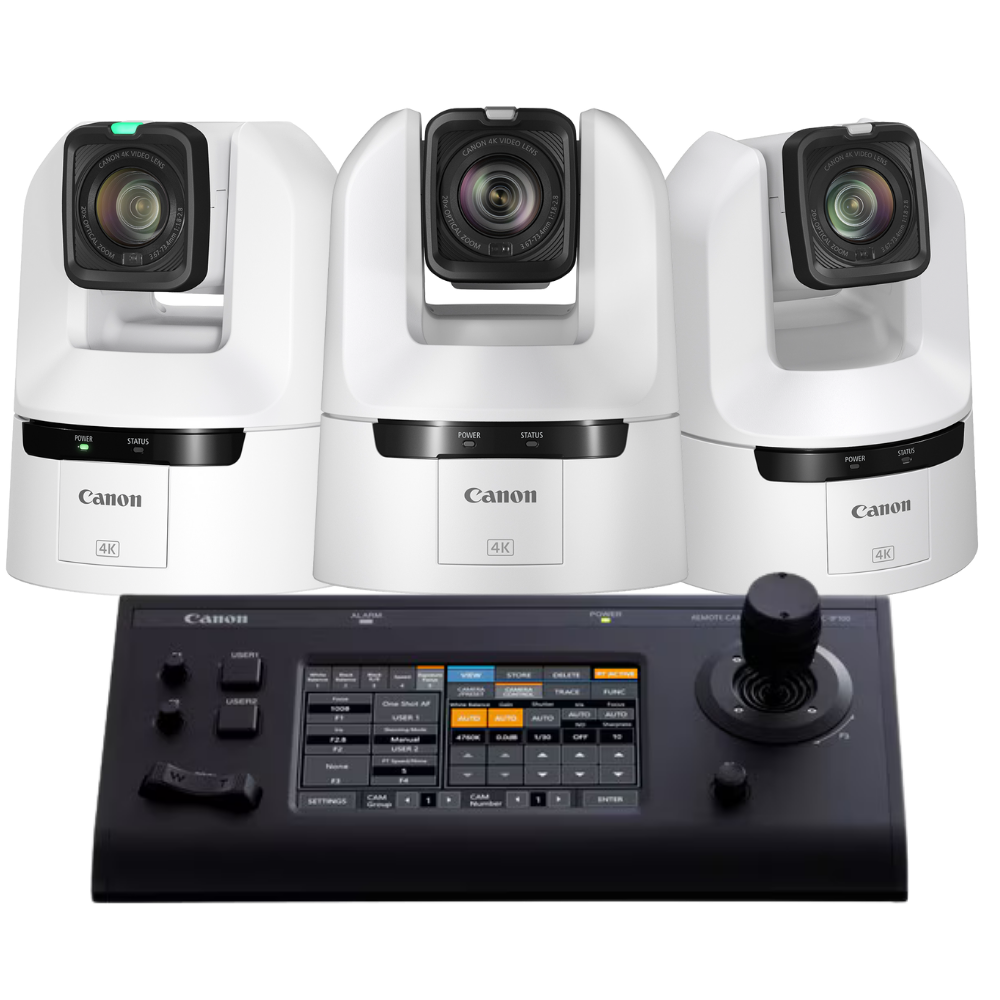

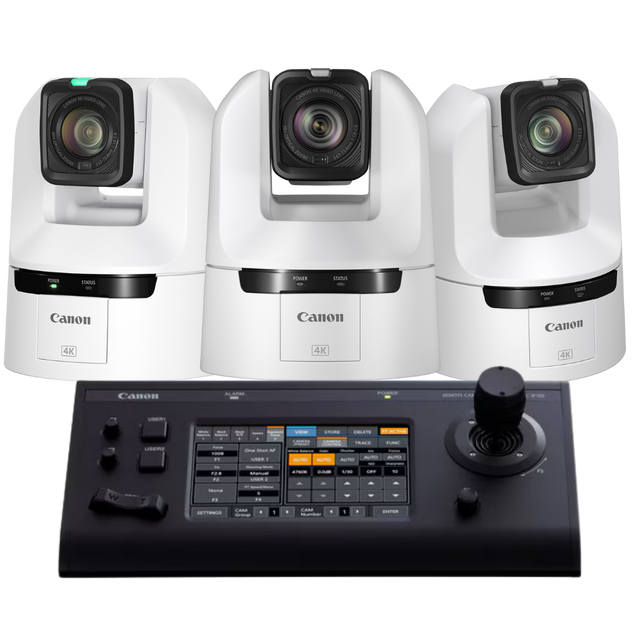

Canon 3x CR-N350 PTZ Cameras with RC-IP100 Controller Bundle (White)

Canon 3x CR-N350 PTZ Cameras with RC-IP100 Controller Bundle (White)

This bundle pairs three Canon CR-N350 PTZ cameras in white with the RC-IP100 touchscreen joystick controller, giving smaller productions a complete multi-angle 4K system. It suits houses of worship, education, corporate AV, and live events that want professional image quality and centralized control without the complexity of a larger broadcast setup, reducing crew requirements and speeding up setup.

Each CR-N350 combines a 1/2.3-inch CMOS sensor and DIGIC DV7 processor for 4K60p capture with Canon Color Science, Wide DR, Canon Log 3, and HLG/PQ HDR. A 20x optical zoom with image stabilization, Auto Tracking Lite, and 3G-SDI, HDMI, and IP outputs round out each camera, while NDI HX2, SRT, and PoE++ enable single-cable operation; the RC-IP100 puts all three under one operator's control.

Key Features

• Three Canon CR-N350 PTZ cameras plus an RC-IP100 touchscreen joystick controller
• 4K60p capture with Canon Color Science, Wide DR, Canon Log 3, and HDR (HLG/PQ)
• 20x optical zoom with Optical Image Stabilization; 40x Advanced Zoom in Full HD
• Built-in NDI HX2 and SRT with adaptive bitrate for IP workflows
• Single-cable PoE++ carries video, audio, control, tally, and power
• Built-in Auto Tracking Lite with face and eye detection autofocus
• 3G-SDI, HDMI, and IP connectivity with Canon XC Protocol control support

Specifications

• Color Options: Satin Black / Titanium White
• Image Sensor 1/2.3-inch, CMOS (single board)
• Total pixels: approx. 21.14 megapixels
• 29.97/25.00/23.98 Hz effective pixels: approx. 8.29 megapixels (3840 x 2160)
• 59.94/50.00 Hz effective pixels: approx. 7.88 megapixels (3744 x 2104)
• Lens f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm
• 59.94/50 Hz 35mm equivalent focal length: approx. 30mm (W) – 616 mm (T)
• 29.97/25.00/23.98 Hz 35mm equivalent focal length: approx. 29.3mm (W) – 601 mm (T)
• Zoom Optical: 20x
• Digital: 20x
• Advanced Zoom (Full HD): 40x
• Lens Configuration: 10 groups of 12 lenses (two aspherical lenses used)
• Minimum Focusing Distance: 1 cm at wide end, 60 cm across entire zooming range
• Angle of View: 59.94/50.00 Hz Horizontal: 63.3 (W) – 3.5° (T) - Vertical: 38.9° (W) – 2.0° (T)
• 29.97/25.00/23.98 Hz Horizontal: 65.6 (W) – 3.6° (T) - Vertical: 39.8° (W) – 2.0° (T)
• Shutter Speed: 1/3 – 1/2000 sec. (specific values depend on the frame frequency)
• Iris: Manual/Automatic aperture
• Gain: 0.0 db - 36.0 db
• ND Filter: Built-in (1/8 at maximum, gradation ND), motor operated
• White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K),
• color temperature setting (2,000 K – 15,000 K), Manual
• Focus mode: Manual
• Continuous AF
• Face Detection & Tracking
• Face only AF
• Eye Detection
• AF type: Hybrid AF, Contrast AF
• Gamma: BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, HDR (PQ), HDR(HLG)
• Image Stabilizer: Optical
• Min. Subject Illumination Frame frequency 59.94/29.97 Hz:
• Approx. 3 lux (at shutter speed 1/60 sec, frame rate 59.94P, gain 30.0 dB)
• Approx. 1.5 (at shutter speed 1/30 sec, frame rate 59.94P, gain 30.0 dB)
• Frame frequency 50.00/25.00 Hz:
• Approx. 2.5 lux (at shutter speed 1/50 sec, frame rate 50.00P, gain 30 dB)
• Approx. 1.3 lux (at shutter speed 1/25 sec, frame rate 50.00P, gain 21 dB)
• *All of the above are when high sensitivity mode is set to On
• Pan and Tilt Pan operation range: Horizontal ±170°
• Pan operation speed: 0.1° – 100°/sec. (Up to 200°/sec. with presets)
• Tilt operation range: Vertical -30° – +100°
• Tilt operation speed: 0.1° – 100°/sec. (Up to 180°/sec. with presets
• 3G-SDI: 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
• 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
• HDMI 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
• 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
• 1280 x 720: 59.94p/50.00P (4:2:2 10bit)
• 720x576: 50.00P (4:2:2 10bit)
• 720x480: 59.94P (4:2:2 10bit)
• IP 3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
• 5.99fps, 5.00 fps (4:2:0 8 bit)
• 1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
• 5.99fps, 5.00 fps (4:2:0 8 bit)
• 1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
• 5.99fps, 5.00 fps (4:2:0 8 bit)
• 640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps,
• 5.99fps, 5.00 fps (4:2:0 8 bit)
• Supported Video and Control Protocols Protocol: XC Protocol, RTSP/RTP, NDI HX2, RTMP/RTMPS, Standard Communication (Serial),
• Standard Communication (IP), FreeD, SRT
• Number of Presets: Max. 100 (including home position)
• Communication Control:LAN, Wi-Fi, Serial, IR, USB
• Network Terminal LAN x 1, RJ45, 1000Base-T
• 3G-SDI OUT Terminal BNC jack x1 3G-SDI, 0.8 Vp-p/75 Ω
• SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST
• 272, SMPTE ST 299 compliant
• Embedded audio, Time code (VITC/LTC)
• HDMI OUT Terminal: HDMI connector x 1, output only
• RS-422 Terminal: RJ45 connector x 1
• Mic Terminal ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported)
• Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
• Sensitivity (LINE): -12 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
• Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ
• Operating Environment: Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Storage Environment: Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Power Supply: PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
• External power source: 12 V DC Terminal
• Power Consumption: PoE++ Input: Approx. 26.1 W max. (body only)
• DC Input: Approx. 23.6 W max. (body only)
• Quietness: NC35 or lower
• Dimensions (W x H x D): Approx. 176 x 220 x 194 mm (6.93 x 8.66 x 7.64 in.) (excluding protrusions)
• Weight: Approx. 3.0 kg (6.6 lb.) (body only)
• Supported Controllers Hardware: RC-IP100, RC-IP1000
• Software: Remote Camera Control Application, Mulit-Camera Control Application, Multi-Camera
• Management Application, Camera Search tool
• Camera
• Video Output Format
• Supported Video
• and Control Protocols
• Interface
• Other

What's Included

• 3x Canon CR-N350 PTZ Camera IR Remote Control
• Mounting Bracket with Screw
• Safety Wire with Screw
• Camera-to-Mount Safety Wire with Screw
• IR Remote Controller
• 2 x AAA Battery
• AC Adapter
• Power Cable
• Warranty: Limited 1-Year Manufacturer Warranty
• 1x Canon RC-IP100 Touchscreen PTZ Joystick Controller AC Adapter
• Warranty: Limited 1-Year Manufacturer Warranty
