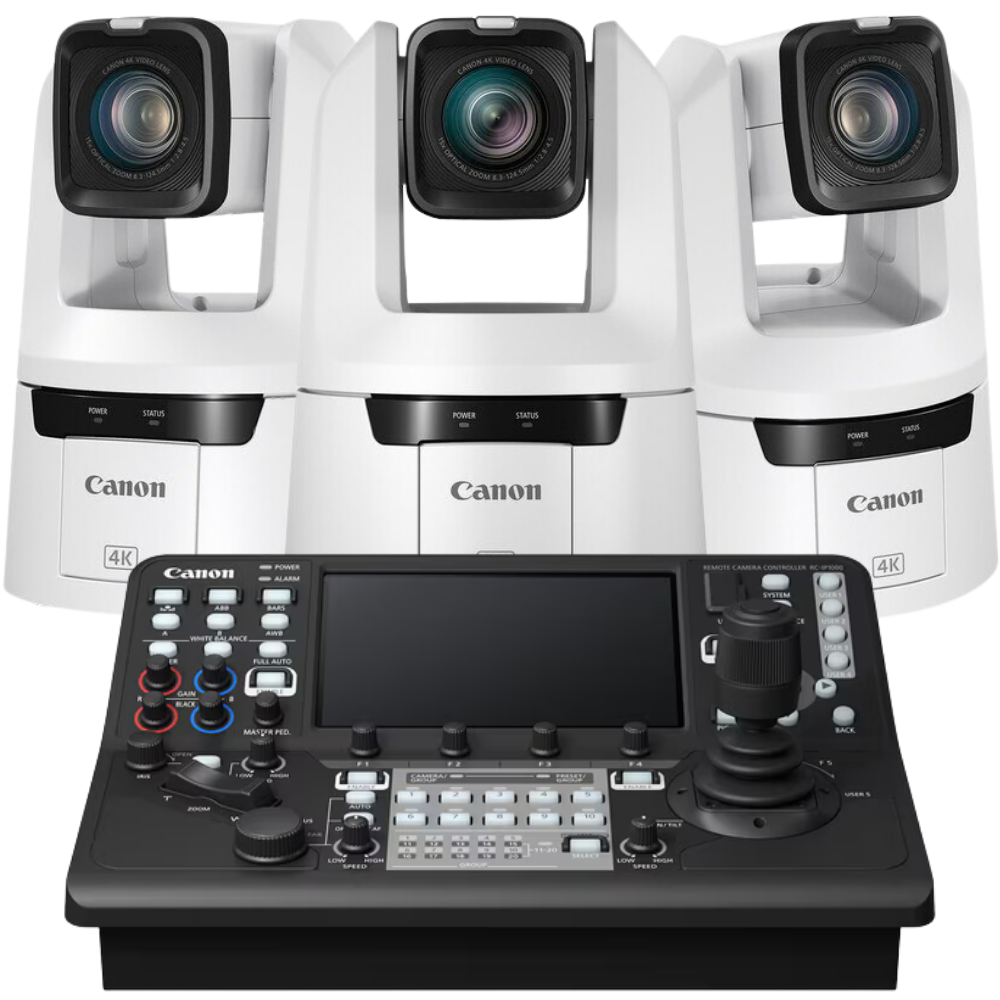

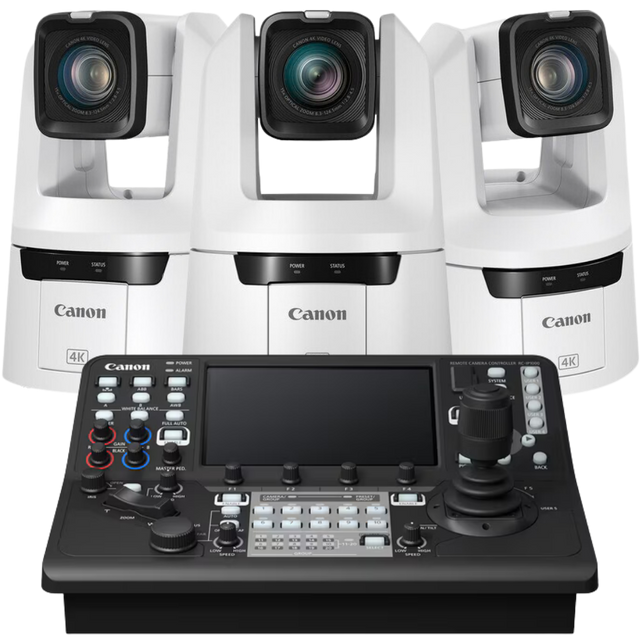

Canon 3x CR-N700 PTZ Cameras with RC-IP1000 Controller Bundle (White)

Canon 3x CR-N700 PTZ Cameras with RC-IP1000 Controller Bundle (White)

Supplying three Canon CR-N700 PTZ cameras in white together with the RC-IP1000 controller, this package gives high-end productions a complete multi-camera system run by a single operator. It fits TV studios, live events, worship venues, and premium streaming setups where consistent broadcast-quality images across several angles matter more than a large camera crew.

The CR-N700's 1-inch 4K UHD sensor and DIGIC DV7 processor produce 4K60p 4:2:2 10-bit HDR video over 12G-SDI, HDMI, and IP, while Dual Pixel CMOS AF with EOS iTR AF X handles intelligent focus. Genlock, dual XLR and 3.5mm audio inputs, built-in ND, NDI HX2 and SRT, FreeD for AR/VR, and PoE++ complete the connectivity, with the RC-IP1000's 7-inch touch screen monitoring all three feeds.

Key Features

• Three white Canon CR-N700 4K PTZ cameras with the RC-IP1000 remote controller
• 4K60p 4:2:2 10-bit HDR from a 1-inch CMOS sensor and DIGIC DV7 processor
• Broadcast I/O including 12G-SDI, 3G-SDI, HDMI, IP, and Genlock
• Deep-learning Dual Pixel CMOS AF (EOS iTR AF X) plus built-in Auto Tracking Lite
• 15x optical zoom, 30x in Full HD, with built-in motorized ND filters
• NDI HX2, SRT with adaptive bitrate, FreeD for AR/VR, and PoE++ power
• 7-inch touchscreen controller monitors and manages all three cameras from one seat

Specifications

• 15x optical zoom, 9-bladed iris diaphragm
• 15x optical zoom (30 x with advanced zoom)
• 20x digital zoom
• Type 1.0 (1.0 in.) single-plate CMOS sensor
• approx. 8.29 megapixels (3840 x 2160)
• 8.3 – 124.5 mm, f/2.8 – 4.5,
• 35mm equivalent focal length:
• approx. 25.5 (W) – 382.5 mm (T)
• Horizontal: 73.0 (W) – 5.7° (T)
• Vertical: 45.2° (W) – 3.2° (T)
• Approx. 3.0 lux (with 59.94 Hz frame frequency, 1/60 sec. shutter speed, 59.94P frame rate, and 21 dB gain)
• Approx. 2.5 lux (with 50.00 Hz frame frequency, 1/50 sec. shutter speed, 50.00P frame rate, and 21 dB gain)
• 1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Manual/Automatic aperture
• -6.0 dB - 36.0 dB
• Built-in (Off, 1/4, 1/16, 1/64), motor operated
• Yes
• AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K1, tungsten lamp: 3,200 K2),
• Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, TrackingAF type: Dual Pixel CMOS AF, Contrast AF
• Detection: Face Detection, Eye Detection
• 1 cm at wide end, 60 cm across entire zooming range
• BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, PQ, HLG
• Pan operation range: Horizontal ±170°
• Pan operation speed: 0.1° – 100°/sec.
• Tilt operation range: Vertical -30° – +90°
• Tilt operation speed: 0.1° – 100°/sec
• [12G-SDI]
• 3840 x 2160:
• 59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
• 1920 x 1080: 59.94P/59.94i/29.97P/29.97PsF/23.98P/50.00P/50.00i/25.00P/25.00PsF (4:2:2 10 bit)
• 1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
• 720 x 576: 59.94i/50.00i (4:2:2 10 bit)
• [3G-SDI]
• 1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
• 1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
• 720 x 576: 59.94i/50.00i (4:2:2 10 bit)
• 3840 x 2160:
• 59.94P/29.97P/23.98P/50.00P/25.00P (4:2:2 10 bit)
• 1920 x 1080: 59.94P/59.94i/29.97P/23.98P/50.00P/50.00i/25.00P (4:2:2 10 bit)
• 1280 x 720: 59.94P/50.00P (4:2:2 10 bit)
• 720 x 576: 59.94i/50.00i (4:2:2 10 bit)
• [Frame frequency 59.94 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 29.97 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 50.00 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 25.00 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 23.98 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
• *59.94 fps/50.00 fps is only when H.265.
• – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
• Resolution: 1280 x 720
• 59.94/29.97 Hz: 14.99 fps,
• 50.00/25.00 Hz: 12.50 fps,
• 23.98 Hz: 11.99 fps
• No
• Canon XC, RTSP/RTP, NDI3|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
• Number of presets: Max. 100 (including home position)
• LAN, Wi-Fi, Serial, IR
• LAN x 1, RJ45, 1000Base-T
• BNC jack (output only) x 1, 0.8 Vp-p/75 Ω,
• SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliant
• Embedded audio, Time code (VITC/LTC) 6G-SDI OUT Terminal
• No 3G-SDI OUT Terminal
• BNC jack (output only) x 1, 0.8 Vp-p/75 Ω,
• SMPTE ST 424, 425, 292, 259, 299, 272 compliant
• Embedded audio, Time code (VITC/LTC)
• BNC jack (also serves as the SYNC OUT terminal)
• BNC jack (for both input/output)
• HDM connector (Type A), both video and audio are output only
• RJ45 connector x 1
• XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines
• Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale)
• Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale)
• Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ)
• ϕ 3.5 mm stereo mini-jack (unbalanced; supports plug-in power)
• Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale)
• Sensitivity (LINE): -10 dBV (manual volume center, -18 dB full scale)
• Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
• No
• 0°C – +40°C (+32°F – +104°F)
• 10% – 90% (without condensation)
• PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant) – PoE and PoE+ cannot be used
• External power source: 12 V DC
• PoE++ Input: Approx. 37.4 W4/1.2 A max. (body only)
• DC Input: Approx. 36.7 W/3.5 A max. (body only)
• Approx. 200 x 269 x 208 mm (excluding protrusions)
• Approx. 4.4 kg (9.7 lbs) [Body Only]
• NC 30 or less
• Camera: Lens
• Optical Zoom
• Digital Zoom
• Image Sensor
• Effective Pixels
• Focal Length
• Angle of View
• Minimum Subject Illumination
• Shutter Speed
• Iris
• Gain
• ND Filter
• Night Mode (IR Cut Filter Off)
• White Balance
• Focus
• Minimum Focusing Distance
• Gamma
• Pan and Tilt
• Server: Video Output Format: SDI
• Video Output Format: HDMI
• Video Output Format: IP
• Video Output Format: USB
• Video Transmission Protocol
• Preset
• Interface: Communication Control
• Network Terminal
• SDI OUT Terminal 12G-SDI OUT Terminal
• GEN-LOCK Terminal
• TIME CODE Terminal
• HDMI OUT Terminal
• RS-422 Terminal
• INPUT 1/INPUT 2 Terminals
• MIC Terminal
• USB Terminal
• Physical Features Operating Environment Temperature
• Humidity
• Power Supply
• Power Consumption
• Dimensions (W x H x D)
• Weight
• Noise

What's Included

• 3x Canon CR-N700 PTZ Cameras Ceiling Plate
• Ceiling Plate Screw
• Safety Cable
• Camera-to-Mount Safety Cable
• IR Remote Control
• Battery for Remote Control
• Warranty: Limited 1-Year Manufacturer Warranty
• 1x Canon RC-IP1000 Advanced PTZ Controller Warranty: Limited 1-Year Manufacturer Warranty
