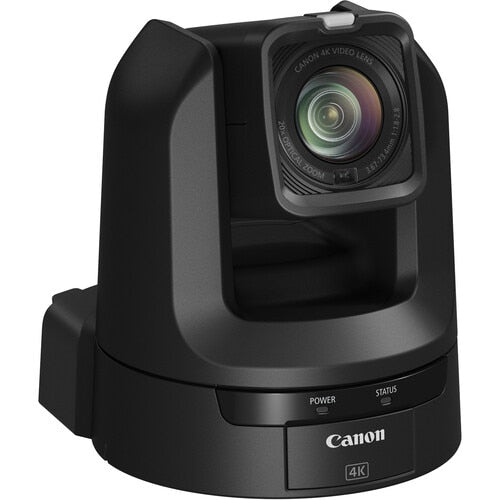

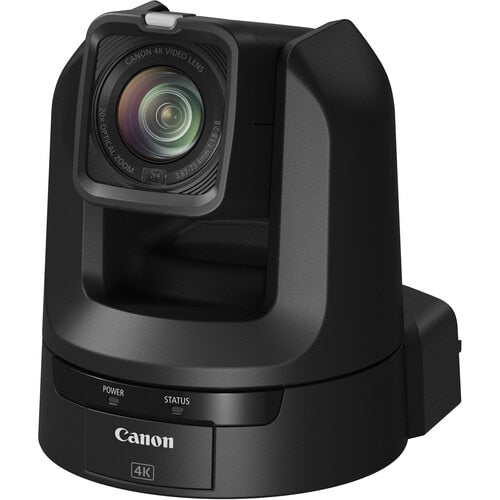

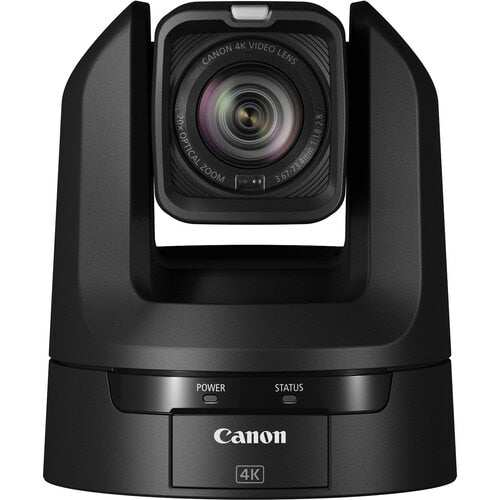

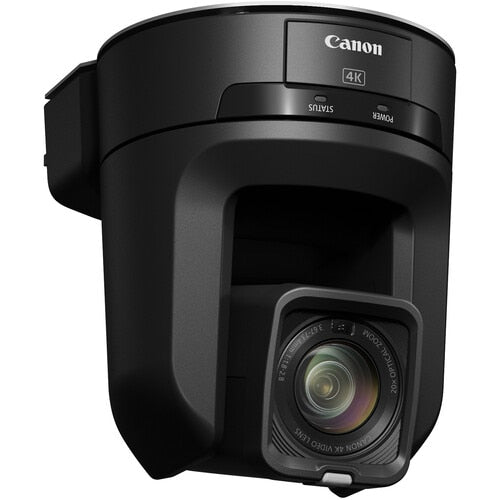

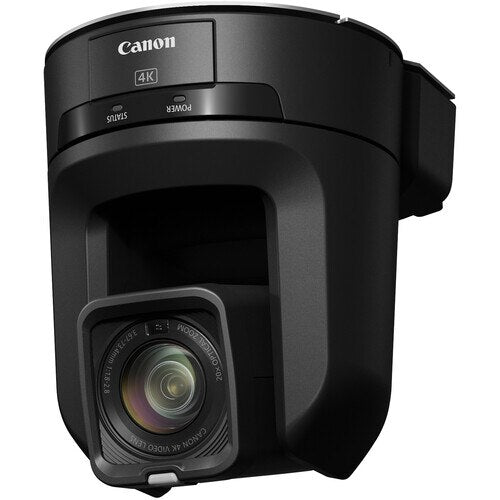

Canon CR-N300 NDI|HX 20x PTZ Camera in Black

Canon CR-N300 NDI|HX 20x PTZ Camera in Black

The Canon CR-N300 is a 4K NDI|HX pan-tilt-zoom camera built around a 1/2.3-inch CMOS sensor and the DIGIC DV 6 image processor, pairing 4K UHD 30p and Full HD 60p output with a Canon 20x optical zoom lens. Its smooth, responsive pan and tilt mechanism suits house of worship, education, broadcast, corporate, and event productions that need quality imagery with one-person operation.

NDI|HX2 over a single PoE+ cable carries video, audio, IP control, tally, and power, while RTSP/RTP and RTMP/RTMPS enable streaming to platforms such as Facebook Live and YouTube. Control options span IP, serial, IR, and Wi-Fi, with Canon XC and VISCA (serial and IP) protocols for third-party controllers. The lens covers approximately 29.3-601mm equivalent in 4K UHD with optical-shift stabilization, Hybrid AF including Face and Tracking modes, and pan coverage of +/-170 degrees at up to 300 degrees per second.

Key Features

• 4K UHD 30p and Full HD 60p output from a 1/2.3-inch CMOS sensor and DIGIC DV 6 processor
• Canon 4K lens with 20x optical zoom, approx. 29.3-601mm equivalent in 4K UHD
• NDI|HX2 with single-cable PoE+ for video, audio, control, tally, and power
• RTSP/RTP and RTMP/RTMPS streaming to services such as Facebook Live and YouTube
• Control by IP, serial, IR, or Wi-Fi with Canon XC and VISCA protocol support
• Optical-shift image stabilization and Hybrid AF with Face and Tracking AF
• Pan range of +/-170 degrees and tilt range of -30 to +100 degrees

Specifications

• Digital: 20x
• Optical: 20x
• Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
• Total pixels: approx. 21.14 megapixels
• Effective pixels: approx. 8.29 megapixels (3840 x 2160)

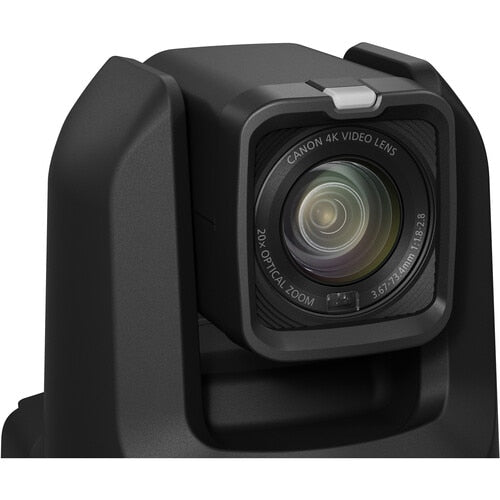

• f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
• 35mm equivalent focal length:
• [4K UHD] approx. 29.3 (W) – 601 mm (T)
• [Full HD] approx. 30.5 (W) – 627 mm (T)
• 12 elements in 10 groups (including 2 aspheric elements)
• 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
• [4K UHD]
• Horizontal: 65.6 (W) – 3.6° (T)
• Vertical: 39.8° (W) – 2.0° (T)
• [Full HD]
• Horizontal: 63.5 (W) – 3.4° (T)
• Vertical: 38.4° (W) – 1.9° (T)
• 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Manual/Automatic aperture
• 0.0 dB – 36 dB
• AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual *Color temperatures are given for reference purposes only.
• Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
• Normal1 (Standard), Normal3 (BT.709)
• Optical-shift
• Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
• Pan operation range: Horizontal ±170°
• Pan operation speed: 0.2° – 300°/sec.
• Tilt operation range: Vertical -30° – +100°
• Tilt operation speed: 0.2° – 170°/sec.
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
• 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
• 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) *If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. *A frame rate that exceeds the frame frequency cannot be selected. *JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
• 1920 x 1080
• 59.94 Hz: 12.00 fps, 5.00 fps
• 50.00 Hz: 12.50 fps, 5.00 fps
• 1280 x 720
• 59.94 Hz: 12.00 fps, 5.00 fps
• 50.00 Hz: 12.50 fps, 5.00 fps
• 640 x 360
• 59.94 Hz: 12.00 fps, 5.00 fps
• 50.00 Hz: 12.50 fps, 5.00 fps
• Protocol: XC Protocol, RTSP/RTP, NDI®|HX2, RTMP/RTMPS, Standard (VISCA) Communication (Serial), Standard (VISCA) Communication (IP)
• Max. 100 (including home position)
• LAN, Wi-Fi, Serial, IR

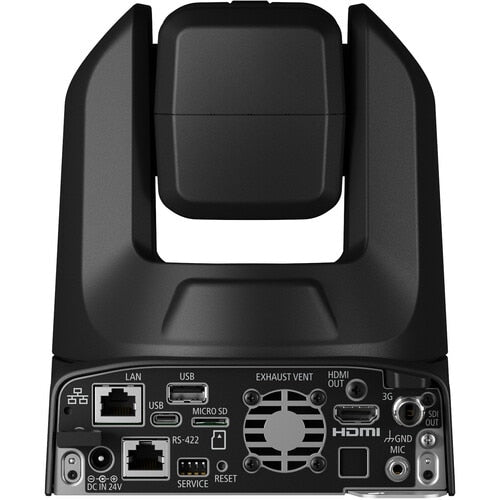

• LAN x 1, RJ45, 1000Base-T
• BNC jack (output only) x 1, 0.8 Vp-p/75, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
• HDMI connector x 1, output only
• RJ45 connector x 1
• 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
• Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or
• more/Att.: 20 dB
• Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more
• Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k)
• Type-A (USB 2.0) x 1 (future expansion)
• Type-C (USB 3.0) x 1
• microSD card slot x 1 (future expansion, recording unavailable)
• Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used
• External power source: 24 V DC (using included AC adaptor)
• PoE+ Input: Approx. 16.2 W* max. (body only)
• DC Input: Approx. 15.0 W max. (body only) *Class 4 (25.5 W required) for power supply devices
• Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions)
• Approx. 2.2 kg (4.86 lb.) (body only)
• Hardware: RC-IP100
• Software: Remote Camera Control Application

What's Included

• Camera Body (Satin Black)
• Mounting Plate with Screw
• Safety Wire
• Safety Wire with Screw
• AC Adapter
• AC Cable
• Infrared Remote Controller with Battery
• Installation Guide
• Warranty
