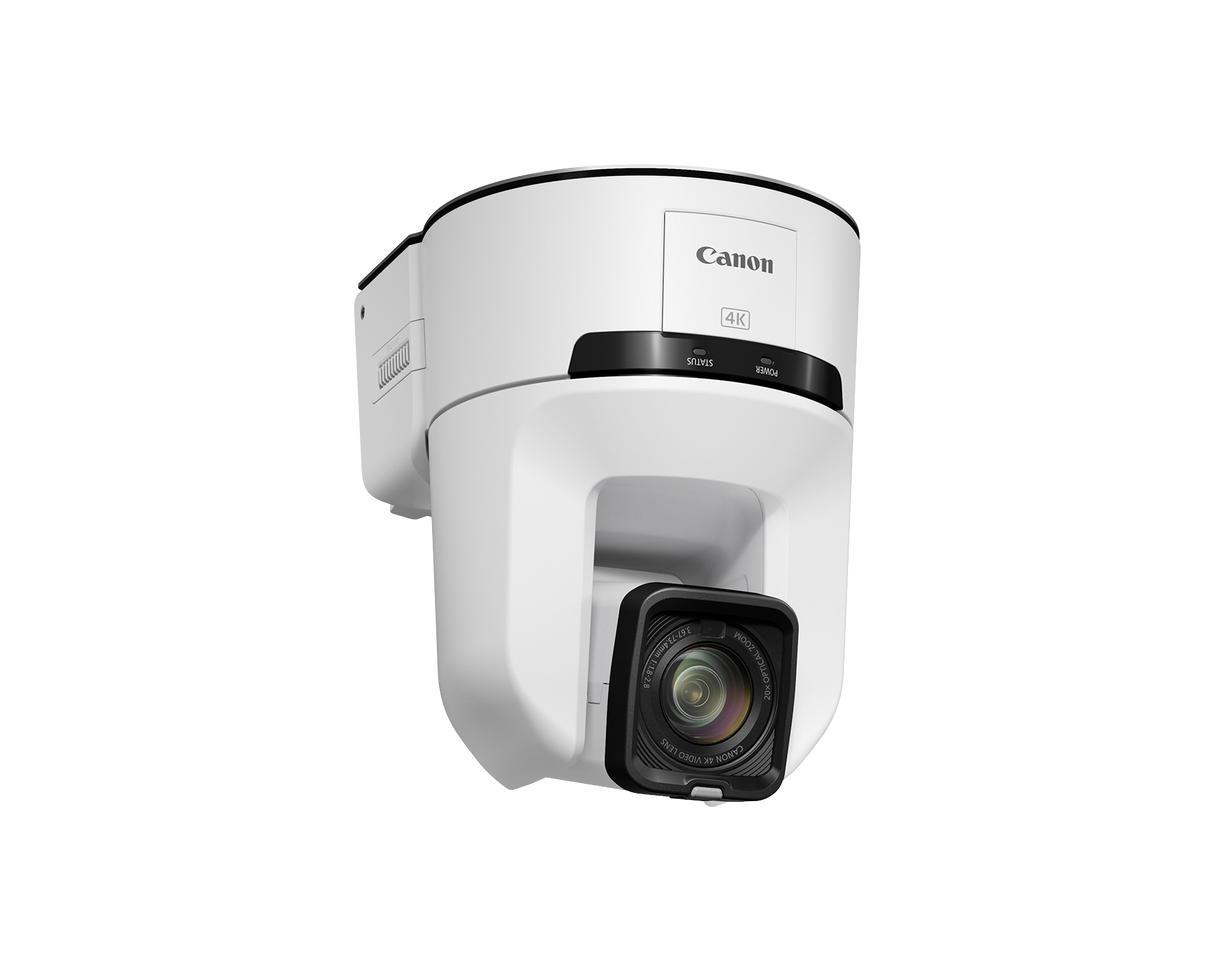

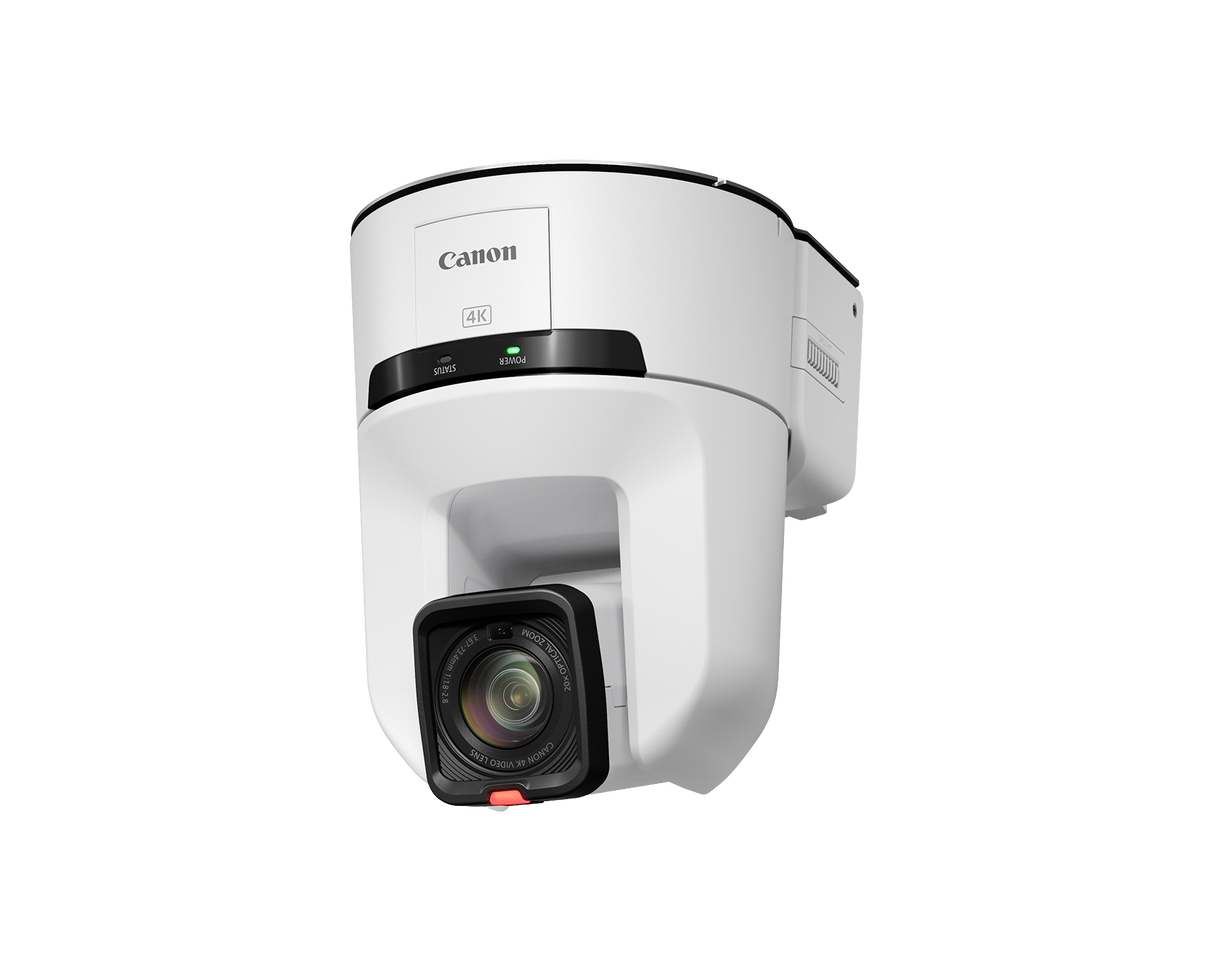

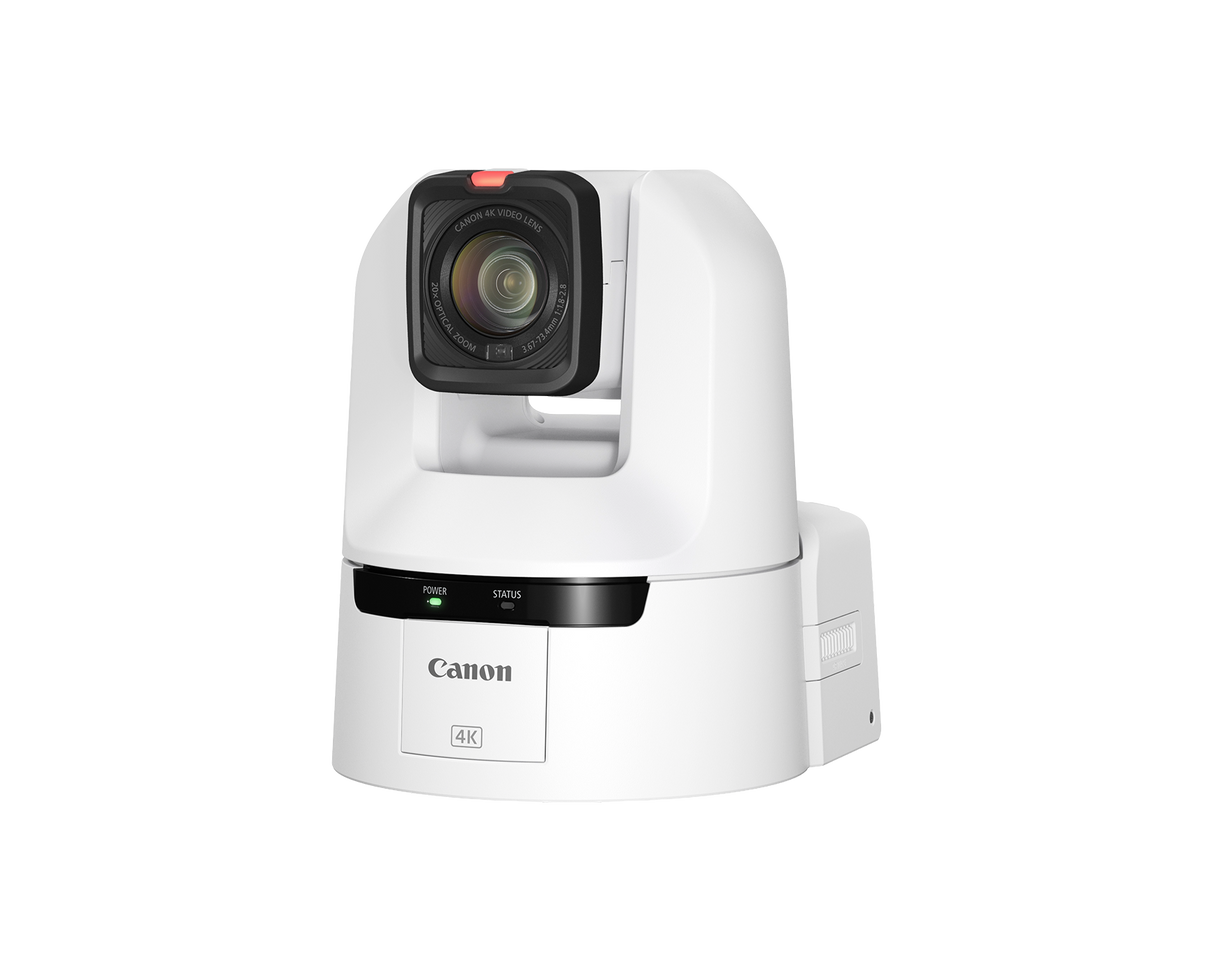

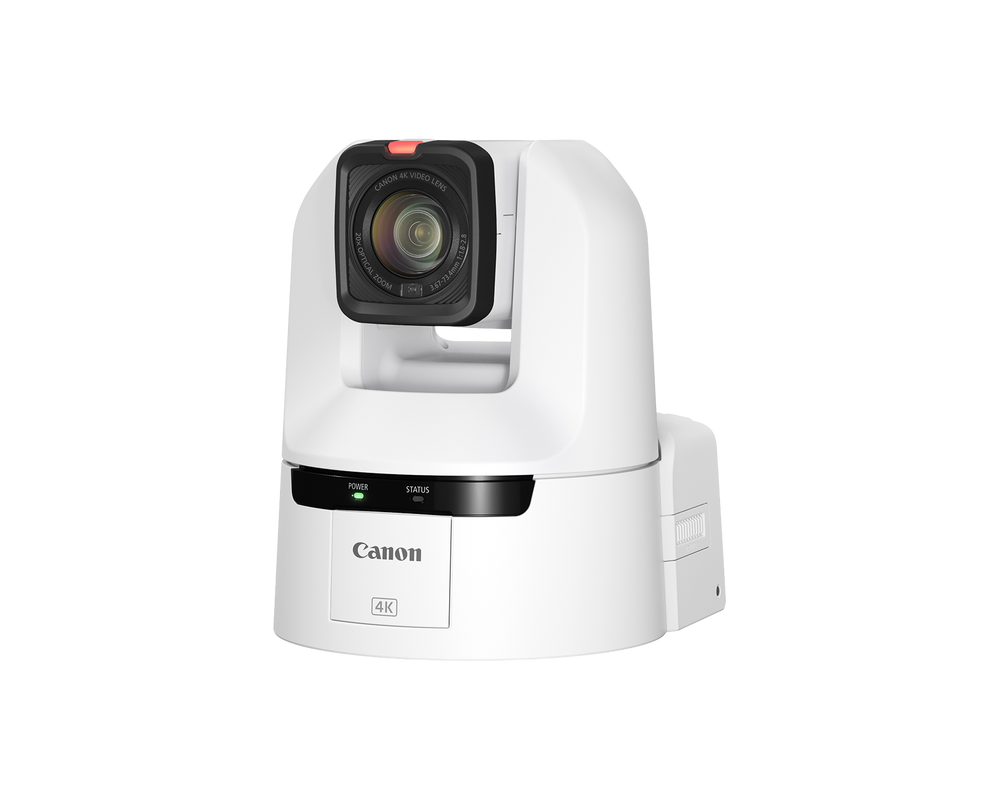

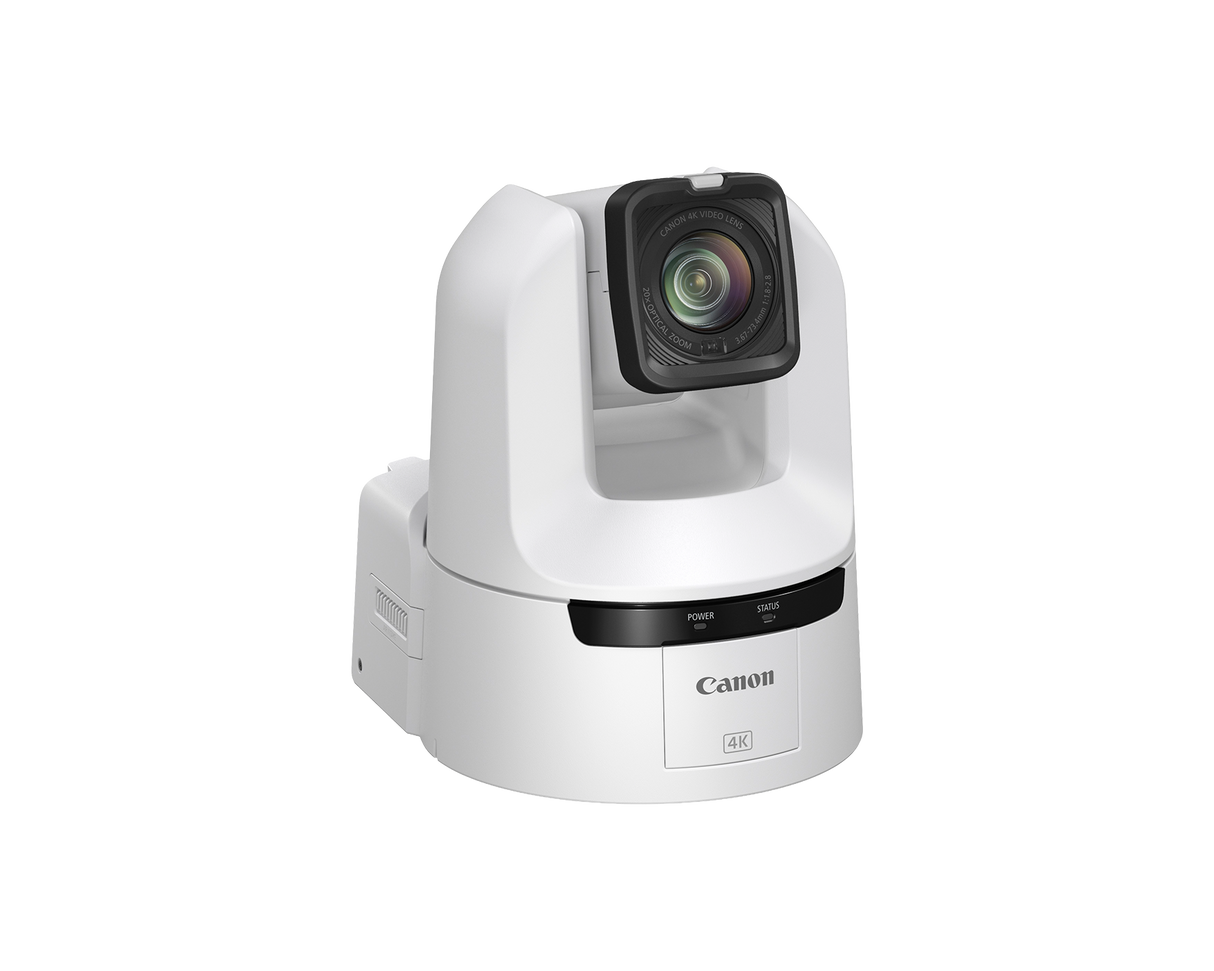

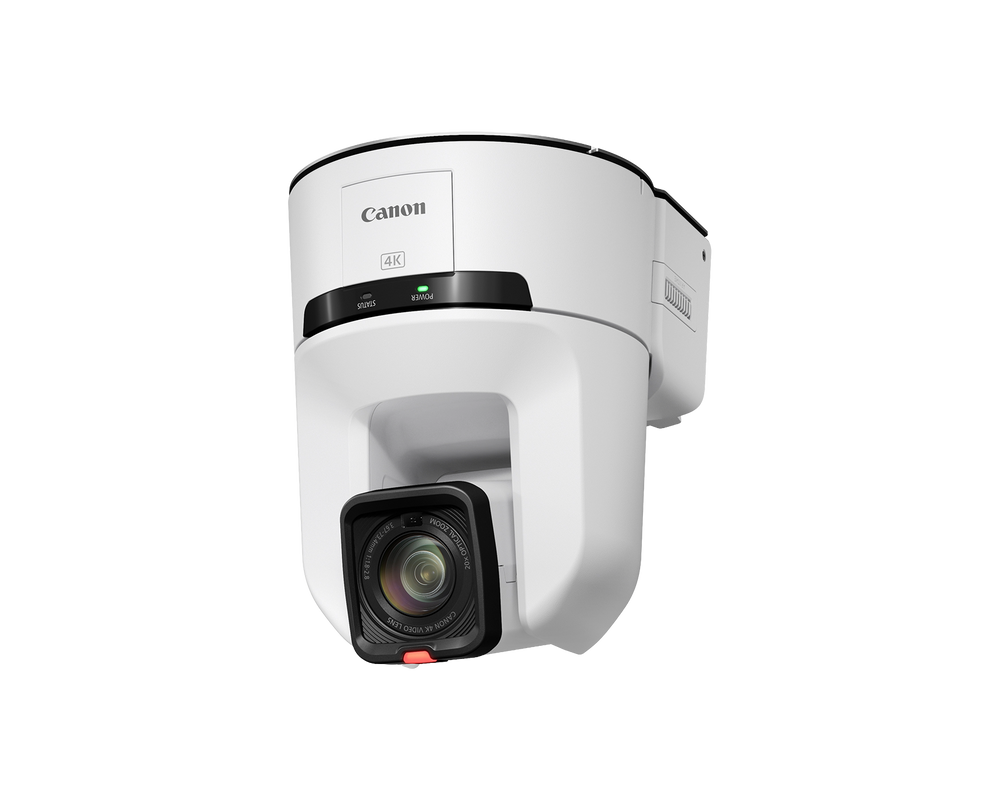

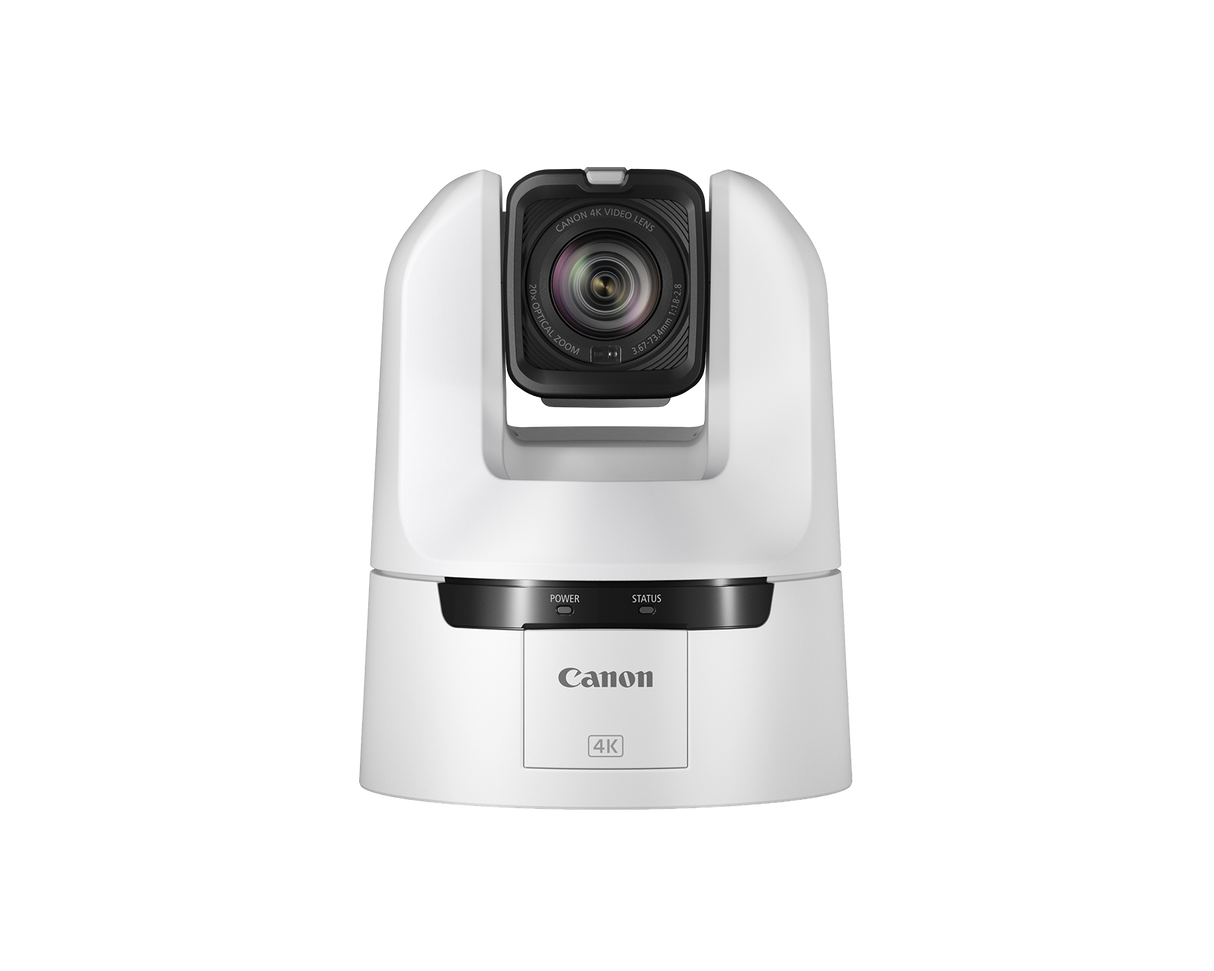

Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (White)

Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (White)

The Canon CR-N400 is a 4K PTZ camera built around a 1/2.3-inch CMOS sensor and the DIGIC DV 7 image processor, pairing a Canon 4K lens with 20x optical zoom and a smooth, responsive pan-tilt mechanism. Offered here in white, it serves houses of worship, education, broadcast, corporate, and event productions that need remotely operated cameras with professional connectivity.

Outputs span 12G-SDI, 3G-SDI, HDMI, and IP, supported by genlock plus dual XLR and 3.5mm audio inputs. The camera streams over built-in NDI HX2, SRT with adaptive bitrate, RTSP/RTP, and RTMP/RTMPS, while single-cable PoE++ carries video, IP control, tally, and power. Canon color science adds Wide DR, Canon Log 3, and HLG/PQ HDR, alongside Auto Tracking Lite, FreeD data for AR/VR systems, and 40x Advanced Zoom in Full HD.

Key Features

• 4K UHD 60p output from a 1/2.3-inch CMOS sensor with DIGIC DV 7 processing and hybrid autofocus
• 20x optical zoom Canon 4K lens with optical image stabilization; 40x Advanced Zoom in Full HD
• 12G-SDI, 3G-SDI, HDMI, and IP video outputs with genlock and dual XLR plus 3.5mm audio inputs
• Built-in NDI HX2 and SRT with adaptive bitrate, plus RTSP/RTP and RTMP/RTMPS streaming to platforms such as Facebook Live and YouTube
• Single-cable PoE++ delivers audio/video, IP control, tally, and power
• Canon color science with Wide DR, Canon Log 3, HDR (HLG/PQ), and EOS Standard/Neutral image modes
• Auto Tracking Lite built in; supports Canon XC and Standard protocols for serial, IP, or IR control alongside FreeD output for AR/VR

Specifications

• Image Sensor: Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
• Effective Pixels approx. 8.29 megapixels (3840 x 2160 at 23.98 / 25 / 29.97Hz)
• approx. 7.88 megapixels (3744 x 2104 at 50 / 59.94Hz)
• Lens: f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm
• Optical Zoom: 20x optical zoom (40x with advanced zoom)
• Digital Zoom: 20x digital zoom
• Focal Length 3.67 – 73.4 mm, f/1.8 – 2.8,
• 35mm equivalent focal length:
• Approx. 30.0 (W) - 616 mm (T) (50 / 59.94Hz)
• Approx. 29.3 (W) - 601 mm (T) (23.98 / 25 / 29.97Hz)
• Angle of View 59.94/50.00 Hz frame frequency:
• Horizontal: 63.3° (W) – 3.5° (T)
• Vertical: 38.9° (W) – 2.0° (T)
• 29.97/25.00/23.98 Hz frame frequency:
• Horizontal: 65.6° (W) – 3.6° (T)
• Vertical: 39.8° (W) – 2.0° (T)
• Minimum Subject Illumination 59.94/29.97 Hz frame frequency:
• -Approx. 3 lux (with 1/60 sec. shutter speed, 59.94P frame rate, and 30.0 dB gain)
• -Approx. 1.5 lux (with 1/30 sec. shutter speed, 59.94P frame rate, and 30.0 dB gain)
• 50.00/25.00 Hz frame frequency:
• -Approx. 2.5 lux (with 1/50 sec. shutter speed, 50.00P frame rate, and 30.0 dB gain)
• -Approx. 1.3 lux (with 1/25 sec. shutter speed, 50.00P frame rate, and 30.0 dB gain)
• Shutter Speed: 1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
• Iris: Manual/Automatic aperture
• Gain: 0.0 dB – 36 dB
• ND Filter: Built-in (Off, 1/2, 1/4, 1/8), motor operated
• Night Mode (IR Cut Filter Off): No
• Optical Low-Pass Filter: No
• White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*),color temperature setting (2,000 K – 15,000 K), Manual Focus Focus mode: Manual, Continuous AF, Face / Eye AF, Tracking
• AF type: Hybrid AF, Contrast AF
• Minimum Focusing Distance: 1 cm at wide end, 60 cm across entire zooming range
• Gamma: BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, PQ, HLG
• Pan and Tilt Pan operation range: Horizontal ±170°
• Pan operation speed: 0.1° – 100°/sec. (Maximum speed at preset: 200.00°/sec.)
• Tilt operation range: Vertical -30° – +100°
• Tilt operation speed: 0.1° – 100°/sec. (Maximum speed at preset: 180.00°/sec.)
• Video Output Format: SDI [12G-SDI] / 4:2:2 10-bit
• 3840 x 2160: 59.94P, 50.00P, 29.97P, 25.00P, 23.98P
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF
• 1280 x 720: 59.94P, 50.00P
• 720 x 576: 50.00i 720 x 480: 59.94i
• [3G-SDI] / 4:2:2 10-bit
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF
• 1280 x 720: 59.94P, 50.00P
• 720 x 576: 50.00i
• 720 x 480: 59.94i
• Video Output Format: HDMI [HDMI] / 4:2:2 10-bit
• 3840 x 2160: 59.94P, 50.00P, 29.97P, 25.00P, 23.98P
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF
• 1280 x 720: 59.94P, 50.00P
• 720 x 576: 50.00i
• 720 x 480: 59.94i
• Video Output Format: IP [Frame frequency 59.94 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 29.97 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 50.00 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 25.00 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
• [Frame frequency 23.98 Hz]
• 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360:
• 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
• *59.94 fps/50.00 fps is only when H.265.
• – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
• Resolution: 1280 x 720
• 59.94/29.97 Hz: 14.99 fps,
• 50.00/25.00 Hz: 12.50 fps,
• 23.98 Hz: 11.99 fps
• Video Output Format: USB Motion JPEG:
• 1920 x 1080
• 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
• 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
• 1280 x 720
• 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
• 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
• 640 x 360
• 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
• 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
• YUV:
• 640 x 360
• 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps
• 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
• Video Transmission Protocol: Canon XC, RTSP/RTP, NDI|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
• Preset: Number of presets: Max. 100 (including home position)
• Communication Control: LAN, Wi-Fi, Serial, IR

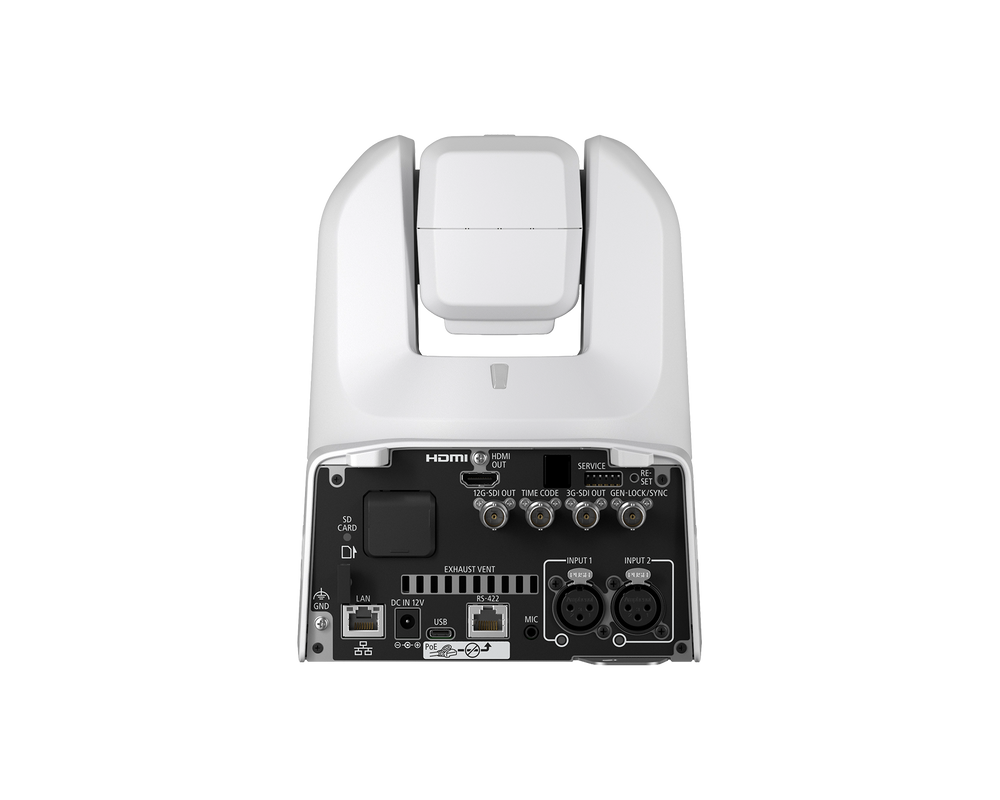

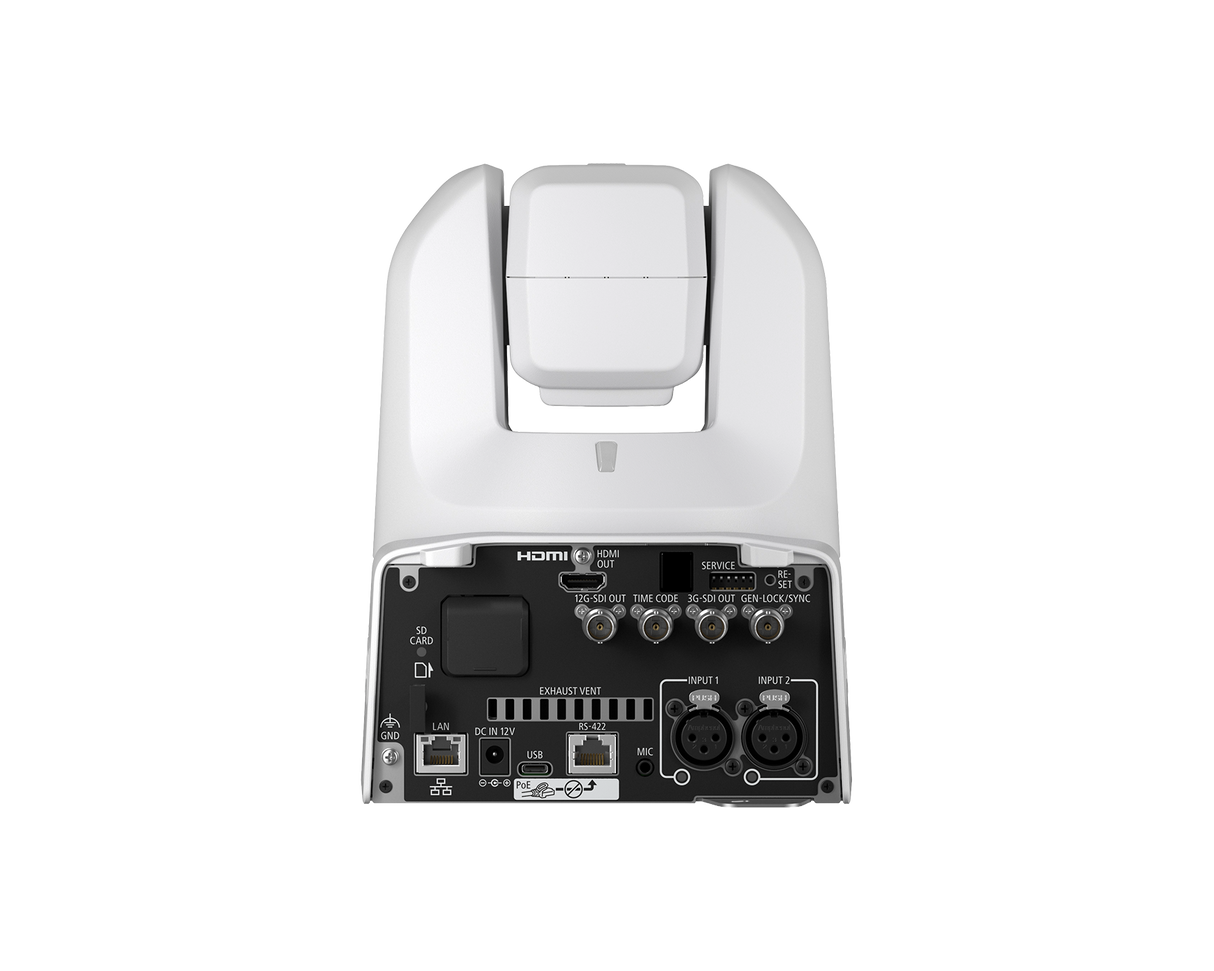

• Network Terminal: LAN x 1, RJ45, 1000Base-T
• SDI OUT Terminal 12G-SDI OUT Terminal
• BNC jack (output only) x 1, 0.8 Vp-p/75 Ω,
• SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliant
• Embedded audio, Time code (VITC/LTC)
• 3G-SDI OUT Terminal
• BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced
• SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant
• Embedded audio, Time code (VITC/LTC)
• GEN-LOCK Terminal: BNC jack (also serves as the SYNC OUT terminal)
• TIME CODE Terminal: BNC jack (for both input/output)
• HDMI OUT Terminal: HDMI connector (Type A), both video and audio are output only
• RS-422 Terminal: RJ45 connector x 1
• Audio INPUT 1/INPUT 2 Terminals XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines
• Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale)
• Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale)
• Supply Voltage: 48 V DC (bias resistance: 6.8 kΩ)
• MIC Terminal
• ϕ 3.5 mm stereo mini-jack (unbalanced; supports plug-in power) Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale)
• Sensitivity (LINE): -12 dBV (manual volume center, -18 dB full scale)
• Supply Voltage: 2.4 V DC (bias resistance: 2.2 kΩ)
• USB Terminal: Type-C (USB 3.0) x 1
• Operating Environment Temperature: 0°C – +40°C (+32°F – +104°F)
• Operating Environment Humidity: 10% – 90% (without condensation)
• Power Supply PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
• – PoE and PoE+ cannot be used
• External power source: 12 V DC (using included AC adaptor)
• Power Consumption PoE++ Input: Approx. 34.4 W*/0.8 A max. (body only)
• DC Input: Approx. 33.8 W/2.9 A max. (body only)
• * Class 5 (40.0 W required) for power supply devices
• Dimensions (W x H x D): Approx. 176 x 220 x 194 mm (excluding protrusions)
• Weight: Approx. 3.1 kg (6.8 lb.) (body only)=
• Noise: NC35 or less
• Camera
• Server
• Interface
• Physical Features

What's Included

• Canon CR-N400
• IR Remote Control
• Mounting Bracket with Screw
• Safety Wire with Screw
• Camera-to-Mount Safety Wire with Screw
• IR Remote Controller
• 2 x AAA Battery
• AC Adapter
• Power Cable
• Warranty: Limited 1-Year Manufacturer Warranty
