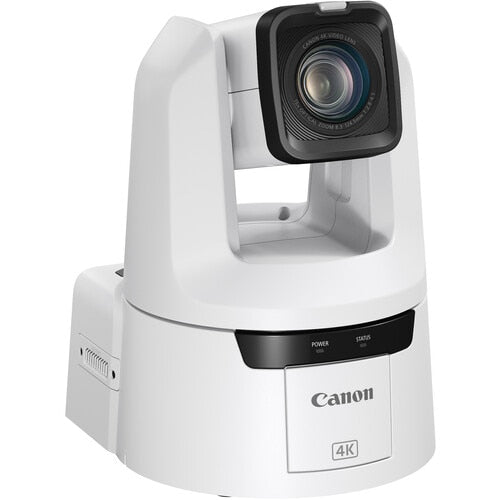

Canon CR-N500 NDI|HX 15x PTZ Camera in White

Canon CR-N500 NDI|HX 15x PTZ Camera in White

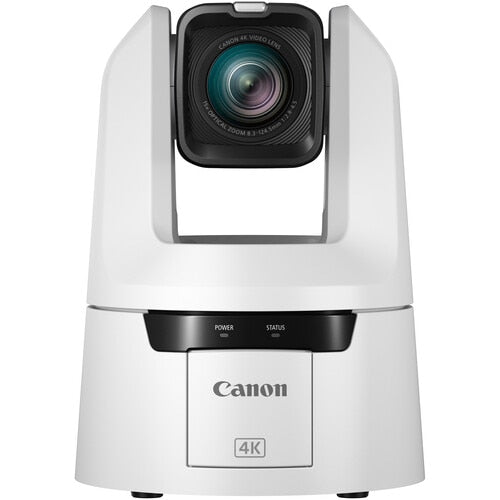

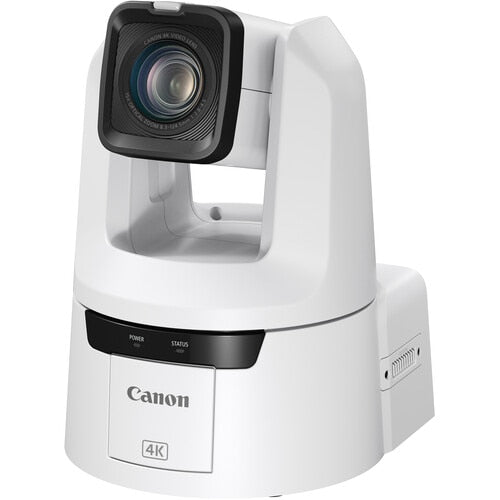

Finished in titanium white, the Canon CR-N500 is a 4K PTZ camera designed for remote production across house of worship, education, broadcast, corporate, and event settings. Its Type 1.0 CMOS sensor uses larger photosites than the smaller chips common in PTZ cameras, delivering cleaner low-light images, while the smooth, responsive pan and tilt mechanism supports on-air movement and one-person operation.

Paired with the DIGIC DV 6 processor, the sensor records 4K UHD at 30p and Full HD up to 60 fps, aided by a 15x optical zoom (20x digital), a 73-degree wide angle of view, optical-shift stabilization, and Dual Pixel CMOS AF. NDI|HX2 over single-cable PoE+ carries video, audio, IP control, tally, and power, with RTSP/RTP and RTMP/RTMPS streaming and IP, serial, IR, or Wi-Fi control.

Key Features

• Type 1.0 CMOS sensor and DIGIC DV 6 processor for 4K UHD 30p and Full HD 60p
• 15x optical zoom (20x digital) covering a 73-degree horizontal angle of view
• Dual Pixel CMOS AF with face and tracking focus modes, plus optical-shift image stabilization
• NDI|HX2 streaming with video, audio, control, tally, and power over single-cable PoE+
• RTSP/RTP and RTMP/RTMPS support for streaming to platforms such as Facebook Live and YouTube
• Canon XC and VISCA (serial and IP) protocols for third-party controller compatibility
• Wide DR and Canon Log 3 gamma options with a built-in motorized ND filter

Specifications

• Digital: 20x
• Optical: 15x
• Type 1.0 (1.0 in.) single-plate CMOS sensor
• Total pixels: approx. 13.40 megapixels
• Effective pixels: approx. 8.29 megapixels (3840 x 2160)
• f=8.3 – 124.5 mm, F/2.8 – 4.5, 15x optical zoom, 9-bladed iris diaphragm
• 35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)
• 18 elements in 14 groups (including 2 aspheric elements)
• 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
• Horizontal: 73.0 (W) – 5.7° (T)
• Vertical: 45.2° (W) – 3.2° (T)
• 1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate
• Manual/Automatic aperture
• -6.0 db 33.0 db
• Built-in (Off, 1/4, 1/16, 1/64), motor operated
• AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual *Color temperatures are given for reference purposes only.
• Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking
• AF type: Dual Pixel CMOS AF, Contrast AF
• Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3
• Optical-shift
• 3840 × 2160: Approx. 1.5 lux (shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB)
• 1920 ×1080: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB)
• Pan operation range: Horizontal ±170°
• Pan operation speed: 0.1° – 100°/sec.
• Tilt operation range: Vertical -30° – +90°
• Tilt operation speed: 0.1° – 100°/sec.
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
• 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) *Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) *When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
• 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) *If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. *A frame rate that exceeds the frame frequency cannot be selected. *JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
• Protocol: XC Protocol, RTSP/RTP, NDI®|HX2, RTMP/RTMPS, Standard (VISCA) Communication (Serial), Standard (VISCA) Communication (IP)
• Max. 100 (including home position)
• LAN, Wi-Fi, Serial, IR

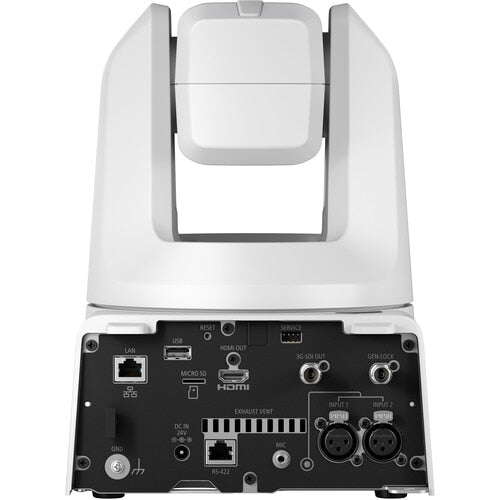

• LAN x 1, RJ45, 1000Base-T
• BNC jack (output only) x 1, 0.8 Vp-p/75 , unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
• BNC jack x 1, 1.0 Vp-p/75 , input only
• HDMI connector x 1, output only
• RJ45 connector x 1
• INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
• Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 /Att.: 20 dB
• Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k or more
• Supply Voltage: 48 V DC (Bias resistance: 6.8 k)
• 3.5 mm stereo mini jack (unbalanced, plug-in power supported)
• Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or more/Att.: 20 dB
• Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more
• Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k)
• Type-A (USB 2.0) x 1
• microSD card slot x 1 (future expansion, recording unavailable)
• Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• Temperature: 0°C – +40°C (+32°F – +104°F)
• Humidity: 10% – 90% (without condensation)
• PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used
• External power source: 24 V DC (using included AC adaptor)
• PoE+ Input: Approx. 16.2 W* max. (body only)
• DC Input: Approx. 18.6 W max. (body only) *Class 4 (25.5 W required) for power supply devices
• Approx. 200 x 269 x 208 mm (7.87 x 10.59 x 8.19 in.) (excluding protrusions)
• Approx. 4.1 kg (9.04 lb.) (body only)
• Hardware: RC-IP100
• Software: Remote Camera Control Application

What's Included

• Camera Body (Titanium White)
• Mounting Plate with Screw
• Safety Wire
• Safety Wire with Screw
• AC Adapter
• AC Cable
• Infrared Remote Controller with Battery
• Installation Guide
• Warranty
