Description

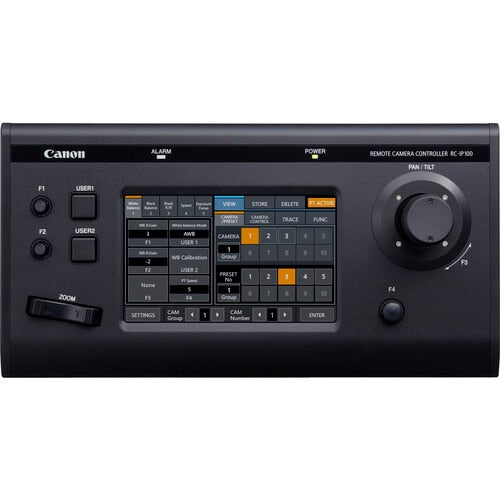

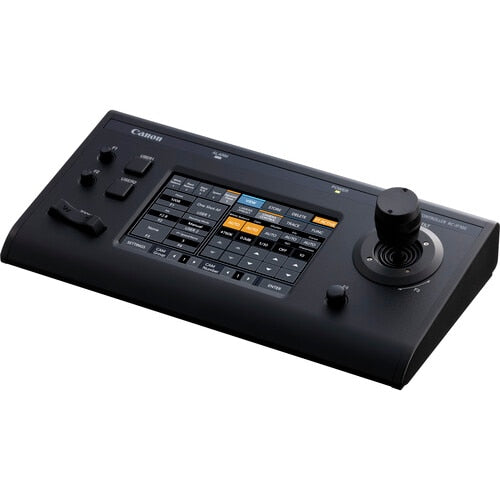

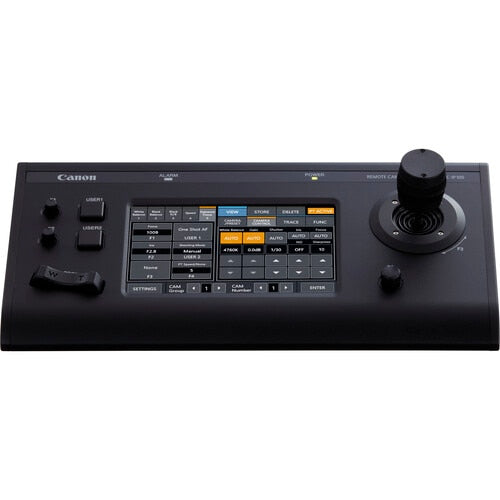

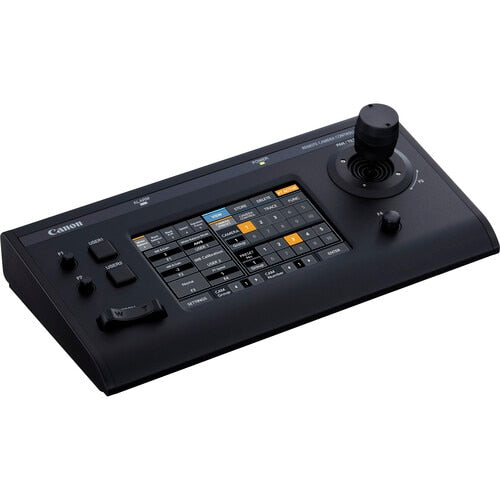

Canon RC-IP100 PTZ Controller
The Canon RC-IP100 is a touchscreen PTZ controller built to run multi-camera Canon productions from a single seat. Supporting up to 100 compatible cameras over IP, plus one camera via the serial NU protocol, it serves broadcast studios, houses of worship, schools, and corporate AV teams that need precise, repeatable camera moves during live production.
A 7-inch diagonal touch screen, zoom lever, smooth joystick, and four customizable buttons put pan, tilt, zoom, and picture settings under direct control, with 100 presets and 10 traces stored per camera. Supported models include the CR-N700, CR-N500, CR-N300, CR-X500, CR-X300, and firmware-updated C500 Mark II, C300 Mark III, and XF605, with RJ-45 LAN, RS-422 serial, and D-Sub tally connections.
Key Features
- Controls up to 100 supported Canon cameras over IP, plus one via RS-422 serial
- 7-inch diagonal touch screen with joystick, zoom lever, and four customizable buttons
- Stores 100 presets and 10 traces per camera
- Supports CR-N700, CR-N500, CR-N300, CR-X500, CR-X300, and C500 Mark II, C300 Mark III, XF605 with firmware updates
- RJ-45 LAN (10BASE-T/100BASE-TX), RS-422 serial, and D-Sub 9-pin tally terminals
- Runs on 12V DC via the included AC adapter
Specifications
- 12V DC (AC adapter power supply) CAUTION: Utilize included 12V DC power supply only. All other power supplies may cause permanent damage to controller.
- Width 350mm (13.7 in) x Height 110mm (4.3 in) x Depth 182 mm (7.1 in)
- Approx. 2.1 kg (4.6 lbs.)
- 0 °C ~ 40 °C
- CR-N700, CR-N500, CR-N300, CR-X500, CR-X300, C500 Mark II (requires firmware v1.0.3.1 or later), C300 Mark III (requires firmware v1.0.1.1 or later), XF605 (requires firmware v1.0.1.1 or later)
- 1 unit (RS422)
- 100 units (*When RS422 is connected: 99 units)
- 100 per camera
- 10 per camera
- IPv4
- 7-inch (diagonal) touch screen
- D-Sub 9 pin
- R -45 x 1 (10 BASE-T/100 BASE-TX)
- RJ-45 x 1 (RS422)
What's Included
- RC-IP100 Remote Camera Controller
- AC Adapter
- AC Cable
- Printed Documents
