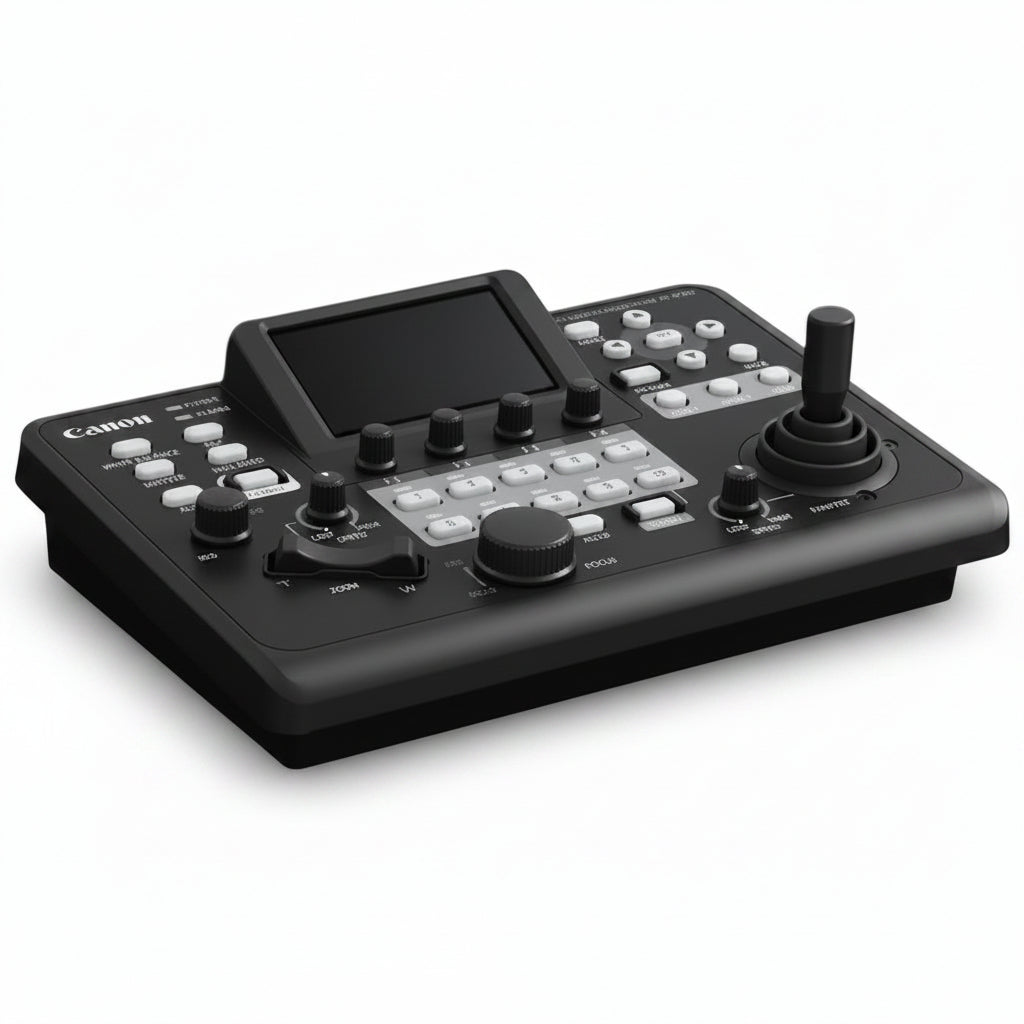

Canon RC-IP300 Professional PTZ Camera Controller
The Canon RC-IP300 professional PTZ camera controller provides centralized, tactile control for up to 200 compatible cameras over an IP network. Its 3.5-inch touchscreen displays camera menus, status information, live previews, and up to nine camera feeds, helping operators manage complex productions from one compact control surface.
Designed for studios, auditoriums, conference rooms, lecture halls, houses of worship, and live event spaces, the RC-IP300 streamlines multi-camera workflows with a precision control lever, zoom rocker, focus dial, programmable controls, and preset recall. It is an effective solution for buyers seeking a compact Canon PTZ controller for live production or a network camera controller with touchscreen monitoring.
The controller supports Canon XC protocol over IP, NU protocol over serial, and standard serial communication. Compatible camera functions include touch autofocus, preset and trace management, waveform and vectorscope displays, Auto Tracking controls, and Auto Loop controls. PoE support allows power and network connectivity through one cable, while the included AC adapter supports conventional DC-powered installations.
Key Features
- Control Up to 200 Cameras: Manage large IP-based camera systems from one centralized production controller.

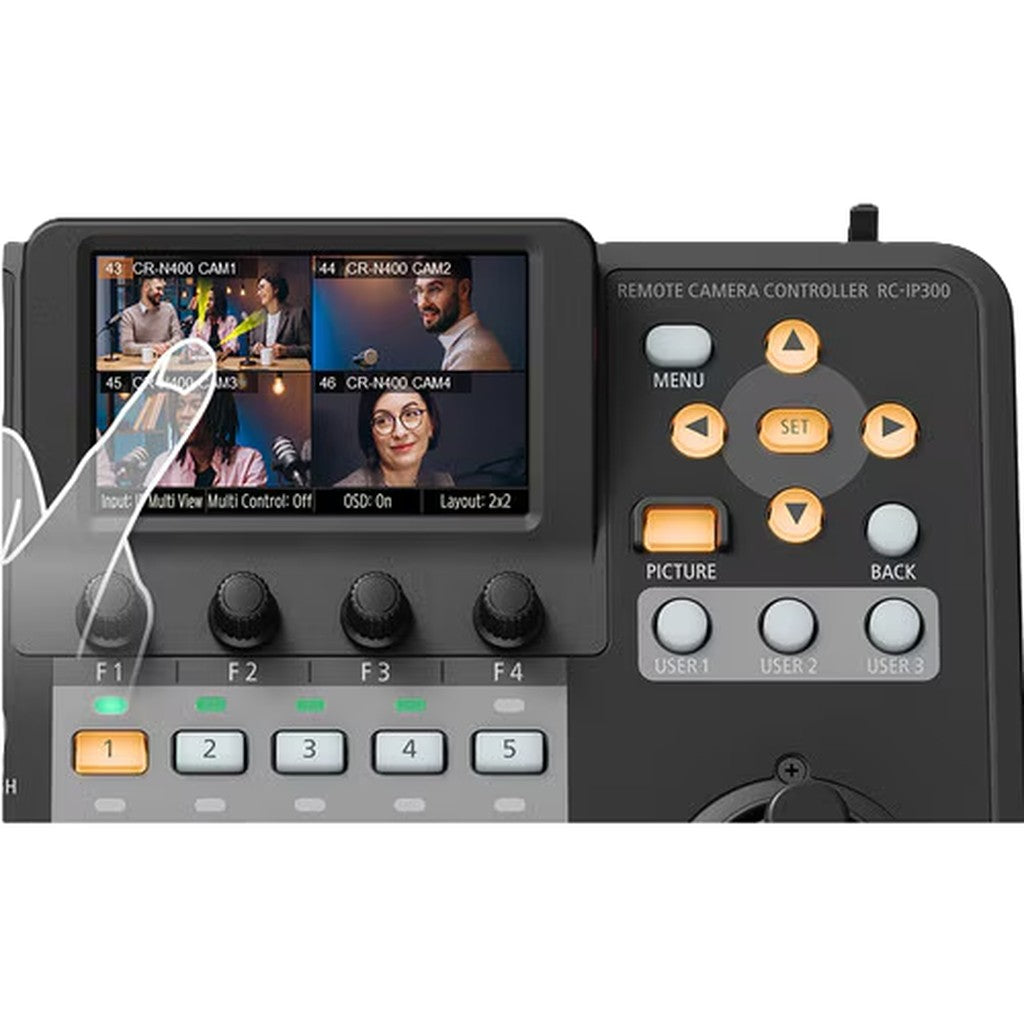

- 3.5-Inch Touchscreen: View camera status, menus, live video, focus controls, and multi-camera previews at 1280 x 720 resolution.

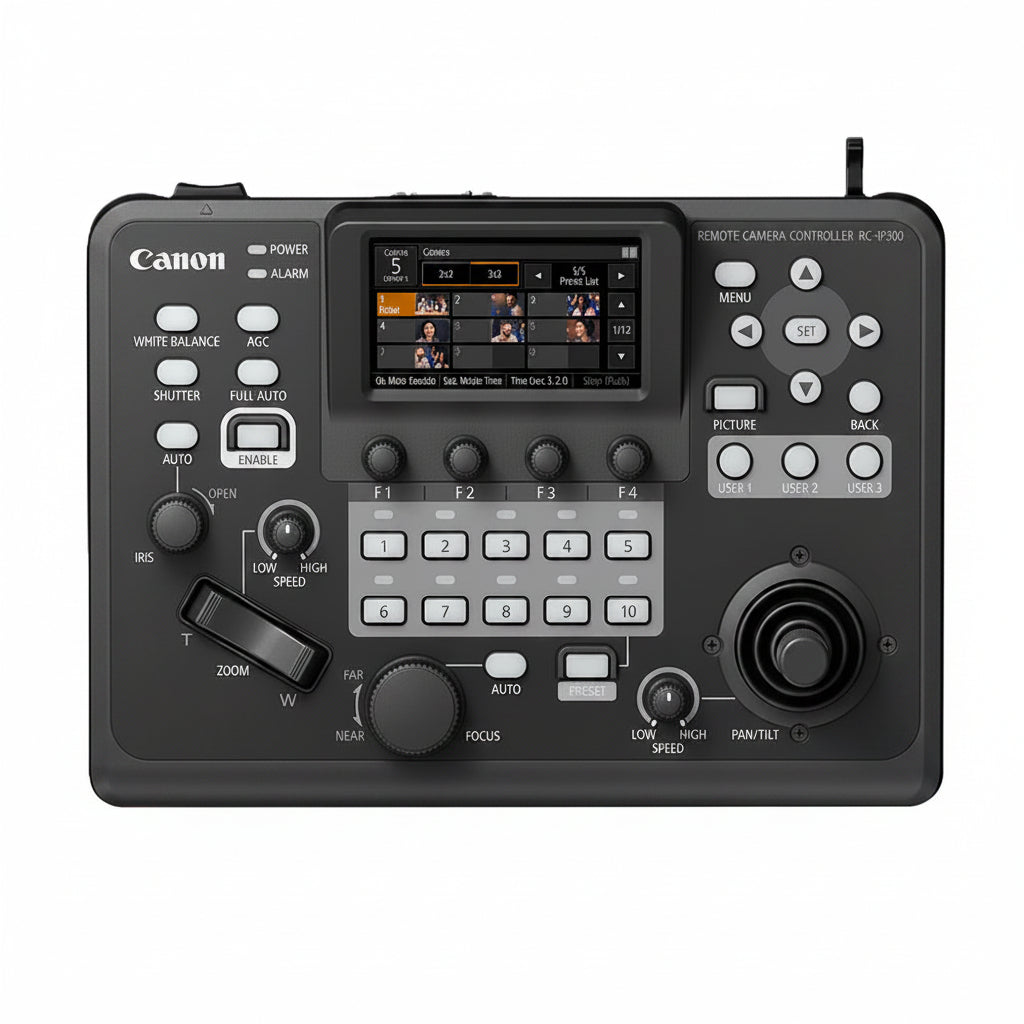

- Nine-Camera Multiview: Monitor up to nine IP camera feeds on one page for faster camera selection.

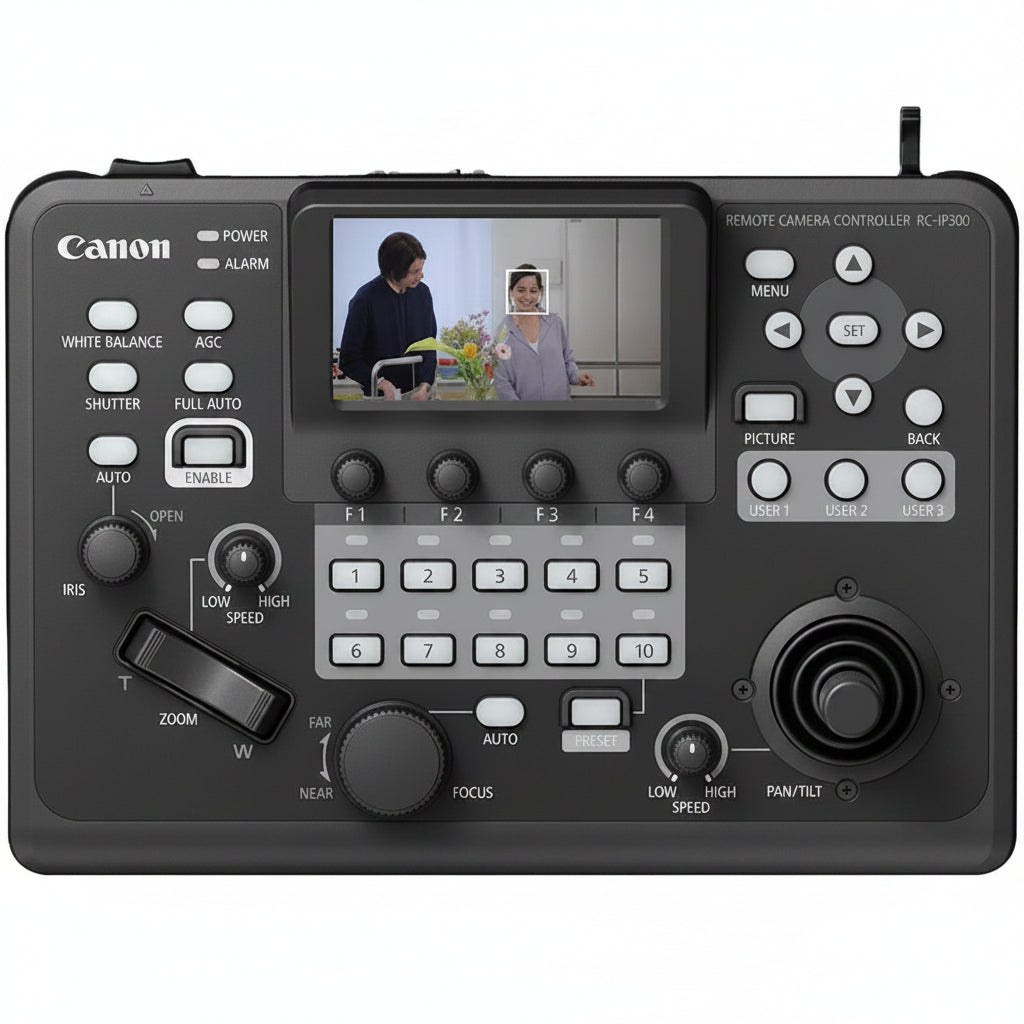

- Professional Tactile Controls: Operate pan, tilt, zoom, and focus using a control lever, zoom rocker, focus dial, and adjustable response controls.
- Preset and Trace Recall: Store up to 100 presets and 10 trace movements for each compatible camera.
- Customizable Operation: Assign frequently used functions to 12 user controls, including three physical user buttons.
- Advanced Monitoring Tools: Display waveform, vectorscope, center markers, grid markers, area markers, and supported focus guides.
- Flexible Power Options: Power the controller through an IEEE 802.3af-compliant PoE connection or the included 12V AC adapter.
Technical Specifications
- Product Type: Professional PTZ Camera Controller
- Maximum IP Camera Connections: 200
- Maximum Serial Camera Connections: 1
- Camera Groups: 20 groups with 10 cameras per group
- Camera Select Buttons: 10
- Supported Protocols: Canon XC protocol over IP, Canon NU protocol over serial, standard serial communication
- Presets: Up to 100 per camera, depending on camera specifications
- Trace Memory: Up to 10 per camera, depending on camera specifications
- Control Interface: Control lever, zoom rocker, focus dial, 12 user controls, eight dials, directional buttons, select button
- Display: 3.5-inch touchscreen LCD
- Display Resolution: 1280 x 720
- Camera Video Preview: IP video preview with up to nine cameras per page
- Touch Focus: Supported over IP
- Crop Frame Control: Supported over IP with compatible camera models
- Assist Displays: Waveform monitor, vectorscope, center marker, grid marker, and area marker
- Supported Add-On Applications: RA-AT001 Auto Tracking Application and RA-AL001 Auto Loop Application
- Stream Deck Support: Stream Deck Mini, Stream Deck Mk.2, Stream Deck XL, and Stream Deck Pedal

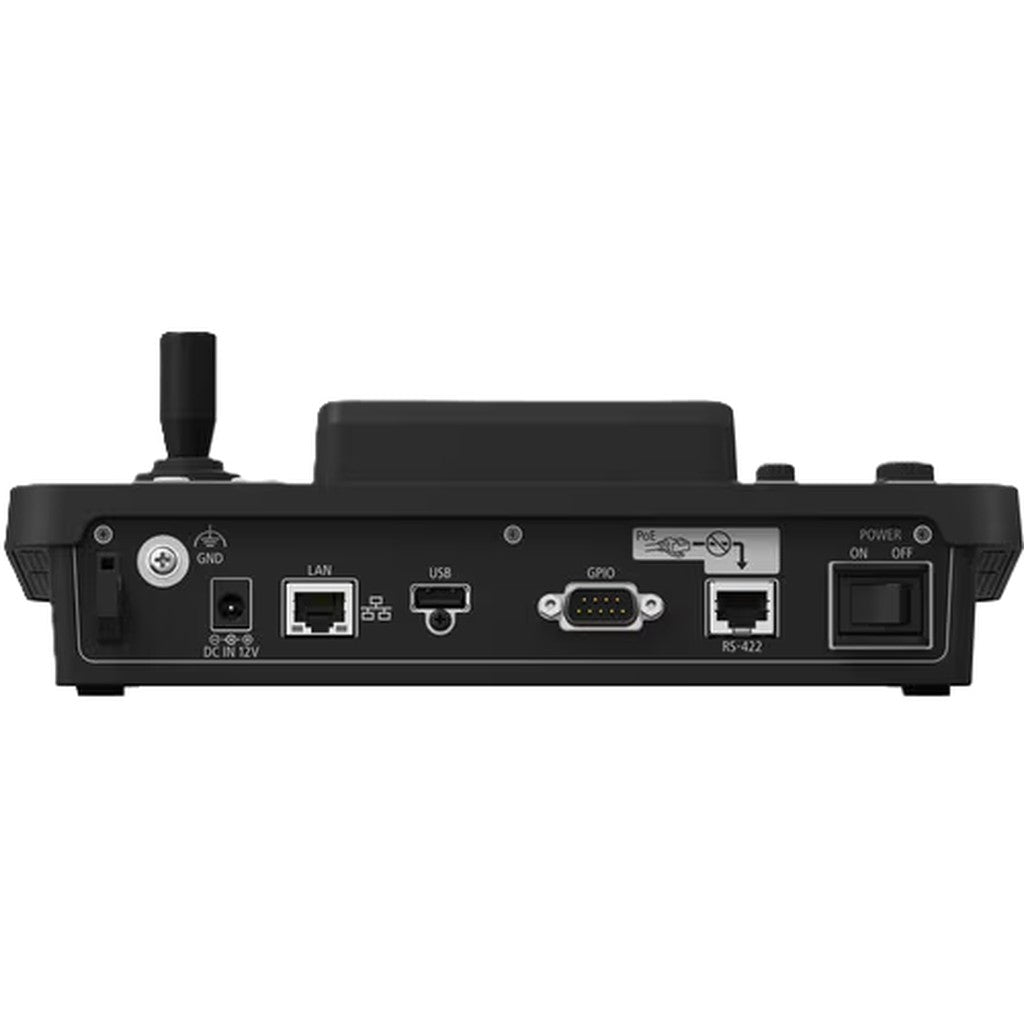

- GPIO: 1 x 9-pin D-sub port for external control and tally linkage
- Network Connection: 1 x RJ45 LAN/PoE port
- Serial Connection: 1 x RJ45 RS-422 port
- USB: 1 x USB Type-A for settings storage, firmware updates, and Stream Deck support
- DC Input: 11.4 to 12.6 VDC
- PoE Standard: IEEE 802.3af compliant
- Maximum PoE Power Consumption: 12.4 W
- Maximum DC Power Consumption: 11.4 W
- Operating Temperature: 32°F to 104°F
- Dimensions: 10.04" x 7.09" x 3.70" W x D x H
- Weight: Approximately 3.09 lbs
Compatible Cameras
- Canon CR-N700
- Canon CR-N500
- Canon CR-N400
- Canon CR-N350
- Canon CR-N300
- Canon CR-N100
- Canon CR-X500
- Canon CR-X300
- Canon XF605
- Canon EOS C300 Mark III
- Canon EOS C500 Mark II
- Canon EOS C70
- Canon EOS C400
- Canon EOS C80
- Canon EOS C50
What's In the Box
- Canon RC-IP300 PTZ Camera Controller
- AC Adapter
