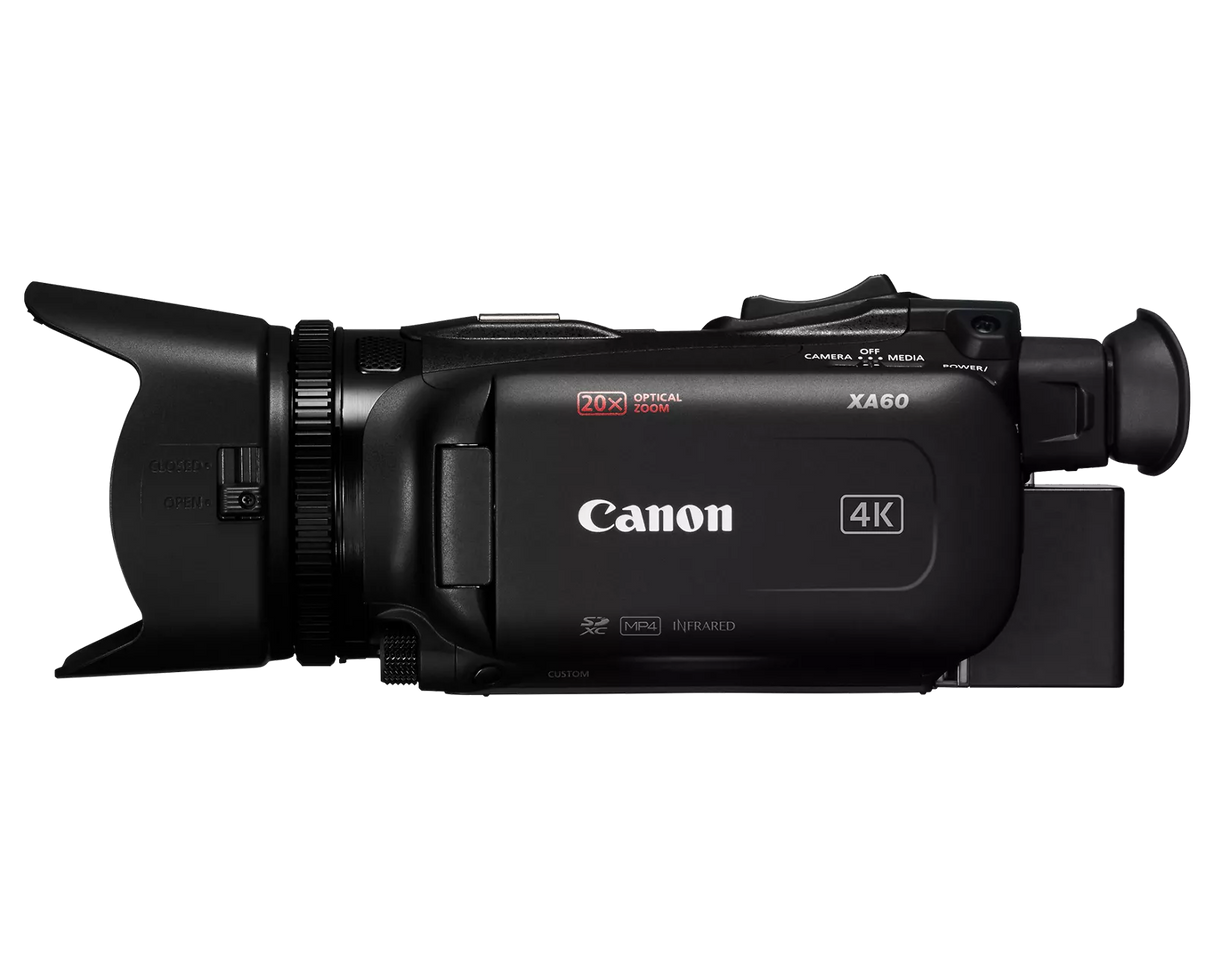

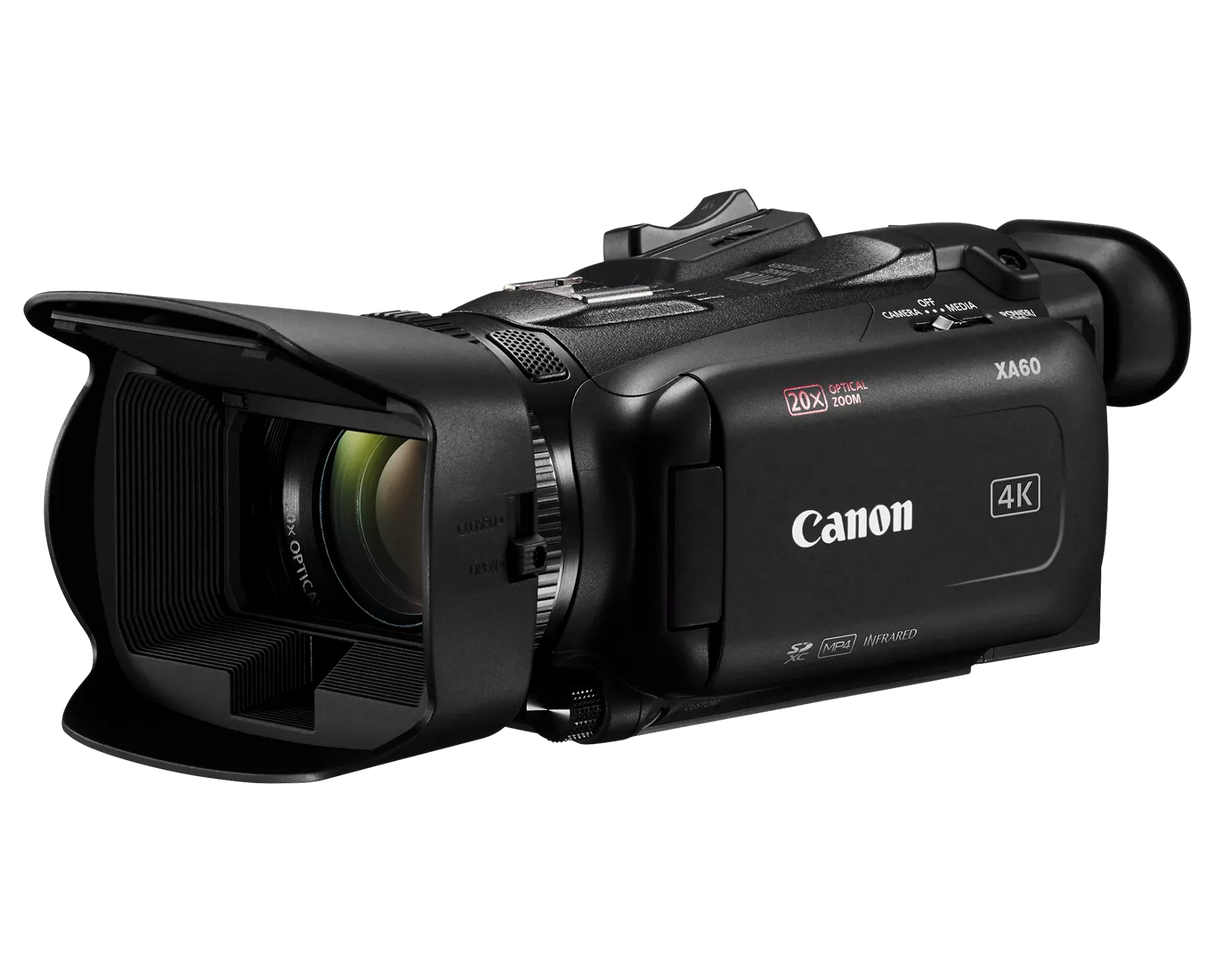

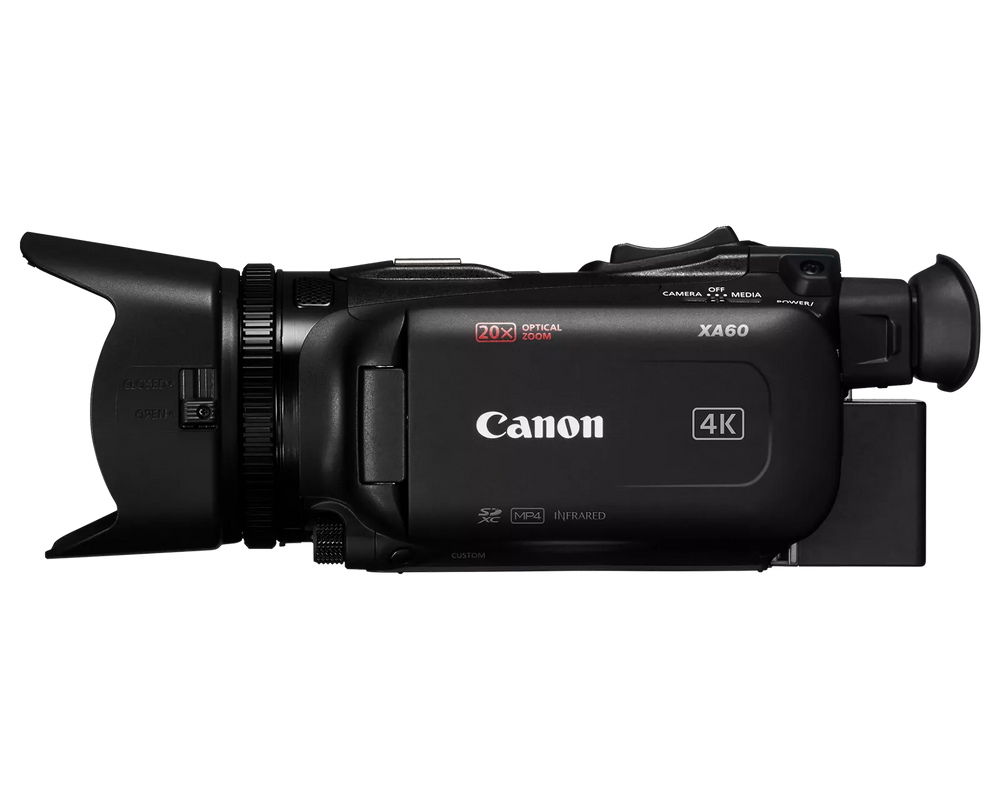

Canon XA60 Camcorder

Canon XA60 Camcorder

Canon's XA60 is a compact professional camcorder that records 4K UHD up to 30p and delivers oversampled Full HD from its 1/2.3-inch CMOS sensor and DIGIC DV 6 processor. With a detachable XLR handle unit and an integrated 20x optical zoom lens, it serves documentary, event, and corporate shooters who want broadcast-style audio handling and handheld mobility in a small 740g body.

The 29.3-601mm equivalent lens pairs with five-axis Dynamic IS to steady walking shots, and Hybrid AF with Face Detection lets you set focus by touch on the 3.5-inch LCD; a tiltable 0.36-inch OLED EVF is also on board. Recording options include XF-AVC 4K UHD at 160Mbps and MP4, written to dual SD slots with relay and simultaneous modes plus 4-channel linear PCM. USB-C with UVC support enables HD livestreaming to a PC or Mac.

Key Features

• 4K UHD 30p recording with oversampled Full HD from a 1/2.3-inch CMOS sensor
• 20x optical zoom lens, approx. 29.3-601mm equivalent, with five-axis Dynamic IS

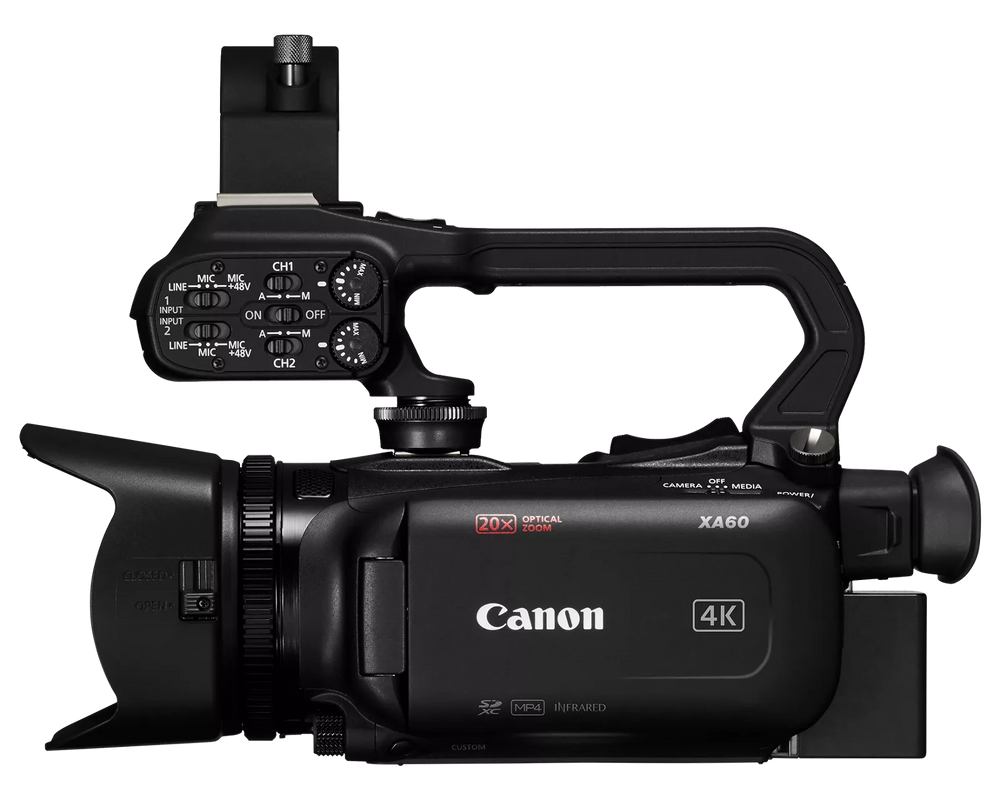

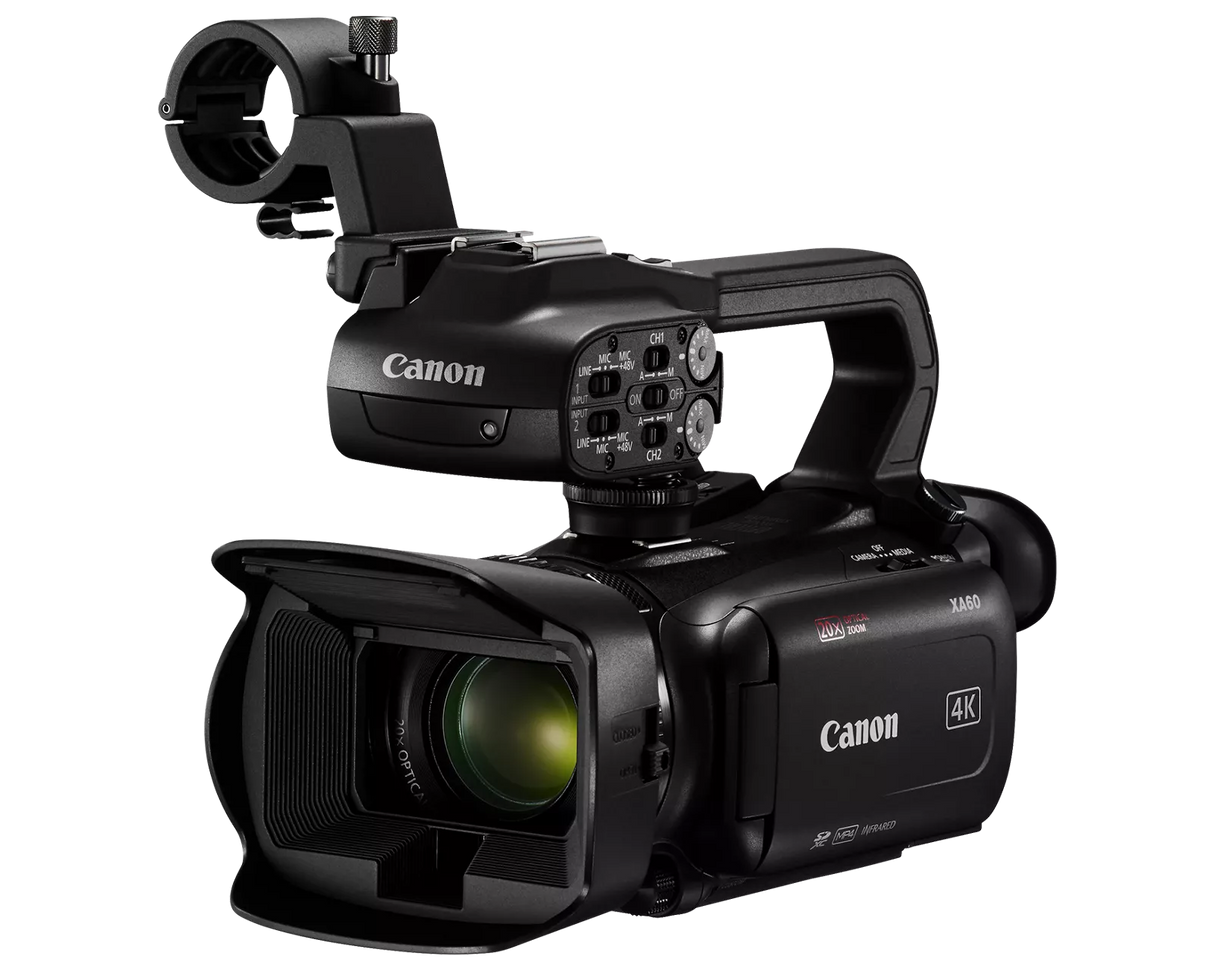

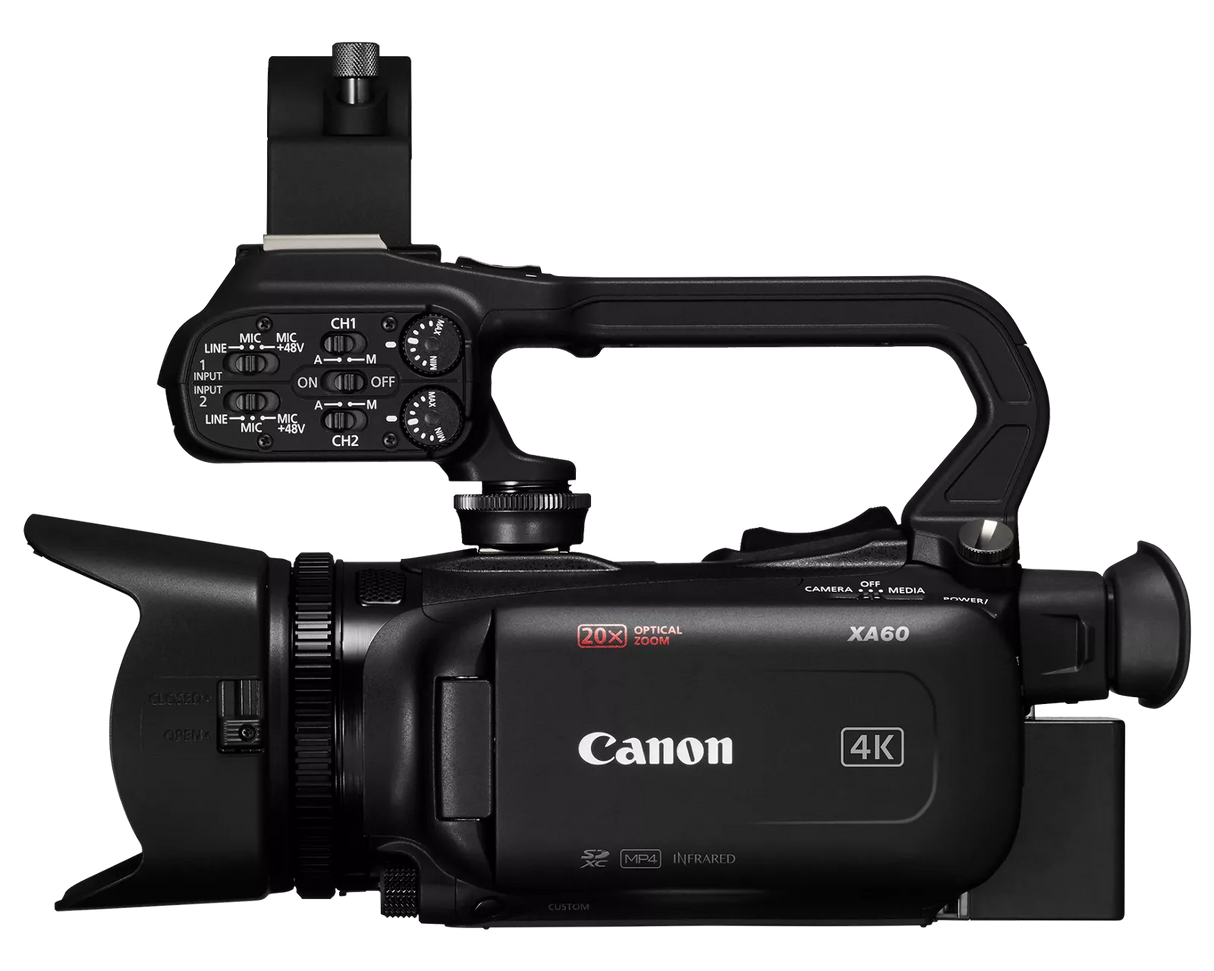

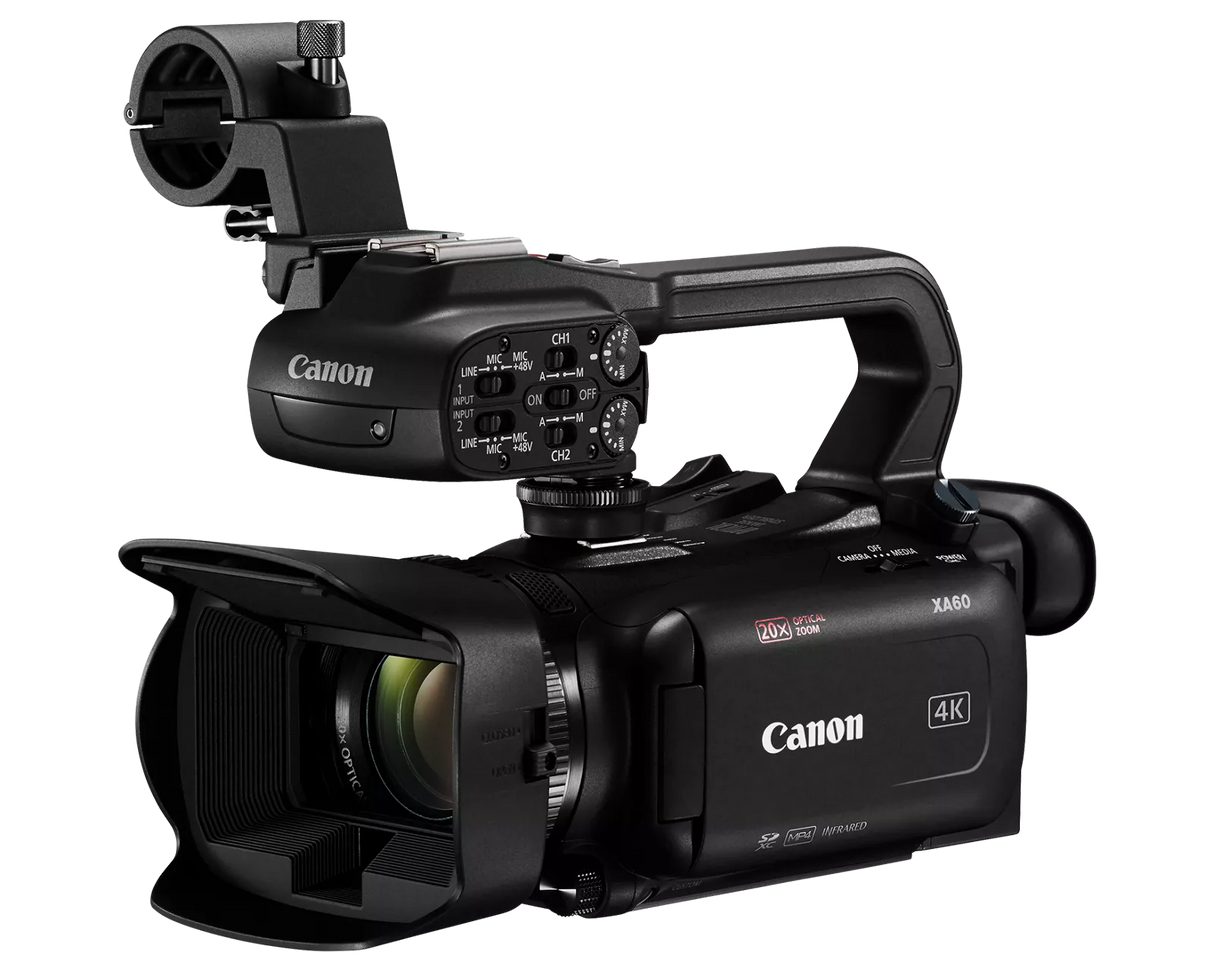

• Detachable handle with dual XLR inputs and 4-channel linear PCM audio
• XF-AVC and MP4 formats; dual SD slots with relay and double recording
• USB-C output with UVC support for HD livestreaming to a computer
• 3.5-inch touchscreen LCD plus tiltable 0.36-inch OLED viewfinder
• Hybrid AF with Face Detection AF and Face Tracking

Specifications

• 1/2.3-inch 4K UHD CMOS sensor
• Zooming ratio, focal length (35 mm camera equivalent): 20x optical zoom, approx. 29.3 - 601mm 4K UHD (Dynamic IS off/Standard IS on) / approx. 30.5 - 627mm Full HD (Dynamic IS off/Standard IS on)
• Aperture: 8 blades
• Image Stabilizer: Optical + electronic correction
• YES
• 3.5-inch (approx. 2.76 million dots), LCD, Capacitive touch panel
• 0.36-inch (approx. 1.77 million dots), OLED, tiltable
• Standard
• MXF: YES (XF-AVC)
• AVCHD: NO
• MP4: YES
• LPCM 4ch audio: YES (not available during 720 recording)
• Simultaneous Recording: Double recording
• OSD Recording: YES
• Slow and Fast (S&F) Motion Recording: YES
• Cinema-look filters: NO
• Built-in memory: NO
• Memory card: SD card (2 slots)
• SDI terminal: NO
• GENLOCK, TC: NO
• XLR terminal (INPUT 1, INPUT 2): YES
• HDMI, separate headphones, USB (USB Type-C), DC IN (USB Type-C), remote and MIC terminal (supports plug-in power)
• Handle unit: Cold shoe
• YES (XLR terminal, built-in infrared light, mic holder, cold shoe, zoom lever, trigger, tally lamp)
• NO
• NO (Accessories supported)
• YES
• Approx. 4.3 x 3.3 x 7.2 in. / 109 x 84 x 182mm
• Body only: Approx. 1.63 lbs. / 740 g
• Sensor
• Lens
• Infrared camera supported
• Monitor
• EVF
• Looks
• Movie recording
• Recording Media
• Professional use terminals
• Other terminals
• Accessory shoe
• Detachable handle
• Wi-Fi
• GPS
• Lens hood with barrier
• Dimensions
• Weight
•

What's Included

• XA60 Body
• Lens Cap
• Lens Hood with Lens Barrier
• Microphone Holder Unit
• Handle Unit
• USB Power Adapter PD-E1
• AC Cable
• Battery Pack BP-820
• Limited 1-Year Warranty
