CHAUVET DJ GigBAR 3 ILS 3-in-1 LED Lighting System

CHAUVET DJ GigBAR 3 ILS 3-in-1 LED Lighting System

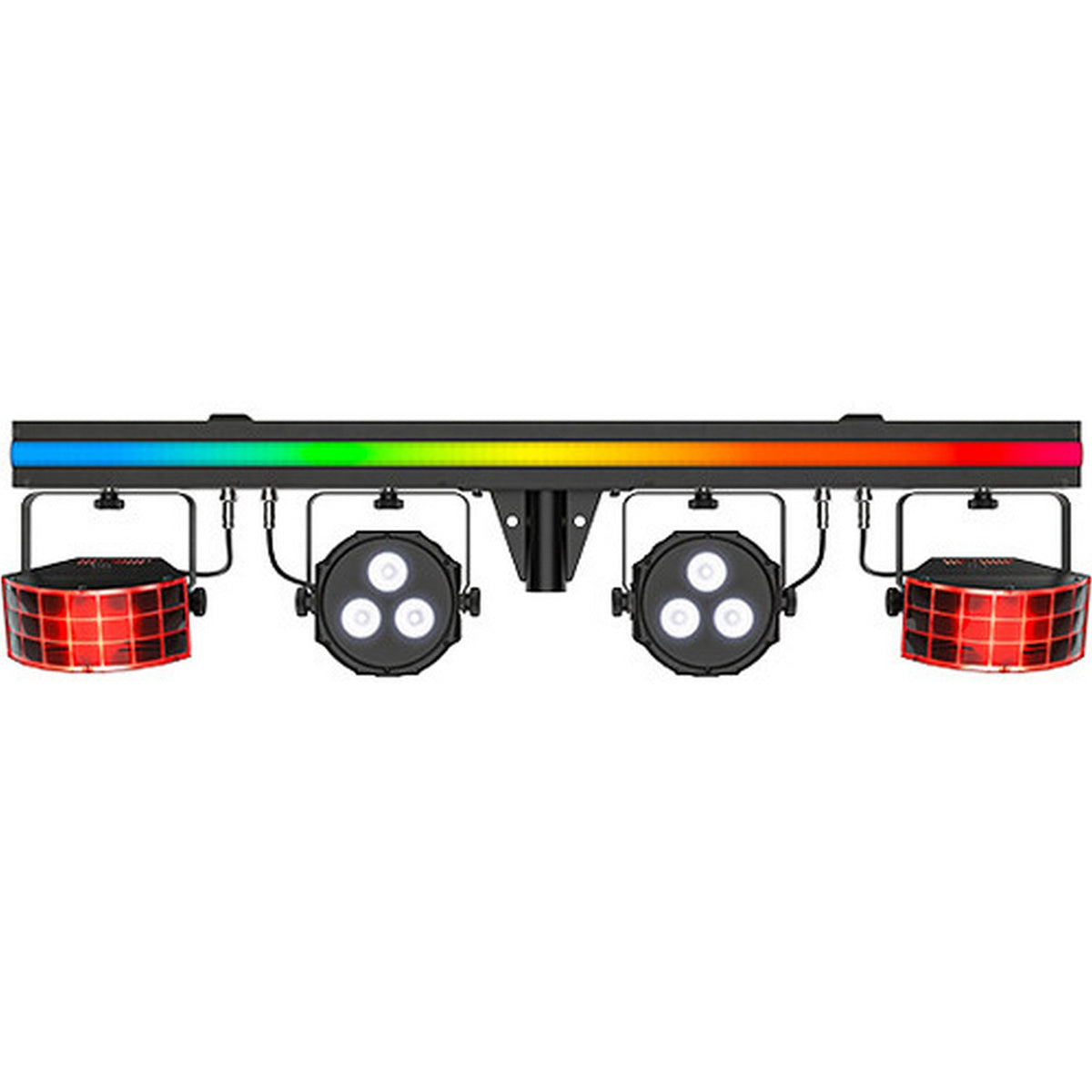

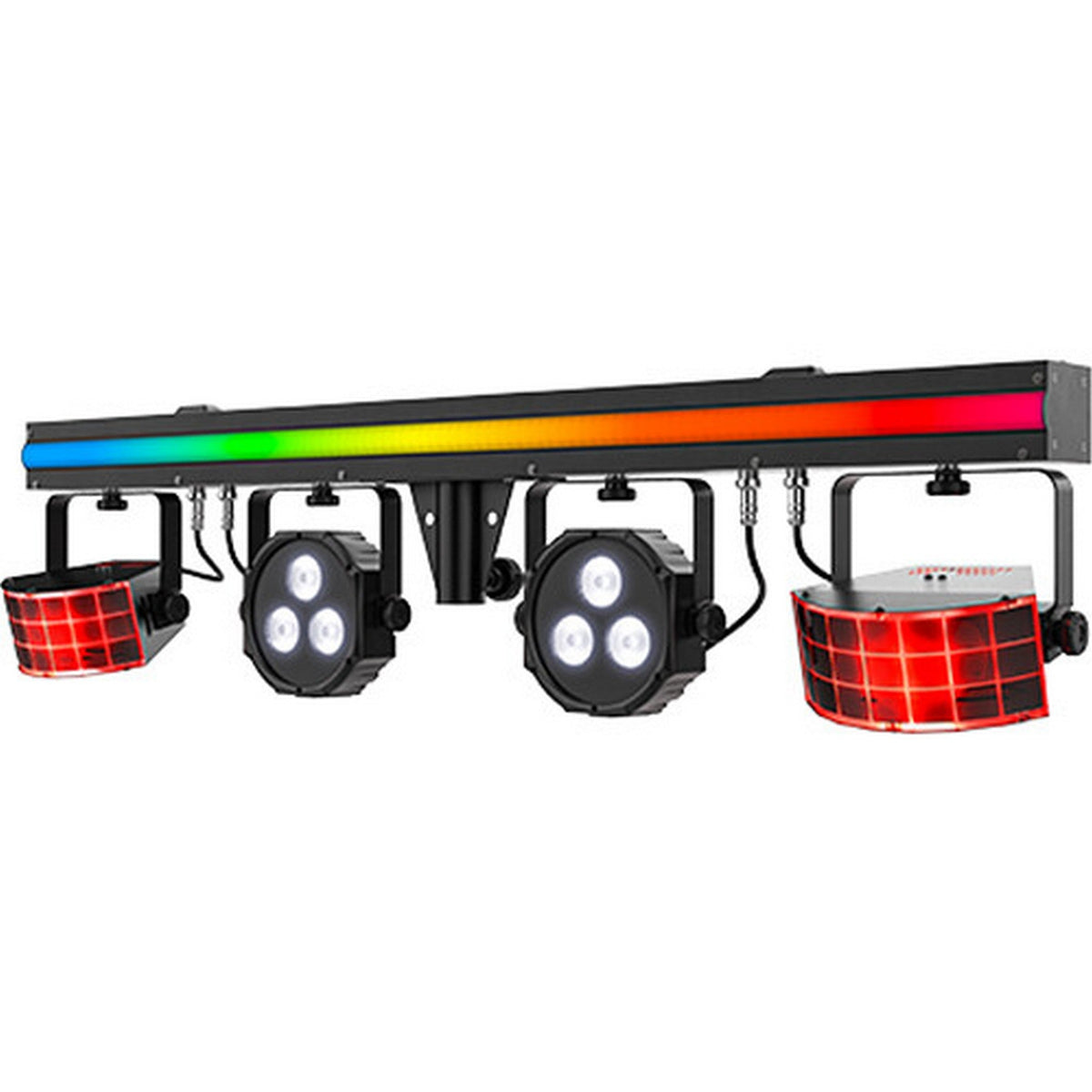

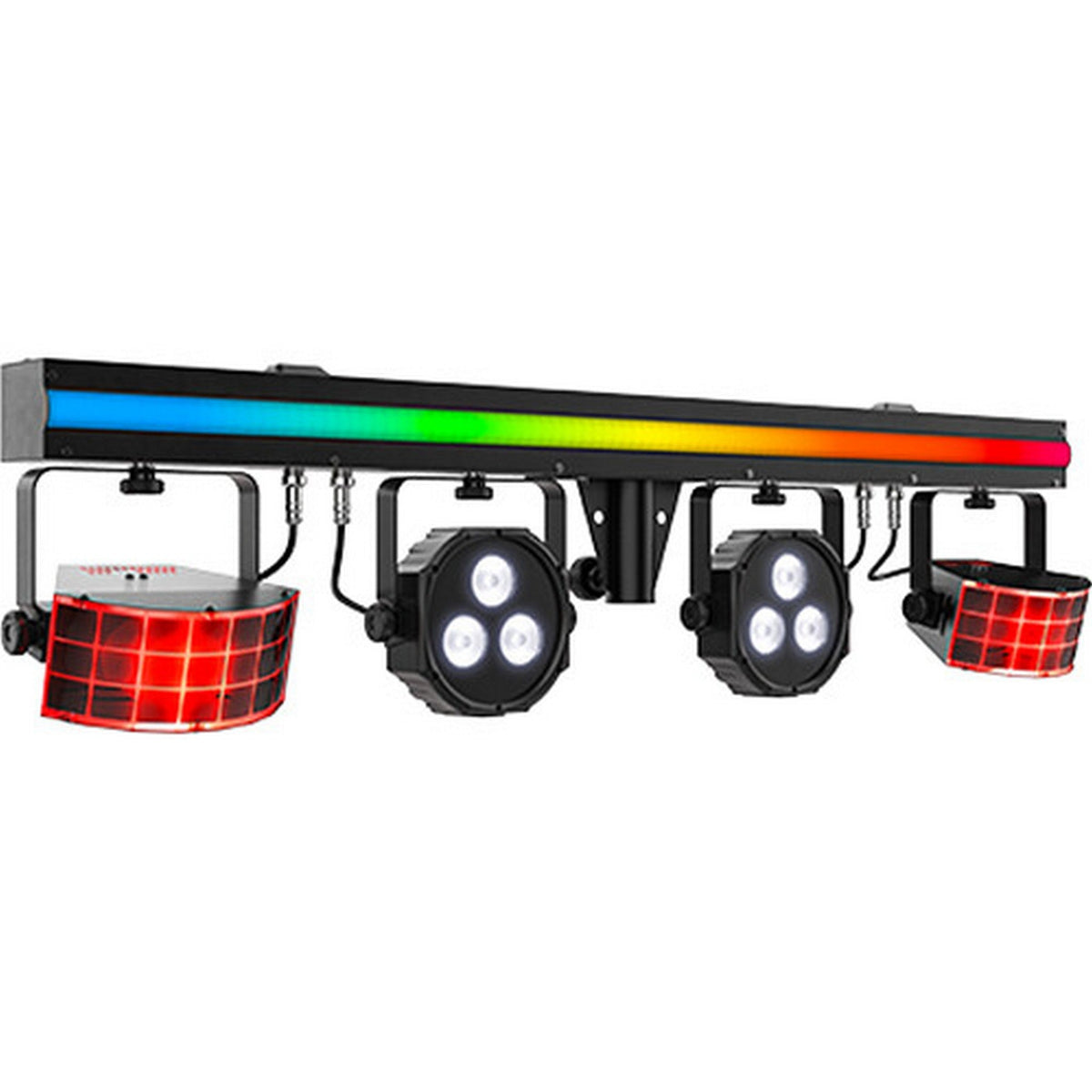

The CHAUVET DJ GigBAR 3 ILS 3-in-1 LED Lighting System combines two LED derbies, two RGB+UV pars, and an RGB LED strip on one portable bar. It delivers washes, multicolor beam effects, and animated strip patterns while supporting ILS, DMX, automatic, sound-active, RF remote, and wireless footswitch control.

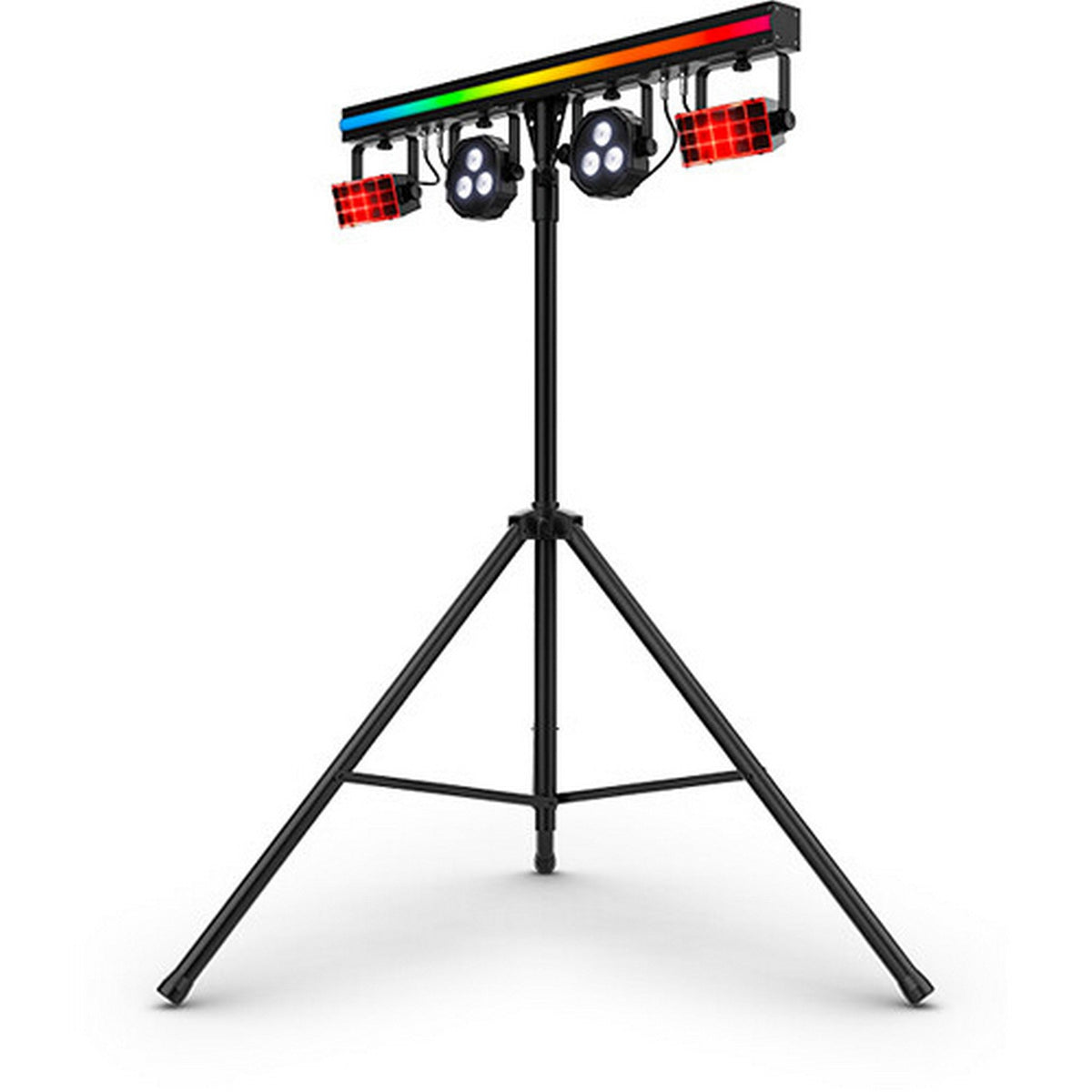

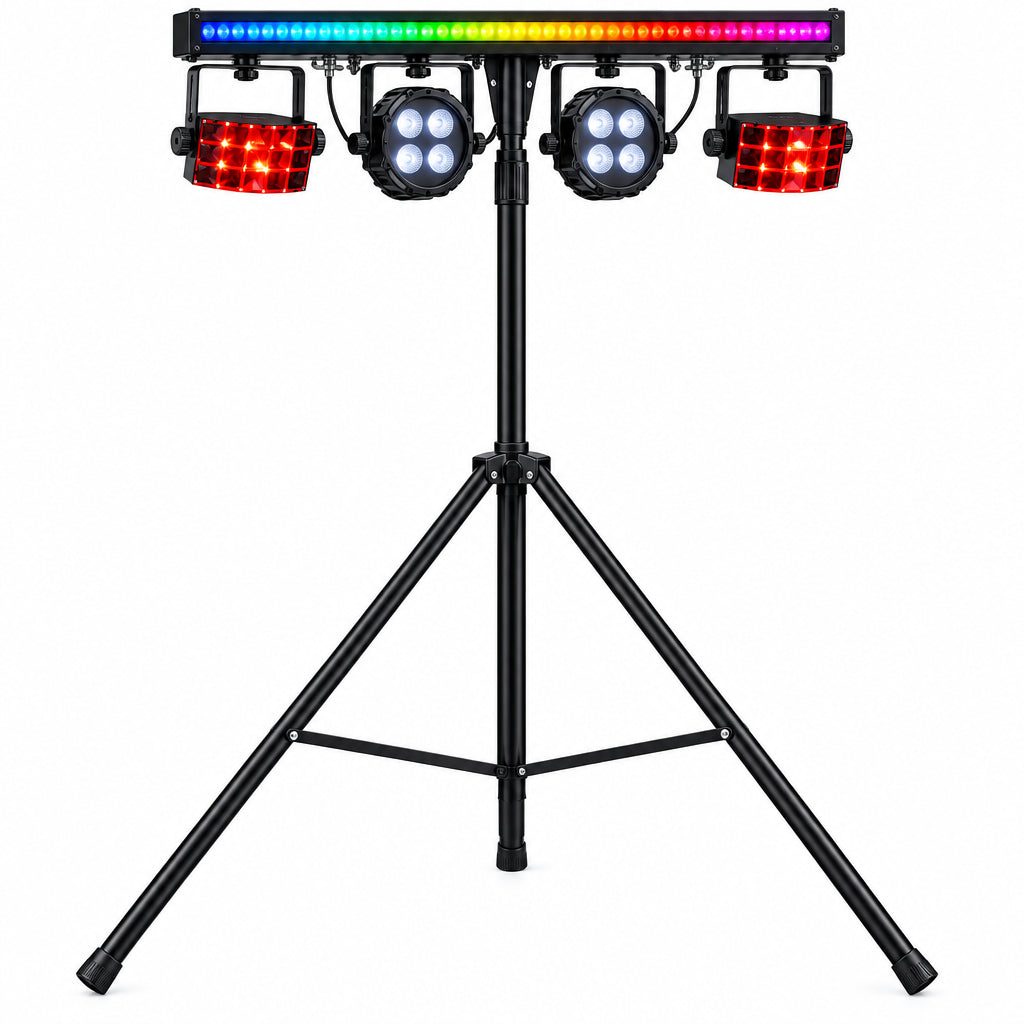

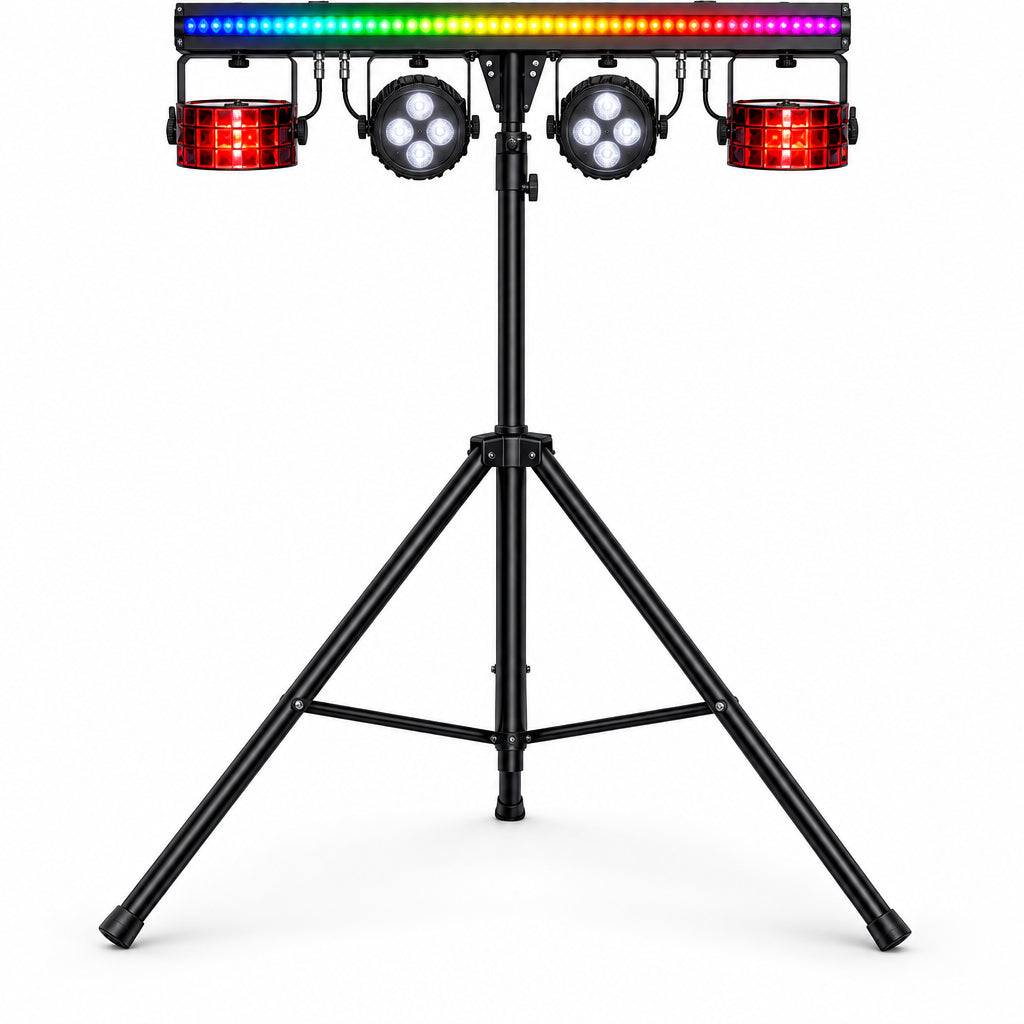

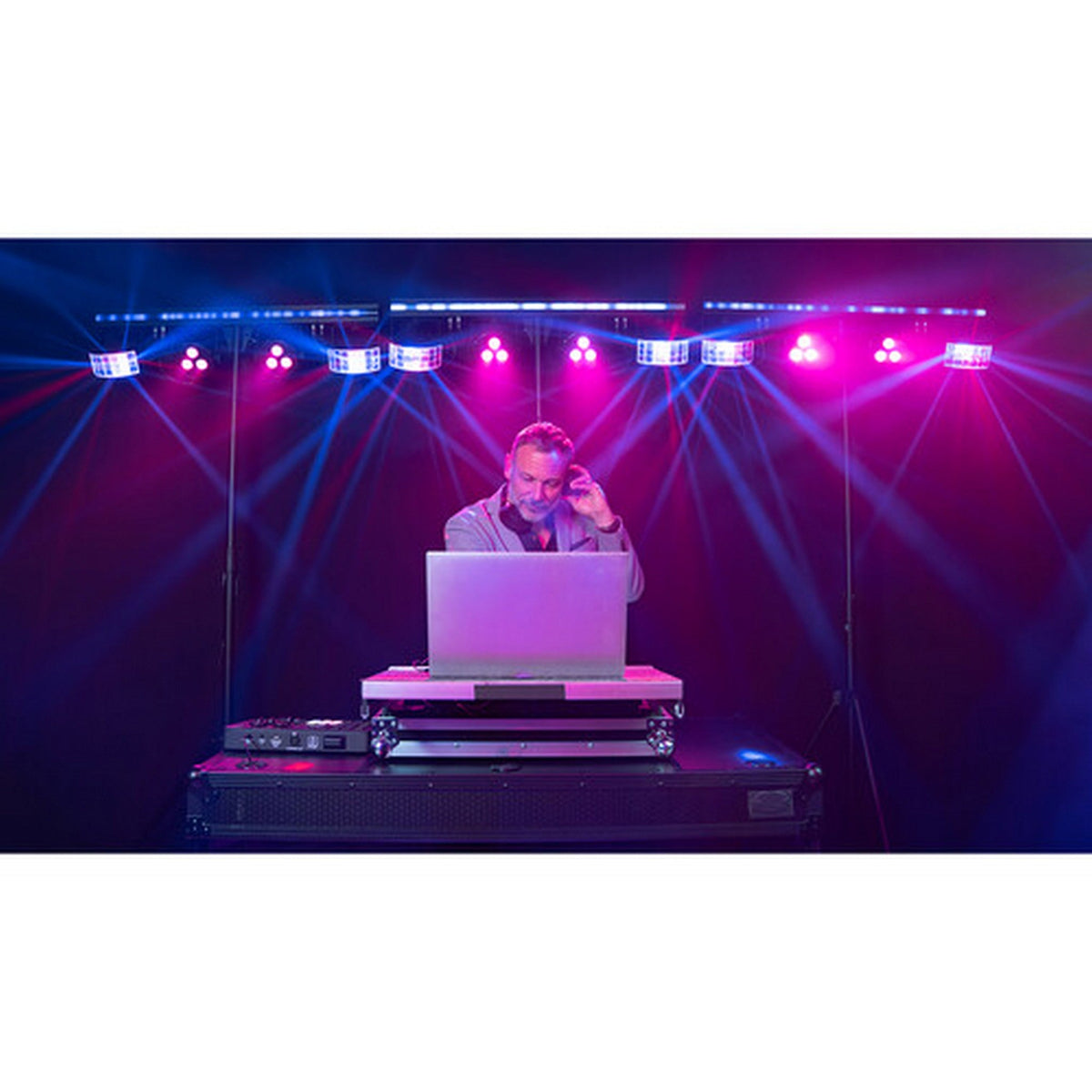

Designed for mobile DJs, entertainers, event production, and compact stage lighting, the GigBAR 3 ILS reduces setup time by mounting multiple effects on a single fixture. Its included tripod adjusts from 4.8 to 7.8', and the reversible tripod bracket supports alternate mounting orientation. Up to four additional fixtures can mount to the top of the bar for expanded lighting setups.

The system provides 2-, 21-, and 132-channel DMX personalities, 0 to 20 Hz strobing, and power linking for multi-fixture installations. The pars deliver RGB+UV color with a 13° beam, while the derbies provide 114° coverage and the LED strip reaches 174°. An onboard full-color display provides direct access to programming and configuration functions.

Key Features

• 3-in-1 Lighting System: Combines two LED derbies, two RGB+UV pars, and one RGB LED strip on a single portable bar.
• ILS Compatibility: Integrates with the Instant Light Show ecosystem for coordinated operation with compatible lighting fixtures.
• Multiple Control Options: Supports DMX, automatic programs, sound-active operation, RF remote control, and the included wireless footswitch.
• Wide Effect Coverage: Provides 13° par beams, 114° derby coverage, and 174° LED strip coverage for varied lighting looks.
• Flexible DMX Programming: Offers 2-, 21-, and 132-channel personalities for basic through detailed fixture control.
• Expandable Mounting: Accepts up to four additional fixtures on top of the bar for building a larger mobile lighting system.
• Reversible Tripod Bracket: Allows the mounting bracket to be repositioned for alternate fixture orientation.
• Portable Complete Kit: Includes a tripod, wireless footswitch, RF remote, carrying bag, power cord, and Stealth filter.

Technical Specifications

• Model: GigBAR 3 ILS
• Item Code: 10052716
• Product Type: 3-in-1 LED Effects Lighting System
• Fixture Configuration: 2 x LED Derby, 2 x LED Par, 1 x LED Strip
• Par Light Source: 6 x RGB+UV LEDs, 3.7 W
• Par LED Current: 1 A
• LED Strip Light Source: 74 x RGB LEDs, 5 W
• LED Strip Current: 0.03 A
• Derby Light Source: 2 x Red, 2 x Green, 2 x Blue LEDs, 3 W
• Derby LED Current: 0.6 A
• Expected LED Life: 50,000 hours
• Pixel Zones: 37
• Par Beam Angle: 13°
• Par Field Angle: 24°
• Par Illuminance: 1,205 lux each at 6.6'
• Derby Coverage Angle: 114°
• LED Strip Coverage Angle: 174°
• Strobe Rate: 0 to 20 Hz
• Dimming: Electronic, 0 to 100%
• Control Protocols: DMX512, ILS
• DMX Channels: 2, 21, or 132
• DMX Connectors: 3-Pin XLR
• Operating Modes: DMX, Primary/Secondary, Sound-Active, Standalone
• Wireless Operating Frequency: 2.412 to 2.484 GHz
• Footswitch Operating Frequency: 433 MHz
• Footswitch Maximum Unobstructed Distance: 100'
• Footswitch Power: 9 V, 300 mA battery
• Power Supply Type: Internal Switching
• Input Voltage: 100 to 240 VAC, 50/60 Hz
• Voltage Selection: Auto-Ranging
• Power Consumption at 120 V: 47 W
• Operating Current at 120 V: 0.7 A
• Power Consumption at 230 V: 45 W
• Operating Current at 230 V: 0.4 A
• Power Linking at 120 V: Up to 11 units
• Power Linking at 230 V: Up to 18 units
• Fuse: F 1.6 A, 250 V
• U.S. Power Input: IEC
• U.S. Power Output: Edison
• Power Cable Length: 9'
• Tripod Minimum Height: 4.8'
• Tripod Maximum Height: 7.8'
• Tripod Leg Footprint: 3.9'
• Tripod Mast Diameter: 1.5"
• Maximum Operating Temperature: 104°F
• Exterior Color: Black
• Approvals: CE, RoHS, FCC
• Dimensions (L x W x H): 41.2 x 3.7 x 10.7"
• Weight: 13.2 lb

What's In the Box

• CHAUVET DJ GigBAR 3 ILS
• Power Cord
• Stealth Filter
• Wireless Footswitch
• RF Remote
• Tripod
• Carrying Bag
• Quick Reference Guide
