CHAUVET DJ Sentinel Wash Q120 120W RGBW LED Moving Head Wash

CHAUVET DJ Sentinel Wash Q120 RGBW LED Moving Head Wash

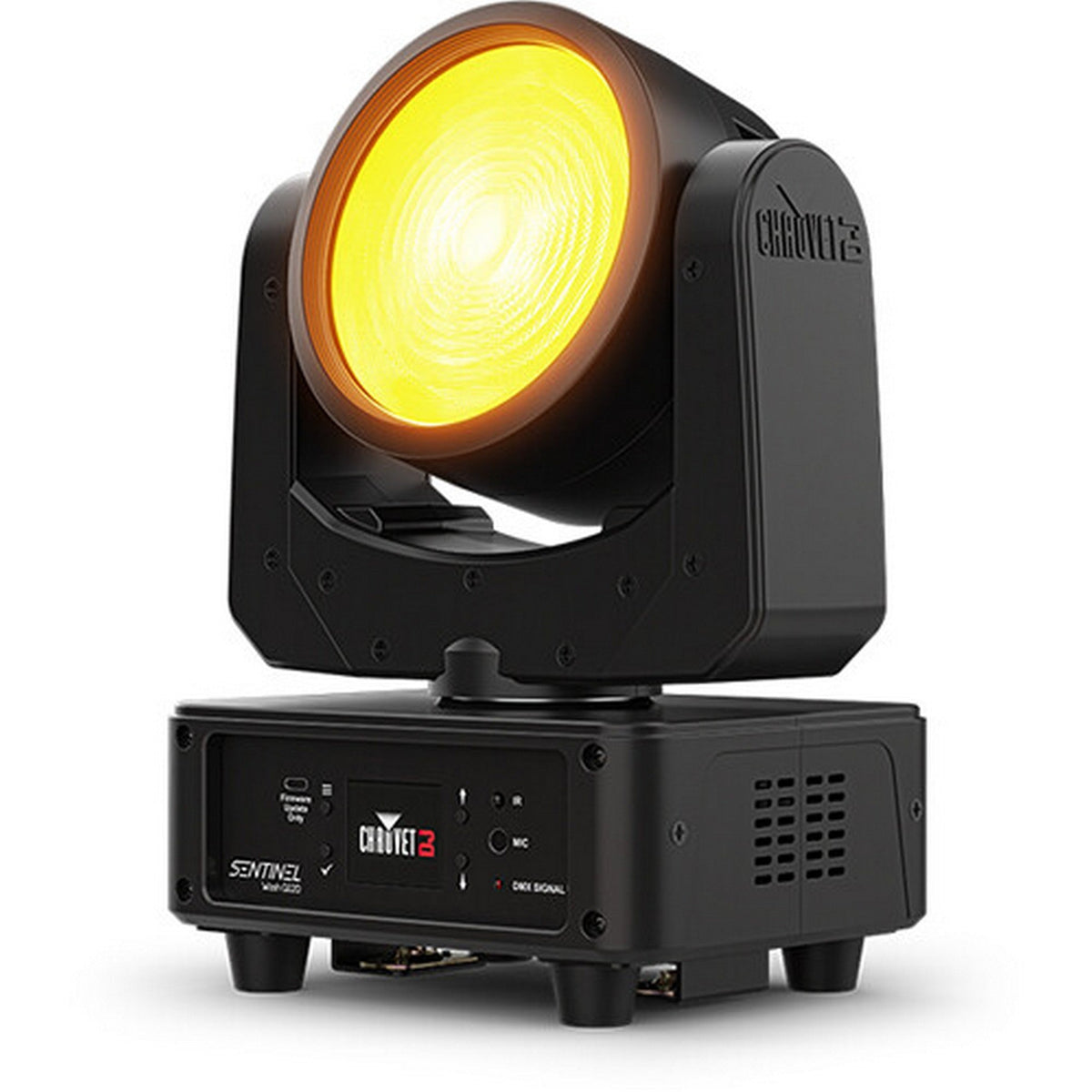

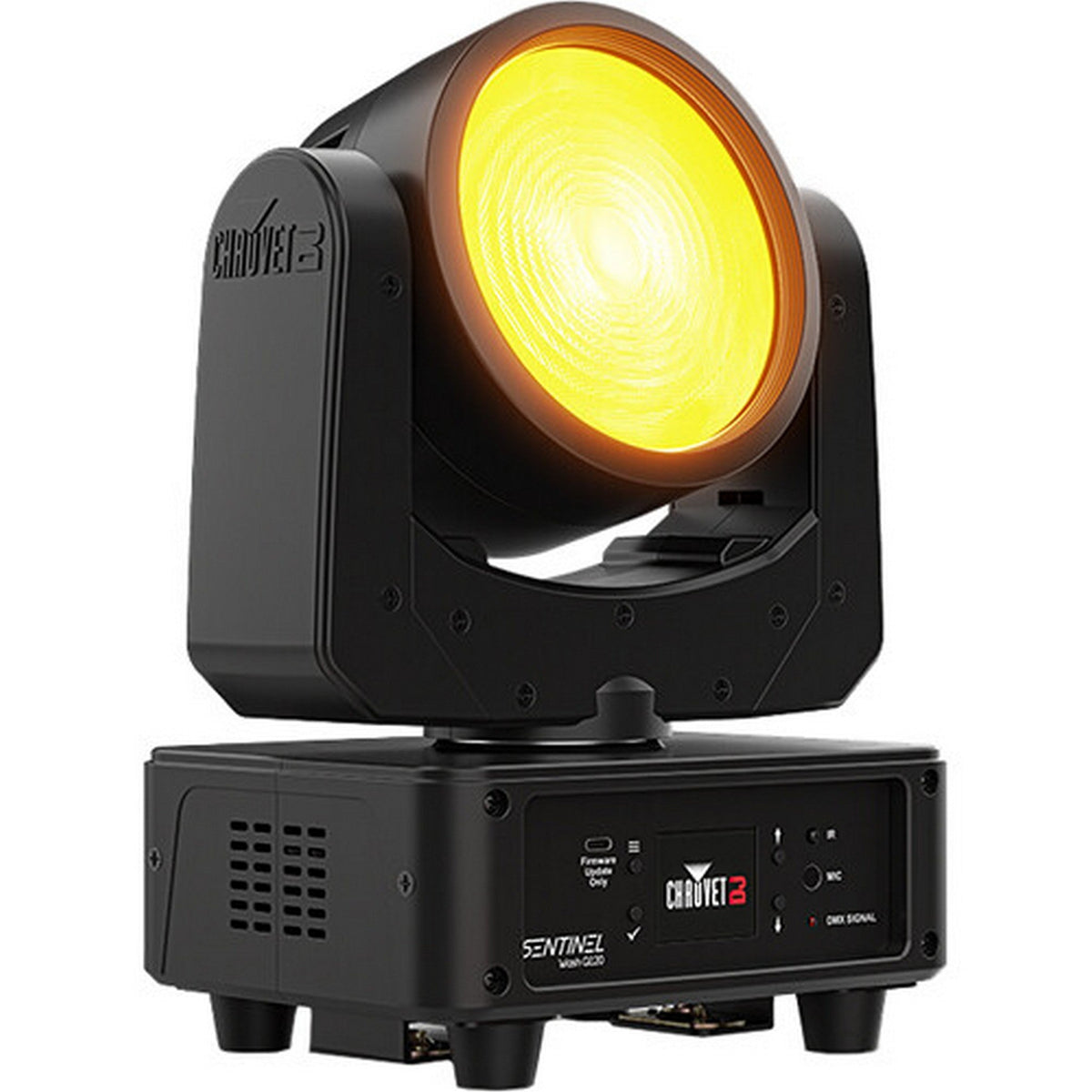

The CHAUVET DJ Sentinel Wash Q120 is a compact RGBW LED moving head wash built around a single 120W quad-color light source and polished Fresnel lens. It produces 4,189 lumens with a 16-degree coverage angle, delivering saturated color washes for mobile DJs, parties, school events, clubs, and other entertainment lighting applications.

Wide motorized movement gives lighting operators selectable 180, 360, or 540-degree pan ranges and 90, 180, or 260-degree tilt ranges. The fixture supports 10- or 14-channel DMX control along with automatic, sound-active, Master/Slave, manual, and infrared operating options. Built-in programs make synchronized moving-light looks accessible without requiring extensive programming.

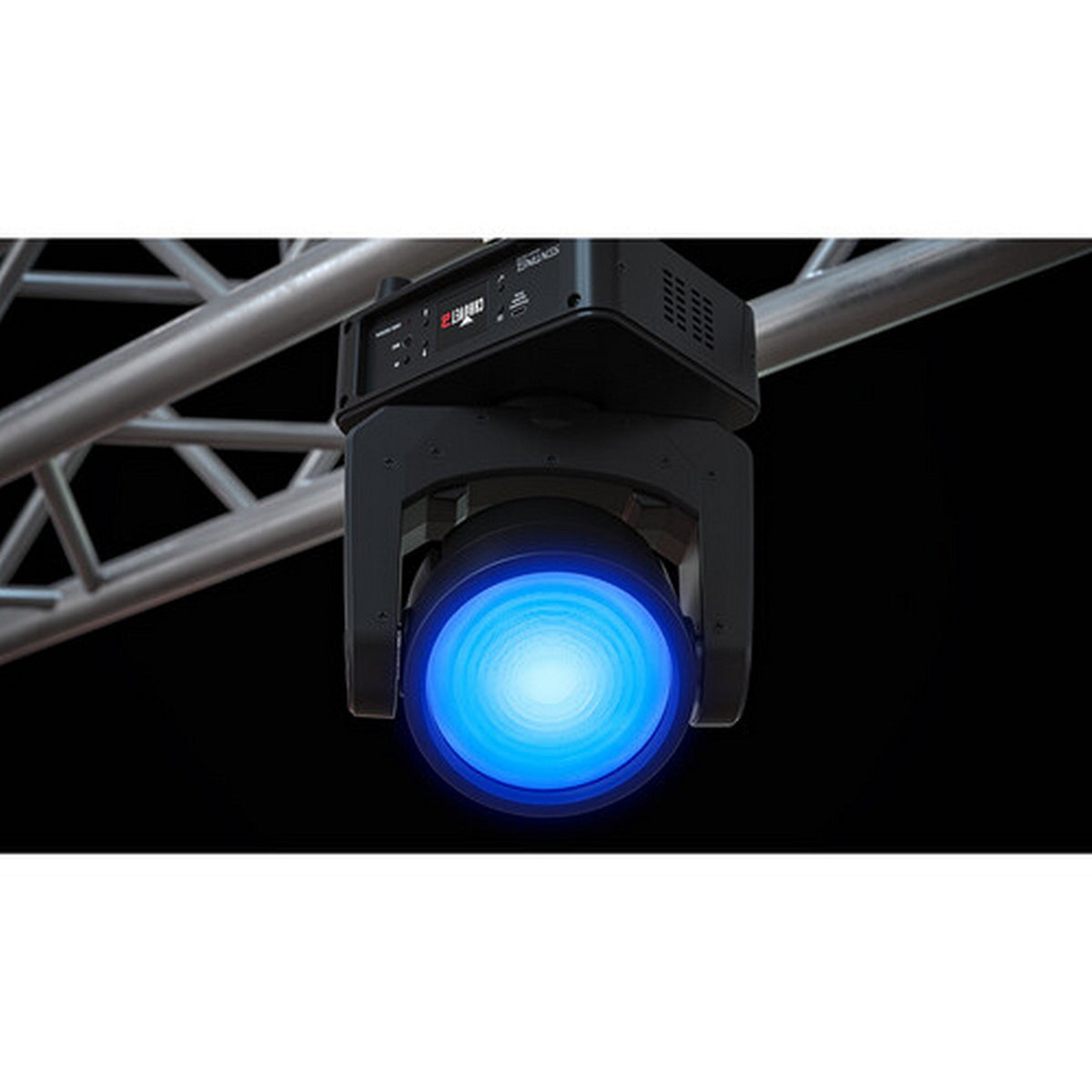

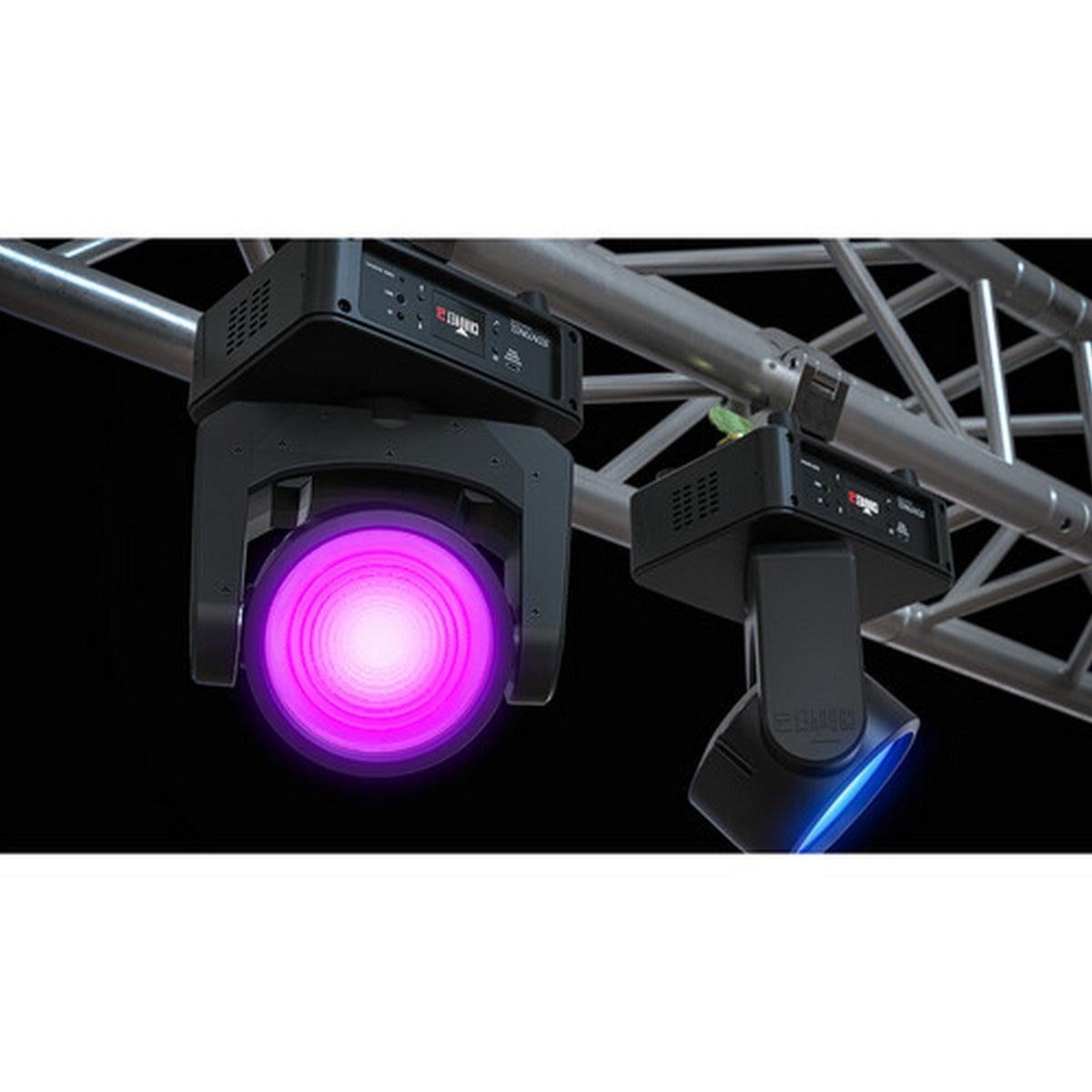

A full-color LCD simplifies fixture setup and addressing, while the onboard USB-C port supports software updates. Power linking reduces cable requirements when deploying multiple fixtures, supporting up to three units at 120V or five at 230V. The Sentinel Wash Q120 also works with the optional IRC-6 infrared remote for wireless non-DMX operation and includes a hanging bracket for rigging.

Key Features

• 120W RGBW LED: Combines red, green, blue, and white output in a single quad-color source for saturated washes and versatile color mixing.
• 4,189-Lumen Output: Produces strong moving wash illumination for mobile entertainment, events, dance floors, and smaller venues.
• Fresnel Lens: Creates a smooth, polished wash with a specified 16-degree coverage angle.
• Wide Motorized Movement: Offers selectable pan and tilt ranges for flexible positioning and automated movement effects.
• DMX and Standalone Control: Supports 10- or 14-channel DMX plus automatic, sound-active, Master/Slave, manual, and infrared operation.

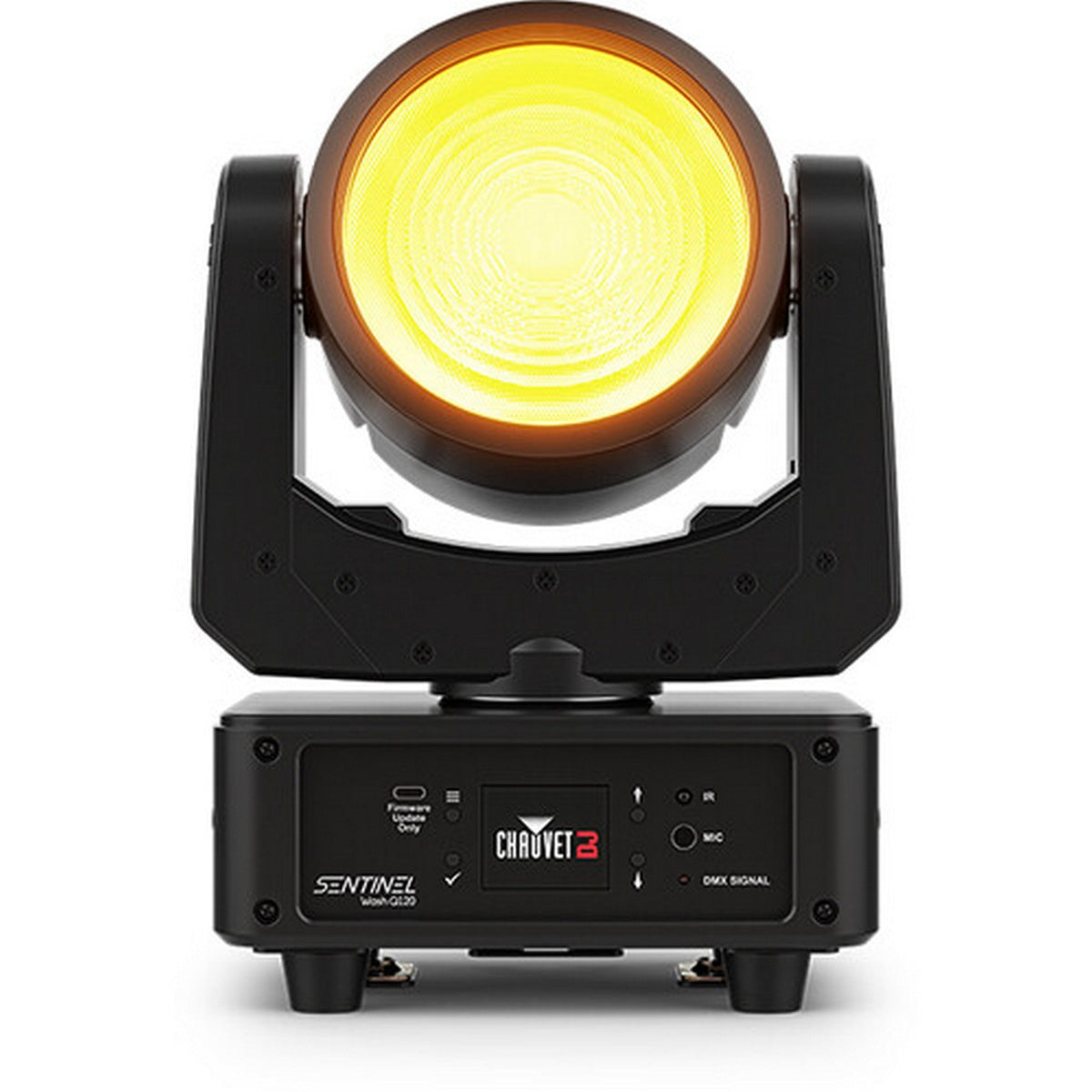

• Full-Color LCD: Provides clear menu navigation, addressing, and fixture configuration directly from the base.
• Power Linking: Connects multiple fixtures to one power source, reducing extension-cord requirements in multi-light installations.
• USB-C Update Port: Provides a dedicated connection for fixture software updates.

Technical Specifications

• Model: Sentinel Wash Q120
• Item Code: 07012694
• Fixture Type: Moving head wash
• Light Source: 1 x quad-color RGBW LED
• LED Power: 120 W
• LED Current: 3.6 A
• LED Life Expectancy: 50,000 hours
• Luminous Output: 4,189 lumens
• Illuminance: 8,710 lux at 6.6'
• Coverage Angle: 16 degrees
• Strobe Rate: 0 to 20 Hz
• Maximum Pan: 540 degrees
• Maximum Tilt: 260 degrees
• Selectable Pan Ranges: 180, 360, 540 degrees
• Selectable Tilt Ranges: 90, 180, 260 degrees
• DMX Channels: 10 or 14

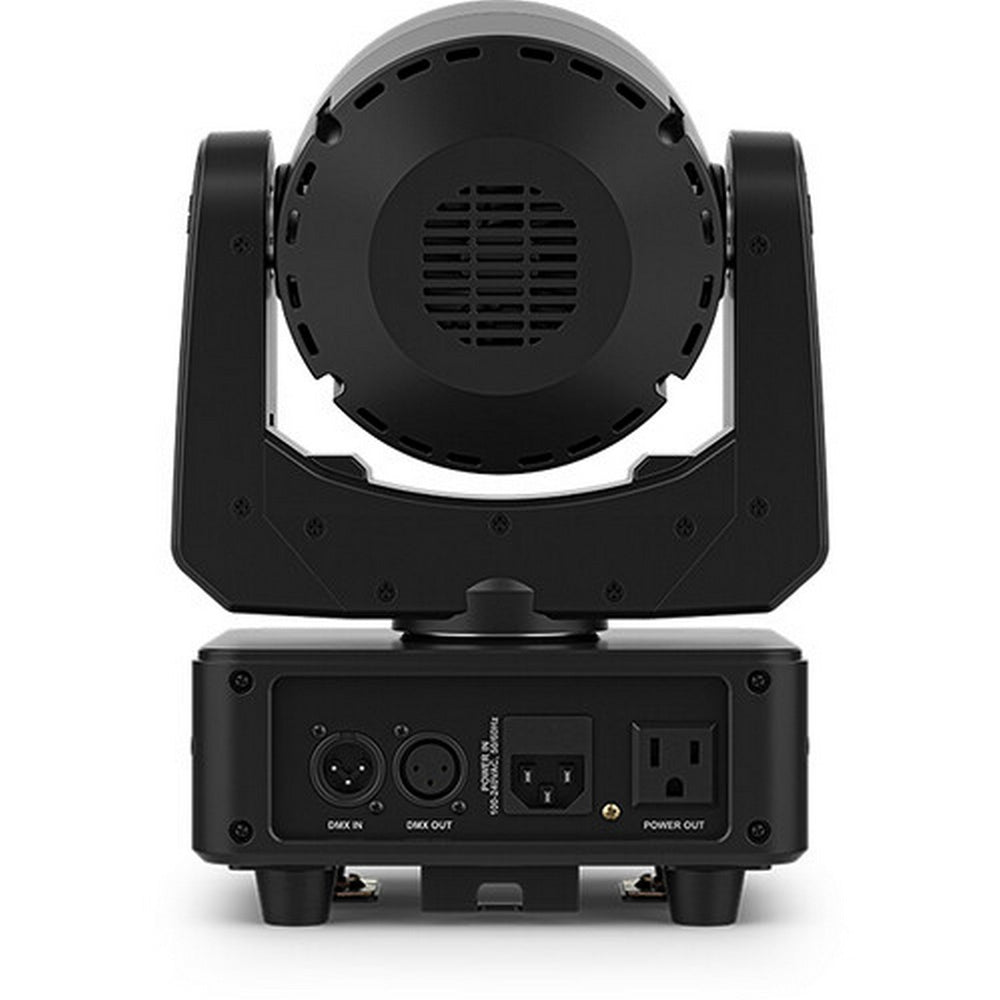

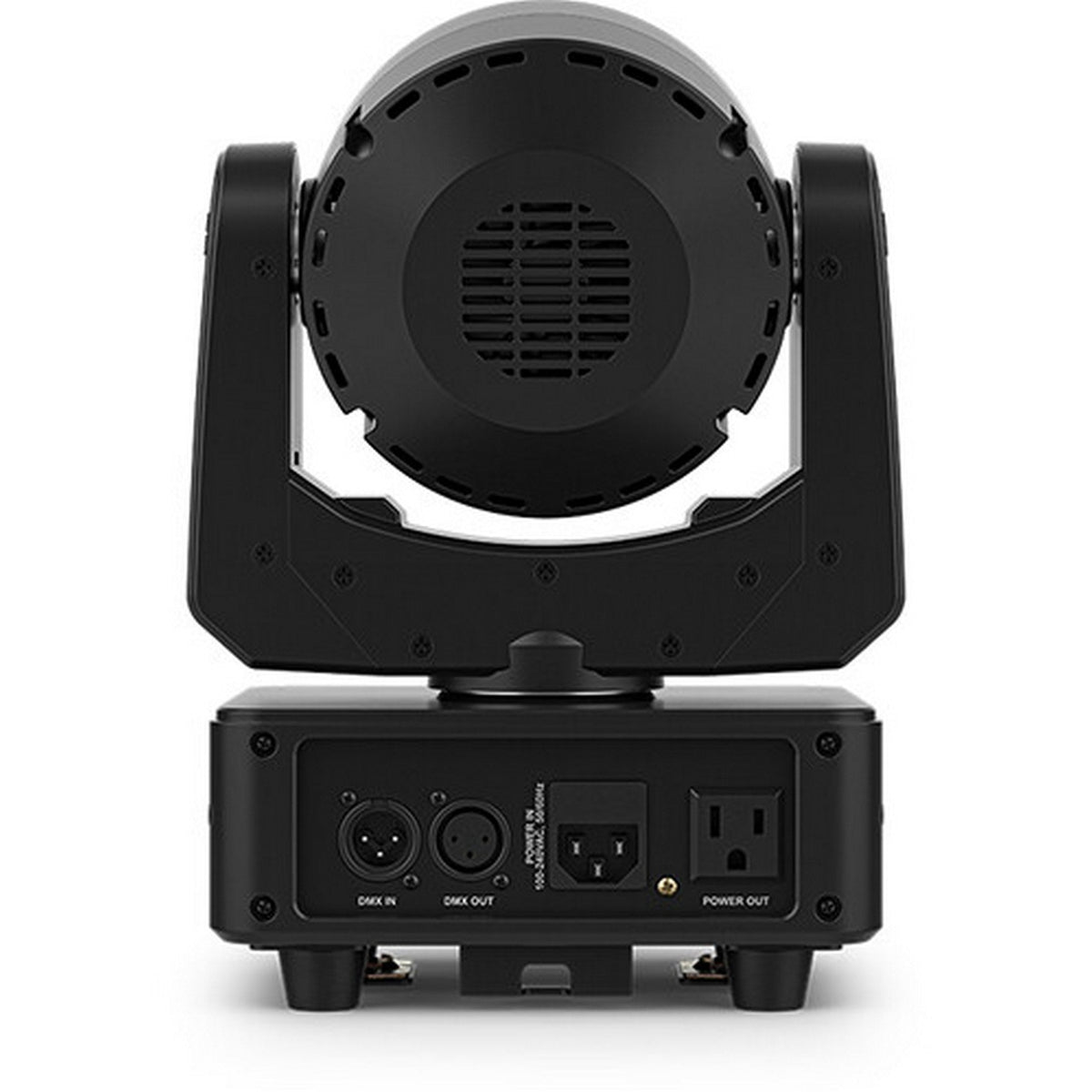

• DMX Connections: 3-pin XLR input and output
• Operating Modes: DMX, Master/Slave, automatic, sound-active, infrared, manual
• Display: Full-color LCD
• Software Update Port: USB-C
• Optional Controller: IRC-6 infrared remote
• Input Voltage: 100 to 240 VAC, 50/60 Hz
• Power Consumption at 120V: 152 W, 2.2 A
• Power Consumption at 230V: 148 W, 1.4 A
• Power Linking at 120V: Up to 3 fixtures
• Power Linking at 230V: Up to 5 fixtures
• Fuse: F3 A, 250 V
• Maximum External Temperature: 104 degrees F
• Cooling: Fan-assisted convection
• Bracket Mounting Hole: 13 mm
• Approvals: CE, RoHS
• Dimensions (L x W x H): 8.6 x 5.6 x 11.7"
• Weight: 7.8 lb

What's In the Box

• CHAUVET DJ Sentinel Wash Q120
• Power Cord
• Hanging Bracket
• Quick Reference Guide
