Chief CMS492C 2 x 2-Foot Above Suspended Ceiling Storage Box with Column Drop

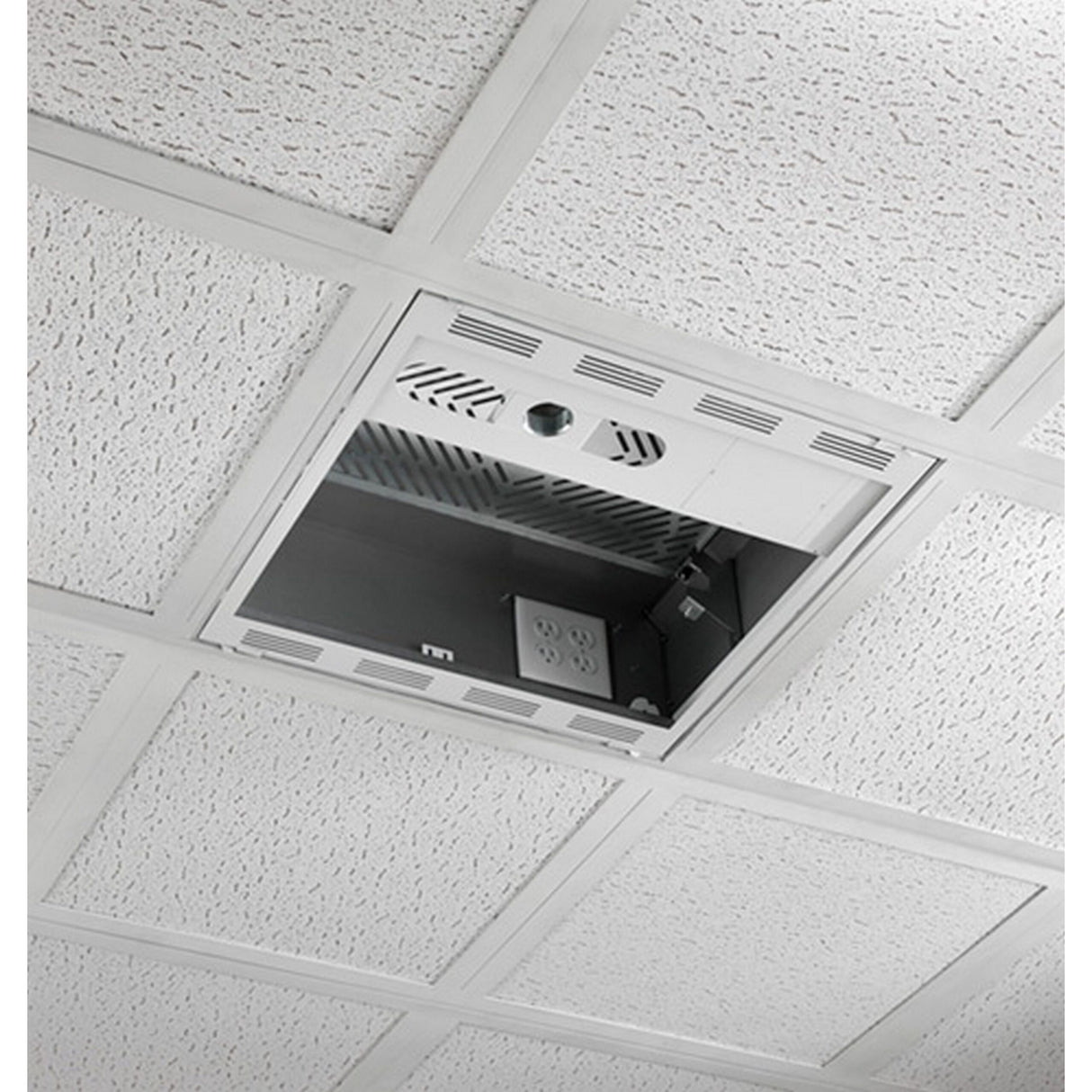

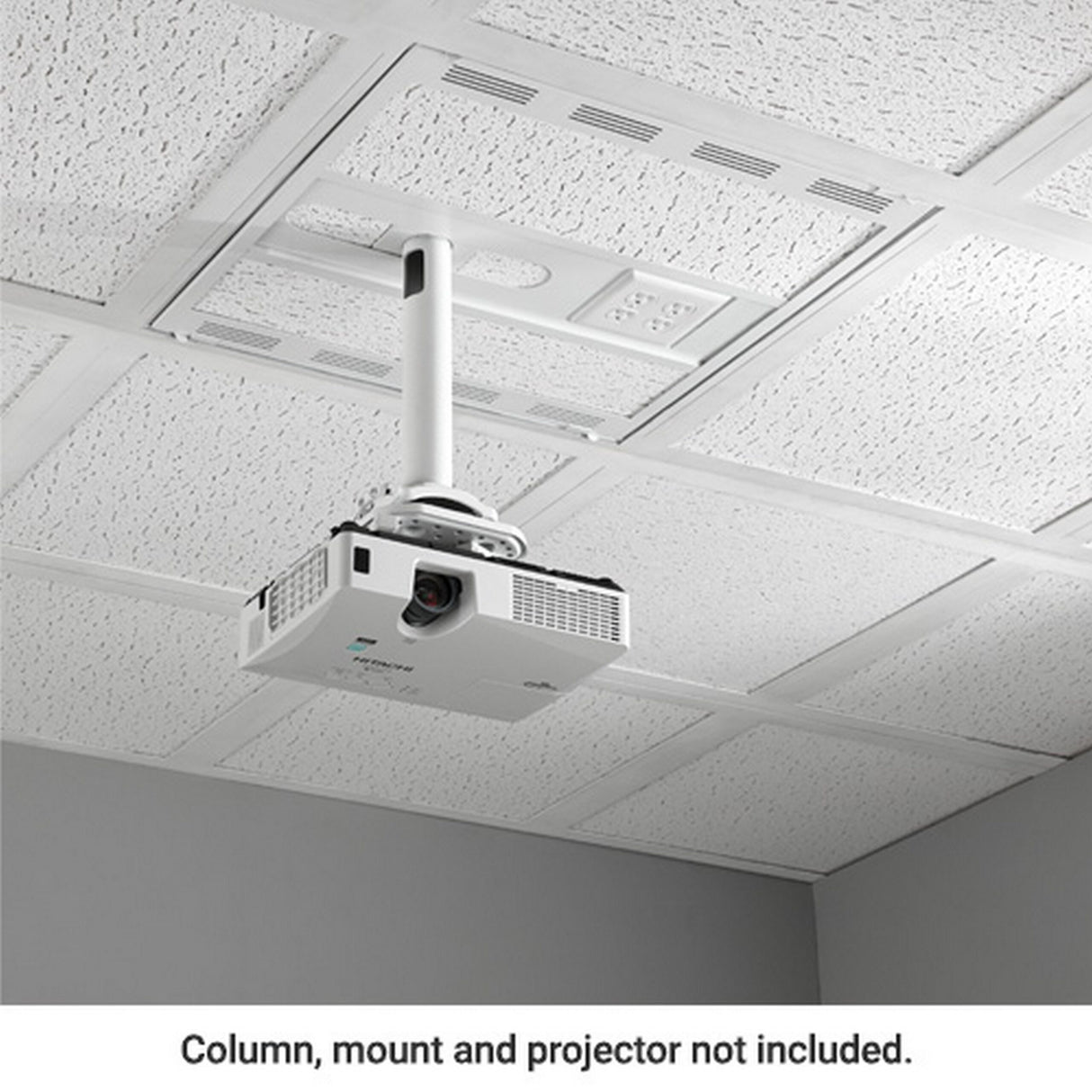

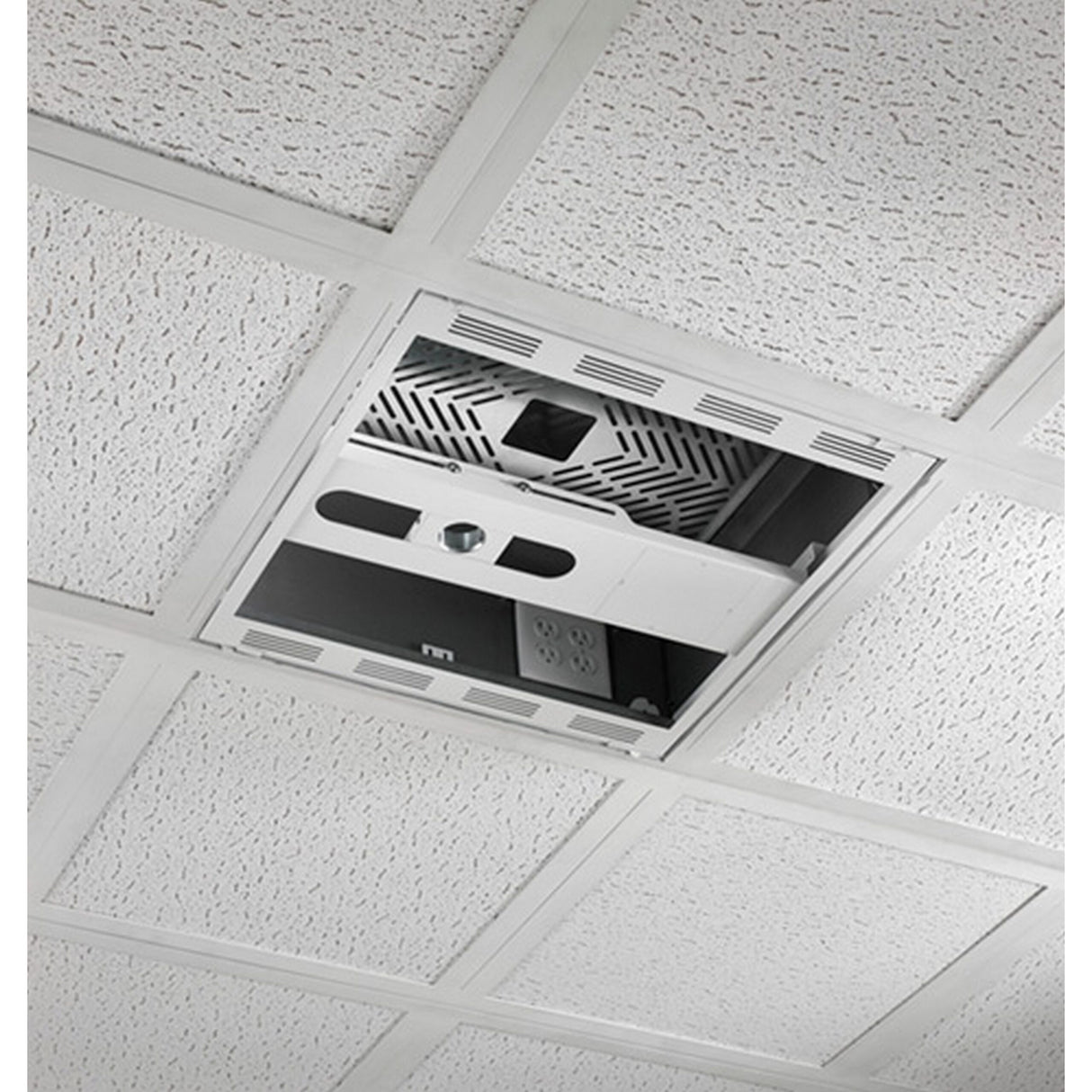

The CMS492C conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.
Key Features
- Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality

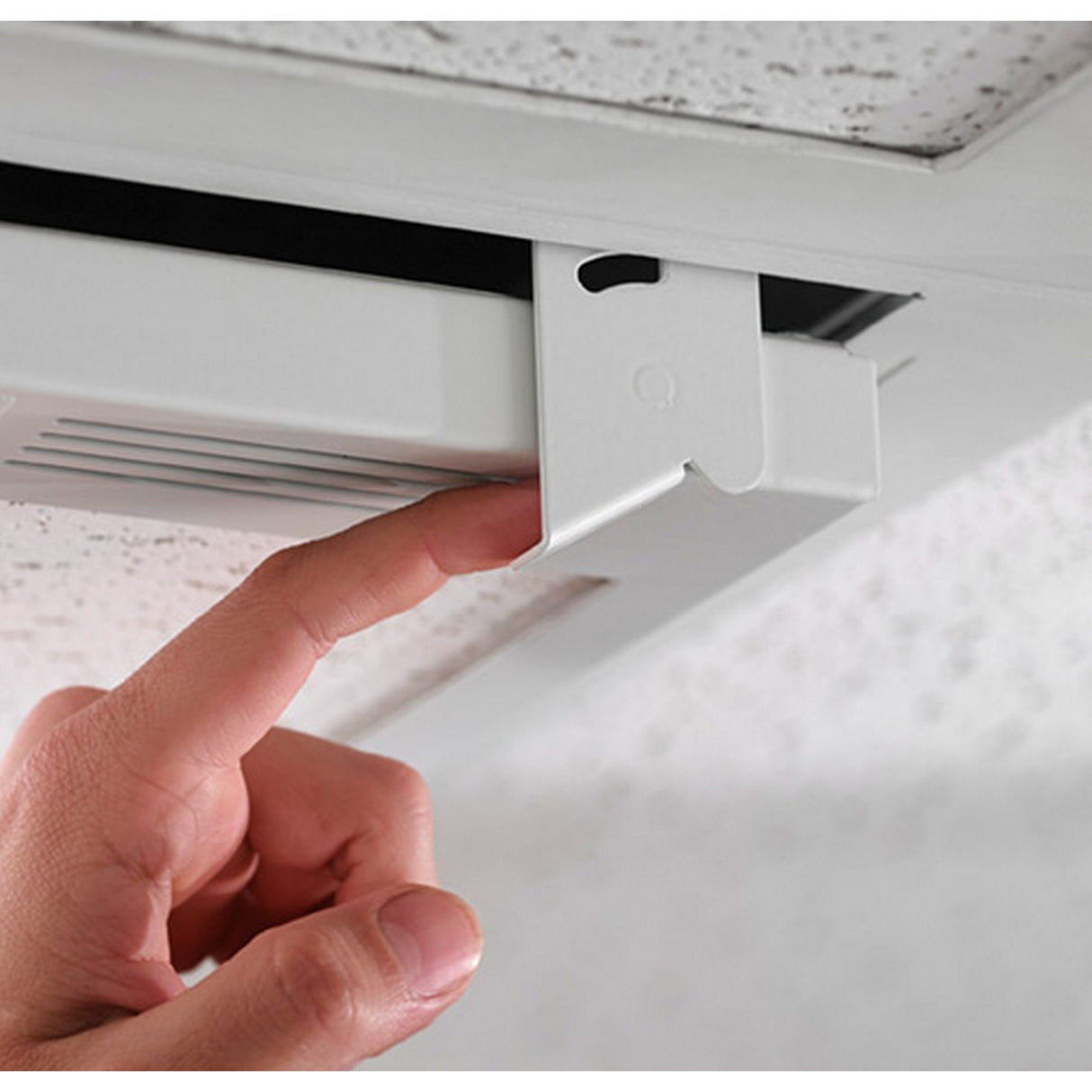

- Drop carriage door improves accessibility and serviceability providing full access to equipment
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
- Inside the box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4", 1", & Ā½" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
- 1 RU rack rail brackets sold separately, see CMS1RU
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
- TAA Compliant
Technical Specifications
Certifications
UL Listed, TAA Compliant
Color
White
Max Equip Size H x W x D
7.61" x 19.25" x 20" (193 x 489 x 508 mm)
Overall Dimensions (H x W x D)
8" x 24.97" x 23.67" (203 x 634 x 601 mm)
Shipping Weight
43.8 lbs (19.87 kg)
Weight Capacity
100 lbs ( 45.4kg)
