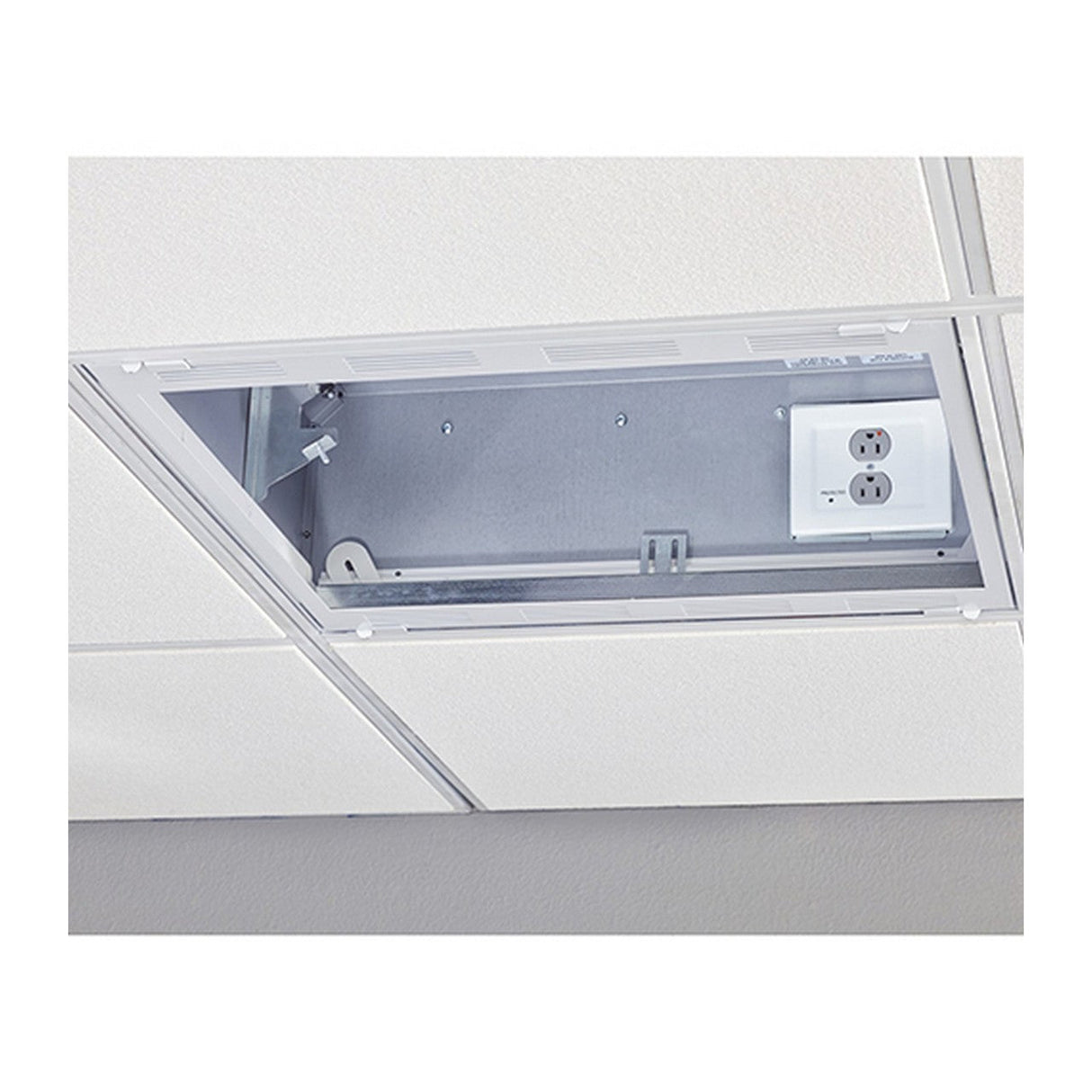

Chief CMS492P2 2 x 2 Ceiling Storage Box with 2 Gang Filter Surge White
The CMS492P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.
Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring the SurgeX® non-sacrificial multi-stage filtration and surge protection system. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
Key Features
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
- Built in ventilation
- Inside the plenum box or facing the room: Up to 2 single gang or 1 dual gang outlet, 4 nested knockouts for 1-1/4”, 1”, & ½” diameter conduit
- AV tray supports a variety of AV components: Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2, 1 RU rack rail brackets sold separately, see CMS1RU
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- Plenum rated, UL approved in accordance to 2043
- Surge and Filter Module
- Non-volatile spike protection with LED power indicator
- Non-sacrificial multi-stage technology
- Non-current limiting design passes full power on a regular circuit; redundant protection circuits
- Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
- Line filter reduces common and differential mode noise by up to 40 dB
- Rated for 125V~, 60Hz, 15 A
- 1875 watt maximum
- Ferrite toroid based EMI Filter
- WIt'stand rating of 240 VAC continuous without damage or loss of protection
Technical Specifications
Certifications
UL Listed
Color
White
Max Equip Size (H X W X D)
7.61" x 19.25" x 20" (193 x 489 x 508 mm)
Notes
Output: 15A, 1875 W continuous
Overall Dimensions (H x W x D)
8" x 24.97" x 23.67" (203 x 634 x 601 mm)
Power Requirements
Power Consumption: <0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C
Shipping Weight
43.00 lbs
Weight Capacity
100 lbs (45.4kg)
