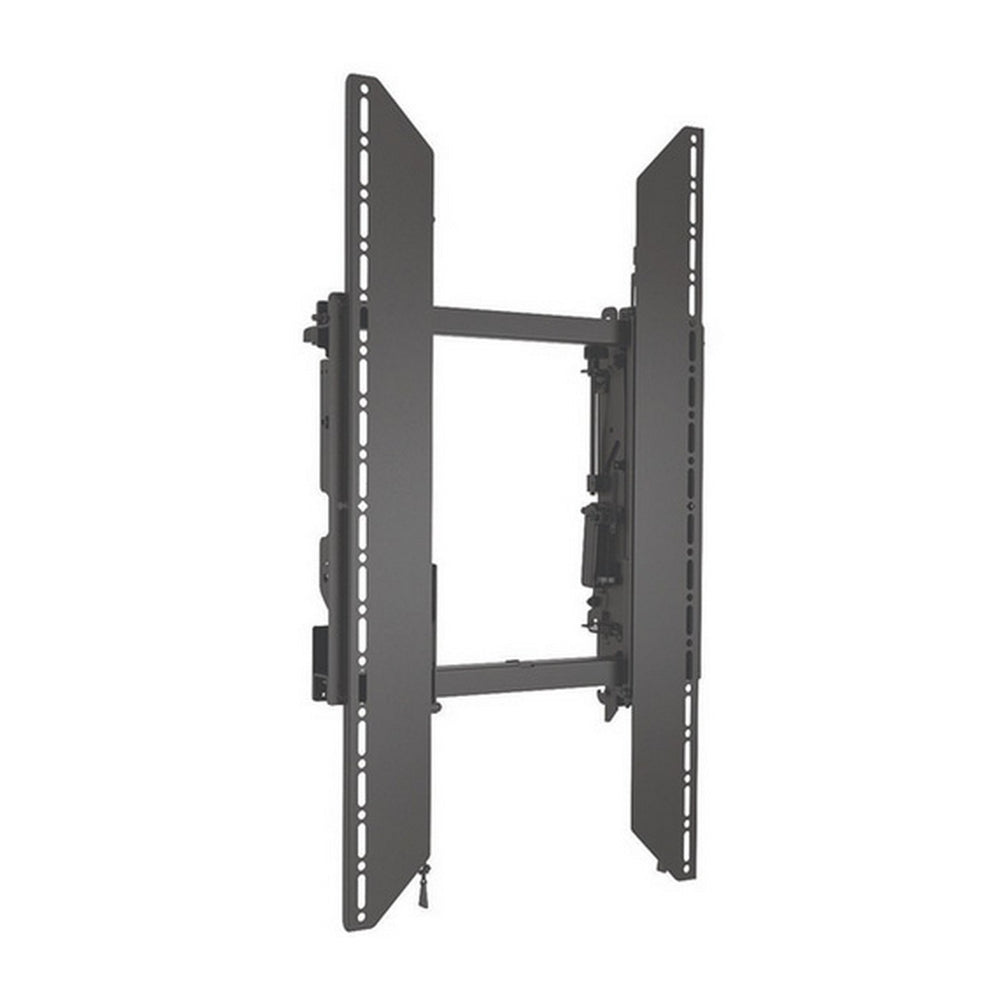

Chief LVSXUP ConnexSys Video Wall Portrait Mounting System w/o Rails
Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
Key Features
- Hang units on a single strut channel for quick row leveling
- Reduces installation time - especially for XL and recessed configurations
- Tool-free ClickConnect latching secures displays
- PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount
- Security - pad lock ¼" shank diameter
- Safety tested
- Universal interface
- Each mount comes out of the box with adjustments set in the exact same position
Technical Specifications
Certifications
TÜV Certified, UL Listed
Color
Black
Manual Height Adjustment
± 1"
Maximum Extension
13.4" (34.0 cm)
Minimum Depth
4"
Mounting Pattern Compatibility (Universal Versions)
200 x 100 - 800 x 400 mm
Orientation
Portrait
Overall Dimensions (H x W x D)
32.5 x 19.5 x 4.1" (826 x 496 x 104 mm)
Shipping Weight
38.00 lbs
Solution Type
Universal
Tilt
+ 4.0°, -2.5°
Typical Screen Sizes
40 - 80"
Weight Capacity
150 lbs (68 kg)
