Description

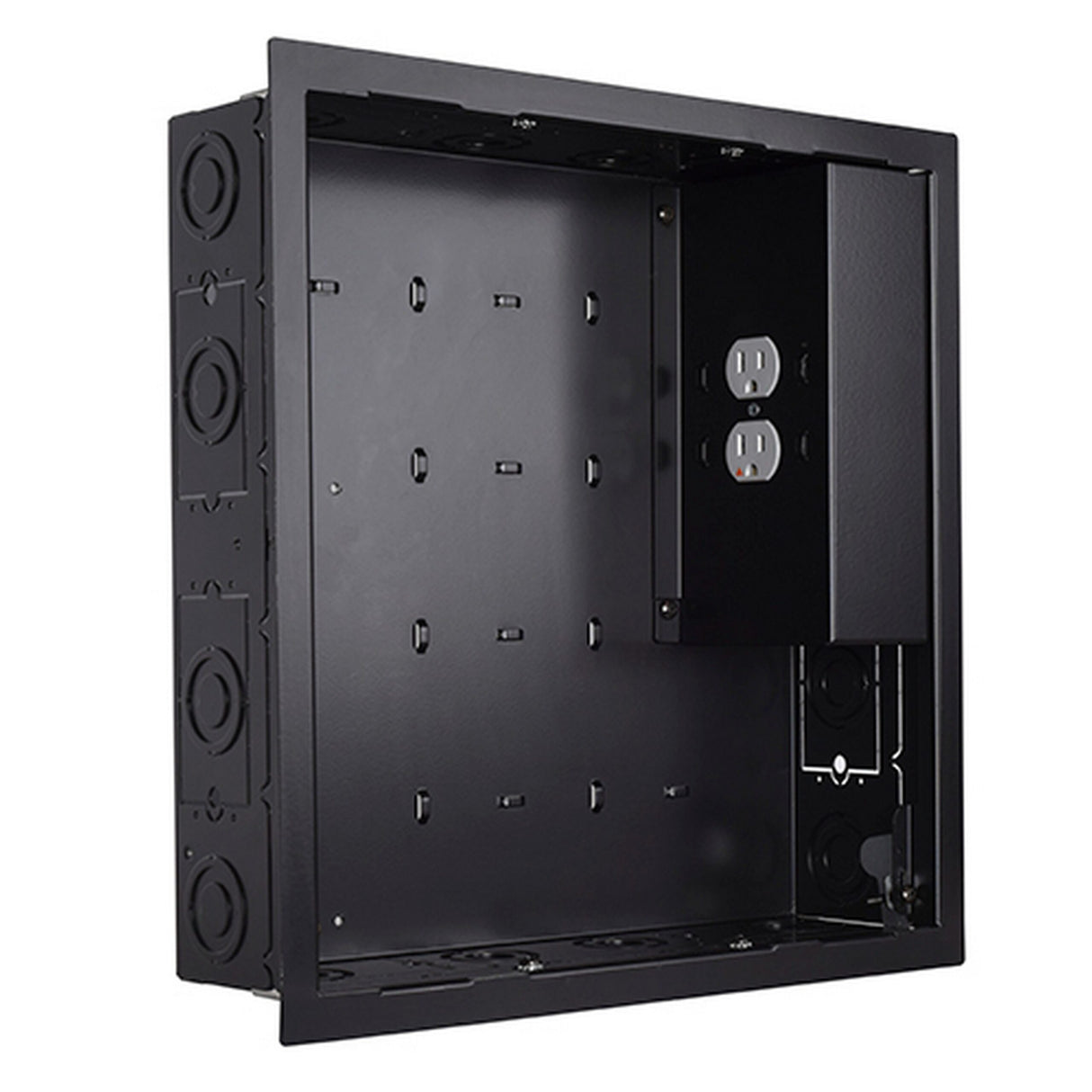

Chief PAC526FBP2 Proximity In-Wall Storage Box with 2 Receptacle Filter and Surge
The PAC526FBP2 simplifies flat panel installation by providing an organized, recessed space for routing excess cables. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability. Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances. Compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and FUSION wall mounts.
Key Features
- Pre and post construction installation options
- Drywall and stud mountable
- Knockouts for single gang outlets and 1-1/4", 1", 0.5" conduit
- Integrated universal zip tie anchor points
- Landscape/Portrait installation
- Stores a large variety of AV components
- Paintable flange to blend in any environment
- Enclosure UL 2416 Listed for installation of AV, IT & Communication Technology Equipment
Technical Specifications
Certifications
UL Listed
Color
Black
Notes
Output: 15A, 1875 W continuous
Overall Dimensions (H x W x D)
15.51 x 15.4 x 3.88” (394 x 391 x 98 mm)
Power Requirements
Power Consumption: <0.5 watt
Type 3 Surge Protective Device (SPD)
Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G
Maximum Continuous Operating Voltage (MCOV): 240V
Nominal Discharge Current (In): 3kA
Short Circuit Current Rating (SCCR): 5kA
Ambient Temperature Max: 40 degrees C
Weight Capacity
10 lbs
