Christie  |  SKU: CHRI-4K10HS-14006710401

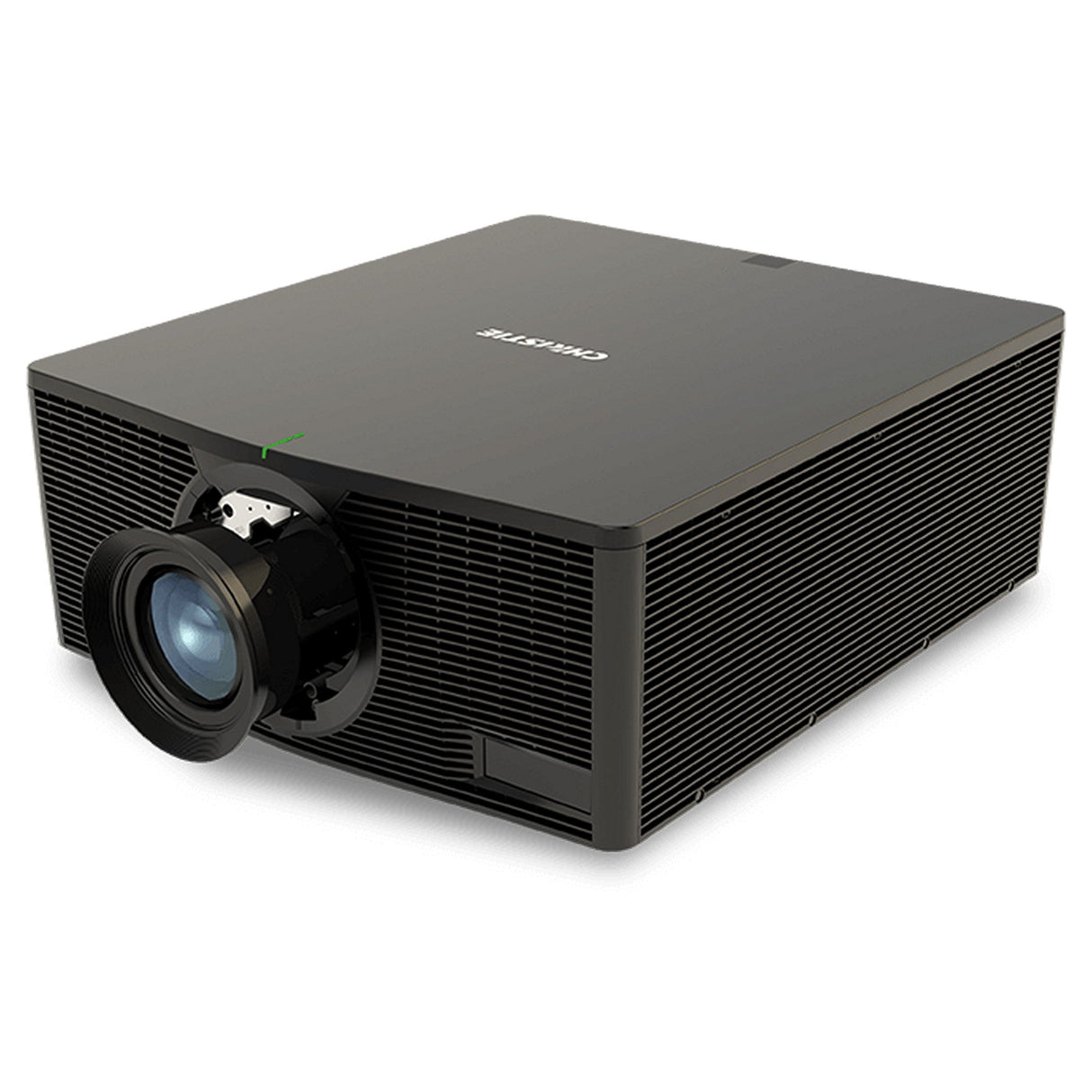

Christie 4K10-HS 10000 Lumens 4K UHD 1DLP Laser Projector

$29,75000
🚚 Order within the next 2 hours, 15 minutes for delivery by 24 May, 2024.

Condition: New



Description

Christie 4K10-HS 10000 Lumens 4K UHD 1DLP Laser Projector

The Christie 4K10-HS combines the cost-savings of 1DLP technology, the long operational life of laser and the image quality of 4K UHD resolution. The result is a high-performance 10,000 lumen, 4K UHD, HDR10 compatible laser projector that won’t blow your budget.

What makes the 4K10-HS outperform the competition is the enhanced color performance thanks to the patented Christie BoldColor Technology. Colors appear natural and with the added fidelity of 4K UHD resolution, visuals are lifelike and clearer than ever.

The 4K10-HS features our built-in Christie Twist warping and blending engine for fast and easy multi-projector setups and is compatible with Christie Mystique automated camera-based alignment software tools which let you quickly stage, install, align, calibrate and maintain multi-projector systems. For even more flexibility, the 4K10-HS has two expandable option card slots which can accommodate cards such as the Christie Terra input card; 3G SDI input cards; and HDBaseT input cards. Plus, with HDMI 2.0, Display Port 1.2 Inputs, you can feed the projector 4K60Hz content over a single HDMI or Display Port cable for simplified setup and cable routing.

Key features

  • 1DLP 4K UHD resolution - Benefit from high fidelity visuals at an affordable price
  • Christie BoldColor Technology - Enhanced color performance and saturation over standard laser phosphor projection
  • Compact and light - Small form factor and weighs less than 80 lbs. for easy shipping, lifting and installation
  • Long-life laser light source - Up to 20,000 hours of virtually maintenance-free operation
  • Warp and blend - Built-in Christie Twist for quicker and easier multi-projector setups
  • Compatible with Christie Mystique - Automated camera-based alignment solutions that eliminate the challenges, time and expertise required to align, stack, warp and blend complex multi-projector arrays and projection mapping experiences
  • Fully omnidirectional - Unrestricted design and installation flexibility
  • Expandable - Customize the performance and flexibility with two expandable option card slots
  • Comprehensive connectivity - Full connectivity for popular formats including 3GSDI (optional) for added redundancies
  • Christie Virtual Remote 1DLP - Gives you wireless control from any smartphone or tablet
  • Advanced electronics - Firmware updates take only minutes

Technical Specifications

Brightness
11,000 ISO lumens
10,000 ANSI lumens
Color wheel
4 segment (RGBY) - 2X speed
Contrast (nominal)
Full on/off (Christie RealBlack enabled): 2,000,000:1
Dynamic contrast: 5000:1
Full on/off (Christie RealBlack disabled): 1200:1
ANSI 250:1
Display
1 x 0.66” DMD
Resolution
4K UHD; 4.15MP; 2716x1528 (WQXGA+) DMD
3840 x 2160 (8,294,400 pixels) 16:9
Illumination system
Laser phosphor with Christie BoldColor Technology
Typical lifetime
20,000 hours to 50%
Signal inputs
HDMI x 2 (HDMI 2.0b, HDCP 2.1 Compliant)
DVI-D x 1 (digital only)
DisplayPort x 1 (versions 1.2)
USB x 1 (Type A)
Wi-Fi dongle (optional)
HDBaseT (RJ45 x 1)
Optional
Terra SDVoE (optional input card)
3G SDI (optional input card)
Note: HDBaseT comes standard but occupies 1 of the 2 optional input slots
3D & 2D HFR
HDMI 1.4, HDBaseT - frame packed, top/bottom, side-by-side (up to 120Hz output)
Signal input up to 1920 x 1200 @ 120Hz over HDMI, DP and DVI
3D sync in (BNC) - for genlocking projectors
3D sync out (BNC) - for genlocking projectors, or controlling emitters
Signals
Standard video signals up to 4096 x 2160 @ 60Hz (over a single cable; HDMI 2.0 or DP 1.2)
Horizontal and vertical scaling while maintaining aspect ratio, all inputs
Pixel clock
Maximum input pixel rate 600 Mpix/s (supports 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz over HDMI & DP)
Minimum input pixel rate 27 Mpix/s (supports 480i @ 60Hz & 576i @ 50Hz)
Scan rates
Horizontal: 15 kHz to 91 kHz
Vertical: 24 Hz to 85 Hz
Monitor out (loop through)
3GSDI x 1 (BNC)
Control and networking
RS232 In
Control via HDBaseT
Ethernet (10/100) RJ45
Built-in backlit keypad
Wired remote control (3.5mm stereo) - loop out available for daisy chaining
Accessories
IR remote w/ wired remote jack (wire not included)
AC line cords for projector head
User manual
Optional
Christie One Rigging Frame
Lens adapter for E Series lenses
1DWUSB-BGN (wireless dongle for video and control)
HS fog filter covers + filters (order once per projector then only filters refills)
HS fog filter refills (1 set)
Christie One Mount Plus
One Mount Extender Rod
One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod)
Replacement remote control
Warping and blending
Christie Twist
Optional
Christie Twist Premium and Twist Pro
Christie Mystique automated camera-based alignment
Lens mount
Boresight adjustable
Motorized horizontal and vertical lens offset (memory available)
Motorized zoom and focus adjustment (memory available for full ILS lenses)
Lens options
0.85-1.02:1 short zoom lens
1.20-1.73:1 zoom lens
1.7-2.21:1 zoom lens (full ILS)
2.12-2.83:1 zoom lens (full ILS)
2.83-5.66:1 zoom lens (full ILS)
5.66-10.18:1 zoom lens (full ILS)
Operating voltage
Normal: 100-240 VAC @ 50/60Hz
Power consumption
Maximum power consumption: 1070W
ECO1 mode (80%): 865W
ECO2 mode (50%): 540W
Operating current
Normal mode: 9.0A +/-15% (120 VAC), 4.8A +/-15% (220 VAC)
ECO1 mode: 7.2A +/-15% (120 VAC), 3.9A +/-15% (220 VAC)
ECO2 mode: 4.5A +/-15% (120 VAC), 2.45A +/-15% (220 VAC)
Dissipation
Normal mode: 3651 BTU/hr
ECO1 mode: 2951 BTU/hr
ECO2 mode: 1842 BTU/hr
Audible noise
Typical: 39dB(A)
Eco mode: 33dB(A)
Dimensions
(L x W x H) 23.6 x 20.5 x 8.4" (600 x 520 x 214mm) without feet
Weight (without lens)
79.4 lb (36 kg)
Shipping dimensions
(L x W x H) 35.6 x 29.9 x 14.8" (905 x 760 x 365mm)
Shipping weight
99 lb (45 kg)
Operating environment
Temp: 0 to 40° C (32 to 104° F)
Humidity: 0 - 85% non-condensing
Regulatory
UL/CSA/IEC 60950-1
FCC Class A
CE
FDA
CCC
KC
PSE
CU
SABS
BIS
VCCI
RCM
Ukr
TER
SASO
This product conforms to all relevant European directives, standards, safety, health and environmental concerns
RoHS
REACH
WEEE
Limited warranty
Three years parts and labor on the projector
Three years or 15,000 hours parts and labor on the illumination system*
Contact an authorized Christie representative for full details of our limited warranty
