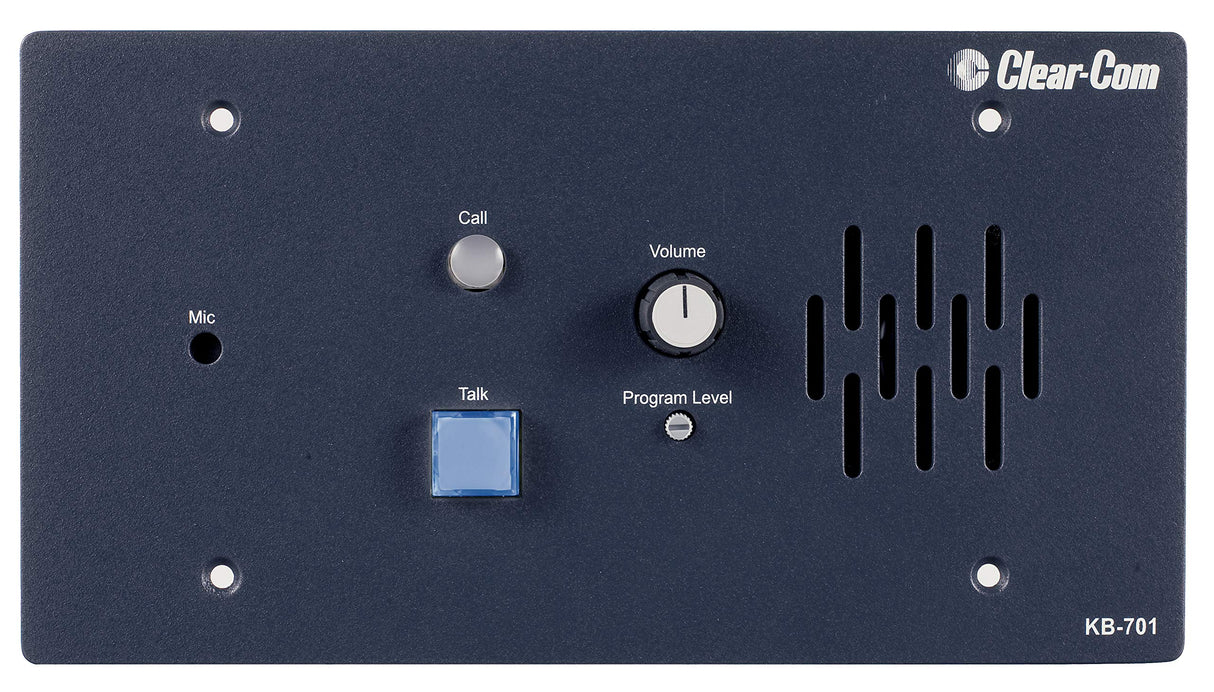

Clear-Com KB-701 Single Channel Wall Mount Speaker Mic Station
1-Channel Flush-Mount Push-to-Talk Speaker/Mic Station Mounts in the V-Box ,HelixNet S-Mount, or console.
The KB-701 remote speaker station connects to a single channel of party-line intercom and operates in half-duplex mode. It features both an integral speaker and a flush mount electrets microphone with mic limiter and a push-to-talk button.
Key Features
- Selectable two-channel, full-duplex operation
- Microprocessor-controlled logic and switching
- Momentary/latching talk button
- Visual and audible call signaling, with bright LED indicator
- Balanced local program input with separate level control
- Internal controls for call signal tracking, mic latch disable, and other functions
- Use with headset or handset, with integral speaker for monitoring
- KB-702GM adds mic jack for gooseneck mic plus VOX circuitry
- Optional TW and 4-Wire daughter boards provided additional exibility
- Wall or console mount, or optional V-Box for portable or desktop use
- LED buttons for talk, listen, call, announce, link, all talk, or mic on.
Technical Specifications
Program Line Input
Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5K OHMS
Speaker Output
Load Impedance: >= 4 OHMS
Max Output Level before 1% Distortion: 20dBu Ā± 2dBu
Party-line Output
Off Noise: < -74dBu
Output Impedance: >10K OHMS
Party-line Input
Crosstalk: < -60dB
Max level before Clipping: >= 12dBu
Frequency Response
Program Input - Speaker Out: 200 - 18KHz Ā± 3dB
Party-line - Speaker Out: 200 - 18KHz Ā± 3dB
Max Distortion
Program Input - Speaker Out: <= 0.5%
Party-line - Speaker Out: <= 0.5%
Noise
Program Input - Speaker Out: < -60dBu
Party-line - Speaker Out: < -50dBu
Max Gain
Program Input - Speaker Out: >= 24dB
Party-line - Speaker Out: >= 40dB
Power
Input Voltage Range: 20-30 VDC
Input Current (Idle): <= 90mA
Input Current (Max): <=110mA
Internal Connectors and Jumpers
Intercom: Line Five terminal connector
Program Input: Three terminal connector
Option Switches: Three DIP switches
Front Panel Controls & Indicators
(1) Program level control
(1) Intercom level control
(1) Talk button
(1) Call button
(1) Integral microphone
Environmental
32 - 122o F (0 - 50o C)
Dimensions
8.5 in. W x 4.5 in. H x 1.75 in. D
(210 mm x 114 mm x 44 mm)
Weight
1.04 lbs. (0.47 Kg)
