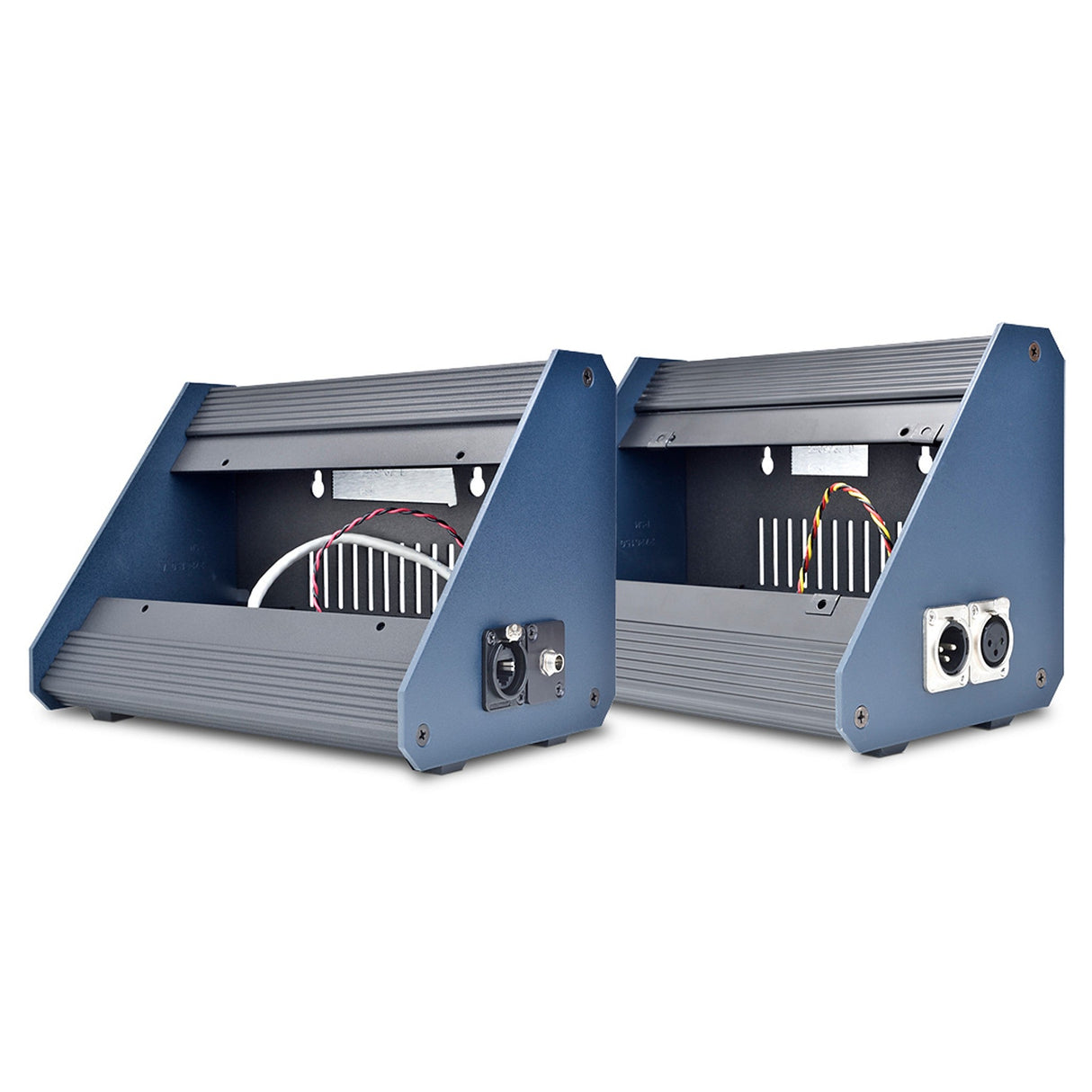

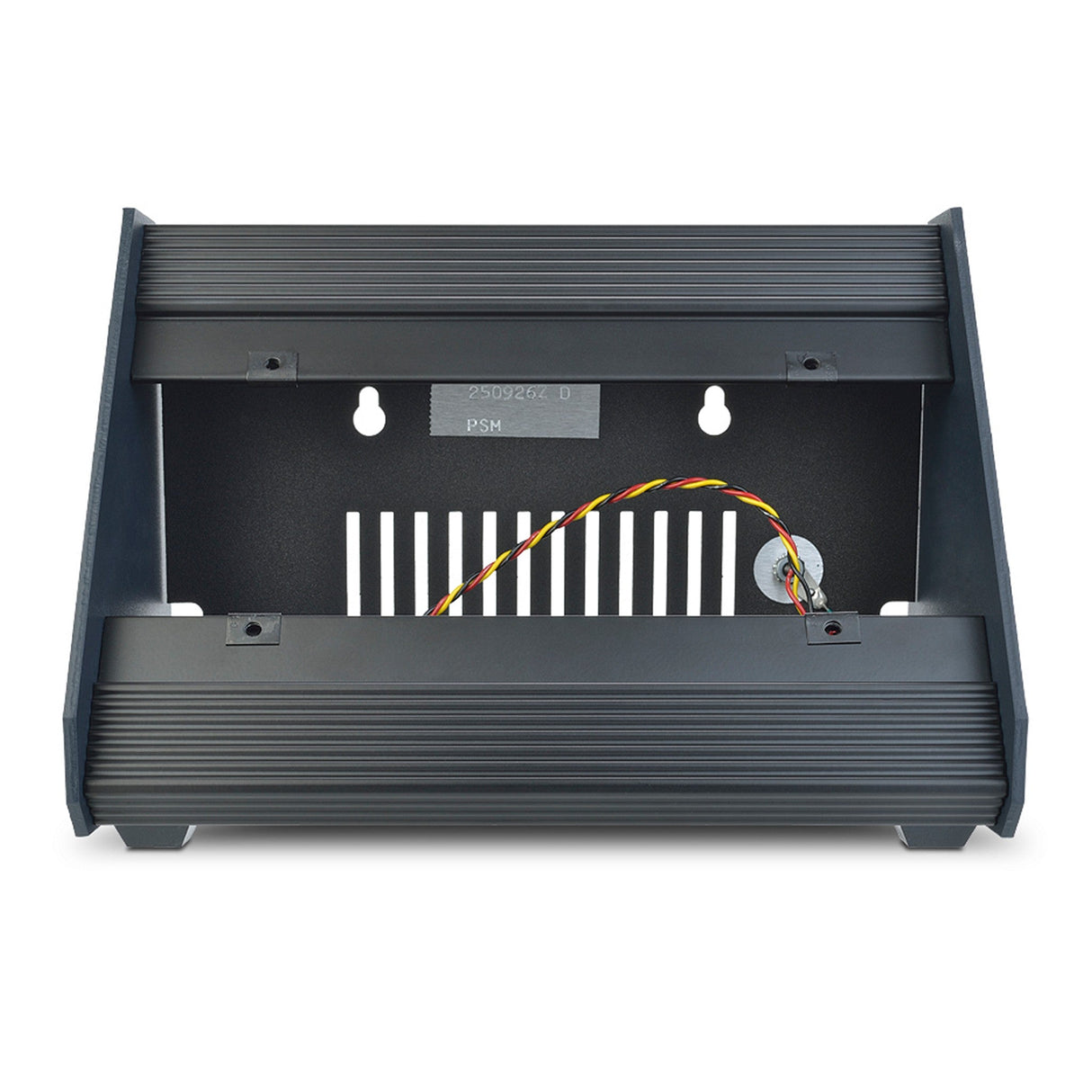

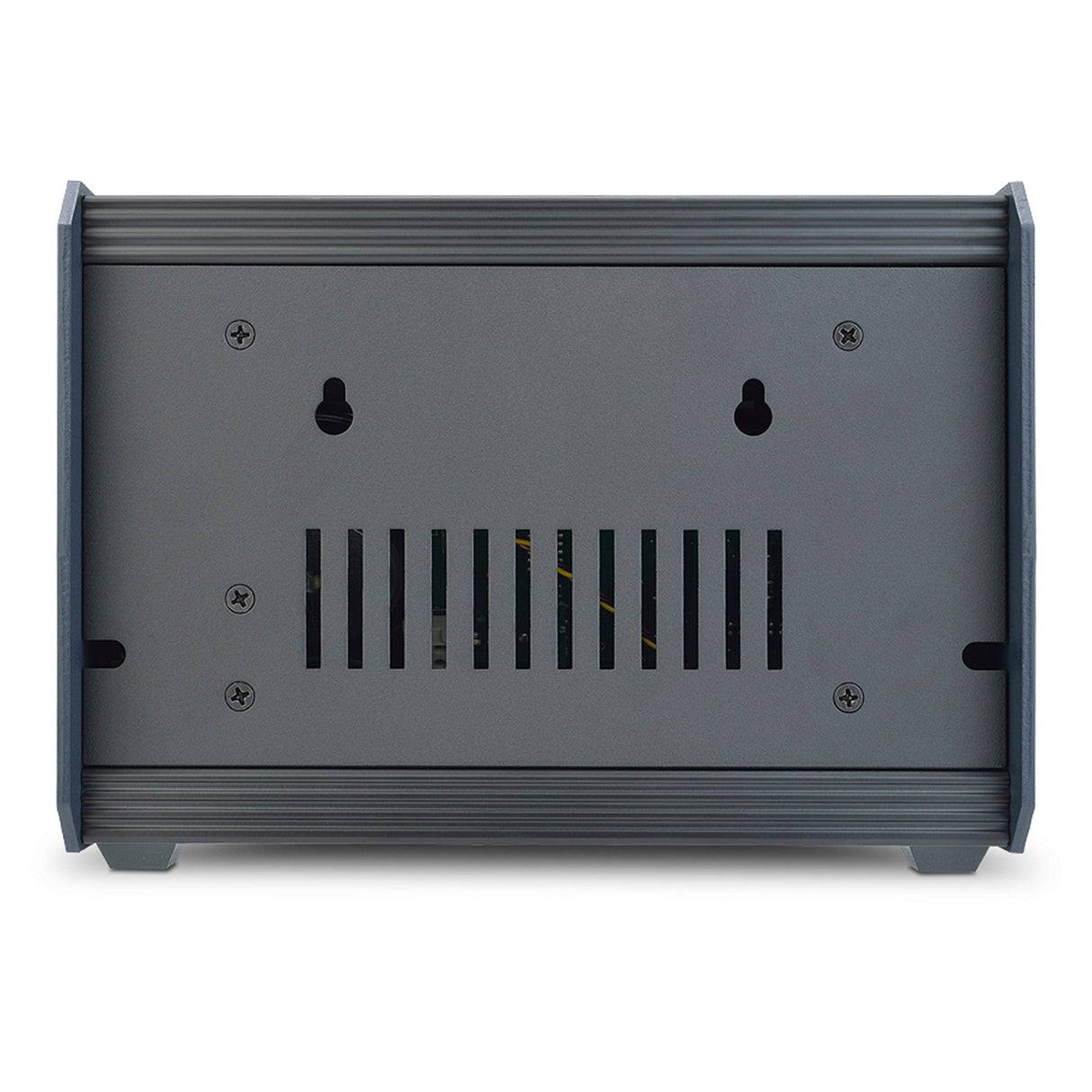

The U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation.
Key Features
- Enclosure for KB speaker station
- Permanently installed or portable
- Integrated handles
- Vertical or angled KB installation
- Desktop or wall mount
- VESA 75 mounting option
- Rugged enclosure
- Available wired for single or dual-channel partyline and 4-wire
Technical Specifications
Connectors
U-Box-X3
XLR Partyline: 3-pin XLR-M/F
U-Box-X6
XLR Partyline: āSwitchcraft-styleā* 6-pin XLR-M/F
U-Box-RJ45
Four-Wire: etherCON RJ45
Input Power Connector: DC 2.1mm Co-axial
Environmental
32Ā° - 158Ā°F (0 - 70Ā°C)
Mounting
U-Box
Keyholes Center-to-Center: 4.0in (101.6mm)
Keyhole Diameter: 0.318-0.159in (8.08-4.04mm)
VESA Sockets Center-to-Center: 2.95in (75mm)
VESA Thread Type: M4x10
Mounting Bracket
Keyholes Center-to-Center: 5.9in (149.9mm)
Dimensions
U-Box
4.5 x 8.2 x 2.8in (HxWxD)
(113.79 x 208.79 x 70.23mm)
U-Box in Mounting Bracket
5.4 x 8.3 x 6.1in (HxWxD)
(136.19 x 209.55 x 154.37mm)
Weight
U-Box: 0.71lbs (0.32kg)
U-Box with Mounting Bracket: 0.90lbs (0.41kg)
U-Box with KB Speaker Station: 1.97lbs (0.89kg)
*IMPORTANT: XLR Connector Compatibility
Clear-Com products featuring 6-pin XLR connectors utilize the Switchcraft XLR pin layout. Compatible connectors are available from manufacturers, such as Switchcraft and Neutrik, yet compatibility must be verified. Neutrik 6-pin XLR connectors must include āSā in the part number to ensure compatibility.
