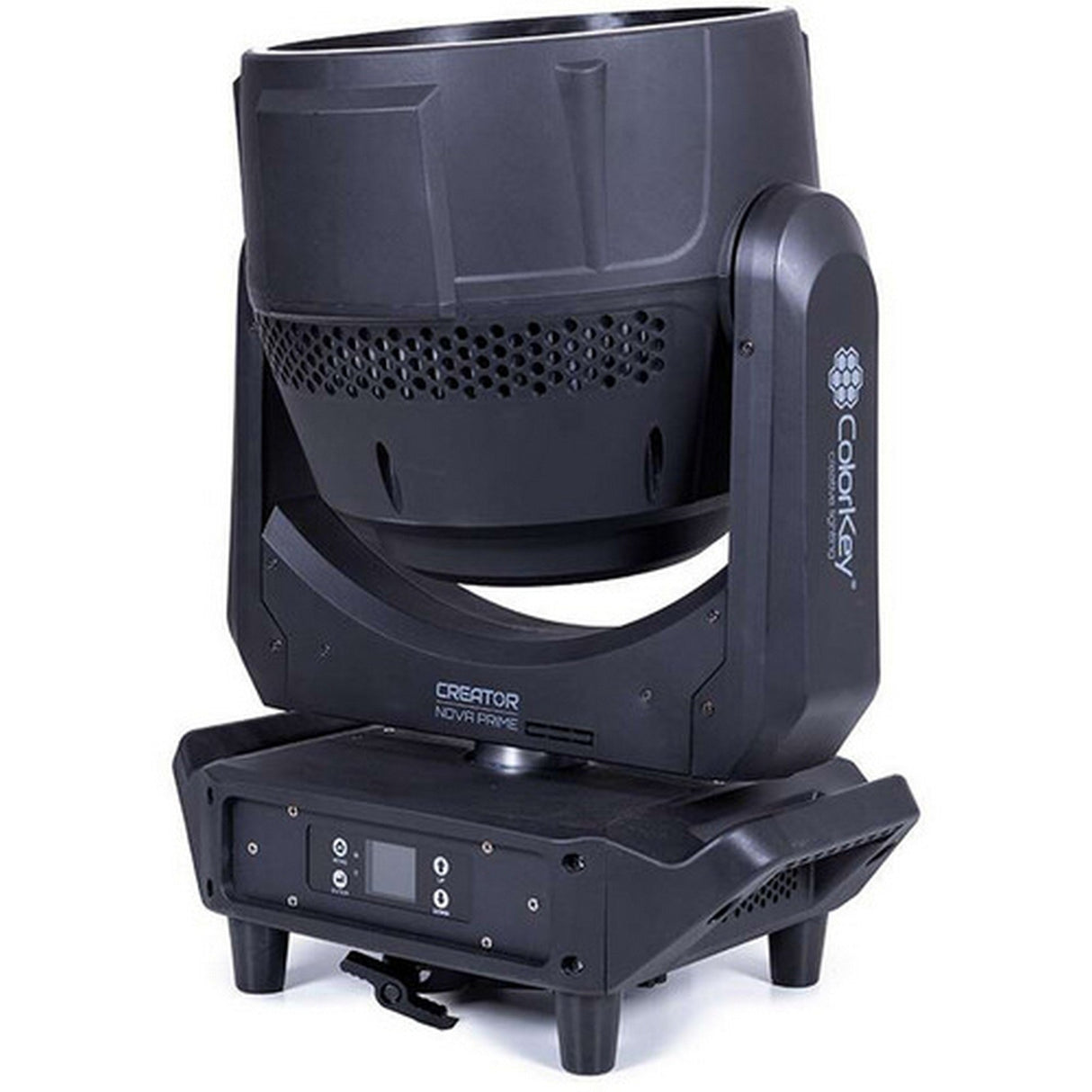

ColorKey CKU-5190 Creator Nova Prime LED Moving Head Fixture

ColorKey CKU-5190 Creator Nova Prime LED Moving Head Fixture

The ColorKey CKU-5190 Creator Nova Prime LED Moving Head Fixture combines a 200W white beam, twelve NovaCell lenses, seventy-two RGBA SMD LEDs, and dual RGB halos in one motorized platform. Its independently controllable light engines let designers layer beam, wash, pixel, and halo effects without dedicating separate fixtures to each visual role.

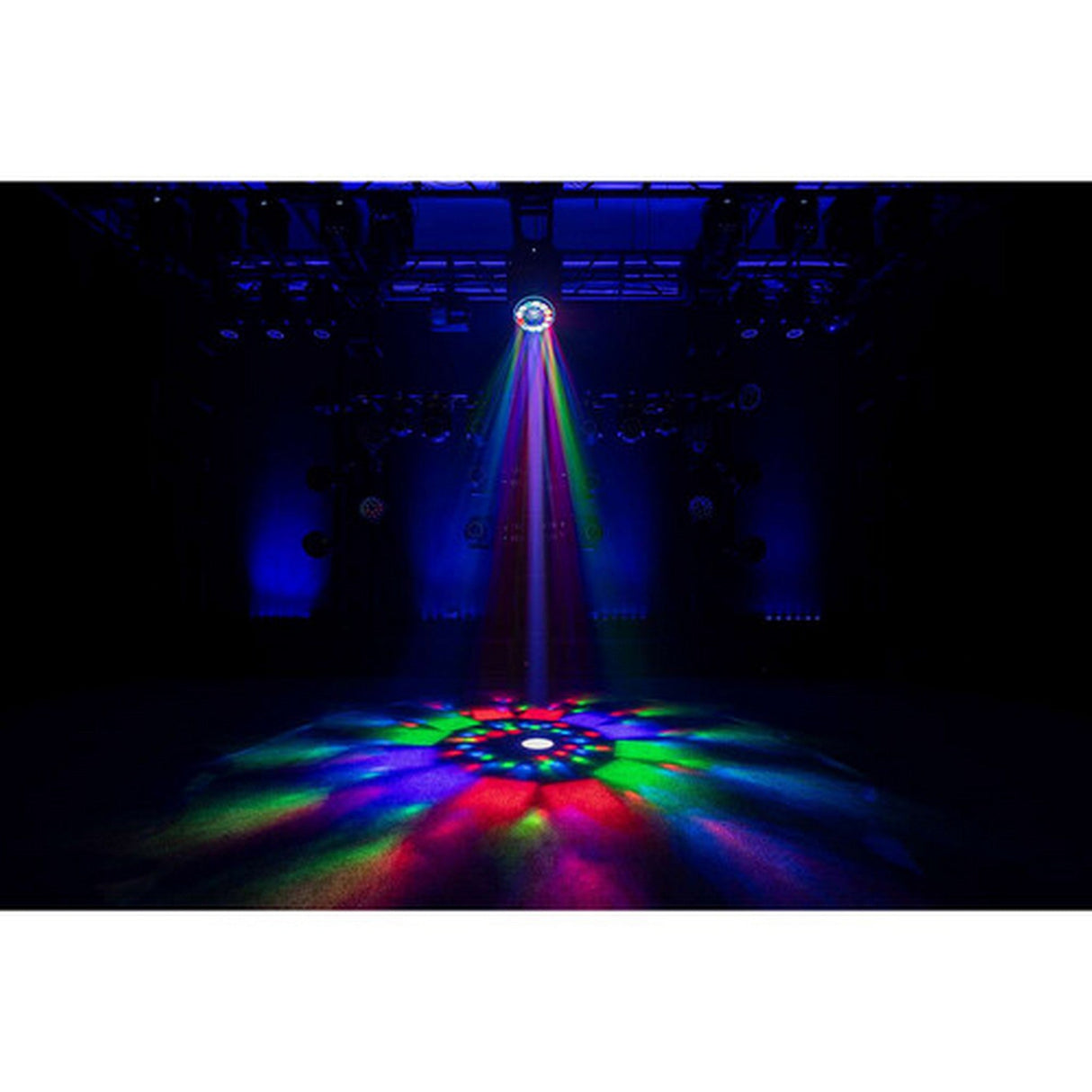

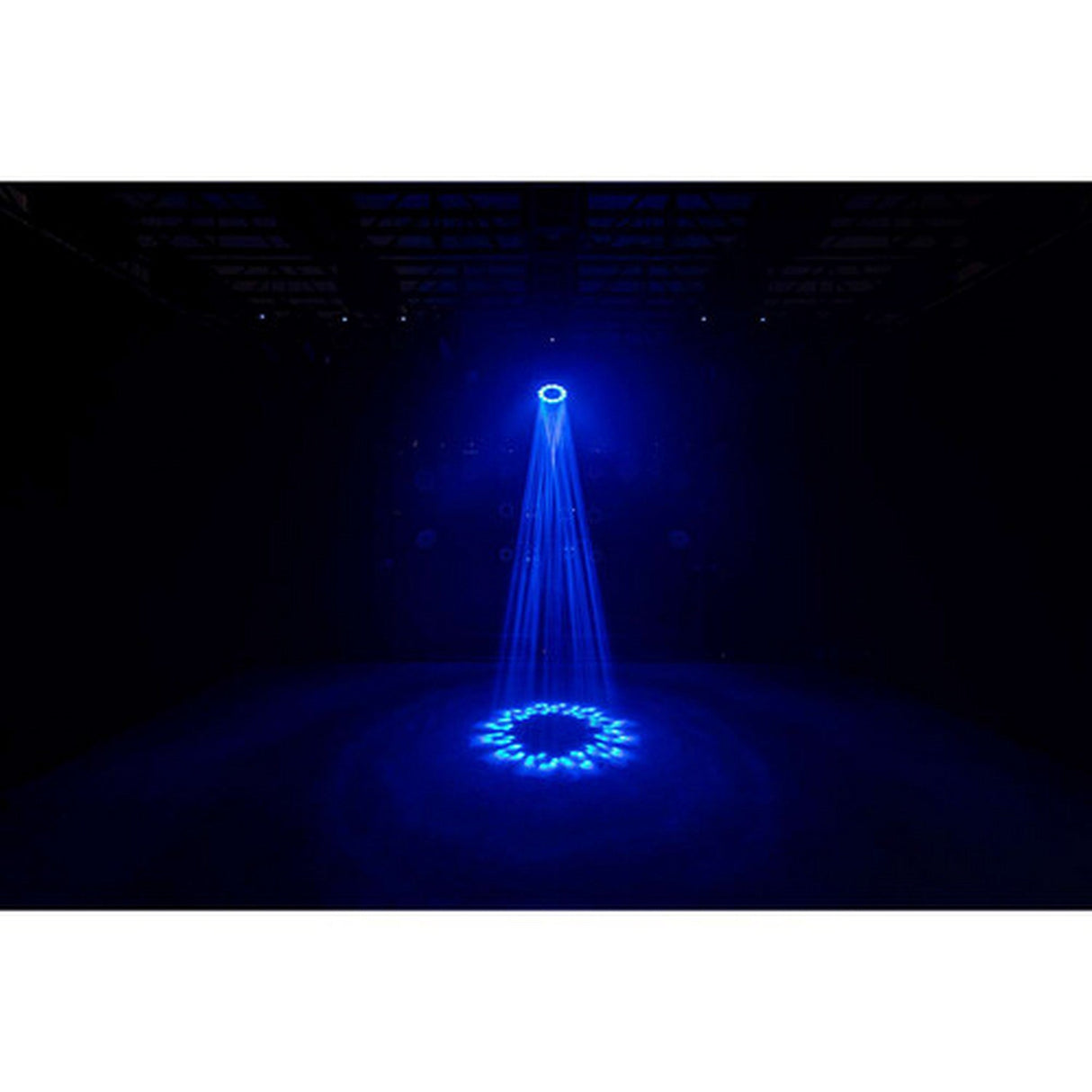

Designed for concerts, touring rigs, clubs, live events, and permanent venue installations, the Creator Nova Prime moves from a tight 2° aerial beam to broader NovaCell wash coverage. Motorized focus, dual prisms, ten gobos, thirteen colors plus white, frost, and zoom provide extensive beam shaping for productions that need a beam-and-wash moving head with pixel effects.

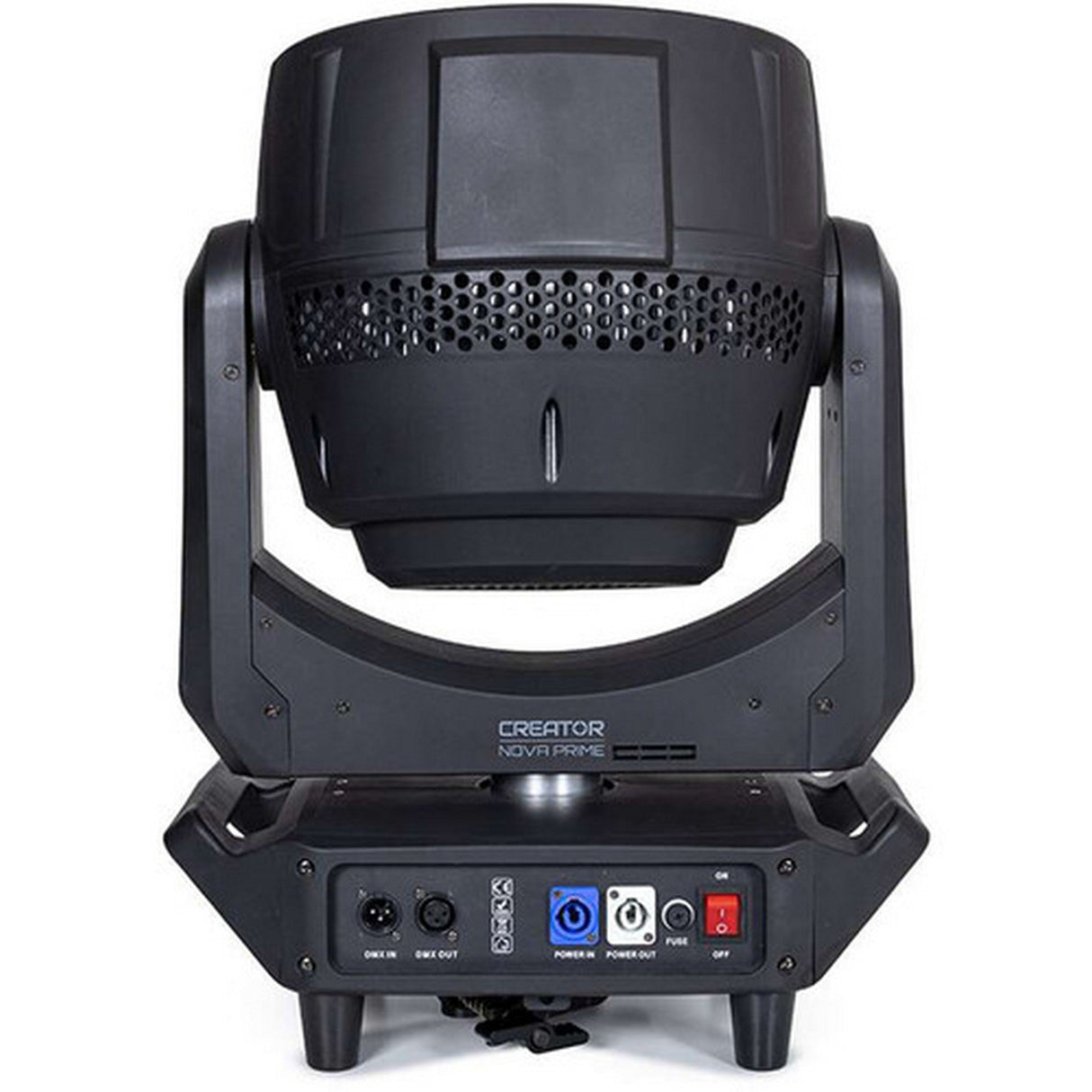

DMX512 and RDM control integrate the fixture into professional lighting systems, while Auto and Sound Active modes support standalone operation. Two DMX channel modes provide 46 or 94 channels for different programming depths. Dual folding base clamps speed truss deployment, PowerCon power linking simplifies power distribution, and the color LCD display provides direct fixture navigation.

Key Features

• Multi-Engine Lighting System: Combines a 200W beam, NovaCell COB LEDs, RGBA SMD LEDs, and dual RGB halos for layered lighting effects.

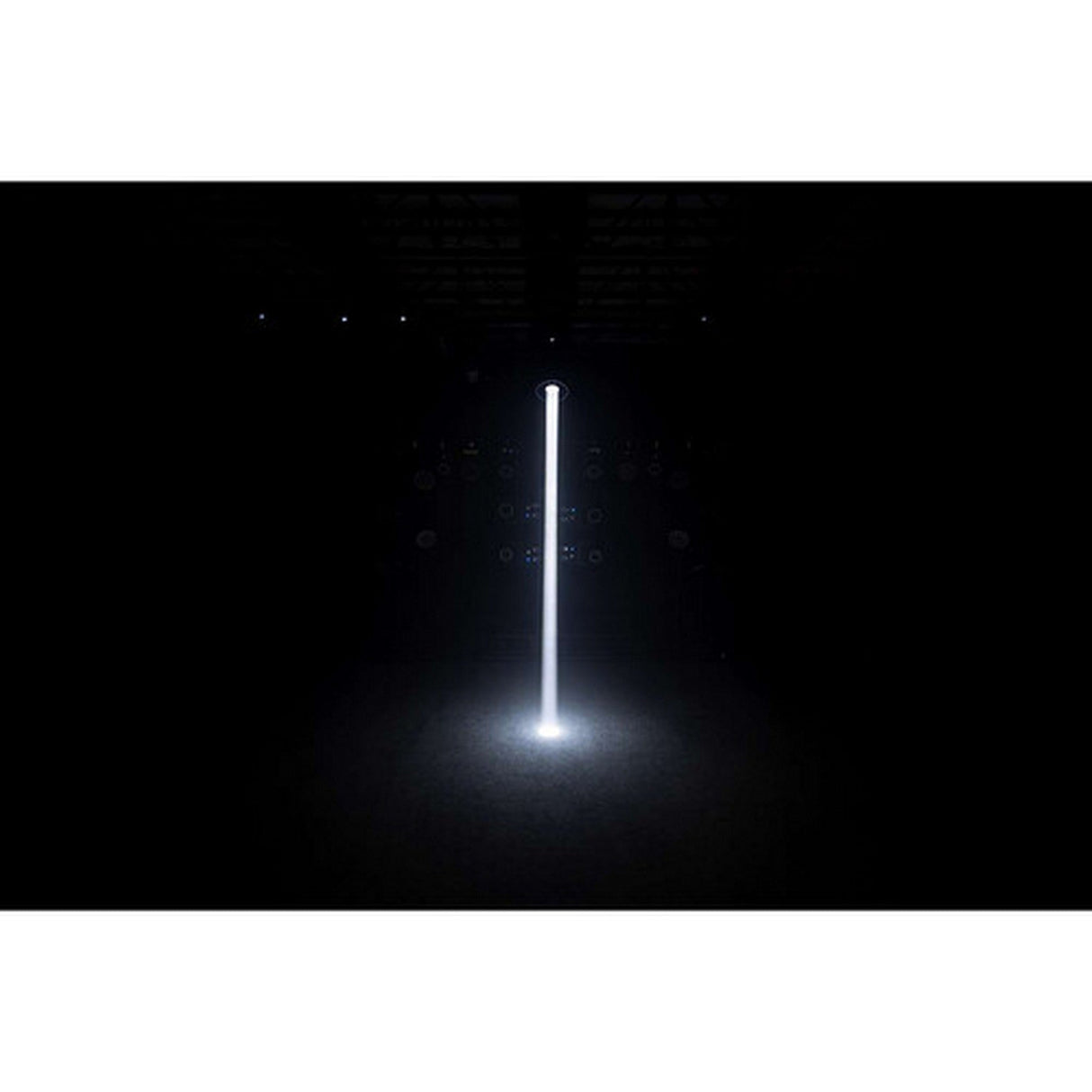

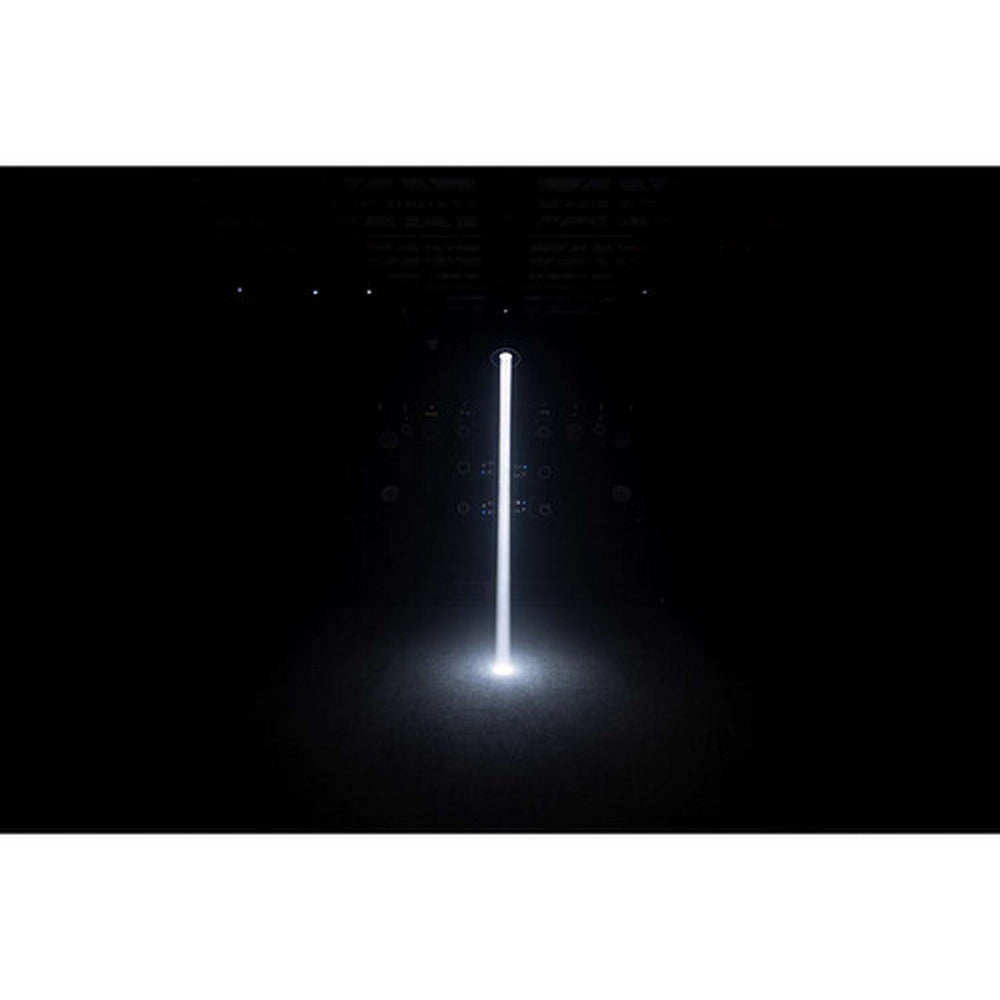

• 200W White Beam: Produces a tight 2° beam with motorized focus for defined aerial effects and long-throw looks.

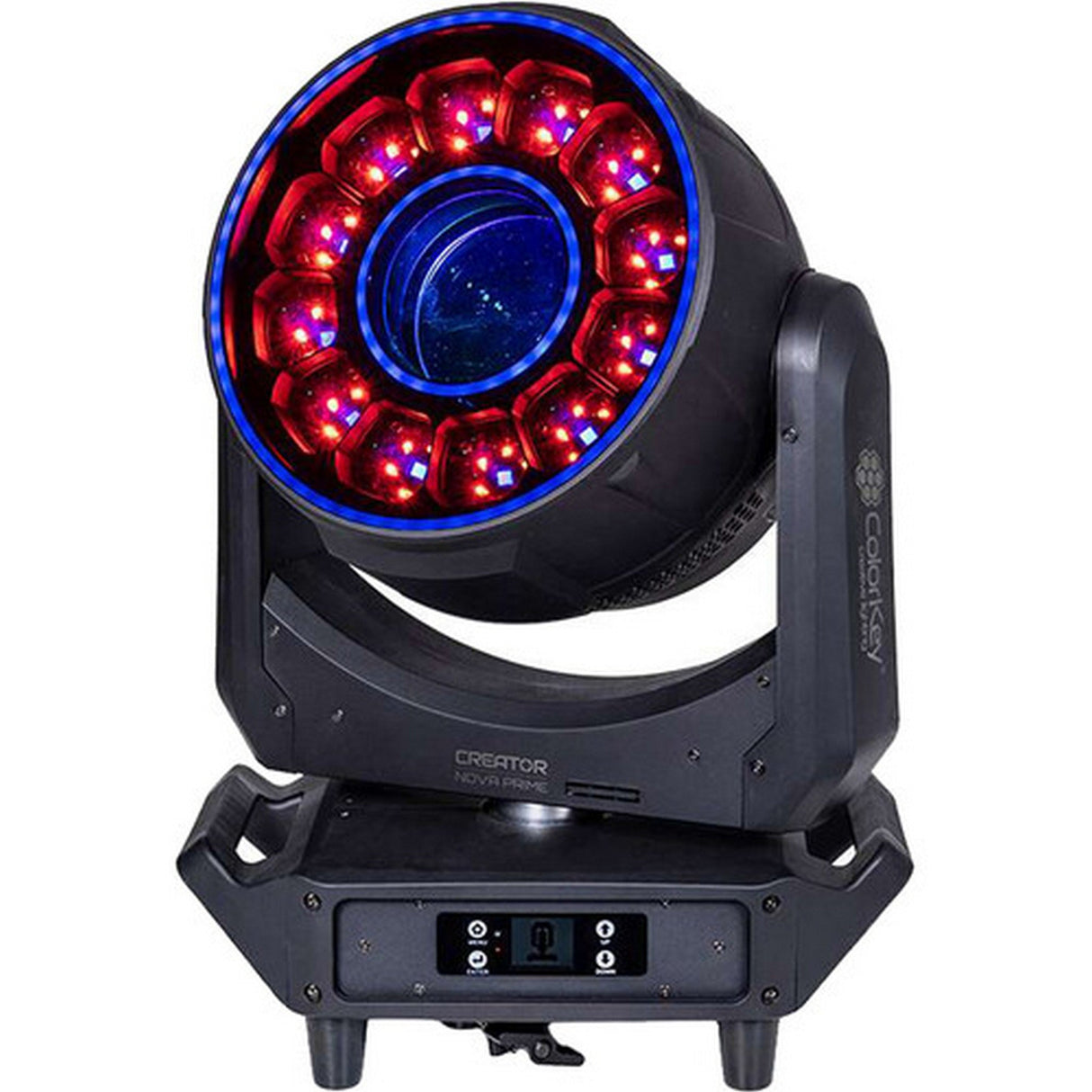

• 12 NovaCell Lenses: Uses 12 x 40W RGBW COB LEDs with zoom capability for wash and pixel-based effects.
• 72 RGBA SMD LEDs: Adds independently controllable color and pixel effects around the NovaCell lens array.

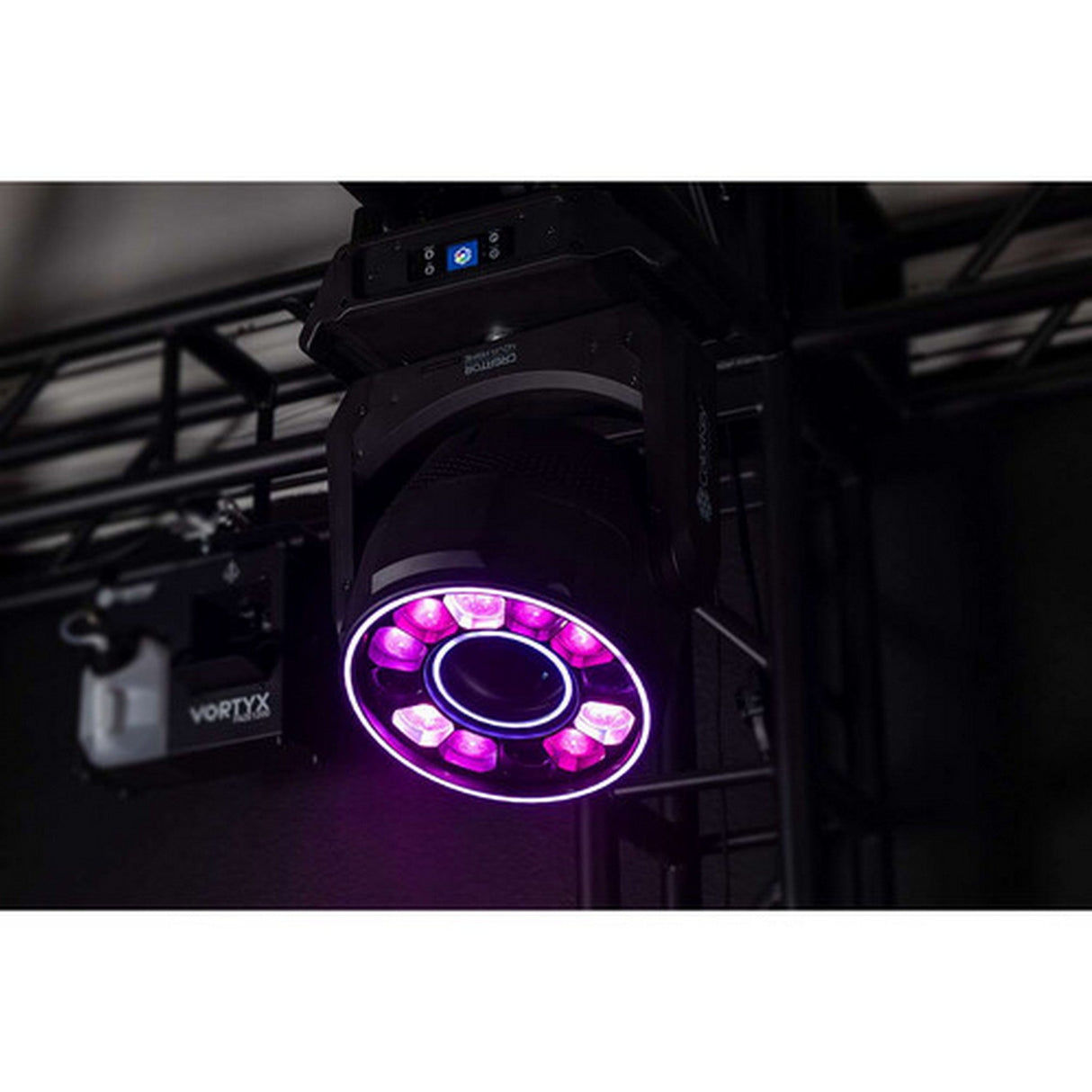

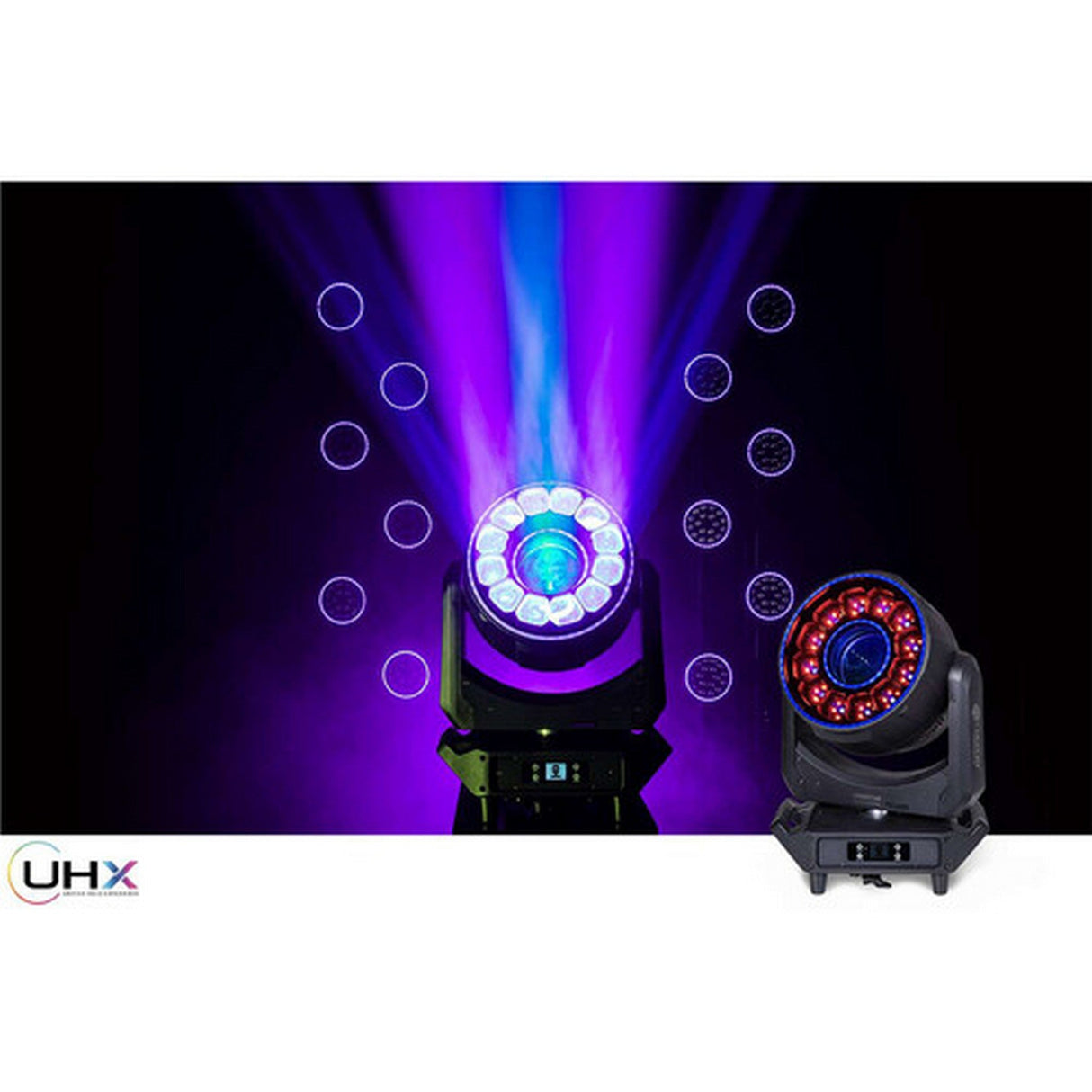

• Dual RGB UHX Halos: Expands visual programming options with two additional halo lighting elements.
• Advanced Beam Shaping: Includes 16- and 8-facet prisms, ten gobos plus open, thirteen colors plus white, frost, and motorized focus.
• Flexible Control: Supports DMX512, RDM, Auto, and Sound Active operation with 46- and 94-channel DMX modes.

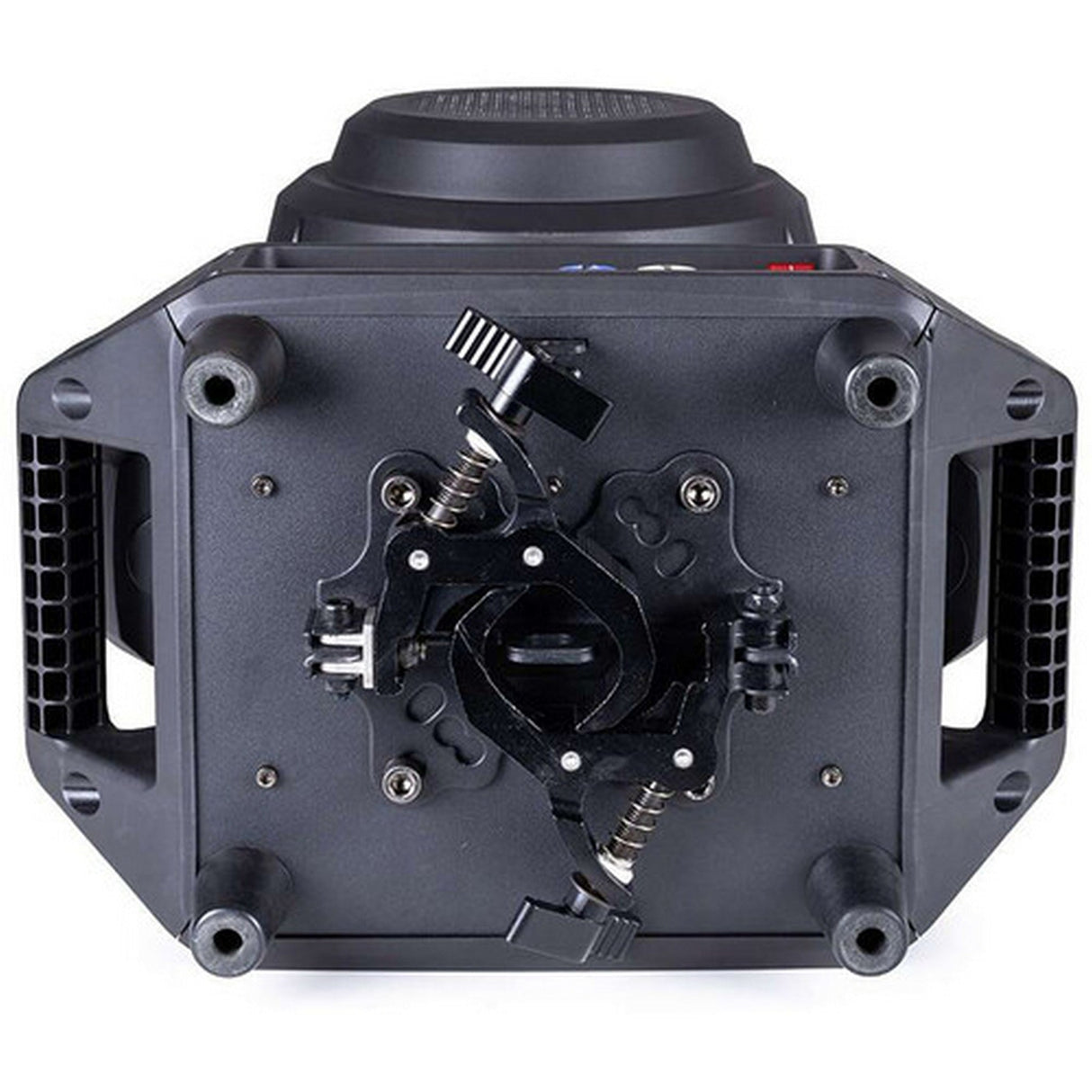

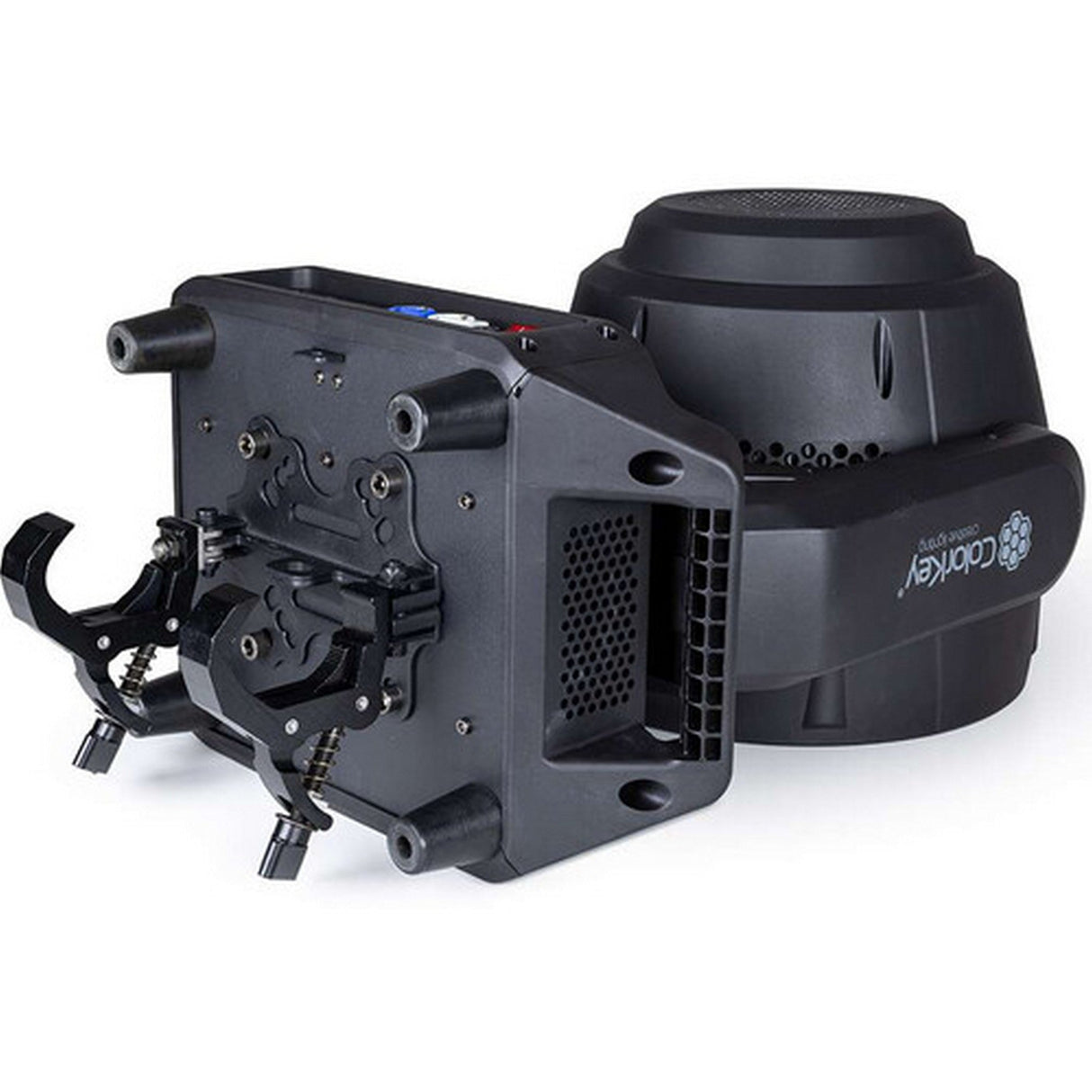

• Installation-Ready Design: Dual folding clamps, power linking, and a color LCD help streamline professional setup and deployment.

Technical Specifications

Light Sources

• White Beam: 200W
• COB LEDs: 12 x 40W RGBW, wash and pixel effect
• SMD LEDs: 72 x 5W RGBA, wash and pixel effect
• Halos: 2 x RGB

Beam System

• Color Wheel: 13 colors plus white
• Gobo Wheel: 10 gobos plus open
• Prisms: 16-facet and 8-facet
• Beam Angle: 2°
• Focus: Motorized
• Frost Filter: Included

NovaCell COB System

• COB Beam Angle: 8° to 31°
• COB Field Angle: 46°
• Illuminance at 31°: 7,840 lux at 6.6 ft
• Illuminance at 8°: 107,000 lux at 6.6 ft
• CTC Range: 2800K to 8000K
• Movement: Zoom and rotate

NovaCell SMD System

• SMD Beam Angle: 52°
• Illuminance at 52°: 520 lux at 6.6 ft

Control

• Control Protocols: DMX512, RDM, Auto, Sound Active
• DMX Channels: 46 or 94 channels

Electrical

• Maximum Power: 900W
• Maximum Power Linking: 10A
• Protection Class: Category 1
• Input Voltage: AC 100-240V, 50/60Hz

Physical

• Fixture Dimensions: 10.6 x 17.3 x 21.7 inches
• Box Dimensions: 17.3 x 25.6 x 20.9 inches
• Weight: 67 lb
