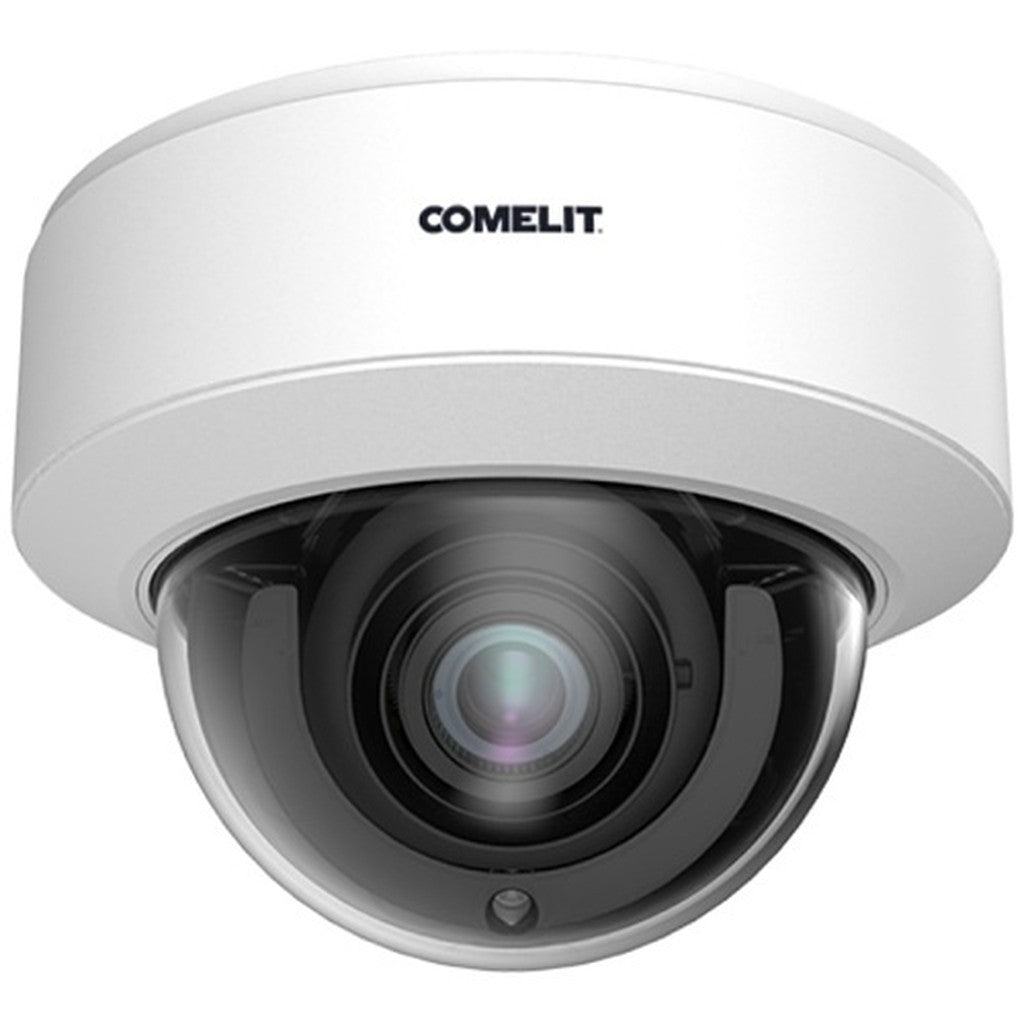

Comelit IK04N1ZA 4MP Motorized Vandal Dome IP Camera

Comelit IK04N1ZA 4MP Motorized Vandal Dome IP Camera

The Comelit IK04N1ZA 4MP Motorized Vandal Dome IP Camera is a Next Series vandal-resistant IP camera for high-risk surveillance locations. It combines 4MP video at 30 fps, a 2.8-12 mm motorized autofocus lens, Smart IR, WDR 120 dB, ONVIF support, Micro SD recording, and PoE installation.

Designed for professional CCTV installations, this Comelit vandal dome IP camera fits commercial buildings, schools, offices, retail spaces, parking areas, and public-facing security systems. Use it when you need a 4MP PoE security camera with varifocal framing, human and vehicle analytics, onboard storage, and tamper-resistant protection.

The IK10 vandal-resistant housing, IP67 waterproof enclosure, die-cast aluminum construction, H.265+ compression, triple streaming, 3D-DNR, motion detection, and built-in microphone support dependable IP video performance. Browser viewing, Comelit CCTV mobile app control, and Comelit CCTV Manager software help integrators manage professional surveillance systems.

4MP Vandal Dome IP Camera Features

• 4MP Video Resolution: Captures detailed 4MP surveillance video at up to 30 fps for security monitoring.
• Motorized Varifocal Lens: Uses a 2.8-12 mm lens with autofocus for flexible framing after installation.
• Smart IR Illumination: Provides infrared visibility up to 98.4' for low-light and nighttime surveillance.
• Human and Vehicle Analytics: Supports line crossing, region intrusion, and object abandoned or missing detection.
• Micro SD Recording: Supports Micro SD cards up to 256GB for onboard edge storage.
• Vandal-Resistant Housing: IK10 protection helps secure the camera in areas at risk of tampering or damage.
• Outdoor-Rated Design: IP67 waterproof construction supports demanding indoor and outdoor installations.
• PoE or 12V DC Power: Installs using IEEE 802.3af PoE or an external 12V DC power supply.

Technical Specifications

• Product Type: Vandal-resistant dome IP camera
• Brand: Comelit
• Model: IK04N1ZA
• ADI Part Number: CU-IK04N1ZA
• Product Name: IP Vandal-Resistant Dome Camera 4MP 2.8-12mm
• Product Series: Next
• Category: CCTV camera
• Camera Type: Vandal-resistant dome IP camera
• Housing Type: Vandal dome
• Camera Sensor: 1/3" CMOS Ultra Starlight
• Lens Type: Motorized varifocal with autofocus
• Lens: 2.8-12 mm
• Video Resolution: 4MP
• Frame Rate: 30 fps
• Horizontal Field of View: 92° to 31°
• Vertical Field of View: 48° to 17°
• Diagonal Field of View: 112° to 35.6°
• Electronic Shutter: 1/1 to 1/100000 second
• Sensitivity: 0.004 lux color, 0 lux black-and-white with IR LED on
• Signal-to-Noise Ratio: Greater than 50 dB
• Video Transmission: Triple streaming
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio Compression: G711A/U
• Bit Rate Range: 0.06 to 6 Mbit/s
• Supported Protocols: DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, P2P, ONVIF, SNMP, IEEE 802.1x, RTMP
• ONVIF Compatibility: Profile-G, Profile-M, Profile-S, Profile-T
• Firmware Update: Network firmware updating supported
• Simultaneous Connections: 6 live connections
• Remote Browser Viewing: Edge, Firefox, Chrome, Safari
• Remote Mobile Control: Comelit CCTV app
• Management Software: Comelit CCTV Manager
• Latest Firmware Version Listed: 5.2.3.3636B250704.ID13.U1(07F07)
• Motion Detection: Yes
• Video Analytics: Scene change detection, video tampering detection, line crossing detection with human and vehicle classification, object abandoned or missing detection, region intrusion detection with human and vehicle classification, blurred image detection
• Optimal People Detection Distance: 49.2'
• Optimal Vehicle Detection Distance: 65.6'
• Back Light Compensation: BLC
• Digital Effects: Mirror horizontal, mirror vertical, 180° rotation, ROI zones, saturation, brightness, contrast, sharpness, image flip
• Wide Dynamic Range: WDR 120 dB
• Enhanced DNR Control: 3D-DNR
• White Balance Control: Automatic, indoor, manual, outdoor
• Display Brightness Control: Yes
• Image Flip: Yes
• Automatic Gain Control: Yes
• Camera Titling: Yes
• IR LED Lighting Distance: 98.4'
• Vandal Resistance Rating: IK10
• IP Protection Rating: IP67
• Audio Inputs/Outputs: 1 input plus built-in microphone, 0 outputs
• LAN Output Type: Ethernet 10/100 Mbit/s RJ45
• Local Storage: Micro SD card support up to 256GB, card not included
• Supply Voltage: 12V DC
• Power Supply Type: PoE or external power supply
• PoE Standard: IEEE 802.3af
• Maximum Absorption: 7.5 W
• DORI Detection Distance: 210.0' to 620.1'
• DORI Observation Distance: 85.3' to 246.1'
• DORI Recognition Distance: 42.7' to 124.7'
• DORI Identification Distance: 19.7' to 62.3'
• TOPS: 0.75
• Finishing Material: Die-cast aluminum, high-impact polycarbonate
• Product Color: White
• Diameter: 5.55"
• Height: 3.94"
• Product Weight: 1.93 lbs
• Operating Temperature: -22°F to 140°F
• Operating Humidity: 25% to 95% RH maximum
• Compatible Accessories: JBA-KA, CMA-KTBBA, WMA-KTBBA, PMA-A, AMA-A, CMA-KCAMA
• UPC: 802390347860
