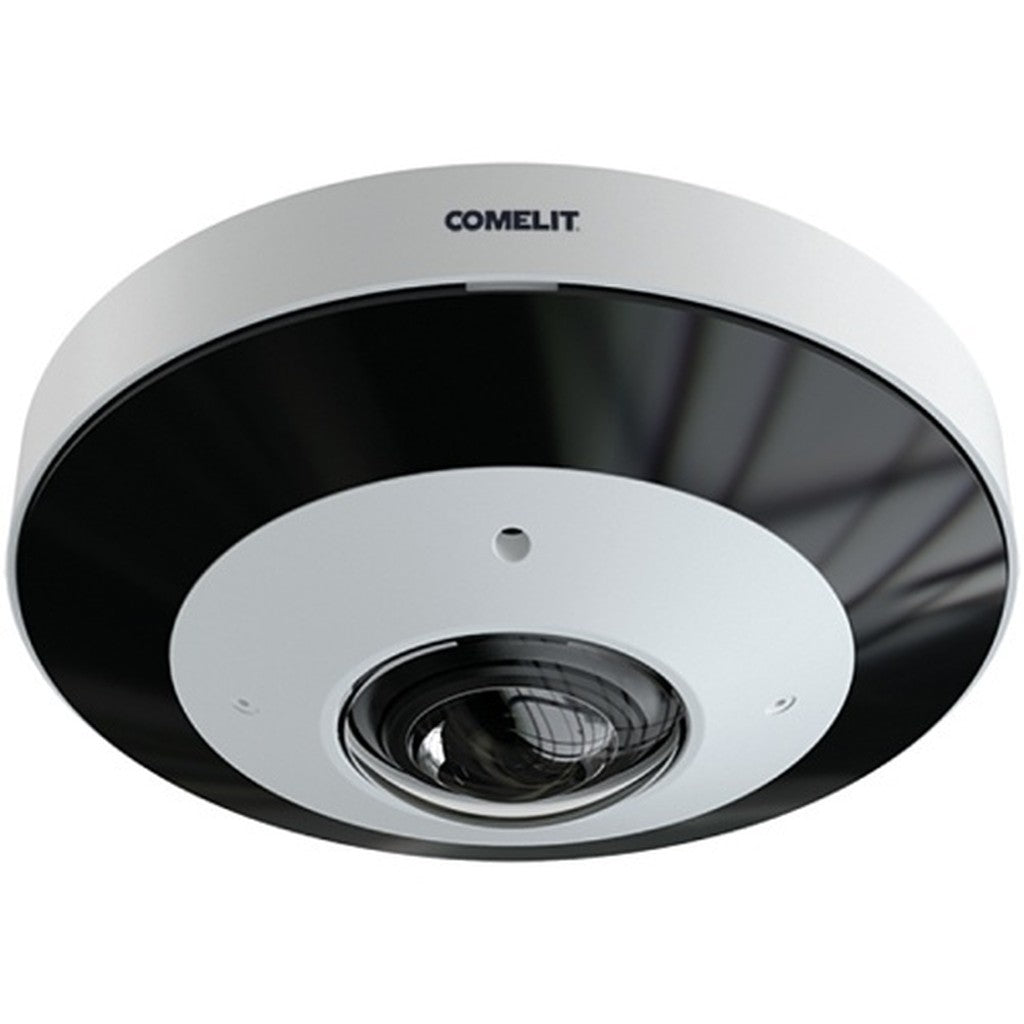

Comelit IPFCAMA12FA 12MP Fisheye IP Camera

Comelit IPFCAMA12FA 12MP Fisheye IP Camera

The Comelit IPFCAMA12FA 12MP Fisheye IP Camera is an Advance Series panoramic surveillance camera for wide-area IP security monitoring. It combines 12MP video at 30 fps, a 1.65 mm fixed fisheye lens, 180°/360° field-of-view support, triple streaming, ONVIF compatibility, Micro SD recording, and PoE installation.

Designed for commercial CCTV systems, schools, offices, retail spaces, warehouses, lobbies, and open public areas, this Comelit fisheye IP camera helps reduce blind spots from a single mounting point. Use it when you need a 360-degree PoE security camera with panoramic viewing, PTZ viewing modes, audio, alarm I/O, and intelligent analytics.

The IP67 die-cast aluminum enclosure, IK10 vandal resistance, H.265+ compression, D-WDR, 3DNR, and Comelit CCTV Manager support make the IPFCAMA12FA practical for professional surveillance networks. Human and vehicle classification, region analytics, line crossing detection, and people counting support more focused security monitoring.

12MP Fisheye IP Camera Features

• 12MP Panoramic Resolution: Captures high-detail fisheye surveillance video at up to 30 fps for wide-area monitoring.
• 360° Viewing Support: Provides fisheye, panoramic, and PTZ viewing modes for flexible coverage from one camera location.
• 1.65 mm Fixed Lens: Delivers an ultra-wide field of view for lobbies, corridors, open rooms, and coverage-critical spaces.
• Smart Video Analytics: Supports line crossing, region entrance, region exit, region intrusion, and people or vehicle counting.
• Micro SD Edge Storage: Supports Micro SD cards up to 256GB for onboard recording, with the card sold separately.
• Audio and Alarm I/O: Includes audio input, audio output, built-in microphone, alarm input, and alarm output for expanded surveillance workflows.
• Outdoor-Rated Housing: IP67 weather protection and IK10 vandal resistance support demanding indoor or outdoor installations.
• PoE or 12V DC Power: Installs using IEEE 802.3af PoE or an external 12V DC power supply.

Technical Specifications

• Product Type: Fisheye IP camera
• Brand: Comelit
• Model: IPFCAMA12FA
• ADI Part Number: CU-IF12FA
• Product Name: Advance Series 12MP Fisheye IP Camera with 1.65mm Fixed Lens, 360° Viewing Angle, White
• Product Series: Advance
• Category: CCTV camera
• Camera Type: Fisheye panoramic IP camera
• Housing Type: Fisheye
• Camera Sensor: 1/1.7" CMOS Progressive Scan
• Lens Type: Fixed fisheye
• Lens: 1.65 mm
• Video Resolution: 12MP
• Frame Rate: 30 fps
• Viewing Modes: Fisheye, panoramic, PTZ
• Horizontal Field of View: 180° / 360°
• Electronic Shutter: 1/3 to 1/100000 second
• Sensitivity: 0.01 lux color, 0 lux black-and-white with IR LED on
• Signal-to-Noise Ratio: Greater than 50 dB
• Video Transmission: Triple streaming
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio Compression: G711A/U
• Bit Rate Range: 0.13 to 16 Mbit/s
• Supported Protocols: DDNS, Comelit DNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, P2P, SNMP, IEEE 802.1x, RTMP, ONVIF Profile-S, ONVIF Profile-G, ONVIF Profile-M
• ONVIF Compatibility: Profile-S, Profile-G, Profile-M
• Firmware Update: Network firmware updating supported
• Simultaneous Connections: 6 live connections
• Network Security: Multi-user authorization, HTTPS, AES encryption, RTSP verification
• Remote Browser Viewing: Edge, Firefox, Chrome, Safari
• Remote Mobile Control: Comelit CCTV app
• Management Software: Comelit CCTV Manager
• Latest Firmware Version Listed: 5.2.0.54606B240122.IF1.U1(13F11)
• Motion Detection: Yes
• Video Analytics: Line crossing detection with human and vehicle classification, region entrance detection, region exit detection, region intrusion detection with human and vehicle classification, vehicle counting, people counting
• Privacy Zones: 4
• Back Light Compensation: BLC, HLC
• Digital Effects: Mirror horizontal, mirror vertical, 180° rotation, ROI zones, saturation, brightness, contrast, sharpness, image flip
• Wide Dynamic Range: D-WDR
• Enhanced DNR Control: 3DNR
• White Balance Control: Automatic, indoor, manual, outdoor
• Camera Titling: Yes
• IR LED Lighting Distance: 32.8'
• Vandal Resistance Rating: IK10
• IP Protection Rating: IP67
• Alarm Inputs/Outputs: 1 input, 1 output
• Audio Inputs/Outputs: 1 input plus built-in microphone, 1 output
• RS-485 Control: Yes
• LAN Output Type: Ethernet 10/100 Mbit/s RJ45
• Local Storage: Micro SD card support up to 256GB, card not included
• NVR Compatibility: Compatible with Advance Series NVRs with 8 or more channels
• Supply Voltage: 12V DC
• Power Supply Type: PoE or external power supply
• PoE Standard: IEEE 802.3af
• Maximum Absorption: 10.5 W
• Finishing Material: Die-cast aluminum
• Product Color: White
• Diameter: 5.12"
• Height: 1.82"
• Product Weight: 1.14 lbs
• Operating Temperature: -22°F to 122°F
• Operating Humidity: 25% to 95% RH maximum
• Compliance: NDAA compliant
• Compatible Accessories: JBA-FA, CMA-FA, WMA-FA, PMA-A, AMA-A
• UPC: 802390346023
