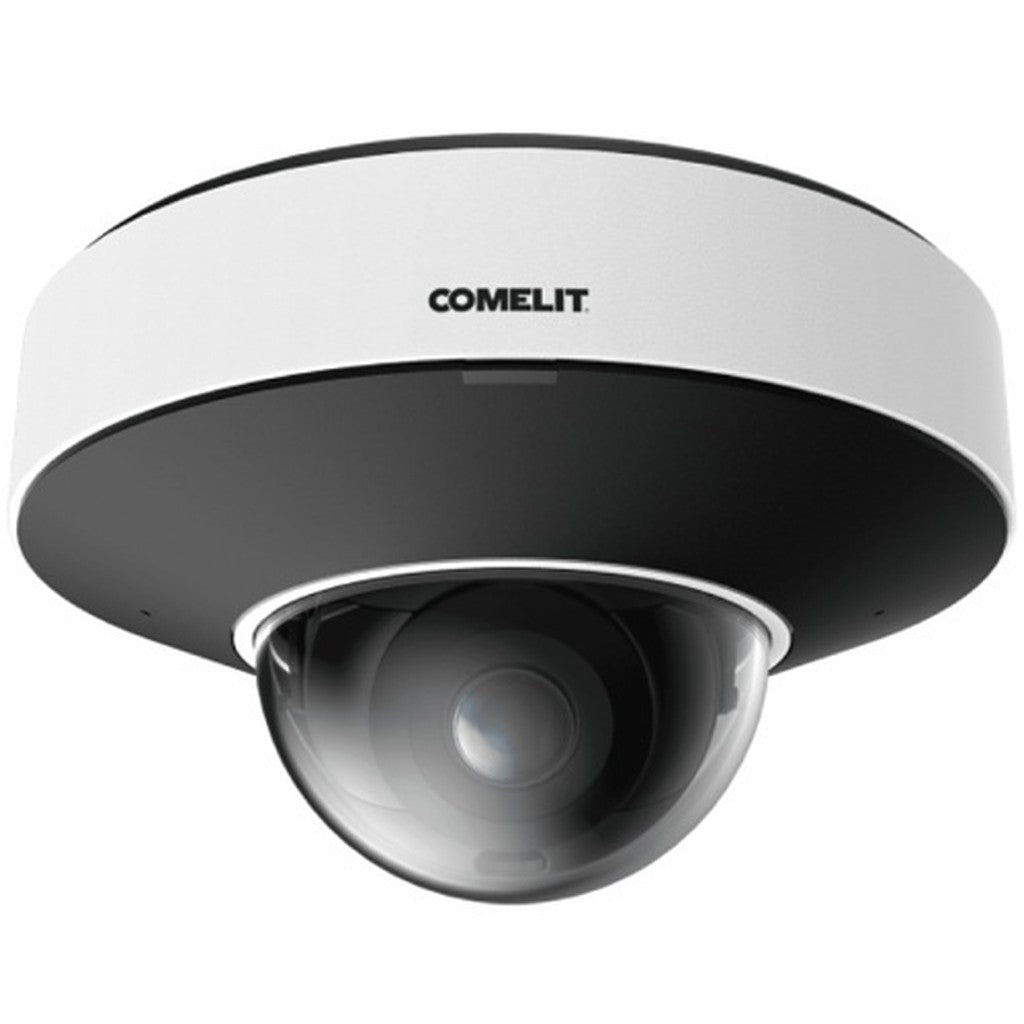

Comelit IPKCAMA04FD 4MP Fixed Vandal Dome IP Camera

Comelit IPKCAMA04FD 4MP Fixed Vandal Dome IP Camera

The Comelit IPKCAMA04FD 4MP Fixed Vandal Dome IP Camera is an Advance Series surveillance camera for tamper-prone security locations. It combines 4MP video at 30 fps, a 2.8 mm fixed lens, IK10 vandal protection, Smart IR, WDR 120 dB, ONVIF support, Micro SD recording, and PoE installation.

Designed for professional CCTV installations, this Comelit vandal dome IP camera fits schools, offices, retail spaces, commercial buildings, public areas, and perimeter monitoring systems. Use it when you need a 4MP PoE security camera with advanced analytics, audio I/O, alarm I/O, and a compact vandal-resistant dome housing.

The IP67 die-cast aluminum enclosure, H.265+ compression, triple streaming, 3D-DNR, BLC, HLC, and Comelit CCTV Manager support make the IPKCAMA04FD practical for managed IP video systems. Face detection, heat map tools, human and vehicle classification, and metadata analysis support more intelligent surveillance workflows.

4MP Advance Series Vandal Dome Camera Features

• 4MP Video Resolution: Captures 2688 x 1520 surveillance video at up to 30 fps for detailed security monitoring.
• 2.8 mm Fixed Lens: Provides a 95° horizontal field of view for wide scene coverage in fixed installations.
• IK10 Vandal Protection: Helps protect the camera in locations at risk of tampering, impact, or public-facing damage.
• Smart IR Night Vision: Uses infrared illumination up to 32.8' for low-light and nighttime monitoring.
• Advanced Video Analytics: Supports face detection, heat map, line crossing, region intrusion, loitering, metadata analysis, and parking-prohibited detection.
• Micro SD Edge Storage: Supports Micro SD cards up to 256GB for onboard recording, with the card sold separately.
• Audio and Alarm I/O: Includes audio input/output, alarm input/output, and two built-in microphones for expanded surveillance capture.
• PoE or 12V DC Power: Installs using IEEE 802.3af PoE or an external 12V DC power supply.

Technical Specifications

• Product Type: Vandal dome IP camera
• Brand: Comelit
• Model: IPKCAMA04FD
• ADI Part Number: CU-IK04FD
• Product Name: Advance Series 4MP Vandaldome IP Camera with 2 Built-in Microphones, IK10, 2.8mm Fixed Lens, White
• Product Series: Advance
• Category: CCTV camera
• Camera Type: Vandal dome IP camera
• Housing Type: Minidome
• Camera Sensor: 1/3" CMOS Ultra Starlight
• Lens Type: Fixed
• Lens: 2.8 mm
• Effective Pixels: 2688 x 1520
• Video Resolution: 4MP
• Frame Rate: 30 fps
• Horizontal Field of View: 95°
• Vertical Field of View: 53°
• Diagonal Field of View: 100°
• Electronic Shutter: 1/3 to 1/100000 second
• Digital Zoom: Yes
• Sensitivity: 0.005 lux color, 0 lux black-and-white with IR LED on
• Video Transmission: Triple streaming
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio Compression: G711A/U
• Bit Rate Range: 0.06 to 8 Mbit/s
• Supported Protocols: DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, P2P, SNMP, IEEE 802.1x, RTMP, ONVIF Profile-S, ONVIF Profile-G, ONVIF Profile-M, ONVIF Profile-T
• ONVIF Compatibility: Profile-S, Profile-G, Profile-M, Profile-T
• Firmware Update: Network firmware updating supported
• Simultaneous Connections: 8 live connections
• Remote Browser Viewing: Edge, Firefox, Chrome, Safari
• Remote Mobile Control: Comelit CCTV app
• Management Software: Comelit CCTV Manager
• Latest Firmware Version Listed: 5.2.2(44436)(2024-05-14)
• Main Functions: 3D-DNR, BLC, Defog, HLC
• Video Analytics: Scene change detection, video tampering detection, line crossing detection with human and vehicle classification, region entrance, region exit, region intrusion detection with human and vehicle classification, object abandoned or missing detection, vehicles and people counting, heat map, face detection, blurred image detection, metadata analysis, parking-prohibited detection, loitering detection, audio anomaly detection
• Optimal People Detection Distance: 32.8'
• Optimal Vehicle Detection Distance: 49.2'
• Back Light Compensation: BLC, HLC
• Digital Effects: Mirror horizontal, mirror vertical, 180° rotation, ROI zones, saturation, brightness, contrast, sharpness, image flip
• Wide Dynamic Range: WDR 120 dB
• Enhanced DNR Control: 3D-DNR
• White Balance Control: Automatic, indoor, manual, outdoor
• Display Brightness Control: Yes
• Image Flip: Yes
• Automatic Gain Control: Yes
• Camera Titling: Yes
• IR LED Lighting Distance: 32.8'
• Vandal Resistance Rating: IK10
• IP Protection Rating: IP67
• Alarm Inputs/Outputs: 1 input, 1 output
• Audio Inputs/Outputs: 1 input plus built-in microphones, 1 output
• LAN Output Type: Ethernet 10/100 Mbit/s RJ45
• Local Storage: Micro SD card support up to 256GB, card not included
• Supply Voltage: 12V DC
• Power Supply Type: PoE or external power supply
• PoE Standard: IEEE 802.3af
• Maximum Absorption: 5.5 W
• DORI Detection Distance: 196.9'
• DORI Observation Distance: 78.7'
• DORI Recognition Distance: 39.4'
• DORI Identification Distance: 19.7'
• TOPS: 1.5
• Finishing Material: Die-cast aluminum
• Product Color: White
• Diameter: 4.33"
• Height: 2.44"
• Product Weight: 0.95 lbs
• Operating Temperature: -22°F to 140°F
• Operating Humidity: 25% to 95% RH maximum
• Compatible Accessory: WMA-01A
• UPC: 802390346320
