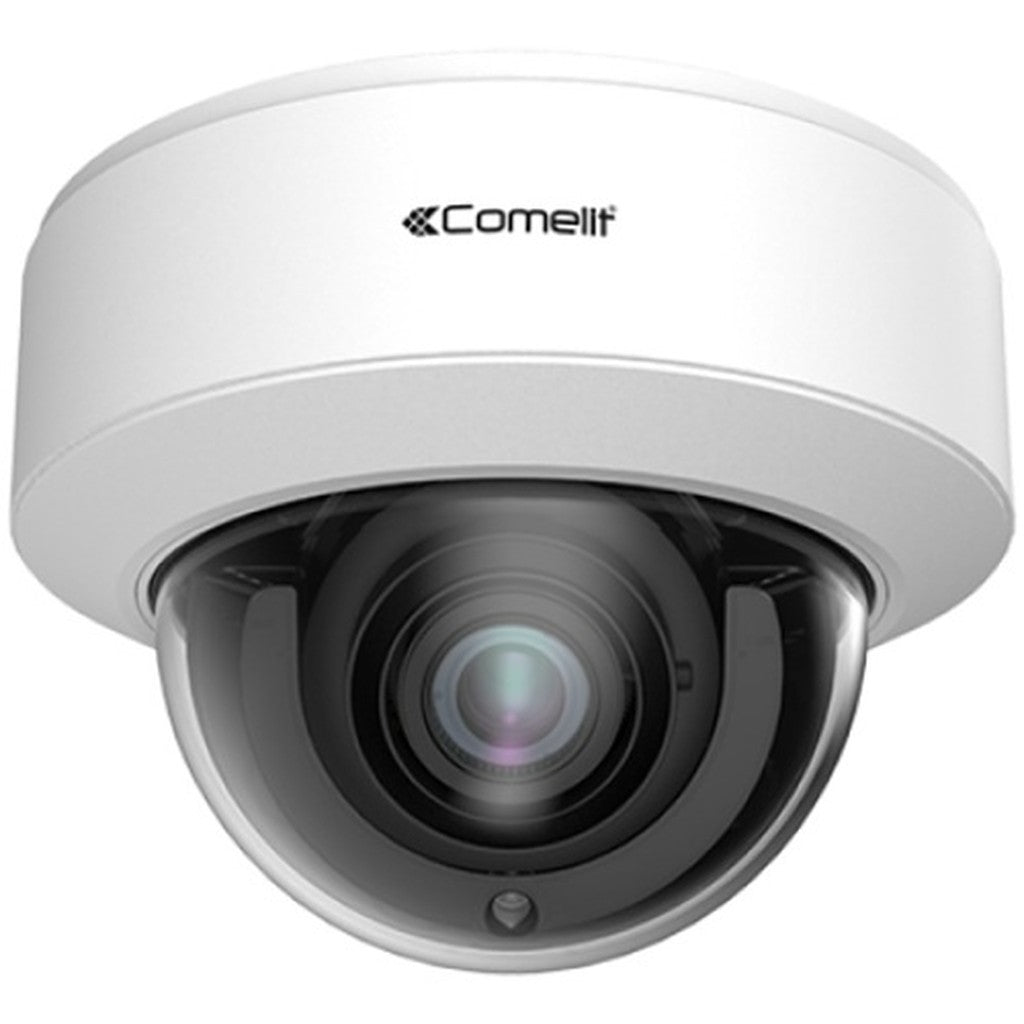

Comelit IPKCAMA08ZC 8MP Motorized Vandal Dome IP Camera

Comelit IPKCAMA08ZC 8MP Motorized Vandal Dome IP Camera

The Comelit IPKCAMA08ZC 8MP Motorized Vandal Dome IP Camera is an Advance Series surveillance camera for tamper-prone security locations. It combines 4K 8MP video, a 2.8-12 mm autofocus motorized lens, IK10 vandal protection, IP67 weather resistance, Smart IR, WDR 120 dB, and PoE installation support.

Designed for commercial CCTV systems, public spaces, schools, offices, parking areas, and perimeter monitoring, this Comelit vandal dome IP camera gives installers flexible zoom and framing after mounting. Use it when you need an 8MP PoE security camera with analytics, audio, alarm I/O, and onboard Micro SD recording.

The die-cast aluminum minidome housing, triple streaming, Smart H.265/H.264 compression, ONVIF profile support, 3-axis adjustment, and Comelit CCTV software compatibility support professional IP video deployments. Human and vehicle analytics, face detection, metadata analysis, and no-parking detection help security teams monitor critical areas more intelligently.

8MP Advance Series Vandal Dome Camera Features

• 4K 8MP Resolution: Captures high-detail surveillance video at 20 fps, with high frame rate 2MP operation supported at 60 fps.
• Motorized Autofocus Lens: Uses a 2.8-12 mm F1.4 varifocal lens with 4x optical zoom for flexible post-installation framing.
• IK10 Vandal Protection: Helps protect the camera in areas at risk of tampering, impact, or public-facing damage.
• Smart IR Night Vision: Uses two IR LED arrays with Smart IR illumination up to 164.0' for low-light monitoring.
• Advanced Video Analytics: Supports face detection, line crossing, region intrusion, people and vehicle counting, loitering, and audio anomaly detection.
• Micro SD Edge Storage: Supports Micro SD cards up to 256GB for onboard recording, with the card sold separately.
• Audio and Alarm I/O: Includes built-in microphone, audio input/output, alarm input/output, and analog CVBS video output.
• PoE or 12V DC Power: Installs using IEEE 802.3af PoE or an external 12V DC power supply.

Technical Specifications

• Product Type: Vandal dome IP camera
• Brand: Comelit
• Model: IPKCAMA08ZC
• ADI Part Number: CU-IK08ZC
• Product Name: Advance Series Vandaldome IP Camera with Built-in Microphone, IK10, 2.8-12mm Motorized Lens, White
• Product Series: Advance
• Category: CCTV camera
• Camera Type: Vandal dome IP camera
• Housing Type: Minidome
• Camera Sensor: 1/2.8" CMOS Ultra Starlight
• Lens Type: Autofocus, motorized, F1.4
• Lens: 2.8-12 mm motorized varifocal
• Optical Zoom: 4x
• Video Resolution: 4K, 8MP
• Frame Rate: 20/60 fps
• High Frame Rate Support: 2MP at 60 fps with compatible 32/64/128-channel Advance Series NVRs
• Horizontal Field of View: 97° to 32°
• Vertical Field of View: 57° to 18°
• Diagonal Field of View: 115° to 36°
• Electronic Shutter: 1/25 to 1/100000 second
• Sensitivity: 0.015 lux color, 0 lux black-and-white with IR LED on
• IR Filter: Mechanical
• Video Transmission: Triple streaming
• Video Compression: Smart H.265, H.265+, H.265, Smart H.264, H.264+, H.264, MJPEG
• Audio Compression: G711A/U
• Bit Rate Range: 0.06 to 8 Mbit/s
• Supported Protocols: DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, P2P, SNMP, IEEE 802.1x, RTMP, ONVIF Profile-S, ONVIF Profile-G, ONVIF Profile-M, ONVIF Profile-T
• ONVIF Compatibility: Profile-S, Profile-G, Profile-M, Profile-T
• Firmware Update: Network firmware updating supported
• Simultaneous Connections: 10 live connections
• Network Security: Password, multi-user authorization, IP filtering, HTTPS, SSL
• Remote Browser Viewing: Internet Explorer
• Remote Mobile Control: Comelit CCTV app
• Management Software: Comelit CCTV Manager
• Latest Firmware Version Listed: 5.1.3.1(50824)(2023-09-19)
• Main Functions: Defog, OSD menu multilanguage, watermarking
• Motion Detection: Yes
• Video Analytics: Scene change detection, video tampering detection, region entrance, region exit, region intrusion, human and vehicle classification, vehicles and people counting, line crossing detection, face detection, metadata analysis, parking-prohibited detection, loitering detection, audio anomaly detection
• Optimal People Detection Distance: 65.6'
• Optimal Vehicle Detection Distance: 82.0'
• Privacy Zones: 1
• Back Light Compensation: BLC, HLC
• Digital Effects: Mirror horizontal, mirror vertical, 180° rotation, ROI zones, saturation, brightness, contrast, sharpness, image flip
• Wide Dynamic Range: WDR 120 dB
• Enhanced DNR Control: 3DNR
• Camera Titling: Yes
• IR LED Lighting Distance: 2 LED arrays up to 164.0' with Smart IR
• Vandal Resistance Rating: IK10
• IP Protection Rating: IP67
• 3-Axis Adjustment: Yes
• Alarm Inputs/Outputs: 1 input, 1 output
• Audio Inputs/Outputs: 1 input plus built-in microphone, 1 output
• Analog Video Output: CVBS, BNC, 1 Vpp/75 ohm
• LAN Output Type: Ethernet 10/100 Mbit/s RJ45
• Local Storage: Micro SD card support up to 256GB, card not included
• Supply Voltage: 12V DC
• Power Supply Type: PoE or external power supply
• PoE Standard: IEEE 802.3af
• Maximum Absorption: 10.5 W
• DORI Detection Distance: 278.9' to 948.2'
• DORI Observation Distance: 111.5' to 380.6'
• DORI Recognition Distance: 55.8' to 190.3'
• DORI Identification Distance: 26.2' to 95.1'
• TOPS: 1.5
• Finishing Material: Die-cast aluminum
• Product Color: White
• Diameter: 5.55"
• Height: 3.94"
• Product Weight: 1.98 lbs
• Operating Temperature: -22°F to 140°F
• Operating Humidity: 25% to 95% RH maximum
• Compliance: NDAA compliant
• Compatible Accessories: JBA-KA, CMA-KTBBA, WMA-KTBBA, PMA-A, AMA-A, CMA-KCAMA
• UPC: 802390344661
