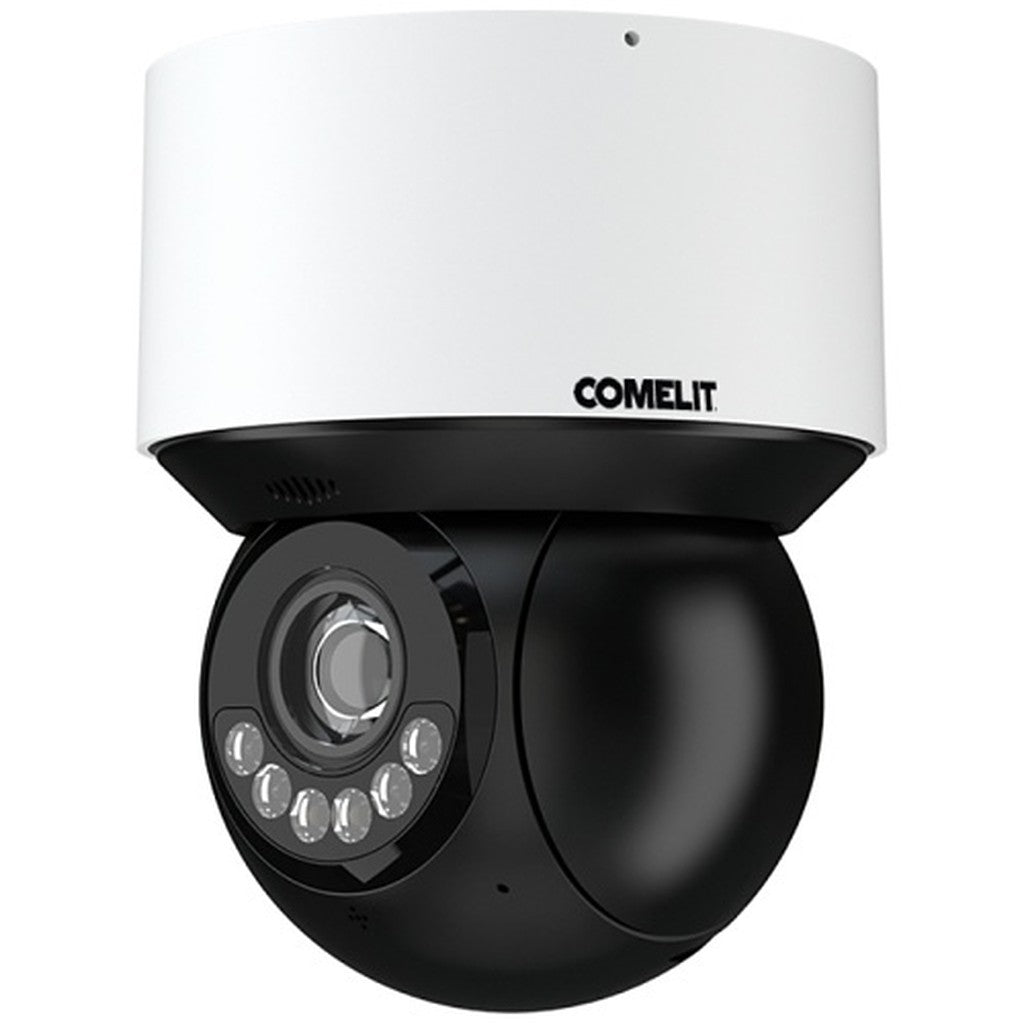

Comelit IPPTZA04Z04A 4MP 4x Mini PTZ IP Camera

Comelit IPPTZA04Z04A 4MP 4x Mini PTZ IP Camera

The Comelit IPPTZA04Z04A 4MP 4x Mini PTZ IP Camera is a compact Advance Series surveillance camera for flexible IP monitoring. It combines 4MP video at 30 fps, a 2.8-12 mm motorized lens, 4x optical zoom, Smart IR, WDR 120 dB, ONVIF compatibility, and PoE installation.

Designed for professional CCTV systems, this Comelit mini PTZ camera fits commercial buildings, schools, retail spaces, offices, parking areas, and perimeter security applications. Use it when you need a 4MP PoE PTZ security camera with smart tracking, built-in audio, visual deterrence, Micro SD storage, and responsive zoom control.

The IP66 waterproof die-cast aluminum enclosure, IK10 metal housing, Smart H.265/H.264 compression, triple streaming, motion detection, face detection, and human or vehicle analytics support dependable surveillance performance. Browser viewing, Comelit CCTV mobile app control, and Comelit CCTV Manager software help simplify managed IP video deployments.

4MP Mini PTZ IP Camera Features

• 4MP Video Resolution: Captures 2560 x 1440 surveillance video at up to 30 fps for detailed monitoring.
• 4x Optical Zoom: Uses a 2.8-12 mm motorized lens to adjust framing for wider scenes or closer detail.
• Smart Tracking: Automatically follows detected subjects to help maintain visual awareness across active scenes.
• Human and Vehicle Analytics: Supports line crossing, region entrance, region exit, region intrusion, and counting with classification.
• Smart IR Night Vision: Provides IR illumination up to 98.4' for low-light and nighttime surveillance.
• Two-Way Audio: Includes a built-in microphone, built-in speaker, one audio input, and one audio output.
• Active Deterrence: Uses audible alerts and a flashing LED for event-based alarm response.
• Outdoor-Rated Protection: IP66 weather resistance and IK10 metal housing support demanding installation environments.

Technical Specifications

• Product Type: Mini PTZ IP camera
• Brand: Comelit
• Model: IPPTZA04Z04A
• ADI Part Number: CU-IPTZ04Z4
• Product Name: Advance Series 4MP Mini PTZ IP Camera with Built-in Speaker and Microphone, 4x Optical Zoom, White
• Product Series: Advance
• Category: CCTV camera
• Camera Type: Mini PTZ IP camera
• Camera Sensor: 1/2.7" CMOS Ultra Starlight
• Lens Type: Motorized
• Lens: 2.8-12 mm optical varifocal
• Optical Zoom: 4x
• Digital Zoom: Yes
• Effective Pixels: 2560 x 1440
• Video Resolution: 2560 x 1440, 4MP
• Frame Rate: 30 fps
• Horizontal Field of View: 33° to 98°
• Vertical Field of View: 18° to 50°
• Diagonal Field of View: 36° to 111°
• Electronic Shutter: 1/25 to 1/25000 second
• Sensitivity: 0.01 lux color, 0 lux black-and-white with IR LED on
• Signal-to-Noise Ratio: Greater than 52 dB with AGC off
• Video Transmission: Triple streaming
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio Compression: G711A/U
• Bit Rate Range: 0.6 to 16 Mbit/s
• Supported Protocols: DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP/IP, UDP, UPnP, IGMP, ICMP, DNS, SNMP, IEEE 802.1x, ONVIF Profile-S, ONVIF Profile-G, ONVIF Profile-M, ONVIF Profile-T
• ONVIF Compatibility: Profile-S, Profile-G, Profile-M, Profile-T
• Firmware Update: Network firmware updating supported
• Simultaneous Connections: 16 live connections
• Network Security: Password, multi-user authorization, IP filtering, HTTPS, SSL
• Remote Browser Viewing: Edge, Firefox, Chrome, Safari
• Remote Mobile Control: Comelit CCTV app
• Management Software: Comelit CCTV Manager
• Latest Firmware Version Listed: 5.1.1.0(50992)(2023-09-26)
• Motion Detection: Yes
• Video Analytics: Scene change detection, face detection, video tampering detection, line crossing detection with human and vehicle classification, region entrance detection, region exit detection, region intrusion detection with human and vehicle classification, vehicle and people counting, smart tracking, out-of-focus image detection
• Privacy Zones: 4
• Back Light Compensation: BLC, HLC
• Wide Dynamic Range: WDR 120 dB
• Digital Effects: Flip, mirror horizontal, mirror vertical, 180° rotation, saturation, brightness, contrast, sharpness
• Exposure Control: Manual, auto
• Image Flip: Yes
• Automatic Gain Control: Yes
• Camera Titling: Yes
• IR LED Lighting Distance: 98.4'
• Vandal Resistance Rating: IK10 metal housing
• IP Protection Rating: IP66
• Alarm Inputs/Outputs: 1 input, 1 output
• Audio Inputs/Outputs: 1 input plus built-in microphone, 1 output plus built-in speaker
• LAN Output Type: Ethernet 10/100 Mbit/s RJ45
• Local Storage: Micro SD card support up to 256GB, card not included
• Supply Voltage: 12V DC
• Power Supply Type: PoE or external power supply
• PoE Standard: IEEE 802.3at
• Maximum Absorption: 22.2 W
• DORI Detection Distance: 223.1' to 678.1'
• DORI Observation Distance: 88.9' to 269.0'
• DORI Recognition Distance: 44.6' to 135.5'
• DORI Identification Distance: 22.3' to 67.9'
• Finishing Material: Plastic, die-cast aluminum
• Product Color: White
• Width: 5.12"
• Depth: 5.12"
• Height: 6.38"
• Product Weight: 2.65 lbs
• Operating Temperature: -22°F to 140°F
• Operating Humidity: 25% to 95% RH maximum
• Compatible Accessories: JBA-FA, CMA-FA, WMA-FA, PMA-A, AMA-A
• UPC: 802390344265

What's In the Box

• Comelit IPPTZA04Z04A Mini PTZ IP Camera
• Power Supply
