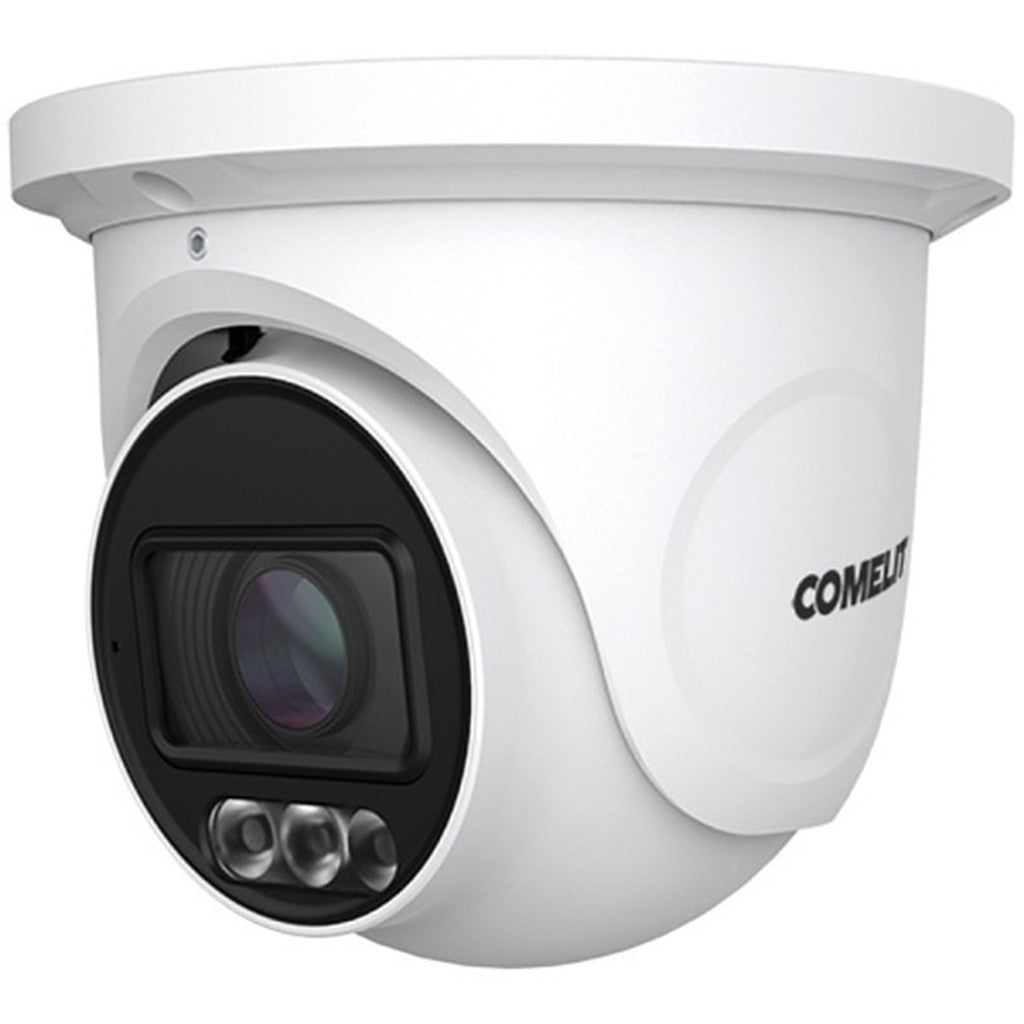

Comelit IT04N2ZA 4MP ColorUP Motorized Turret IP Camera

Comelit IT04N2ZA 4MP ColorUP Motorized Turret IP Camera

The Comelit IT04N2ZA 4MP ColorUP Motorized Turret IP Camera is a Next Series IP surveillance camera for flexible professional monitoring. It combines 4MP video at 30 fps, a 2.8-12 mm motorized varifocal lens, ColorUP white LED imaging, Smart IR, Dual Light operation, WDR 120 dB, and PoE support.

Designed for commercial CCTV, residential security, schools, offices, retail spaces, and perimeter coverage, this Comelit turret IP camera helps installers fine-tune framing after placement. Use it when you need a 4MP PoE security camera with onboard Micro SD recording, built-in audio, human and vehicle analytics, and reliable low-light visibility.

The IP67 waterproof die-cast aluminum enclosure, IK10 metal housing, H.265+ compression, triple streaming, 3D-DNR, BLC, and ONVIF profile support make the IT04N2ZA practical for managed IP video systems. Browser access, Comelit CCTV Manager, and Comelit CCTV mobile app support help simplify remote setup and monitoring.

4MP ColorUP Varifocal IP Turret Camera Features

• 4MP Video Resolution: Captures 2560 x 1440 surveillance video at up to 30 fps for detailed monitoring.
• Motorized Varifocal Lens: Provides a 2.8-12 mm optical range for flexible scene framing during installation.
• ColorUP and Smart IR: Uses white LEDs, IR LEDs, and Dual Light operation for flexible day-or-night imaging.
• Human and Vehicle Analytics: Supports line crossing, region intrusion, and classification-based detection tools.
• Micro SD Recording: Supports Micro SD cards up to 256GB for onboard edge storage.
• Built-In Microphone: Adds audio capture with one audio input and no separate external microphone required.
• Outdoor-Rated Housing: IP67 protection and IK10 metal housing support demanding surveillance environments.
• PoE or 12V DC Power: Offers flexible installation using IEEE 802.3af PoE or external 12V DC power.

Technical Specifications

• Product Type: ColorUP IP turret camera
• Brand: Comelit
• Model: IT04N2ZA
• Part Number: CU-IT04N2ZA
• Product Name: Next Series ColorUP 4MP Turret IP Camera with Built-in Microphone, 2.8-12mm Motorized Lens, White
• Product Series: Next
• Category: CCTV camera
• Camera Type: ColorUP IP turret camera
• Housing Type: Turret
• Camera Sensor: 1/3" CMOS Ultra Starlight
• Lens Type: Motorized varifocal
• Lens: 2.8-12 mm
• Effective Pixels: 2560 x 1440
• Video Resolution: 4MP
• Frame Rate: 30 fps
• Horizontal Field of View: 92° to 31°
• Vertical Field of View: 48° to 17°
• Diagonal Field of View: 112° to 35.6°
• Electronic Shutter: 1/1 to 1/100000 second
• Sensitivity: 0.005 lux color, 0 lux black-and-white with IR LED on
• Video Transmission: Triple streaming
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio Compression: G711A/U
• Bit Rate Range: 0.06 to 6 Mbit/s
• Supported Protocols: DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, P2P, SNMP, IEEE 802.1x, RTMP, ONVIF Profile-S, ONVIF Profile-G, ONVIF Profile-M, ONVIF Profile-T
• ONVIF Compatibility: Profile-S, Profile-G, Profile-M, Profile-T
• Firmware Update: Network firmware updating supported
• Simultaneous Connections: 3 live connections
• Remote Browser Viewing: Edge, Firefox, Chrome, Safari
• Remote Mobile Control: Comelit CCTV app
• Management Software: Comelit CCTV Manager
• Latest Firmware Version Listed: 5.2.2(44436)(2024-05-13)
• Main Functions: 3D-DNR, BLC
• Motion Detection: Yes
• Video Analytics: Scene change detection, video tampering detection, line crossing detection with human/vehicle classification, object abandoned or missing detection, region intrusion detection with human/vehicle classification, blurred image detection
• Optimal People Detection Distance: 49.2'
• Optimal Vehicle Detection Distance: 65.6'
• Privacy Zones: 4
• Back Light Compensation: BLC
• Digital Effects: Corridor mode with 90°, 180°, or 270° rotation; mirror horizontal; mirror vertical; 180° rotation; ROI zones; saturation; brightness; contrast; sharpness; image flip
• Wide Dynamic Range: WDR 120 dB
• Enhanced DNR Control: 3D-DNR
• White Balance Control: Automatic, indoor, manual, outdoor
• Exposure Control: Manual, auto
• Display Brightness Control: Yes
• Camera Titling: Yes
• IR LED Lighting Distance: 98.4'
• White LED Lighting Distance: 98.4'
• Lighting Modes: ColorUP white LED, Dual Light IR plus white LED, IR LED, Smart IR
• Vandal Resistance Rating: IK10 metal housing
• IP Protection Rating: IP67
• Audio Inputs/Outputs: 1 input plus built-in microphone, 0 outputs
• LAN Output Type: Ethernet 10/100 Mbit/s RJ45
• Local Storage: Micro SD card support up to 256GB, card not included
• Supply Voltage: 12V DC
• Power Supply Type: PoE or external power supply
• PoE Standard: IEEE 802.3af
• Maximum Absorption: 9 W
• DORI Detection Distance: 210.0' to 620.1'
• DORI Observation Distance: 85.3' to 246.1'
• DORI Recognition Distance: 42.7' to 124.7'
• DORI Identification Distance: 19.7' to 62.3'
• TOPS: 0.75
• Finishing Material: Die-cast aluminum
• Product Color: White
• Diameter: 5.12"
• Height: 4.33"
• Product Weight: 1.46 lbs
• Operating Temperature: -22°F to 140°F
• Operating Humidity: 25% to 95% RH maximum
• Compatible Accessories: JBA-TVA, CMA-TVA, WMA-TVA, PMA-A, AMA-A, WMA-02A
• UPC: 802390346207
