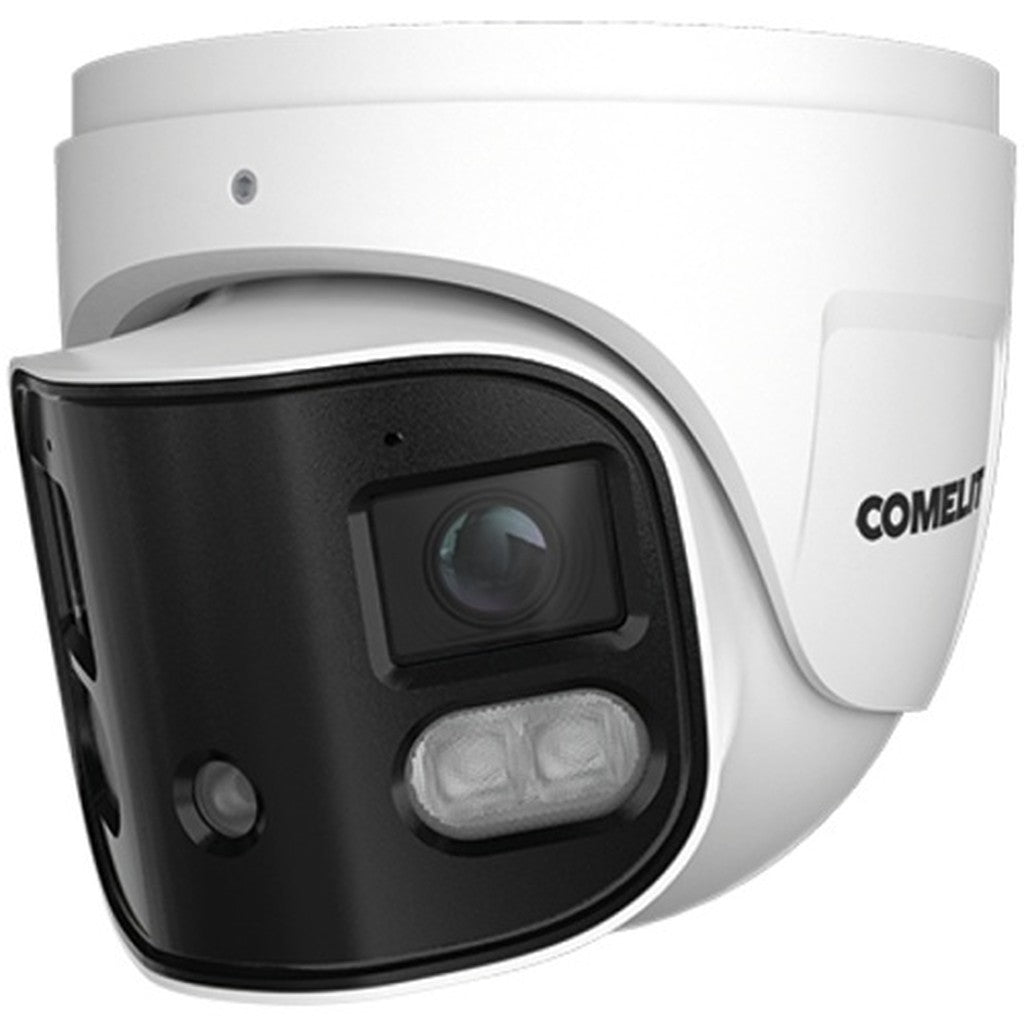

Comelit ITM08A3F02A 8MP ColorUP Panorama Turret IP Camera

Comelit ITM08A3F02A 8MP ColorUP Panorama Turret IP Camera

The Comelit ITM08A3F02A 8MP ColorUP Panorama Turret IP Camera is an Advance Series surveillance camera for wide 180° IP video coverage. It combines 8MP 4K resolution, a 2.8 mm fixed lens, ColorUP white LED imaging, Smart IR, deterrent alerts, ONVIF compatibility, and PoE installation.

Designed for professional CCTV installations, this Comelit panoramic turret camera fits entrances, corridors, retail spaces, parking areas, schools, offices, and commercial buildings. Use it when you need an 8MP PoE security camera with wide-angle monitoring, built-in audio, Micro SD recording, video analytics, and active event deterrence.

The IP66 die-cast aluminum housing, IK10 metal vandal resistance, triple streaming, H.265+ compression, D-WDR, human and vehicle classification, warning LED, built-in microphone, and speaker support dependable security workflows. Comelit CCTV Manager, browser viewing, and mobile app control help integrators manage professional IP surveillance systems.

8MP ColorUP Panorama Turret Camera Features

• 180° Panoramic Coverage: Captures wide-area surveillance from one camera position with a 180° horizontal field of view.
• 8MP 4K Video: Records 4640 x 1760 video at up to 30 fps for detailed IP monitoring.
• ColorUP and Smart IR: Uses white LED lighting, IR illumination, and Dual Light operation for flexible day-or-night imaging.
• Active Deterrence: Provides blue/red warning LEDs and audible alerts through a built-in speaker for event-based response.
• Human and Vehicle Analytics: Supports line crossing, region analytics, counting, heat map, metadata analysis, loitering, and no-parking detection.
• Audio and Alarm I/O: Includes alarm input/output, audio input/output, built-in microphone, and integrated speaker.
• Micro SD Recording: Supports Micro SD cards up to 256GB for onboard edge storage.
• Outdoor-Rated Housing: IP66 waterproofing and IK10 metal housing support demanding surveillance environments.

Technical Specifications

• Product Type: ColorUP panorama turret IP camera
• Brand: Comelit
• Model: ITM08A3F02A
• ADI Part Number: CU-ITM08A3F
• Product Name: Advance Series ColorUP 8MP Turret IP Panorama Camera with Warning LED and Audible Alert Via Speaker, 2.8mm Fixed Lens, White
• Product Series: Advance
• Category: CCTV camera
• Camera Type: Panorama turret IP camera
• Housing Type: Turret
• Camera Sensor: 1/2.7" CMOS Ultra Starlight
• Lens Type: Fixed
• Lens: 2.8 mm
• Effective Pixels: 4640 x 1760
• Video Resolution: 4K, 8MP
• Frame Rate: 30 fps
• Horizontal Field of View: 180°
• Vertical Field of View: 66°
• Electronic Shutter: 1/3 to 1/100000 second
• Sensitivity: 0.0005 lux color, 0 lux black-and-white with IR LED on
• Signal-to-Noise Ratio: Greater than 50 dB
• Video Transmission: Triple streaming
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• DORI Detection Distance: 196.9'
• DORI Observation Distance: 78.7'
• DORI Recognition Distance: 39.4'
• DORI Identification Distance: 19.7'
• Supported Protocols: DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, PPPoE, QoS, RTSP, UDP, P2P, ONVIF, SNMP
• ONVIF Compatibility: Yes
• Additional Functions: Dual Light
• Simultaneous Connections: 10 live connections
• Remote Browser Viewing: Edge, Firefox, Chrome, Safari
• Remote Mobile Control: Comelit CCTV app
• Management Software: Comelit CCTV Manager
• Motion Detection: Yes
• Video Analytics: Counter, through line, entrance area, object left or lost, line crossing detection with human and vehicle classification, region entrance detection, region exit detection, region intrusion detection with human and vehicle classification, object abandoned or missing detection, heat map, metadata analysis, parking-prohibited detection, loitering detection
• Back Light Compensation: BLC
• Wide Dynamic Range: D-WDR
• White Balance Control: Automatic, manual
• Exposure Control: Manual, auto
• Display Brightness Control: Yes
• Image Flip: Yes
• Camera Titling: Yes
• IR LED Lighting Distance: 98.4'
• White LED Lighting Distance: 65.6'
• Lighting Modes: ColorUP white LED, Dual Light IR plus white LED, IR LED, Smart IR
• Deterrent Functions: Blue/red warning LED and audible alert through speaker using sounder or messages
• Vandal Resistance Rating: IK10 metal housing
• IP Protection Rating: IP66
• Alarm Inputs/Outputs: 1 input, 1 output
• Audio Inputs/Outputs: 1 input plus built-in microphone, 1 output plus built-in speaker
• LAN Output Type: Ethernet 10/100 Mbit/s RJ45
• Local Storage: Micro SD card support up to 256GB, card not included
• Supply Voltage: 12V DC
• Power Supply Type: PoE or external power supply
• PoE Standard: IEEE 802.3af
• Maximum Absorption: 10.5 W
• Finishing Material: Die-cast aluminum
• Product Color: White
• Diameter: 4.39"
• Height: 4.02"
• Product Weight: 1.59 lbs
• Operating Temperature: -22°F to 140°F
• Operating Humidity: 25% to 95% RH maximum
• Compatible Accessories: JBA-TBBA, JBA-02A, CMA-KTBBA, WMA-KTBBA, PMA-A, AMA-A, WMA-01A
• UPC: 802390347532
