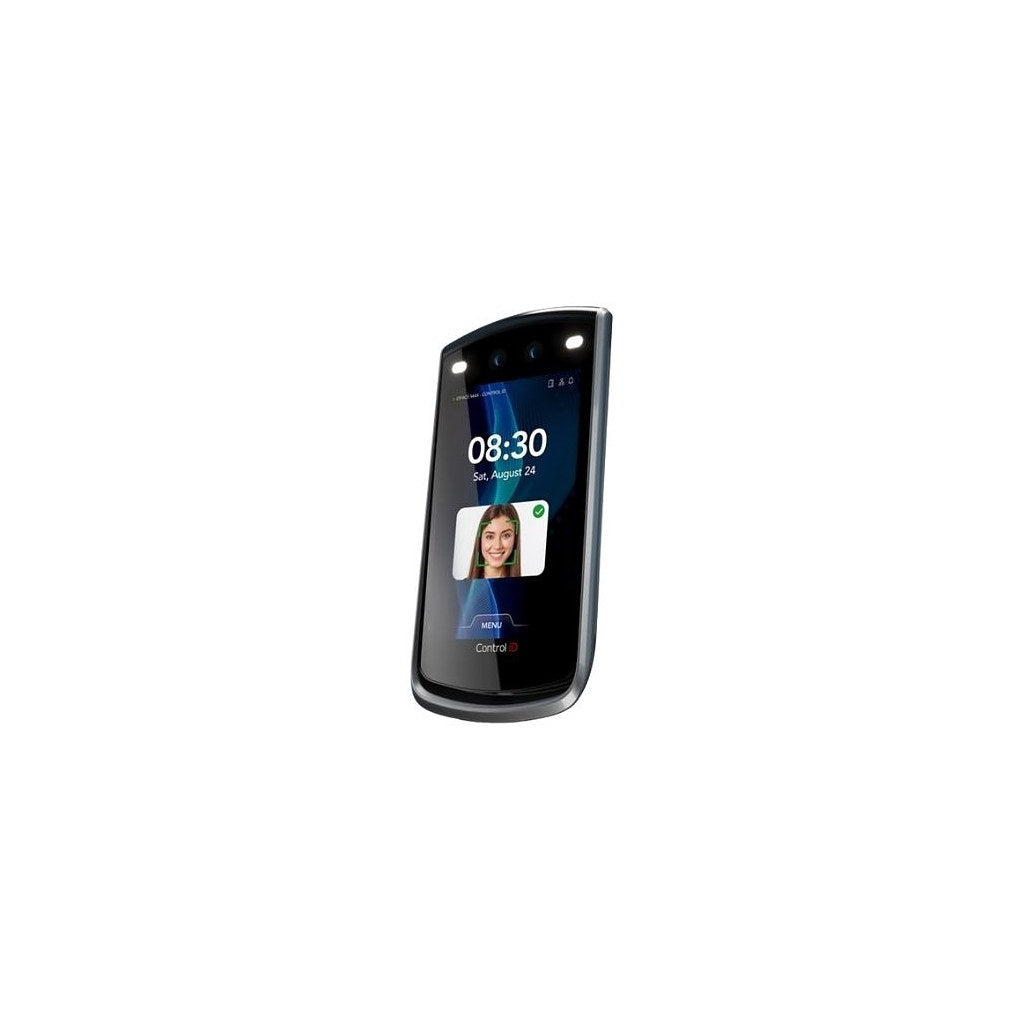

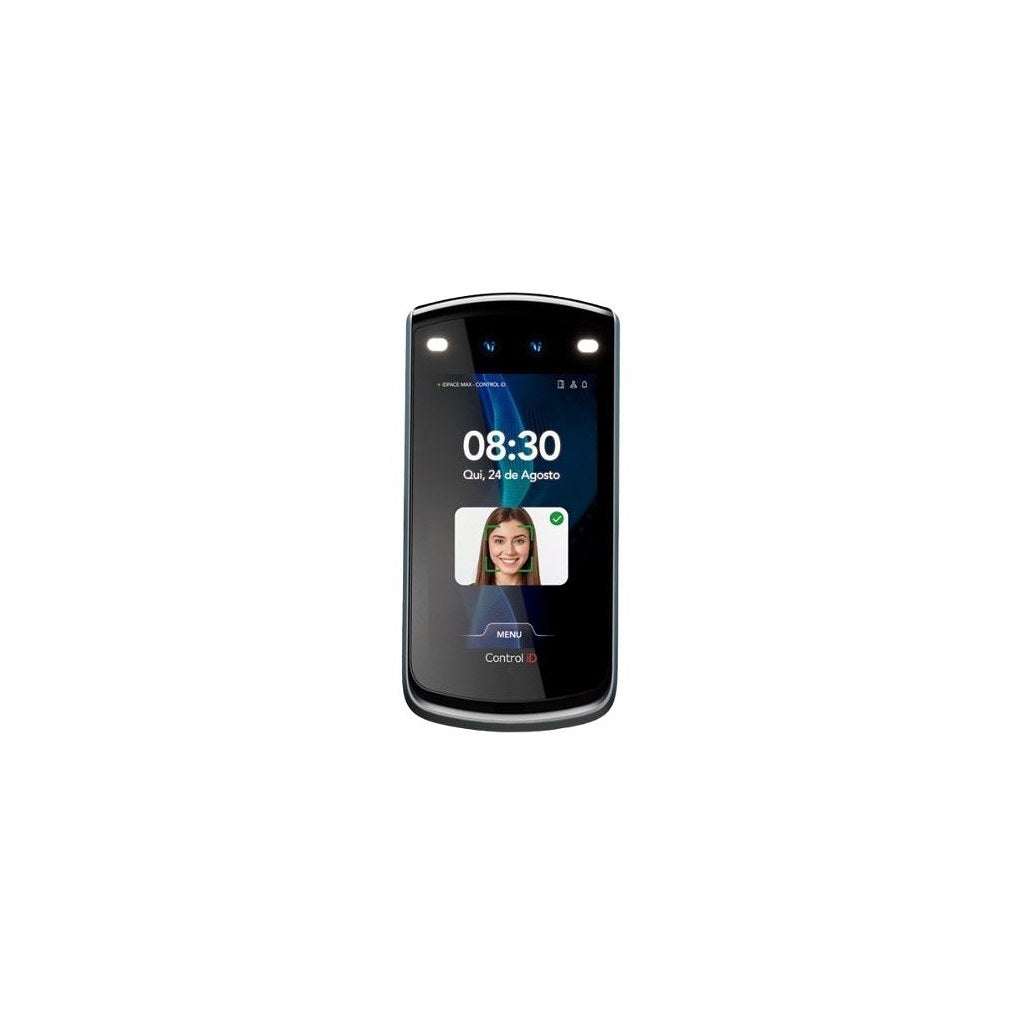

Control iD iDFace Max Facial Identification Access Controller

Control iD iDFace Max Facial Identification Access Controller

The Control iD iDFace Max Facial Identification Access Controller is a biometric door access device built for high-volume facial identification, touchscreen operation, and connected entry management. It supports facial verification, access rules, SIP intercom functionality, and IP65-rated protection for commercial access control installations.

Use iDFace Max for corporate buildings, campuses, secured entrances, and facilities that need fast, contactless credentialing. Buyers looking to purchase a facial recognition access controller, deploy a biometric reader for business entry, or upgrade a commercial access control system get flexible identification methods with network-ready control.

Professional installers can integrate the controller with door hardware using relay outputs, REX input, door sensor input, Wiegand input, Wiegand output, OSDP over RS-485, Ethernet, USB, Wi-Fi, and LTE options. Dual 1080p cameras support facial identification, while the 7-inch capacitive touchscreen simplifies setup, access rules, and report viewing.

Key Features for Facial Recognition Access Control

• Facial Identification: Supports up to 100,000 faces with live face detection on select models for high-capacity entry control.
• 7" Touchscreen Display: Provides a large color interface for navigation, configuration, and report viewing.
• IP65 Protection: Helps protect the access controller against dust and water exposure in demanding installations.
• Custom Access Rules: Allows rules according to schedules, departments, groups, and access control requirements.
• Integrated SIP Intercom: Adds built-in G711-compatible SIP intercom capability on Pro configuration models.
• Multiple Identification Methods: Supports facial identification, proximity cards, PIN/password, and QR Code credentials.
• Door Hardware Integration: Includes internal and external relay options, REX input, door sensor input, and Wiegand connectivity.
• Network Connectivity: Supports Ethernet, USB, optional Wi-Fi, optional LTE, and OSDP support over RS-485.

Technical Specifications

• Brand: Control iD
• Model: iDFace Max
• ADI Part Number: BE-IDFACEMAX
• Manufacturer Part Number: IDFACEMAX
• Product Type: Facial identification access controller
• Application/Usage: Corporate building
• Registered Users: More than 200,000 users
• Face Capacity: Up to 100,000 faces with live face detection on select models
• Access Rules: Rules according to schedules and departments
• Door Control: Via external access module and/or internal relay
• REX Input: 1 REX button input on the external access module
• Door Sensor Input: 1 open door sensor input on the external access module
• Relay Output: 1 internal relay and 1 relay on the external module, up to 30VAC / 5A
• Wiegand Input: 1 port on the external access module
• Wiegand Output: 1 port on the external access module
• Ethernet: 1 native 10/100Mbps Ethernet port
• USB: 1 USB 2.0 host port
• Wi-Fi: Integrated Wi-Fi communication, optional
• LTE: LTE connection module, optional
• SIP Intercom: Built-in G711-compatible SIP intercom, Pro version
• OSDP: Peripheral Device support via RS-485 interface
• Facial Identification Cameras: Two 1080p Full HD cameras, visible light and infrared light
• Proximity Cards: Optional MIFARE, 125kHz ASK, or HID
• Password Identification: User identification through PIN and password
• QR Code Identification: User identification through QR Code
• LCD Touchscreen: 7" TFT color LCD display, 800 x 1280, with capacitive touchscreen
• Integrated Web Software: Complete access control management from a browser
• Audio: Built-in speaker and microphone
• Terminal Dimensions: 4.70" x 1.36" x 9.72" (W x D x H)
• External Access Module Dimensions: 2.05" x 2.05" x 0.87" (W x D x H)
• Terminal Weight: 2.09 lbs
• External Access Module Weight: 0.08 lbs
• Power Input: External 12V 2A source or PoE IEEE 802.3af
• Ingress Protection Rating: IP65
