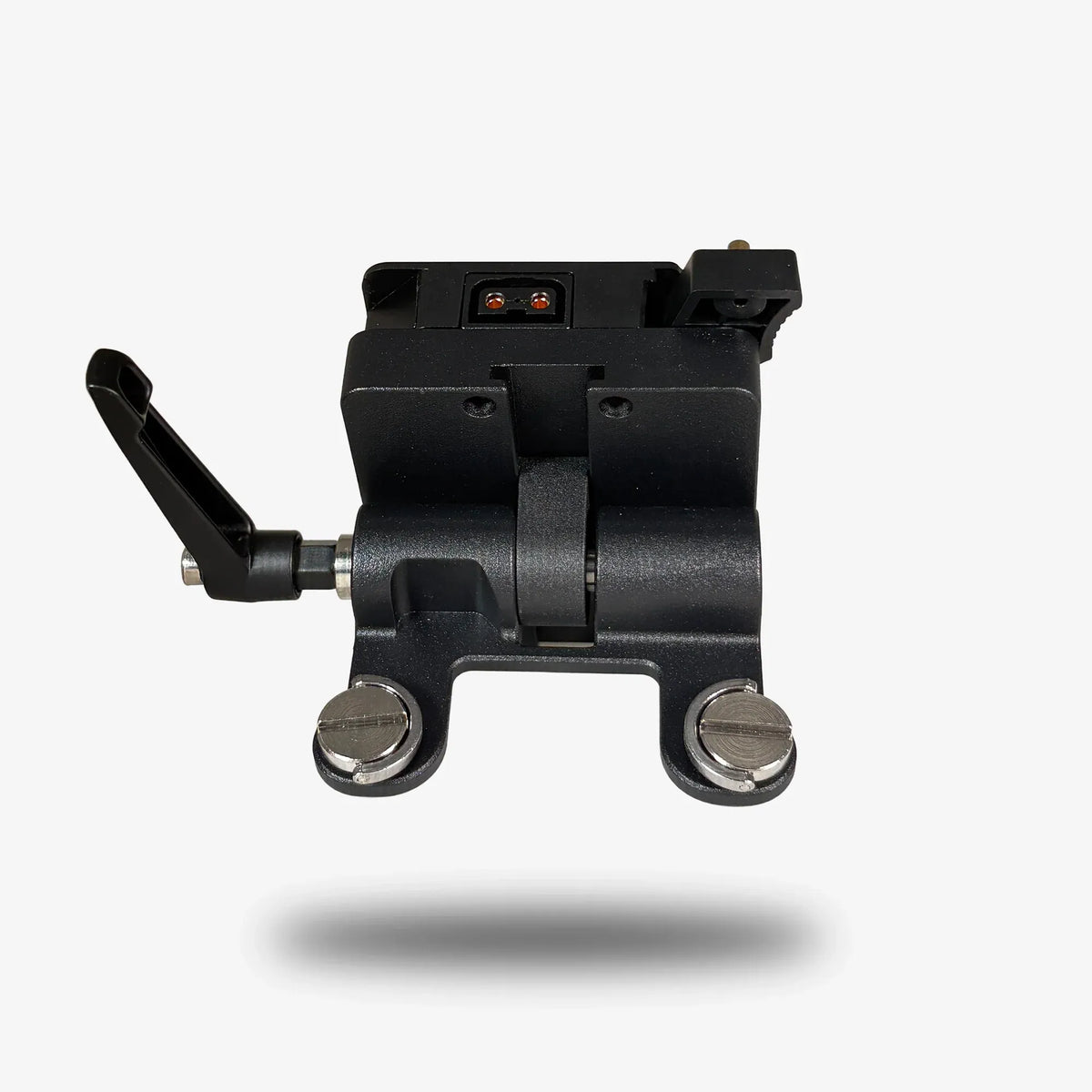

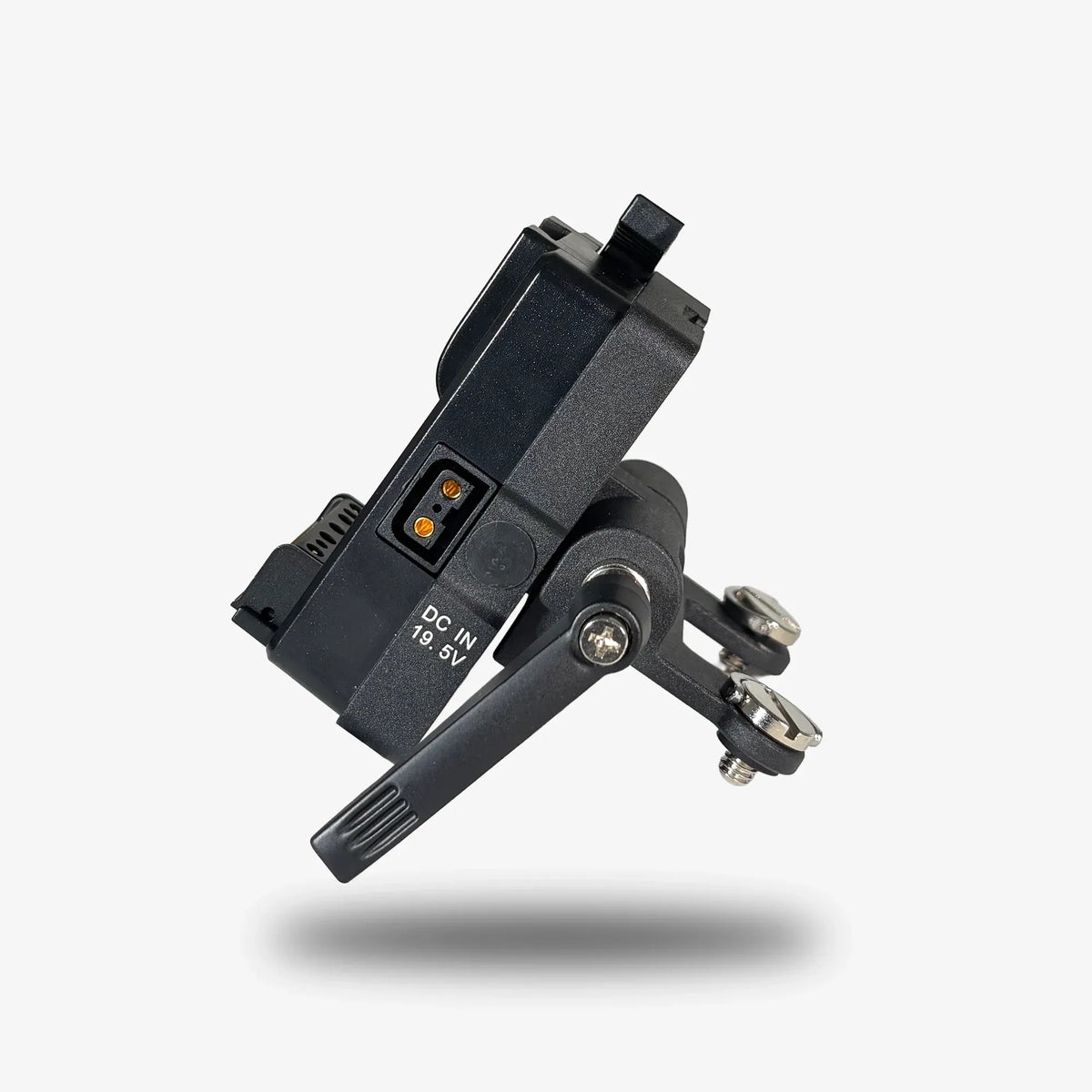

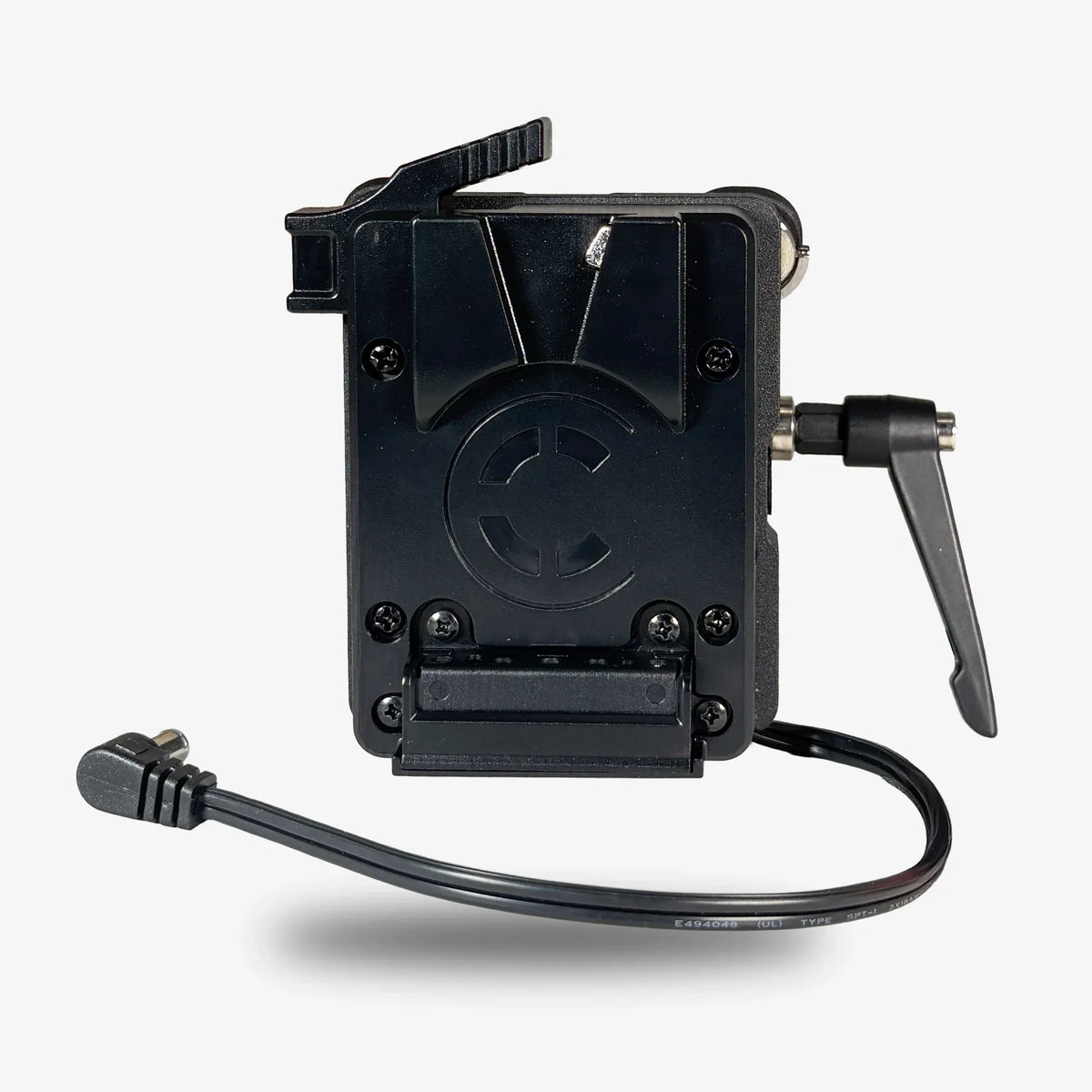

Core SWX CXVM-FX6 Articulating V-Mount Battery Plate for Sony FX6

The FX6 Plate mounts directly to the back of the Sony PXW-FX6. The milled aluminum product inserts attaches into the top of the camera (with included screw hardware) to provide a secure platform for mounting G-mount or V-mount batteries directly onto the FX6 camera. It has a 19.5v DC output with a visual low battery warning LED and a DC barrel input (OEM camera power supply) for hotswapping between external and on-board power. In addition, it’s equipped with a powertap and USB to power additional accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.

Up to a BP-U100 battery pack fits inside of the battery cavity on the camera, allowing the user to hotswap batteries. Once the on-board pack dies, it will automatically pull power from the BP-U battery and you will see the battery indication on the viewfinder change.

Technical Specifications

• On-board Input: 11.9vdc-16.8vdc, unregulated

• DC Input: DC power input utilizing the cameras power supply

• Output for camera: 19.5v regulated +/- 1v

• Powertap: DC 11.9-17v, unregulated

• USB: DC 5v, unregulated

• Size: 4.6″ x 2.8″ 1.6″

• Weight: 0.6 lbs

What's Included

• Core SWX Articulating V-Mount Battery Plate for Sony PXW-FX6 Mounting Hardware Kit Limited 1-Year Manufacturer Warranty
