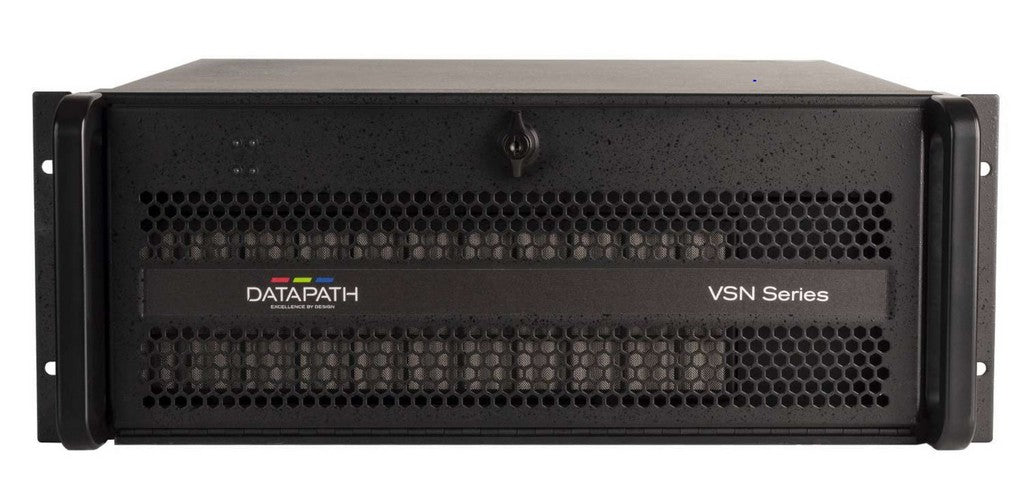

Datapath VSN-V3-11-B-RPSU Core i7 11-Slot Video Wall Controller

Datapath VSN-V3-11-B-RPSU Video Wall Controller

The Datapath VSN-V3-11-B-RPSU Video Wall Controller provides an Intel Core i7 processing platform with an 11-slot PCIe backplane for configurable display systems. This configuration includes 32GB RAM, dual 240GB solid-state drives, and an 800W redundant power supply. Its expandable architecture accommodates project-specific graphics, capture, and IP decoding cards.

Designed for control rooms, corporate display installations, and continuous monitoring applications, this rackmount video wall processor gives integrators room to build around their sources and displays. Eleven expansion slots support flexible card selection as project requirements develop. Actual video inputs, display outputs, and decoding capabilities depend on the cards specified for the completed system.

Hot-swappable fans simplify maintenance in installations that demand continuous operation. Mirrored storage uses RAID 1, which keeps matching data on two drives, while redundant power supports system availability. Datapath's Diag-Suite provides operating information for troubleshooting. Integrators can also specify compatible Image graphics, Vision capture, and SQX decoding hardware to align the controller with the installation's signal workflow.

Key Features

• Core i7 Processing: A 12th-generation Intel platform supports video wall processing and system operation.
• 11-Slot Expansion: PCIe Gen3 x8 connectivity accommodates compatible graphics, capture, and decoding hardware.
• Redundant Power: An 800W power supply configuration supports demanding installations.
• Mirrored SSD Storage: Two hot-swappable drives operate in RAID 1 for storage redundancy.
• Serviceable Cooling: Hot-swappable fans help simplify maintenance during continuous operation.
• System Diagnostics: Diag-Suite supplies real-time performance information to assist support teams.
• Configurable Signal Handling: Supports project-specific Datapath Image, Vision, and SQX cards.

Technical Specifications

• Brand: Datapath
• Model: VSN-V3-11-B-RPSU
• Series: VSN V3
• Product Type: Configurable video wall controller
• Processor: 12th-generation Intel Core i7
• Published Processor Clock Speed: 4.90GHz
• Processor Cache: 25MB
• Installed Memory: 32GB
• Memory Upgrade Option: 64GB
• Memory Platform: DDR5
• Backplane: 11-slot PCIe Gen3 switched fabric, x8
• Backplane Link Bandwidth: 8GB/s uplink and downlink
• Listed Storage Configuration: Two 240GB hot-swappable SSDs in RAID 1
• Storage Upgrade Option: Two 960GB SSDs
• Listed Operating System: Windows 10 LTSC 21H2
• Alternative Operating System: Windows 11 LTSC 24H2 available by request when ordering
• Onboard Display Connections: DisplayPort and HDMI
• Audio Connection: 3.5mm jack
• USB Connections: Four USB 3.0, two USB 2.0, and one USB-C
• Network Connections: Dual Ethernet ports
• Power Supply: 800W redundant power supply
• AC Input: 100-240 VAC, 50/60Hz
• Cooling: Hot-swappable fans
• Operating Temperature: 32 to 95°F
• Storage Temperature: -4 to 158°F
• Relative Humidity: 10-95%, non-condensing
• Maximum Operating Altitude: 16,404 ft
• Published Noise Range: 52-80dB, depending on configuration and ambient temperature
• Dimensions Including Rack Ears (L x W x H): 20 x 19 x 7 inches
• Configuration-Dependent Weight: 41.9-55.1 lb
• Configuration-Dependent Shipping Weight: 66.1-72.8 lb
• Compliance: CE, UKCA, FCC, and TAA
