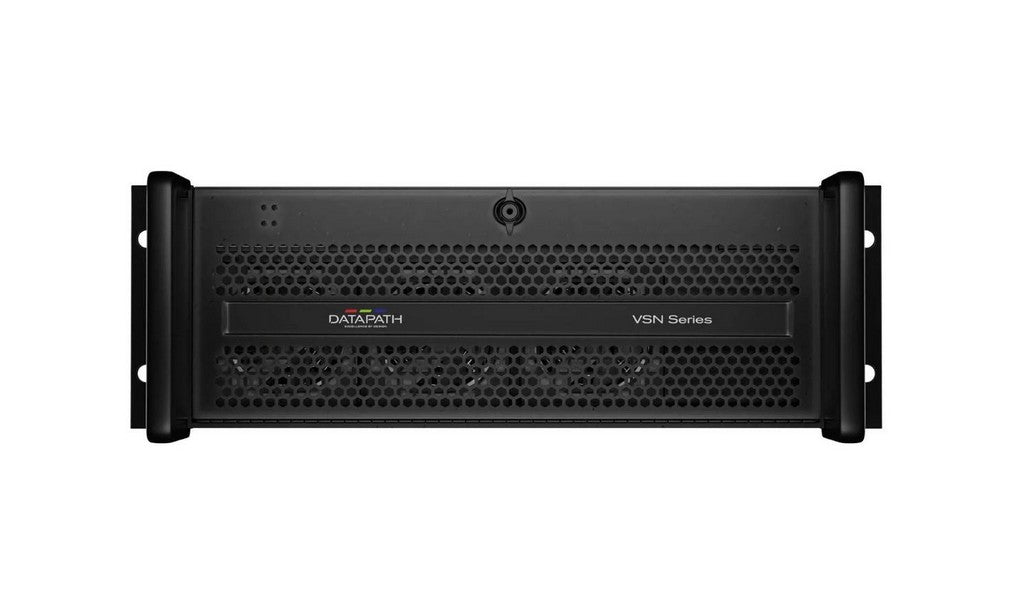

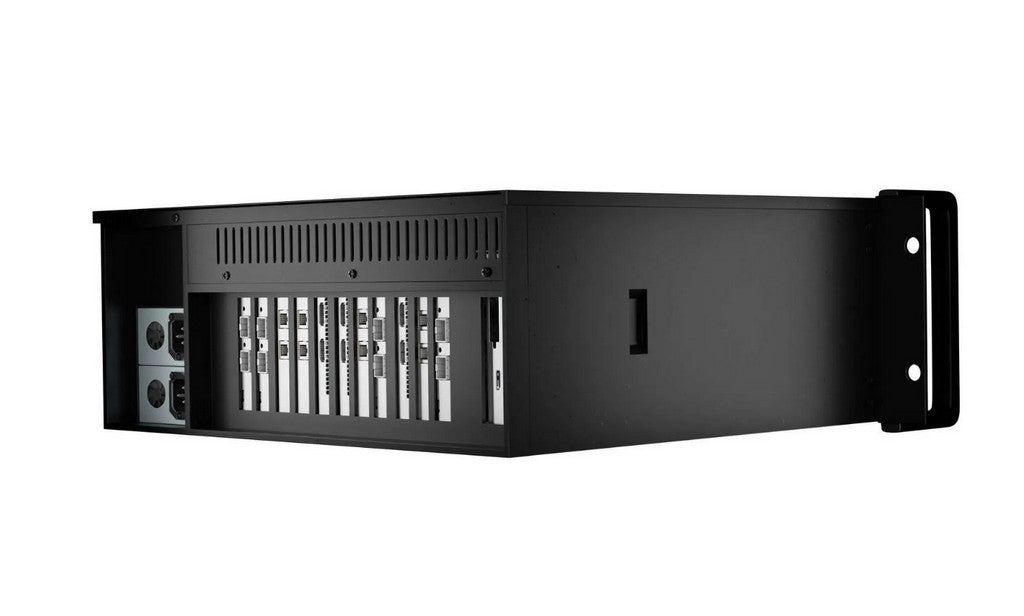

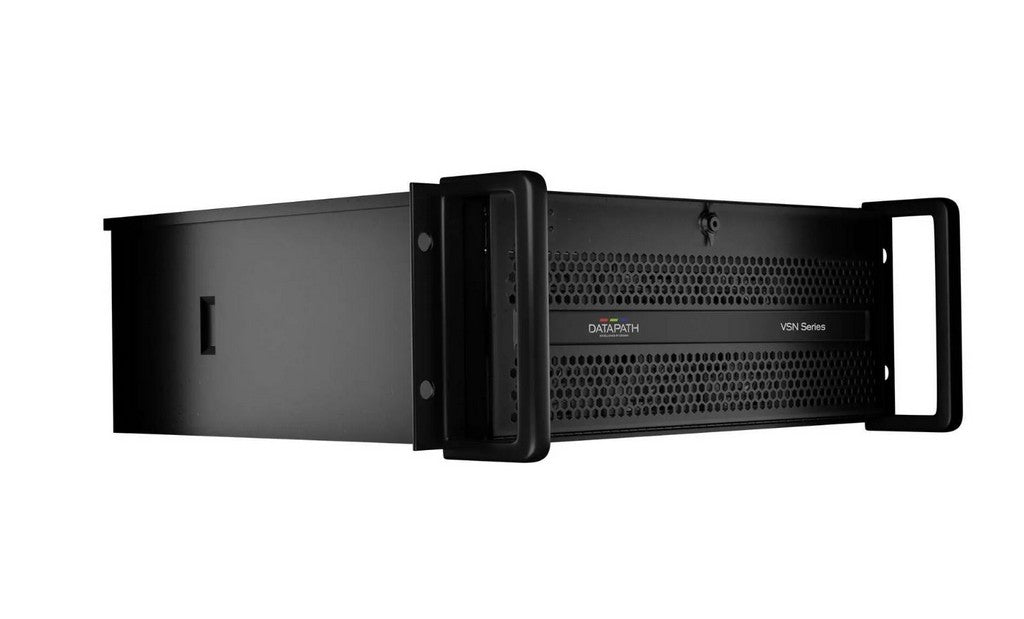

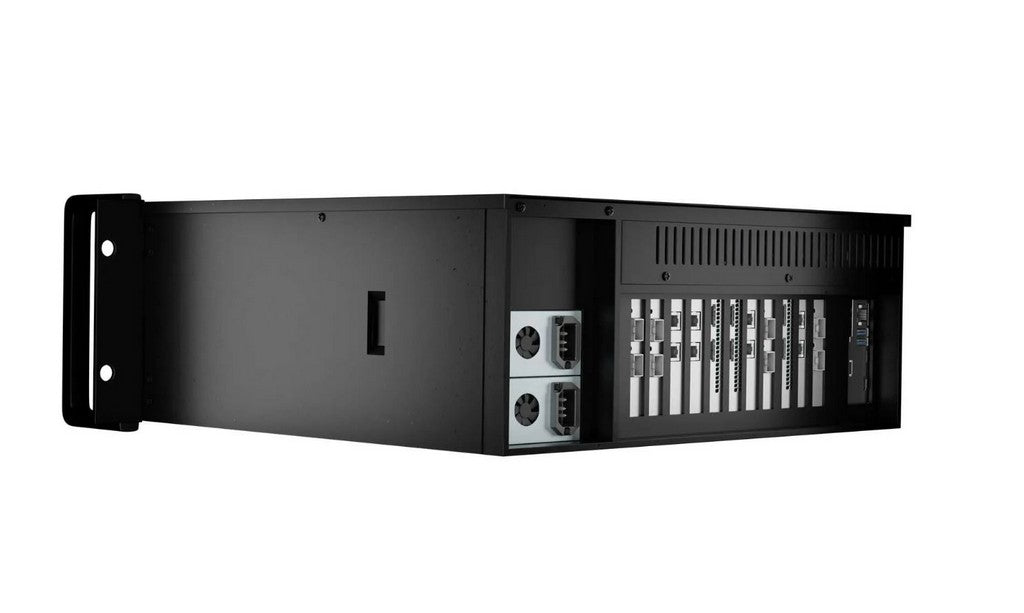

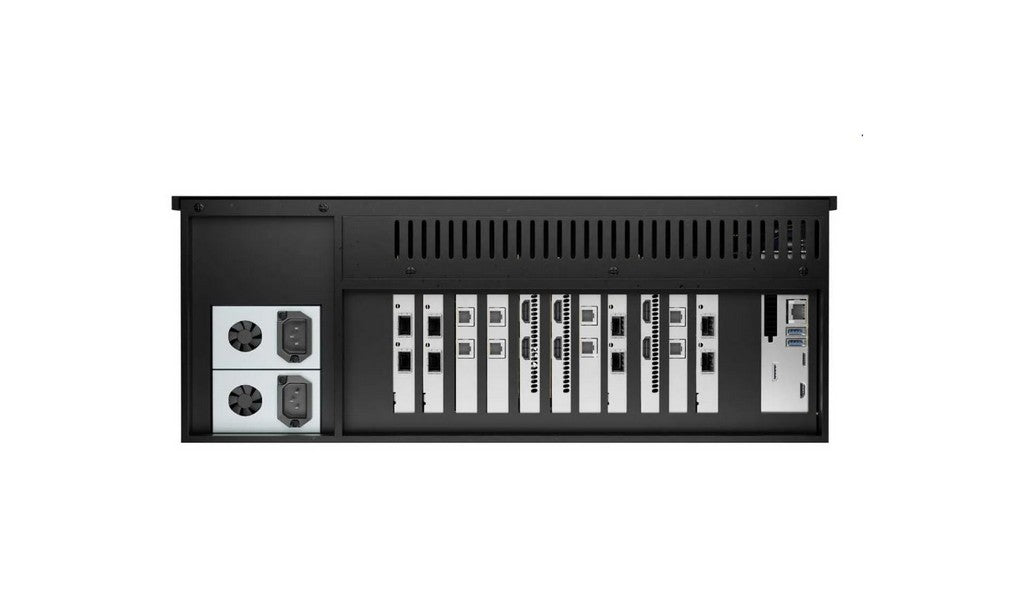

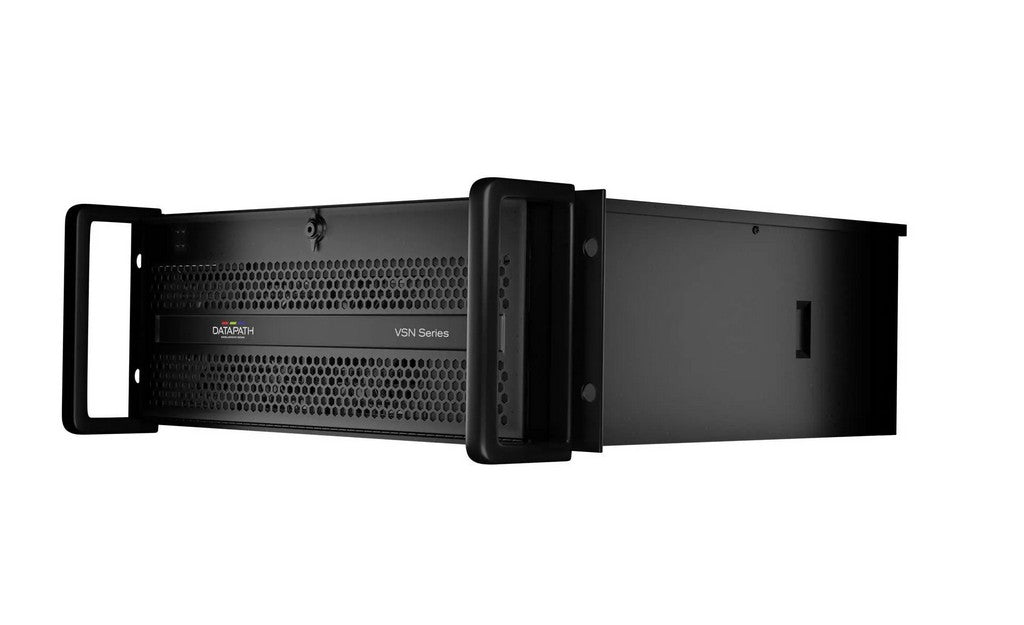

Datapath VSN-V3-5-A-RPSU Core i9 5-Slot Video Wall Controller

Datapath VSN-V3-5-A-RPSU Video Wall Controller

The Datapath VSN-V3-5-A-RPSU Video Wall Controller combines a 12th-generation Intel Core i9 processor with a five-slot PCIe backplane for configurable display installations. This configuration includes 32GB RAM, two 480GB solid-state drives, and an 800W redundant power supply. Compatible expansion cards tailor its video capabilities to the project.

Designed for control rooms, corporate meeting spaces, and professional monitoring environments, this configurable video wall processor supports installations with specific capture and display requirements. Integrators can select Datapath graphics, capture, and IP decoding cards around their signal sources. The five-slot architecture provides a defined expansion platform, while actual input counts and display capacity depend on the installed hardware.

Hot-swappable fans support maintenance in systems intended for continuous operation. Redundant power and serviceable storage address practical reliability needs, while Diag-Suite supplies real-time operating information for troubleshooting. Windows LTSC compatibility supports professional system deployment. Specify the required cards, software, and operating system when ordering so the completed controller matches the installation's workflow and support requirements.

Key Features

• Intel Core i9 Processing: A 12th-generation processor with 30MB cache supports demanding video wall applications.
• Five Expansion Slots: A PCIe Gen3 x8 backplane accommodates compatible project-specific cards.
• 480GB SSD Pair: Two hot-swappable solid-state drives provide the listed storage configuration.
• Redundant Power: An 800W redundant supply supports installations where system availability matters.
• Serviceable Cooling: Hot-swappable fans simplify maintenance in continuously operated systems.
• Configurable Video Hardware: Supports Datapath Image graphics, Vision capture, and SQX IP decoding cards.
• System Diagnostics: Diag-Suite helps administrators assess performance and investigate operating issues.

Technical Specifications

• Brand: Datapath
• Model: VSN-V3-5-A-RPSU
• Series: VSN V3
• Product Type: Configurable video wall controller
• Processor: 12th-generation Intel Core i9
• Published Processor Clock Speed: 5.10GHz
• Processor Cache: 30MB
• Installed Memory: 32GB
• Memory Upgrade Option: 64GB
• Memory Platform: DDR5
• Backplane: Five-slot PCIe Gen3 switched fabric, x8
• Backplane Link Bandwidth: 8GB/s uplink and downlink
• Listed Storage: Two 480GB hot-swappable SSDs configured in RAID
• Storage Upgrade Option: Two 960GB SSDs
• Supported Operating Systems: Windows 10 LTSC 21H2 and Windows 11 LTSC 24H2
• Manufacturer Default Operating System: Windows 10 LTSC 21H2; Windows 11 LTSC 24H2 available by request when ordering
• Onboard Display Connections: DisplayPort and HDMI
• Audio Connection: 3.5mm jack
• USB Connections: Four USB 3.0, two USB 2.0, and one USB-C
• Network Connections: Dual Ethernet ports
• Power Supply: 800W redundant power supply
• AC Input: 100-240 VAC, 50/60Hz
• Cooling: Hot-swappable fans
• Operating Temperature: 32 to 95°F
• Storage Temperature: -4 to 158°F
• Relative Humidity: 10-95%, non-condensing
• Maximum Operating Altitude: 16,404 ft
• Published Noise Range: 52-80dB, depending on configuration and ambient temperature
• Dimensions Including Rack Ears (L x W x H): 20 x 19 x 7 inches
• Configuration-Dependent Weight: 41.9-55.1 lb
• Configuration-Dependent Shipping Weight: 66.1-72.8 lb
• Compliance: CE, UKCA, FCC, and TAA
