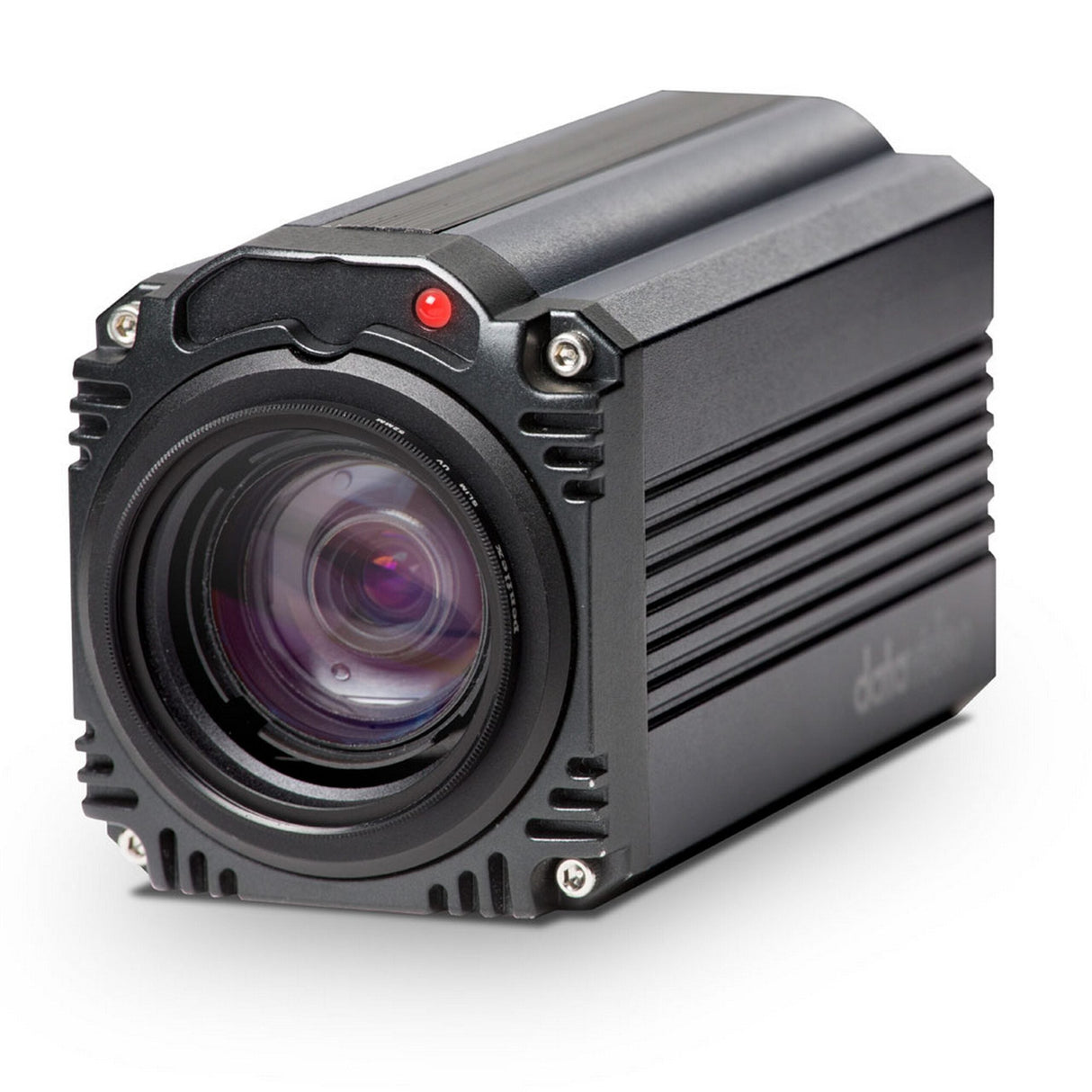

Datavideo BC-50 Full HD IP Block Camera

1/2.7 inch CMOS sensor. 1080p Full HD resolution

20x optical zoom, 16x digital zoom
The BC-50's 20x optical zoom and 16x digital zoom allows you to mount it near or far and still get great, sharp shots.

Compression H.264/H.265/Motion-JPEG et diffusion en continu IP
La camra BC-50 peut fournir le signal vido compress H.264/H.265/MJPEG, ainsi que le protocole RTMP pour une diffusion vers Facebook et YouTube au moyen d'une connexion RJ-45.

Controllable by VISCA/Pelco-C/Pelco-D
The BC-50 supports VISCA/Pelco-D/Pelco-P enabling the camera to be controlled via RS-485.

Technical Specifications

Video format
1080p 60/50/30/25
1080i 60/50
720p 60/50
Image Sensor
1/2.7" progressive scan CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
55 dB
Min. Illumination
0.05 Lux @ (F1.8, AGC ON)
Electronic Shutter
1/30 ~ 1/10000 sec
Zoom Ratio
20x Optical zoom, 16x Digital zoom
Gamma Control
Yes
Iris Control
Auto / Manual
Digital Noise Reductions
2D & 3D
On-Screen Display (OSD)
English, Simplified Chinese, Traditional Chinese
White Balance
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor,
6500K_1, 6500K_2, 6500K_3, One Push, Manual
AGC / Gain Control
Auto / Manual (0 to 28 step)
Max. Gain Limit (6 to 28 step)
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Focal Length
f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7
Field of View (Horizontal, Wide)
Approx. 63.7 (WIDE END) / 2.3 (TELE END)
Image Compensation
Day & Night function
Video Output
3G/HD-SDI x1
Audio Input
3.5mm Jack (Stream Output Only)
Tally LED
Dual color (Red, Green)
Filter
M52.0 x 0.75 Thread with UV Protection
Protocol
VISCA, Pelco-D, Pelco-C
Remote Control Interface and Transmit Distance
RS-485: Transmit up to 1000m
Video Compression Format
H.265, H.264, MJEPG
Audio Compression Format
AAC
Network Protocol
TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc
F/W Update
Ethernet
Tripod Mount
1/4-20 UNC
Options
PTR-10
Color
Dark blue
Dimension (LxWxH)
71 x 162 x 83 mm
Weight
0.7 kg
Operating Temp. Range
0~40 C
Power
DC 12V 6W
What's in the Box
1 x BC-50 main unit
1 x Thank You Card
1 x DC 12V power adaptor
