Description

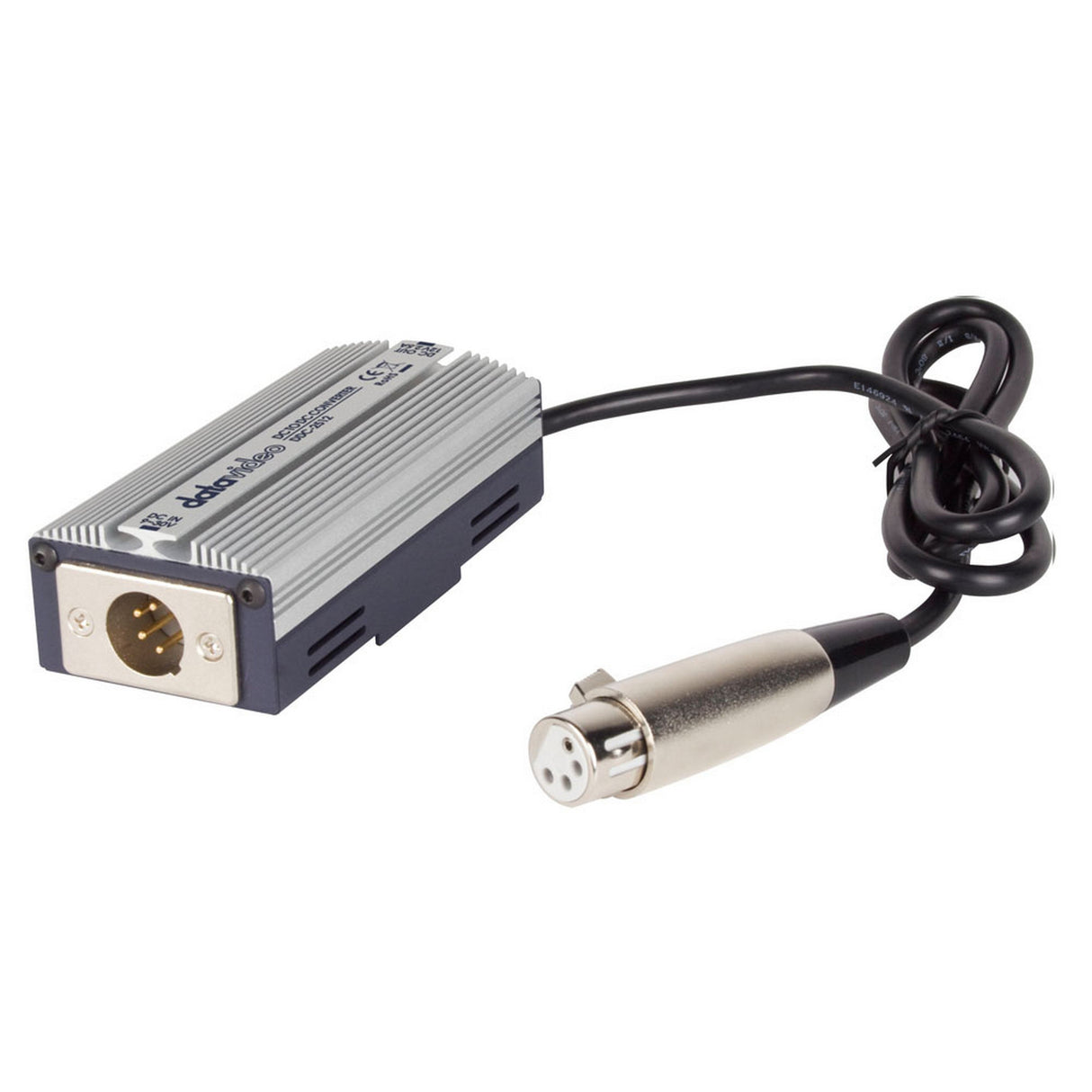

Datavideo DDC-2512 DC Voltage Regulator
The DDC-2512 is a proven way to supply power to third party cameras or AV equipment. The DDC-2512 is designed to be used with the Datavideo PD-3 Power Distribution unit and CB-23 All-in-one cable.
The DDC-2512 automatically accepts input voltages between 9 and 30 V DC to provide a regulated 12V DC output. The unit can allow for 4pin XLR type input connections and has a 4pin XLR type DC output connection.
Technical Specifications
Voltage Range
9V~30V DC
Efficiency (Typ.)
UP TO 85%
DC Voltage
12V
Voltage Tolerance
+/-3%
Rated Current
2.5 A
Current Range
0~2.5 A
Rated Power
30W
Ripple & Noise (max)
<400mV
Over Load
105%~150% rated output power
Protection type
Recovery automatically after fault condition is removed
DC Input 4 Pin XLR Male
PIN1:GND , PIN2/3:NC , PIN4:DC IN
DC Output 4 Pin XLR Female
PIN1:GND , PIN2/3:NC , PIN4:DC OUT
Working TEMP
0C to 40C (32F to 102F)
Working Humidity
1% to 90% (non condensing)
Storage Temp. Humidity
-40C to +85C, 10~95% RH
