Datavideo HS-1600T Mark II 4-Channel HDBaseT Streaming Studio

Datavideo HS-1600T Mark II 4-Channel HDBaseT Streaming Studio

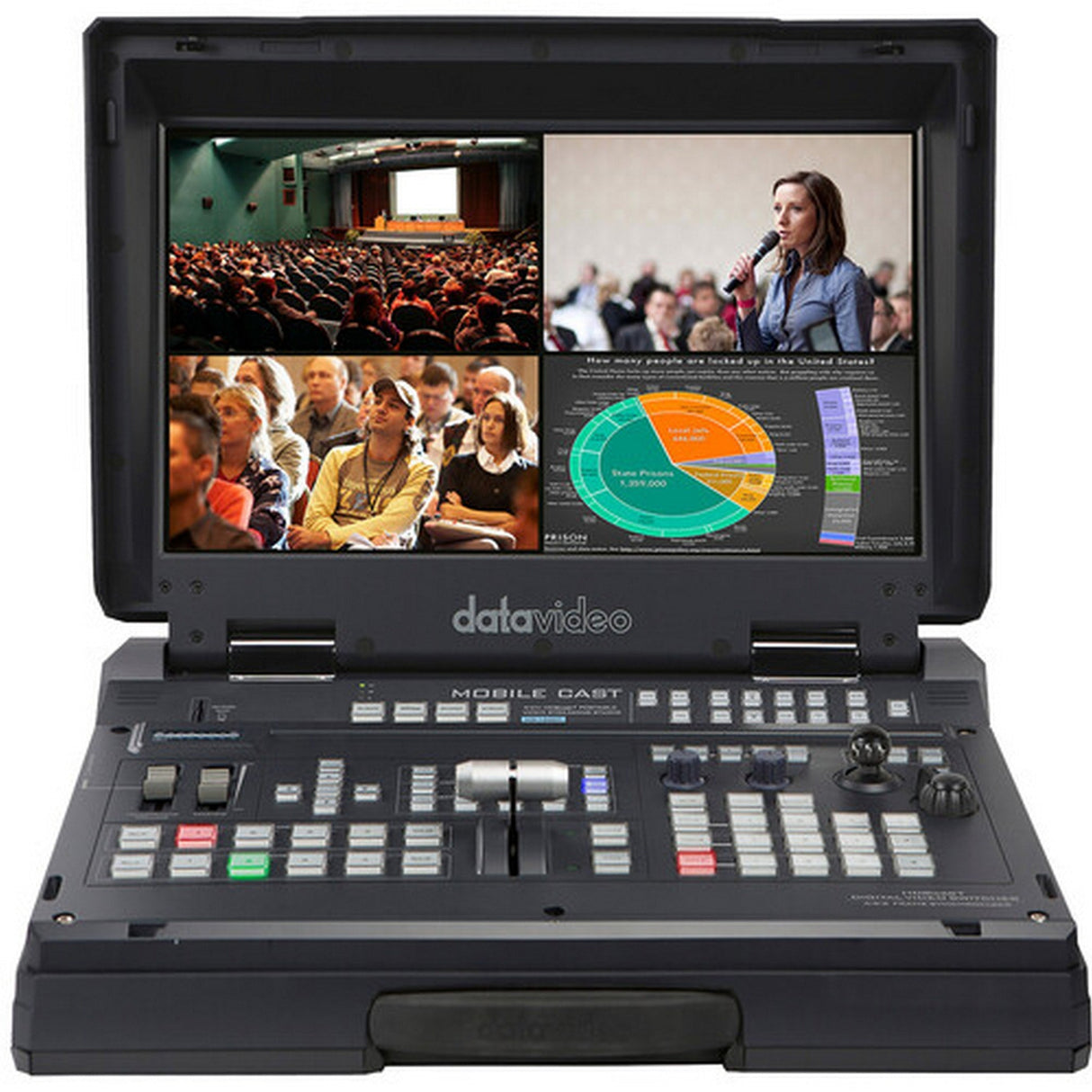

The Datavideo HS-1600T Mark II 4-Channel HDBaseT Streaming Studio combines video switching, PTZ camera control, H.264 streaming, and SD-card recording in a portable production system. It accepts three HDBaseT camera feeds plus one HDMI source, switches HD and SD formats through 1080p60, and includes a 17.3-inch 1920 x 1080 multiview monitor.

Designed for houses of worship, schools, corporate events, government productions, live performances, and mobile broadcasting, the system reduces setup complexity by carrying video, camera power, and control over HDBaseT connections. Built-in joystick PTZ operation, transition controls, an audio mixer, and multiple program outputs make it practical for single-operator live production and portable multicamera streaming workflows.

The current HS-1600T Mark II platform also supports Auto Tracking camera control with compatible Datavideo PTZ systems, with a firmware update available for earlier units. H.264/AVC encoding, dual-stream capability, SRT, RTMP/RTMPS, HLS, RTSP, SD recording, balanced XLR audio, tally, and web-based configuration provide a professional toolset for integrated streaming and recording applications.

Key Features

• Four-Source Video Switching: Combines three HDBaseT inputs with one HDMI input for multicamera and presentation production.
• Integrated PTZ Camera Control: Controls up to three compatible Datavideo PTZ cameras using the built-in joystick, controls, and camera presets.
• HDBaseT Connectivity: Carries video, camera control, and power through Ethernet cabling to simplify camera installation and setup.
• 17.3-Inch Multiview Display: Provides an integrated 1920 x 1080 TFT LED-backlit monitor for source and program monitoring.
• Streaming and Recording: Encodes H.264/AVC video for web streaming while providing MP4 recording to compatible SD media.
• Dual-Stream Capability: Current manufacturer documentation supports streaming to two destinations from the built-in encoder.
• Auto Tracking Support: Current firmware adds control for compatible Datavideo Auto Tracking PTZ cameras, reducing manual camera operation.
• Professional Audio Integration: Includes balanced XLR, stereo RCA, embedded digital audio, a four-channel mixer, and headphone monitoring.

Technical Specifications

• Model: HS-1600T MARK II
• Product Type: 4-channel HD/SD HDBaseT portable video streaming studio
• Video Standard: HD and SD
• Video Sampling: 4:4:4 10-bit
• Supported Video Formats: 1080p at 50/59.94/60 Hz; 1080i at 50/59.94/60 Hz; 720p at 50/59.94/60 Hz; 576i/p at 50 Hz; 480i/p at 59.94 Hz

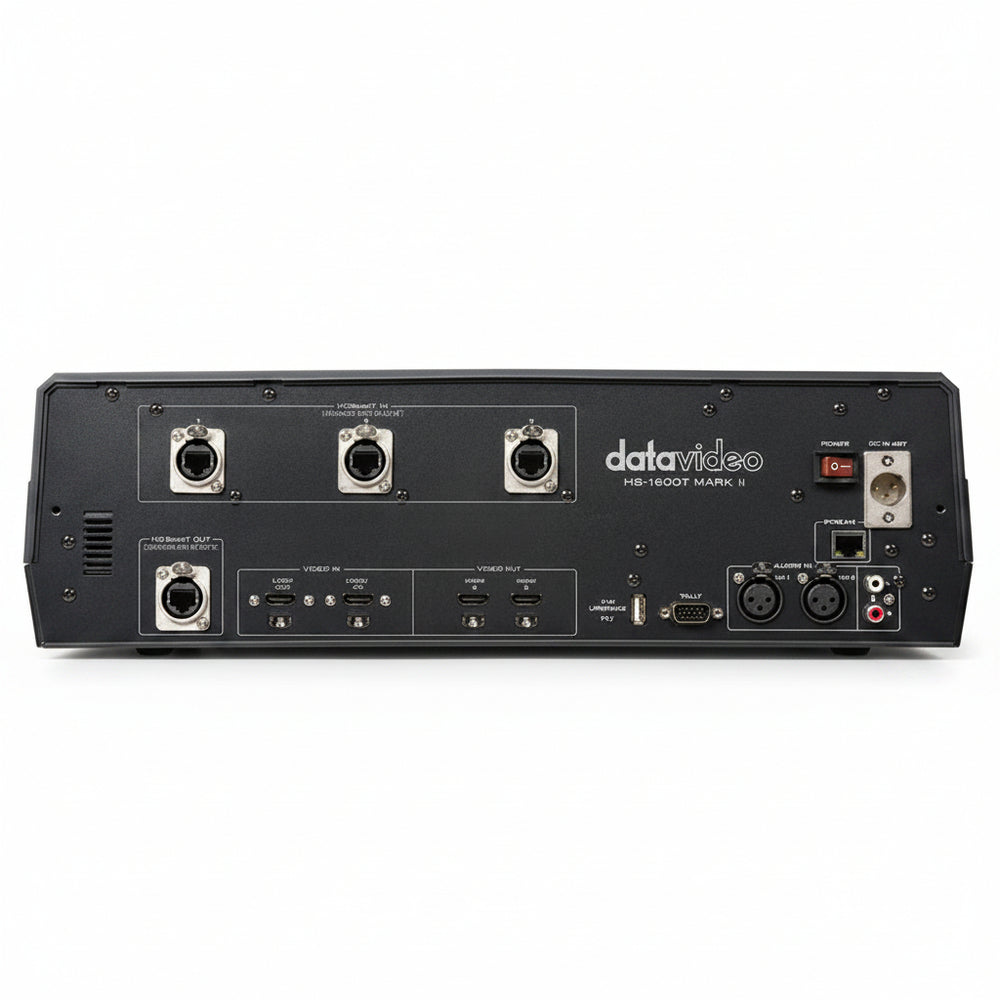

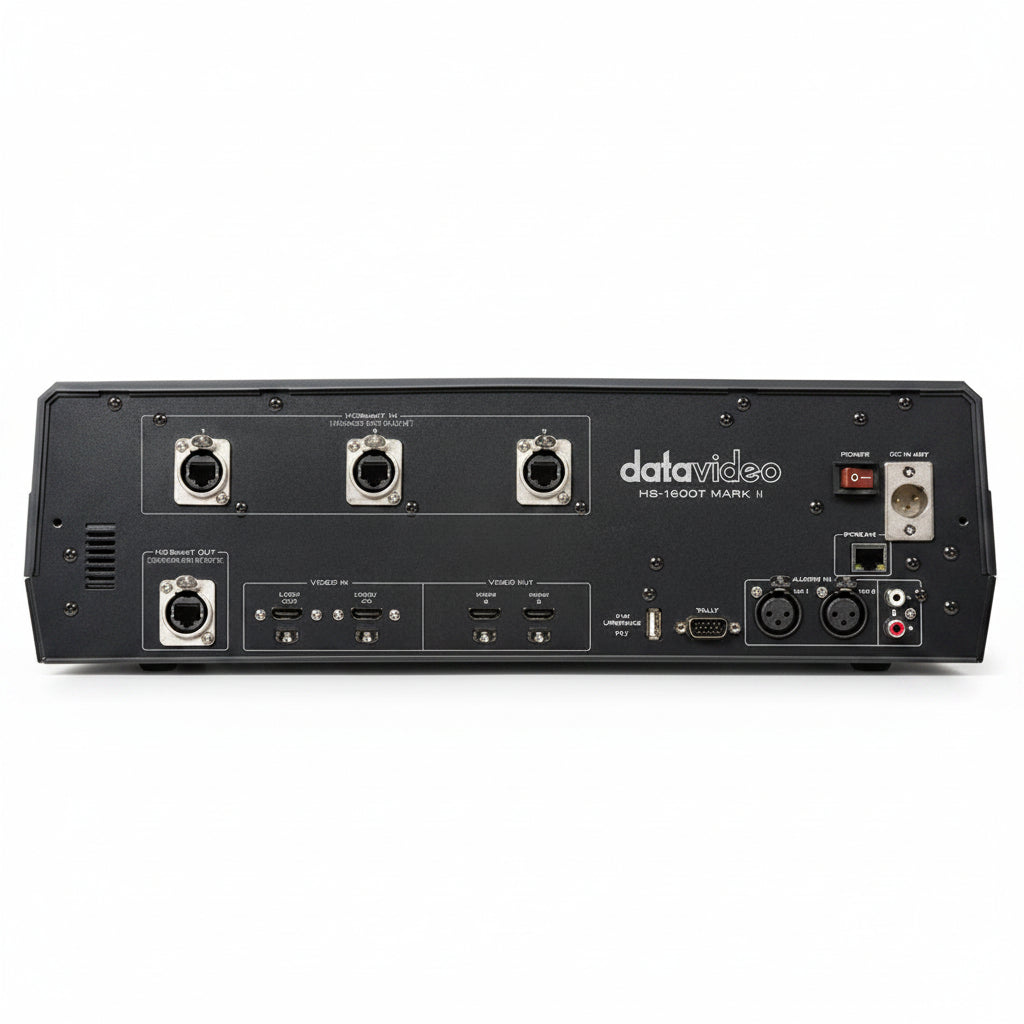

• Video Inputs: 3 x HDBaseT, 1 x HDMI
• Computer Graphics Input: 1 x HDMI
• Video Outputs: 3 x HDMI program, 1 x HDBaseT program
• Streaming Network Connection: 1 x RJ45
• Recommended HDBaseT Cable Type: Shielded Cat6A
• Down-Converted Output: Supported
• Analog Audio Inputs: 2 x balanced XLR, 1 x stereo RCA L/R
• Embedded Audio: 2-channel input and 2-channel output
• Analog Audio Output: 1 x stereo headphone output
• Built-In Audio Mixer: 4 channels
• Audio Processing: 48 kHz, 16-bit
• Upstream Keyer: 1 x USK with luma key
• Picture-in-Picture: 1
• Transition Effects: PiP, wipe, mix, and fade

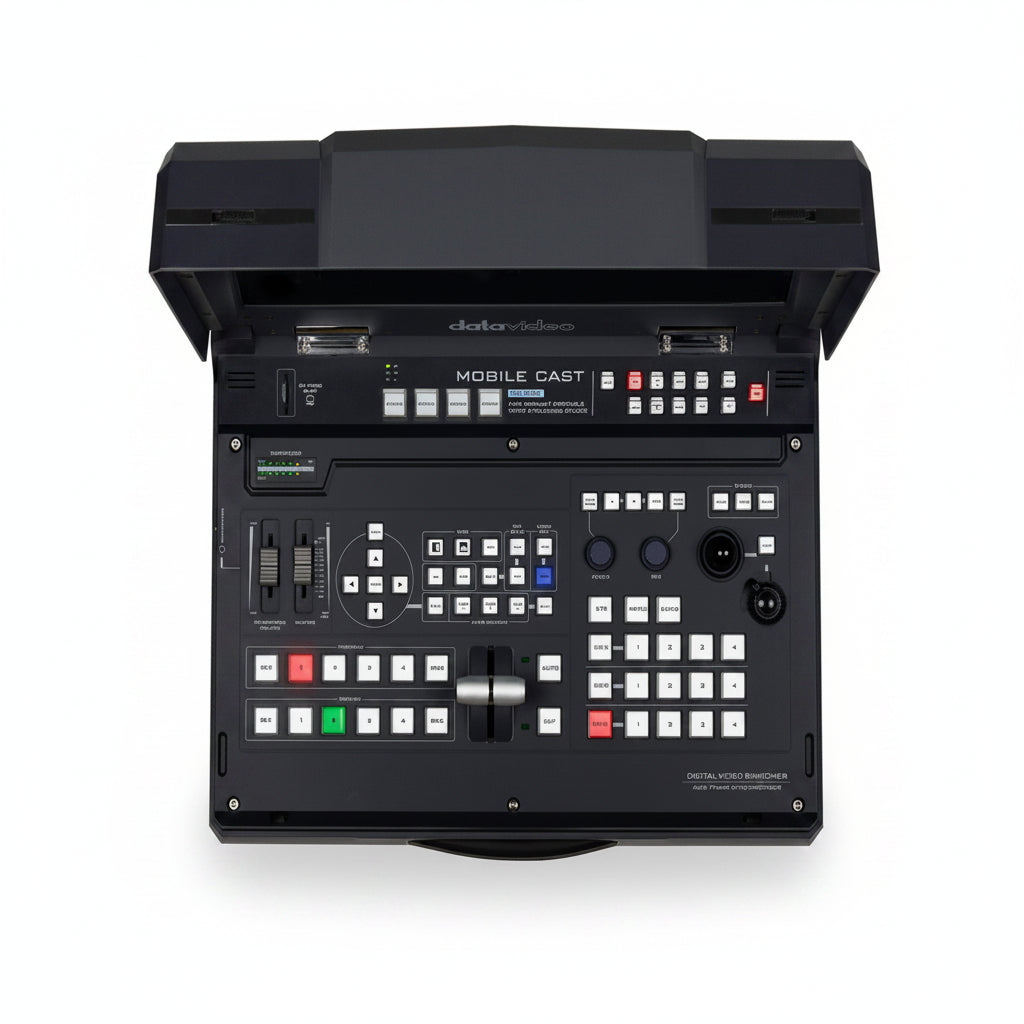

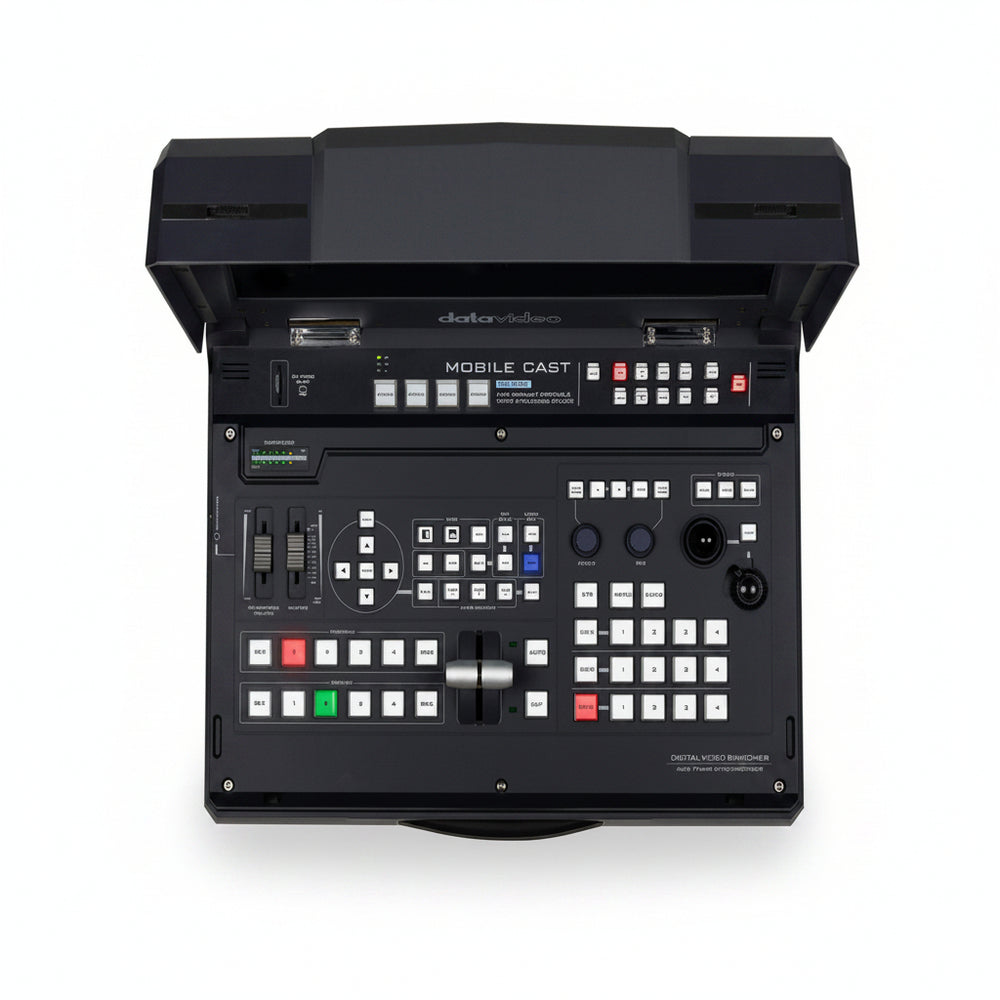

• Switching Controls: Pushbutton and T-bar
• Tally Output: DB-15 tally connection
• Built-In Monitor: 17.3 in TFT LED-backlit display
• Monitor Resolution: 1920 x 1080
• Camera Control: Built-in control for up to 3 compatible Datavideo PTZ cameras
• Auto Tracking: Supported with current firmware and compatible Datavideo Auto Tracking cameras
• Streaming Video Codec: H.264/AVC Main and High Profile
• Maximum Streaming Video Bit Rate: 10 Mbps
• Streaming Audio Codec: AAC-LC
• Streaming Audio Bit Rate: 32 to 384 Kbps
• Streaming Audio Sample Rate: 48 kHz, 16-bit
• Streaming Protocols: TS over TCP/UDP unicast and multicast; RTSP over HTTP/TCP/UDP; RTMP/RTMPS; HLS; SRT
• Streaming Control: Web browser interface and socket commands
• Streaming Capability: Dual-stream encoder supporting two streaming destinations
• Recording Media: SD card
• Recording File Format: MP4
• Recording File Systems: FAT, exFAT, and NTFS
• Streaming and Recording Control: Web interface
• Power Input: DC 48V, 4.16A
• Operating Temperature: 32 to 104°F
• Enclosure: Reinforced plastic case
• Dimensions: 17.9 x 14 x 5.3 in
• Weight: 17.2 lb

What's In the Box

• HS-1600T MARK II portable video streaming studio
• 56V power supply with AC power cord
• 3 Ethernet cables
