Datavideo HS-1650T HDBaseT Portable Streaming Production Switcher

Datavideo HS-1650T HDBaseT Portable Streaming Production Switcher

The Datavideo HS-1650T HDBaseT Portable Streaming Studio is a compact 4-channel HD/SD production system for switching, streaming, recording, monitoring, audio mixing, and camera control. It combines HDBaseT camera connectivity, a 17.3" multiview monitor, 14" touchscreen control, and built-in H.264 streaming in one portable case.

Designed for live events, education, conferences, houses of worship, and mobile production teams, the HS-1650T reduces setup complexity by carrying production control in a single integrated system. It is ideal for buyers who need an HDBaseT video switcher, a portable live streaming studio, or an all-in-one production switcher with PTZ camera control.

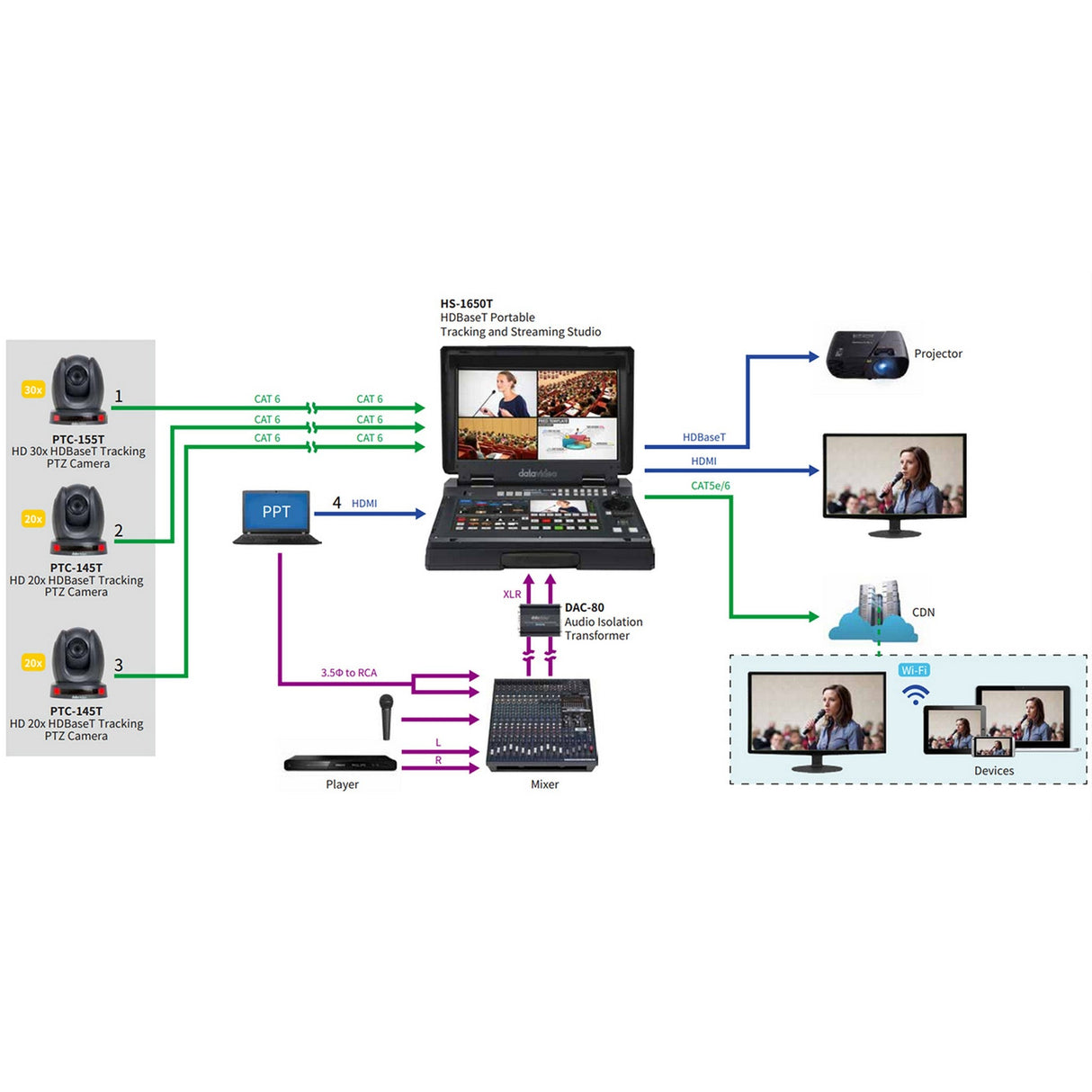

With HDBaseT technology, each compatible camera connection can carry video, power, control, and tally over one Cat-6A cable up to 328 ft. The HS-1650T also supports 4:4:4 10-bit video sampling, Picture-in-Picture, built-in camera control for up to three Datavideo PTZ cameras, SRT streaming, SD card recording, and browser-based configuration.

Key Features

• All-In-One Production Studio: Combines switching, streaming, recording, audio mixing, monitoring, and camera control in one portable case.
• 4-Channel Video Switching: Provides three HDBaseT inputs and one HDMI input for flexible live production source routing.
• HDBaseT Camera Integration: Sends video, power, control, and tally over a single Cat-6A cable up to 328 ft with compatible cameras.

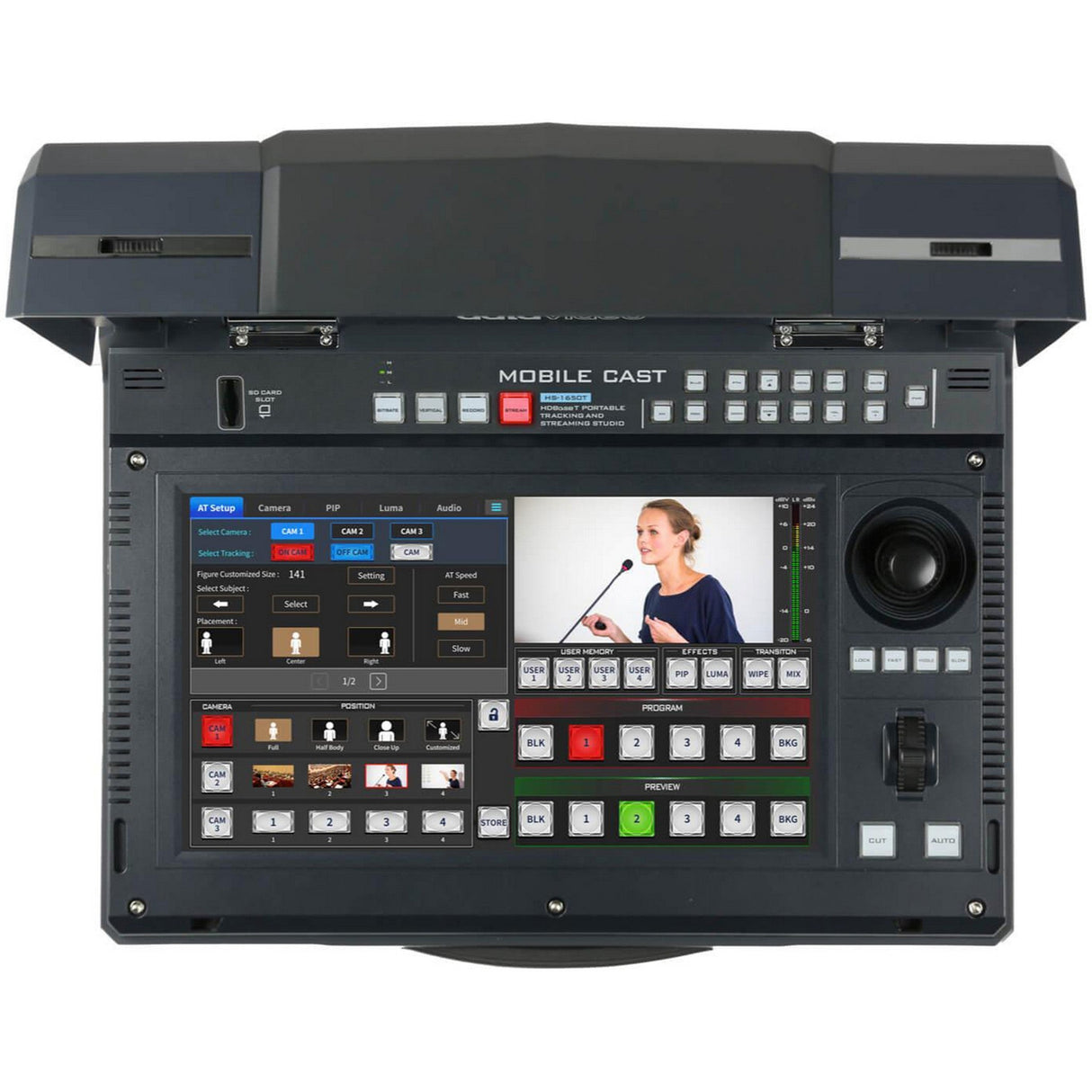

• 14" Touchscreen Control: Enables intuitive switching, PTZ control, camera adjustment, and AI tracking operation.

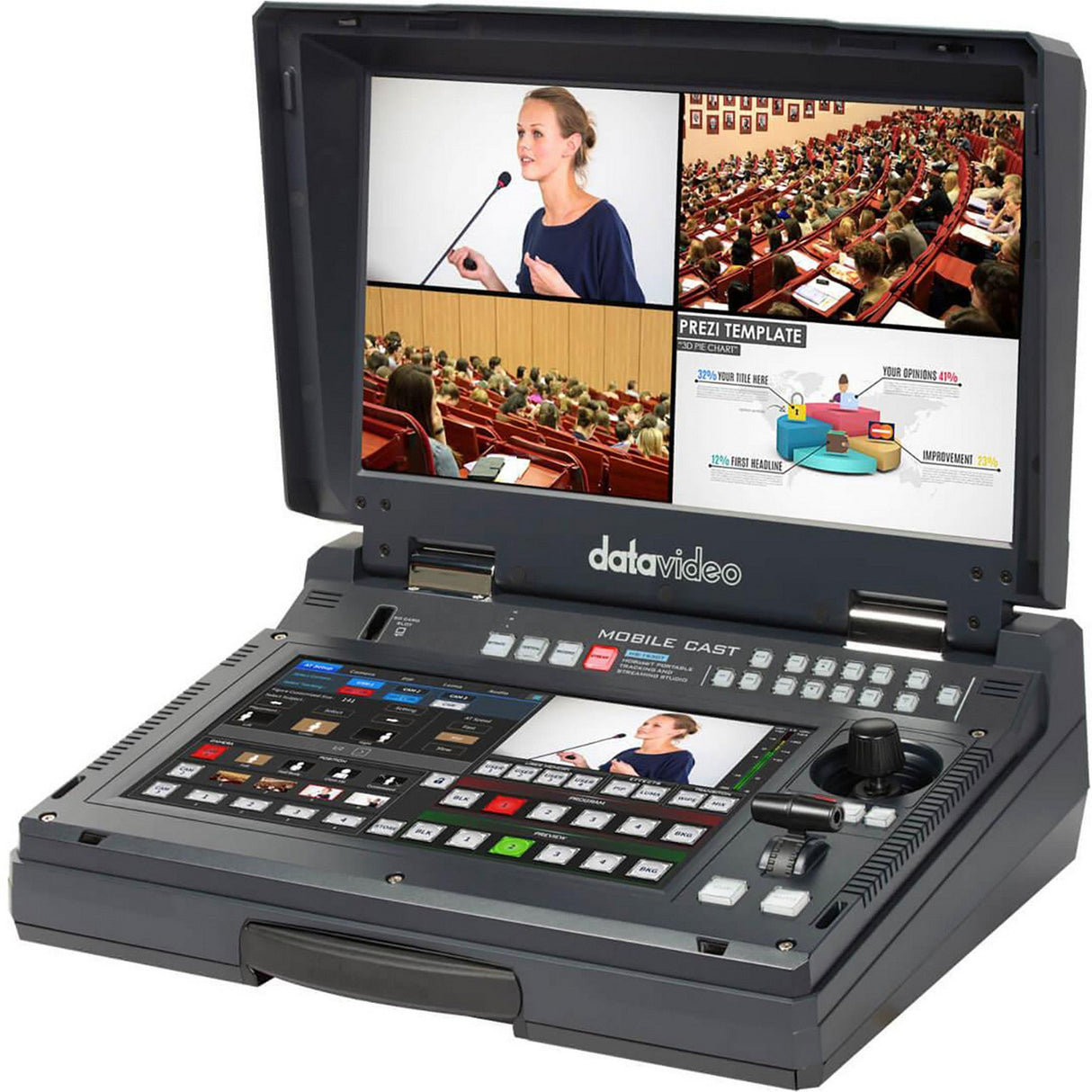

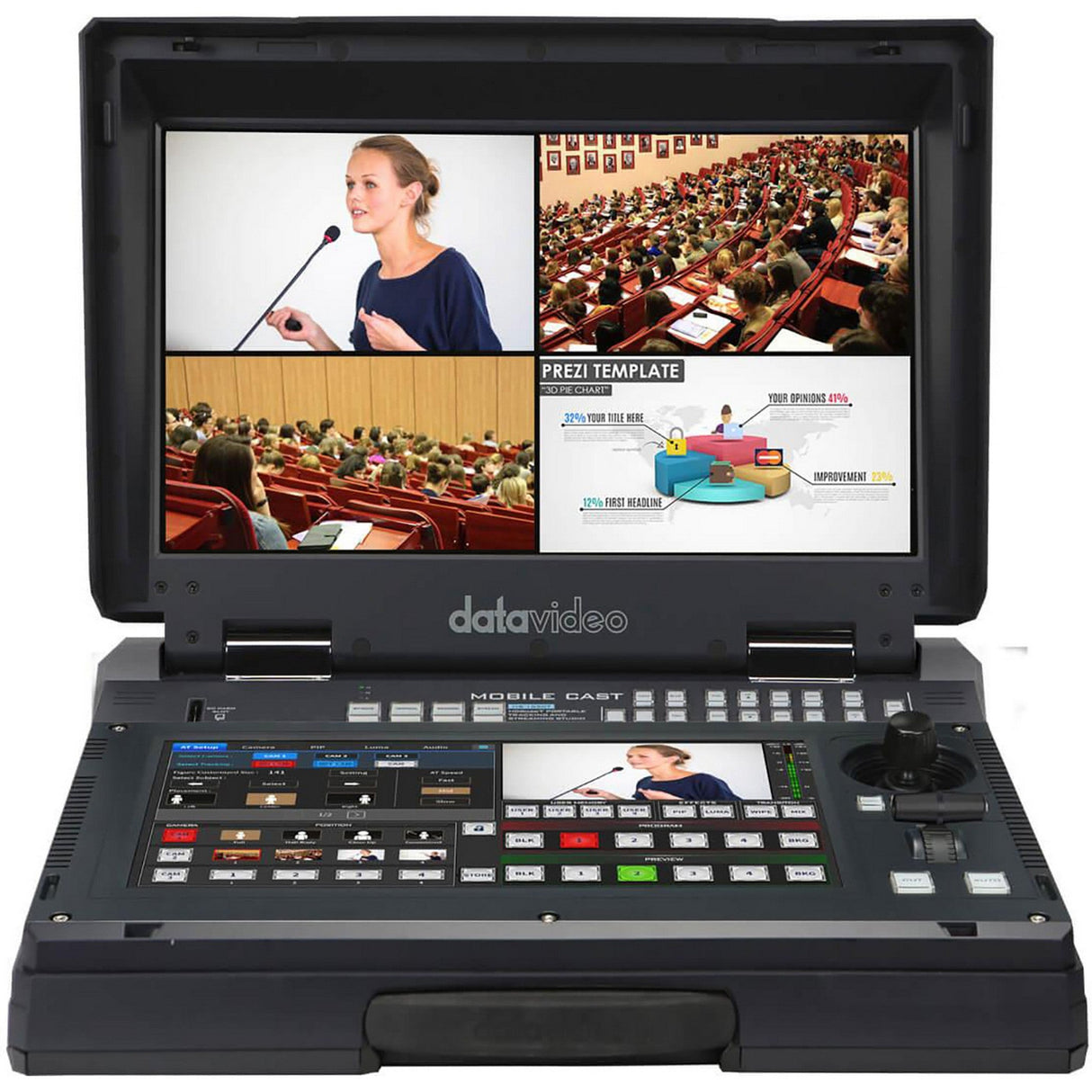

• Built-In 17.3" Monitor: Integrated HD TFT LED display provides 1920 x 1080 multiview monitoring inside the portable case.
• H.264 Streaming and Recording: Supports live streaming plus MP4 recording to SD card for web-ready video capture.
• PTZ Camera Control: Controls up to three Datavideo PTZ cameras with pan, tilt, zoom, video settings, and preset recall.
• Professional Audio Inputs: Includes balanced XLR audio, stereo RCA audio, embedded digital audio, and a 4-channel audio mixer.

Technical Specifications

• Brand: Datavideo
• Model: HS-1650T
• Product Type: HDBaseT portable tracking and streaming studio
• Video Standard: HD and SD
• Video Formats: 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz; 576i/p 50Hz; 480i/p 59.94Hz

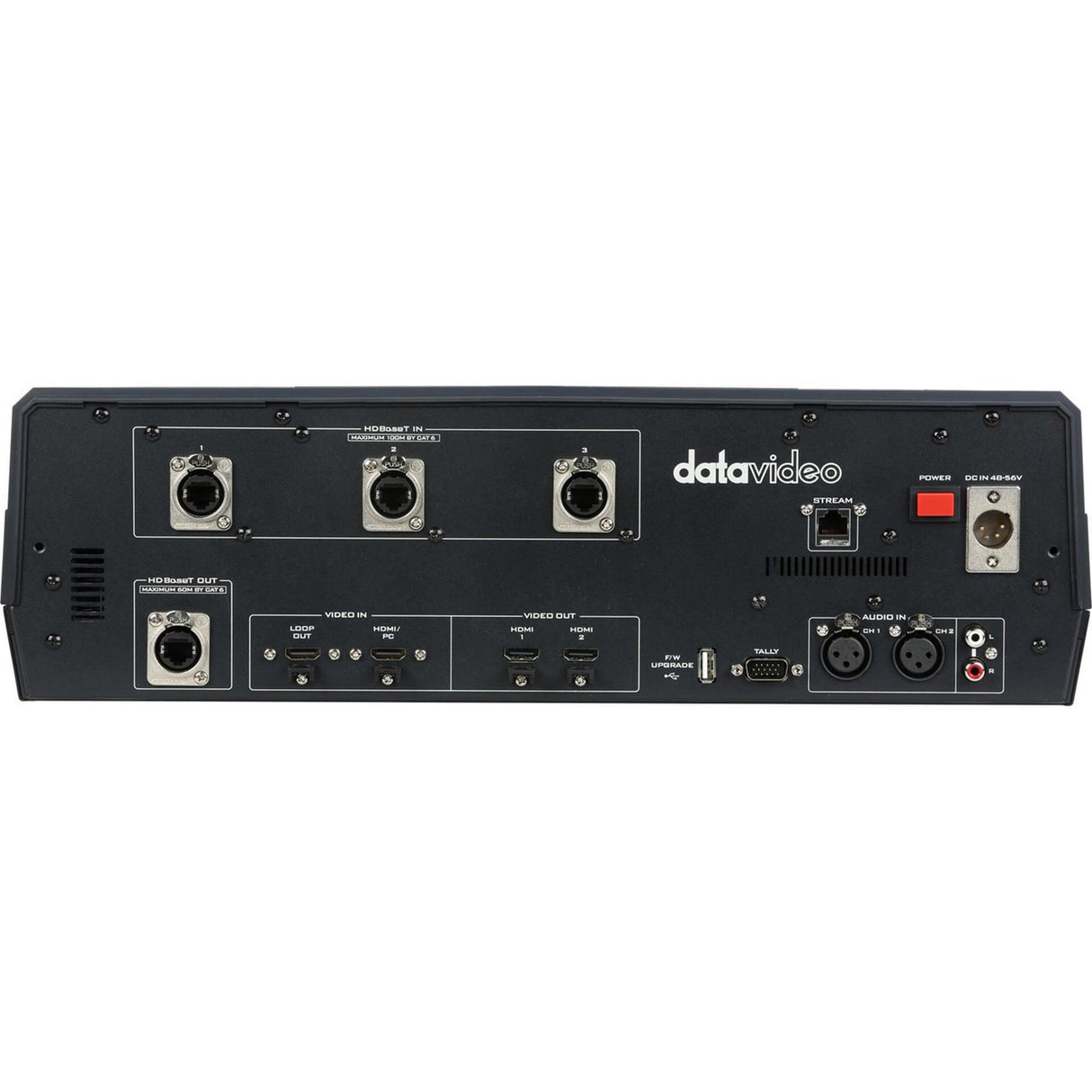

• Video Inputs: 3 x HDBaseT, 1 x HDMI
• Computer Graphic Interface: 1 via HDMI
• Down-Converted Output: Yes
• Video Outputs: 3 x HDMI PGM, 1 x HDBaseT PGM, 1 x stream RJ-45
• Video Sampling: 4:4:4 10-bit
• Analog Audio Inputs: 2 x balanced XLR, 1 x stereo RCA L/R, de-embedded digital audio
• Analog Audio Output: 1 x stereo headphone
• Digital Embedded Audio Support: 2-channel input and 2-channel output
• Upstream Keyer: 1 x USK with Lumakey support
• Picture-in-Picture: 1
• Built-In Audio Mixer: 4 channels
• Built-In Monitor Display: 17.3" HD TFT LED backlit display, 1920 x 1080
• Touchscreen Control: 14" touchscreen
• Built-In Camera Controller: Supports control of up to 3 Datavideo PTZ cameras
• Camera Presets: Up to 12 total presets, with 4 presets per camera across 3 cameras
• Streaming Video Encode: H.264 / AVC, Main / High Profile
• Streaming Bit Rate: Configurable up to 10 Mbps
• Streaming Audio Encode: AAC-LC
• Streaming Audio Bit Rate: 32 Kbps to 384 Kbps configurable
• Streaming Audio Sample Rate: 48 kHz, 16-bit
• Streaming Protocols: TS over TCP/UDP unicast and multicast, RTSP over HTTP/TCP/UDP, RTMP/RTMPS publish, HLS, and SRT
• Streaming Control: Web browser UI for configuration and control, plus socket commands
• Recording File System: FAT, exFAT, NTFS
• Recording File Format: MP4
• Streaming and Recording Control: Web UI for system configuration and control
• Power: DC 48V, 4.16A
• Operating Temperature: 32°F to 104°F
• Case Type: Reinforced plastic case
• Dimensions: 17.91" L x 13.98" W x 5.28" H
• Weight: 17.2 lb

What's Included

• Datavideo HS-1650T Product: HDBaseT portable tracking and streaming studio.
• AD Switch DC 56V with AC Cord: Power supply and AC cord for system operation.
• Ethernet Cables: 3 cables for HDBaseT camera and network connectivity.
